ZZE111L-AWMNKW (1999)

Toyota Corolla Sed/Wg

Production Oct 1999 - Jul 2001
Engine 4ZZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9910- )3ZZFE,4ZZFE

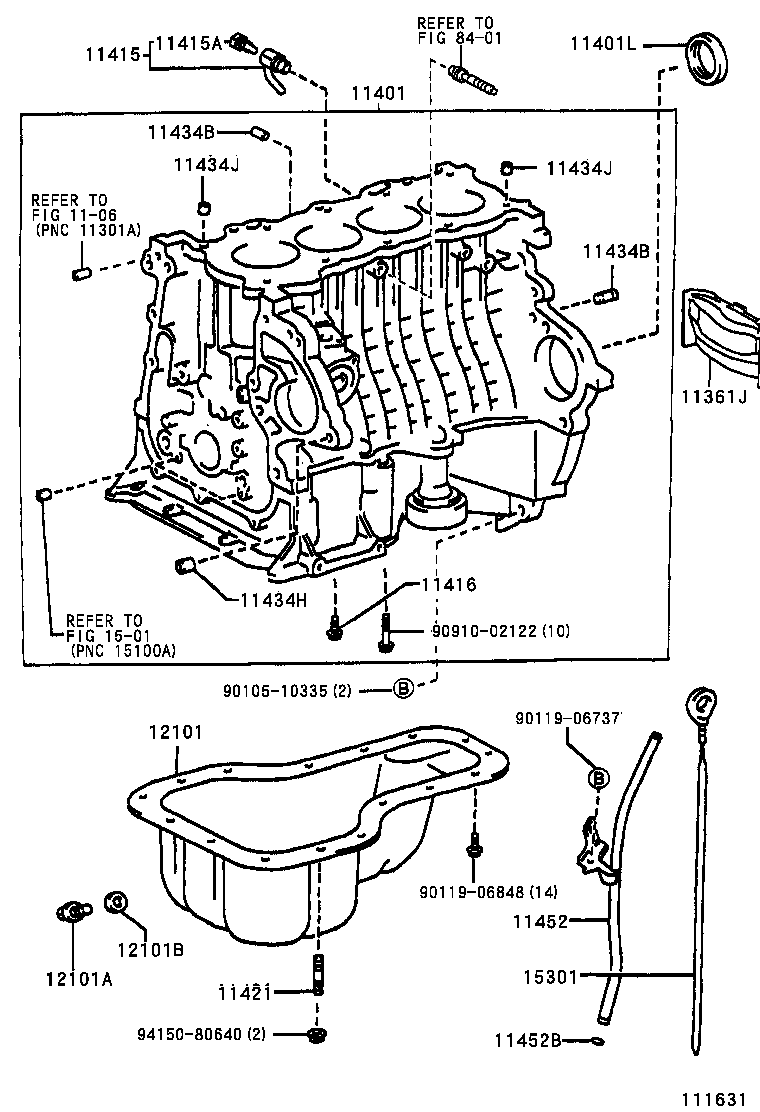

Click highlighted areas on diagram

diagram 1106 11361J 11401 11401L 11415 11415A 11416 11421 11434B 11434B 11434H 11434J 11434J 11452 11452B 12101 12101A 12101B 1501 15301 8401 9010510335 9011906737 9011906848 9091002122 9415080640
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11410-29046

4ZZFE..ZZE111

 1
11410-29045

4ZZFE..ZZE111

 1
Common parts
90105-10335
90119-06737
90119-06848
90910-02122
94150-80640
Linked diagrams
1106
1501
8401
