ZZE111L-AWMDKW (1999)

Toyota Corolla Sed/Wg

Production Oct 1999 - Sep 2001
Engine 4ZZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9910- )3ZZFE,4ZZFE..5F

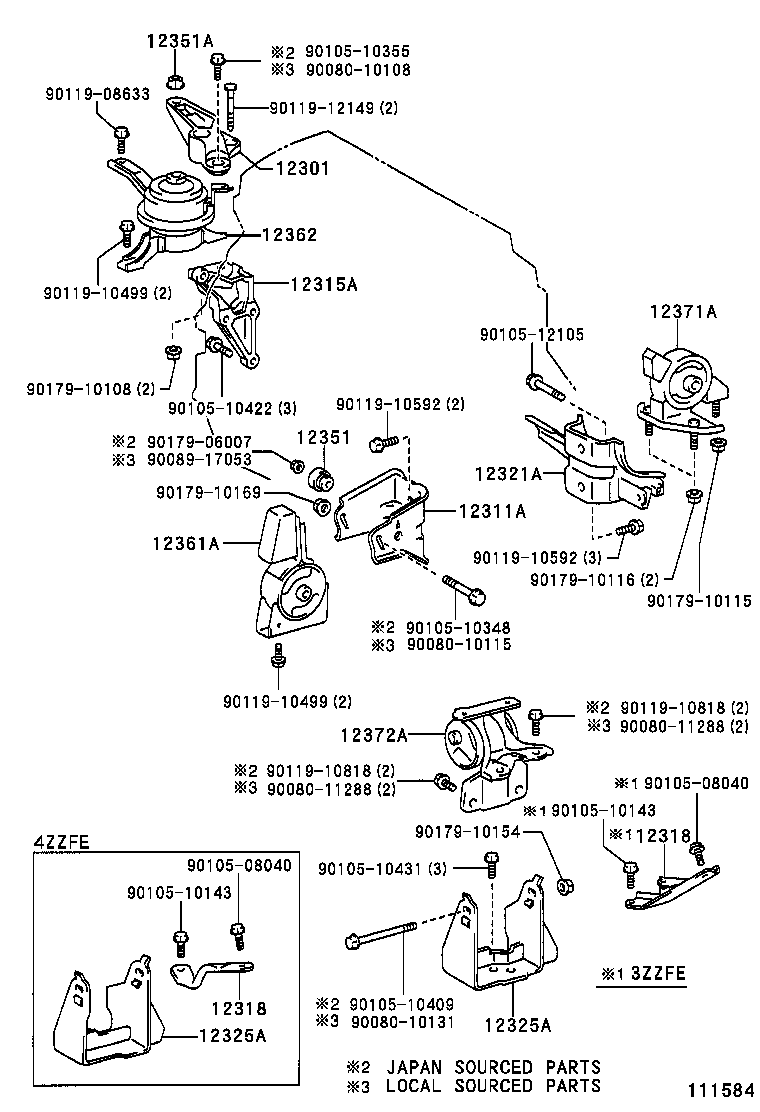

Click highlighted areas on diagram

diagram 12301 12311A 12315A 12318 12318 12321A 12325A 12325A 12351 12351A 12361A 12362 12371A 12372A 9008010108 9008010115 9008010131 9008011288 9008011288 9008917053 9010508040 9010508040 9010510143 9010510143 9010510348 9010510355 9010510409 9010510422 9010510431 9010512105 9011908633 9011910499 9011910499 9011910592 9011910592 9011910818 9011910818 9011912149 9017906007 9017910108 9017910115 9017910116 9017910154 9017910169
Part # Description Qty Price
12301 - BRACKET SUB-ASSY, ENGINE MOUNTING, FRONT RH
12301-22040

3ZZFE,4ZZFE..ZZE11#

 1
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-22050

3ZZFE,4ZZFE..ZZE11#

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-22010

3ZZFE,4ZZFE..ZZE11#

 1
12318 - STAY, ENGINE MOUNTING, LH
12318-11050

4ZZFE..ZZE111

 1
12318 - STAY, ENGINE MOUNTING, LH
12318-11050

4ZZFE..ZZE111

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-22050

3ZZFE,4ZZFE..ZZE11#..5F

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-15131

4ZZFE..ZZE111

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-15131

4ZZFE..ZZE111

 1
12351 - DAMPER, ENGINE MOUNTING
12351-15060

3ZZFE,4ZZFE..ZZE11#

 1
12351A - DAMPER, ENGINE MOUNTING(FOR INSULATOR)
12351-22040

3ZZFE,4ZZFE..ZZE11#

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-22010

3ZZFE,4ZZFE..ZZE11#..5F

 1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12362-22020

3ZZFE,4ZZFE..ZZE11#

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-22040

3ZZFE,4ZZFE..ZZE11#..5F

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-16380

3ZZFE,4ZZFE..ZZE11#..5F

 1
Common parts
90080-10108
90080-10115
90080-10131
90080-11288
90089-17053
90105-08040
90105-10143
90105-10348
90105-10355
90105-10409
90105-10422
90105-10431
90105-12105
90119-08633
90119-10499
90119-10592
90119-10818
90119-12149
90179-06007
90179-10108
90179-10115
90179-10116
90179-10154
90179-10169
