ZZE111L-AEMRKW (1999)
Toyota Corolla Sed/Wg
Production
Oct 1999
-
Sep 2001
Engine
4ZZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9910- )ZZE11#

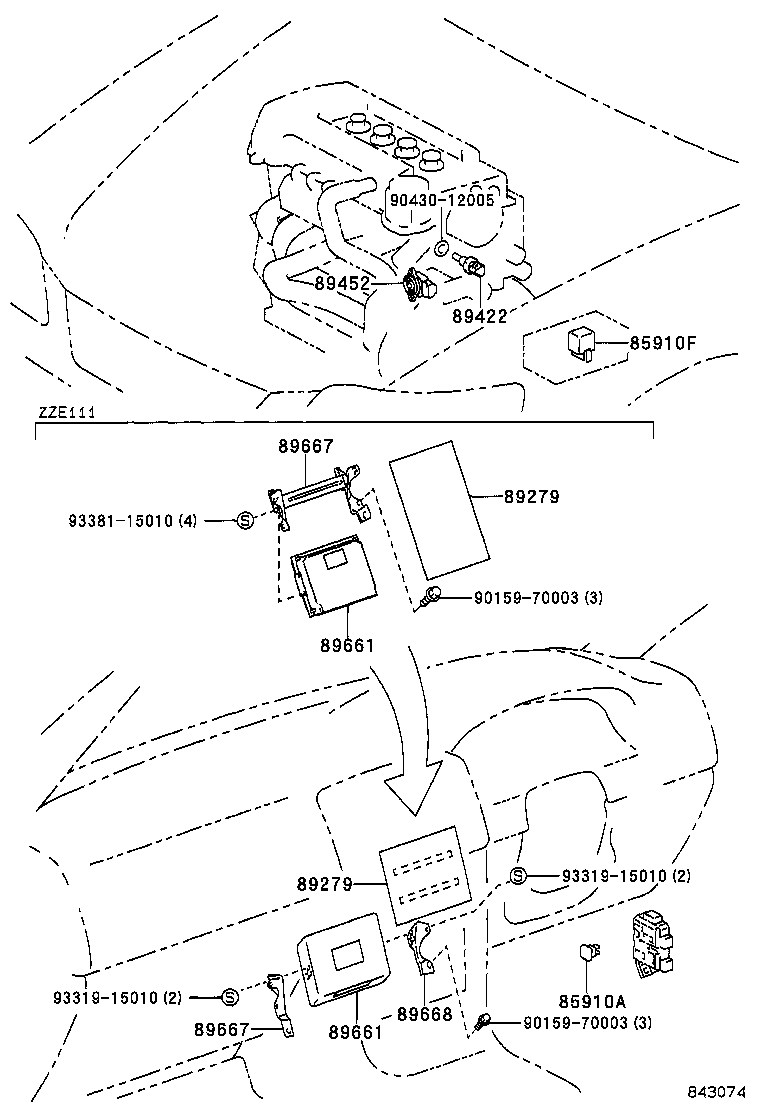

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI) | ||||
| 90987-02012 |
AE115,ZZE11# |
1 | ||
| 85910F - RELAY, COMPUTER (FOR EFI) | ||||
| 90987-02012 |
AE115,ZZE11# |
1 | ||
| 89279 - COVER, ENGINE CONTROL COMPUTER | ||||
| 89279-12140 |
ZZE111 |
1 | ||
| 89279 - COVER, ENGINE CONTROL COMPUTER | ||||
| 89279-12140 |
ZZE111 |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-16010 |
ZZE11# |
1 | ||
| 89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.) | ||||
| 89452-05010 |
ZZE111 |
1 | ||
| 89661 - COMPUTER, ENGINE CONTROL | ||||
| 89661-0W140 |
ZZE111..LHD LEADED GASOLINE SPEC |
1 | ||
| 89661-0W140 |
ZZE111 LEADED GASOLINE SPEC |
1 | ||
| 89661-0W141 |
ZZE111 LEADED GASOLINE SPEC |
1 | ||
| 89661-0W130 |
ZZE111 |
1 | ||
| 89661-0W131 |
ZZE111 |
1 | ||
| 89661-0W142 |
ZZE111 LEADED GASOLINE SPEC |
1 | ||
| 89661-0W132 |
ZZE111 |
1 | ||
| 89661-0W133 |
ZZE111 |
1 | ||
| 89661-0W143 |
ZZE111 LEADED GASOLINE SPEC |
1 | ||
| 89661 - COMPUTER, ENGINE CONTROL | ||||
| 89661-0W140 |
ZZE111..LHD LEADED GASOLINE SPEC |
1 | ||
| 89661-0W140 |
ZZE111 LEADED GASOLINE SPEC |
1 | ||
| 89661-0W141 |
ZZE111 LEADED GASOLINE SPEC |
1 | ||
| 89661-0W130 |
ZZE111 |
1 | ||
| 89661-0W131 |
ZZE111 |
1 | ||
| 89661-0W142 |
ZZE111 LEADED GASOLINE SPEC |
1 | ||
| 89661-0W132 |
ZZE111 |
1 | ||
| 89661-0W133 |
ZZE111 |
1 | ||
| 89661-0W143 |
ZZE111 LEADED GASOLINE SPEC |
1 | ||
| 89667 - BRACKET, ENGINE CONTROL COMPUTER | ||||
| 89667-12180 |
ZZE111 |
1 | ||
| 89667 - BRACKET, ENGINE CONTROL COMPUTER | ||||
| 89667-12180 |
ZZE111 |
1 | ||
| Common parts | ||||
| 90159-70003 | ||||
| 90430-12005 | ||||
| 93319-15010 | ||||
| 93381-15010 | ||||
