Toyota Corolla sed/wg ZZE111 RADIATOR & WATER OUTLET

Part #	Description	Period	Qty
16261 - HOSE, WATER BY-PASS
16261-22020	3ZZFE,4ZZFE..ZZE11#	10/1999 - 05/2000	1
16261-22080	3ZZFE,4ZZFE..ZZE11#	05/2000 - 09/2001	1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96135-41300	3ZZFE,4ZZFE..ZZE11#	10/1999 - 09/2001	2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96135-41300	3ZZFE,4ZZFE..ZZE11#	10/1999 - 09/2001	2
16264 - HOSE, WATER BY-PASS, NO.2
16264-22060	3ZZFE,4ZZFE..ZZE11#	10/1999 - 09/2001	1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
96135-41300	3ZZFE,4ZZFE..ZZE11#	10/1999 - 09/2001	2
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
96135-41300	3ZZFE,4ZZFE..ZZE11#	10/1999 - 09/2001	2
16268 - PIPE, WATER BY-PASS, NO.1
16268-22090	3ZZFE,4ZZFE..ZZE11#	10/1999 - 09/2001	1
16268G - GASKET(FOR WATER BY-PASS PIPE)
16258-22010	3ZZFE,4ZZFE..ZZE11#	10/1999 - 09/2001	1
16321 - INLET, WATER
16321-22050	3ZZFE,4ZZFE..ZZE11#	10/1999 - 04/2000	1
16321-22070	3ZZFE,4ZZFE..ZZE11#	04/2000 - 09/2001	1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-62010	3ZZFE,4ZZFE..ZZE11#	10/1999 - 09/2001	1
16331A - THERMOSTAT
90916-03125	3ZZFE,4ZZFE..ZZE11# *WAX 82-95	07/2000 - 09/2001	1
90916-03084	3ZZFE,4ZZFE..ZZE11# *WAX 82-95	10/1999 - 07/2000	1
16361 - FAN
16361-0D040	3ZZFE,4ZZFE..ZZE11# MARK 374	10/1999 - 09/2001	1
16361-22070	3ZZFE,4ZZFE..ZZE11# MARK 384	10/1999 - 09/2001	1
16361B - FAN, NO.2
16361-0D050	3ZZFE,4ZZFE..ZZE11# MARK 375	10/1999 - 09/2001	1
16361-22080	3ZZFE,4ZZFE..ZZE11# MARK 385	10/1999 - 09/2001	1
16363 - MOTOR, COOLING FAN
16363-23010	3ZZFE,4ZZFE..ZZE11#	10/1999 - 09/2001	1
16363A - MOTOR, COOLING FAN, NO.2
16363-22010	3ZZFE,4ZZFE..ZZE11#	10/1999 - 09/2001	1
16400 - RADIATOR ASSY
16400-22090	4ZZFE..ZZE111 MARK 2209	10/1999 - 09/2001	1
16400-0D060	4ZZFE..ZZE111 MARK 0D06	10/1999 - 09/2001	1
16470 - TANK ASSY, RADIATOR RESERVE
16470-22040	3ZZFE,4ZZFE..ZZE11#	10/1999 - 09/2001	1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12078	3ZZFE,4ZZFE..ZZE11# *H,L=250	10/1999 - 09/2001	1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085	3ZZFE,4ZZFE..ZZE11#	10/1999 - 09/2001	2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085	3ZZFE,4ZZFE..ZZE11#	10/1999 - 09/2001	2
16471 - CAP SUB-ASSY, RESERVE TANK
16405-22020	3ZZFE,4ZZFE..ZZE11#	10/1999 - 09/2001	1
16533 - SUPPORT, RADIATOR, UPPER
16533-15120	3ZZFE,4ZZFE..ZZE11# (J)	10/1999 - 09/2001	2
16533-02020	3ZZFE,4ZZFE..ZZE11# (L)	10/1999 - 09/2001	2
16535 - SUPPORT, RADIATOR, LOWER
90916-04006	3ZZFE,4ZZFE..ZZE11#	10/1999 - 09/2001	2
16571 - HOSE, RADIATOR, INLET
16571-22030	3ZZFE,4ZZFE..ZZE11#	10/1999 - 09/2001	1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-34003	3ZZFE,4ZZFE..ZZE11#	10/1999 - 09/2001	2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-34003	3ZZFE,4ZZFE..ZZE11#	10/1999 - 09/2001	2
16572 - HOSE, RADIATOR, OUTLET
16572-22030	3ZZFE,4ZZFE..ZZE11#	10/1999 - 09/2001	1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-34003	3ZZFE,4ZZFE..ZZE11# NO.2	10/1999 - 09/2001	1
90466-37002	3ZZFE,4ZZFE..ZZE11# NO.1	10/1999 - 09/2001	1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-34003	3ZZFE,4ZZFE..ZZE11# NO.2	10/1999 - 09/2001	1
90466-37002	3ZZFE,4ZZFE..ZZE11# NO.1	10/1999 - 09/2001	1
16711 - SHROUD, FAN
16711-22080	3ZZFE,4ZZFE..ZZE11# TYPE B:REFER TO ILLUSTRATION	10/1999 - 09/2001	1
16711-0D030	3ZZFE,4ZZFE..ZZE11# TYPE A:REFER TO ILLUSTRATION	10/1999 - 09/2001	1
Common parts
82711-1E360
90069-02027
90069-03010
90080-10185
90099-04117
90099-04119
90099-05164
90126-06009
90126-06012
90179-06307
91511-80614
91621-B0814
91651-B0616
94150-10641
94150-80640
Linked diagrams
2211
4703
7403
8716

Part #	Description	Period	Qty
16400 - RADIATOR ASSY
16400-22090	4ZZFE..ZZE111 MARK 2209	10/1999 - 09/2001	1
16400-0D060	4ZZFE..ZZE111 MARK 0D06	10/1999 - 09/2001	1
16400B - PLUG, RADIATOR DRAIN COCK
23322-54010	3ZZFE,4ZZFE..ZZE11#	10/1999 - 09/2001	1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16492-21050	3ZZFE,4ZZFE..ZZE11#	10/1999 - 09/2001	1
16401 - CAP SUB-ASSY, RADIATOR
16401-72090	3ZZFE,4ZZFE..ZZE11#	10/1999 - 09/2001	1
16403F - CORE SUB-ASSY, RADIATOR
16403-22100	4ZZFE..ZZE111;3ZZFE..ZZE112..4FC	10/1999 - 09/2001	1
16441 - TANK, RADIATOR, UPPER
16441-22100	3ZZFE,4ZZFE..ZZE11#	10/1999 - 09/2001	1
16442 - RING, O(FOR RADIATOR UPPER TANK)
16462-42240	3ZZFE,4ZZFE..ZZE11#	10/1999 - 09/2001	1
16461 - TANK, RADIATOR, LOWER
16461-22090	3ZZFE,4ZZFE..ZZE11#..5F	10/1999 - 09/2001	1
16462 - RING, O(FOR RADIATOR LOWER TANK)
16462-42240	3ZZFE,4ZZFE..ZZE11#	10/1999 - 09/2001	1

ZZE111L-AEMNKW (1999)

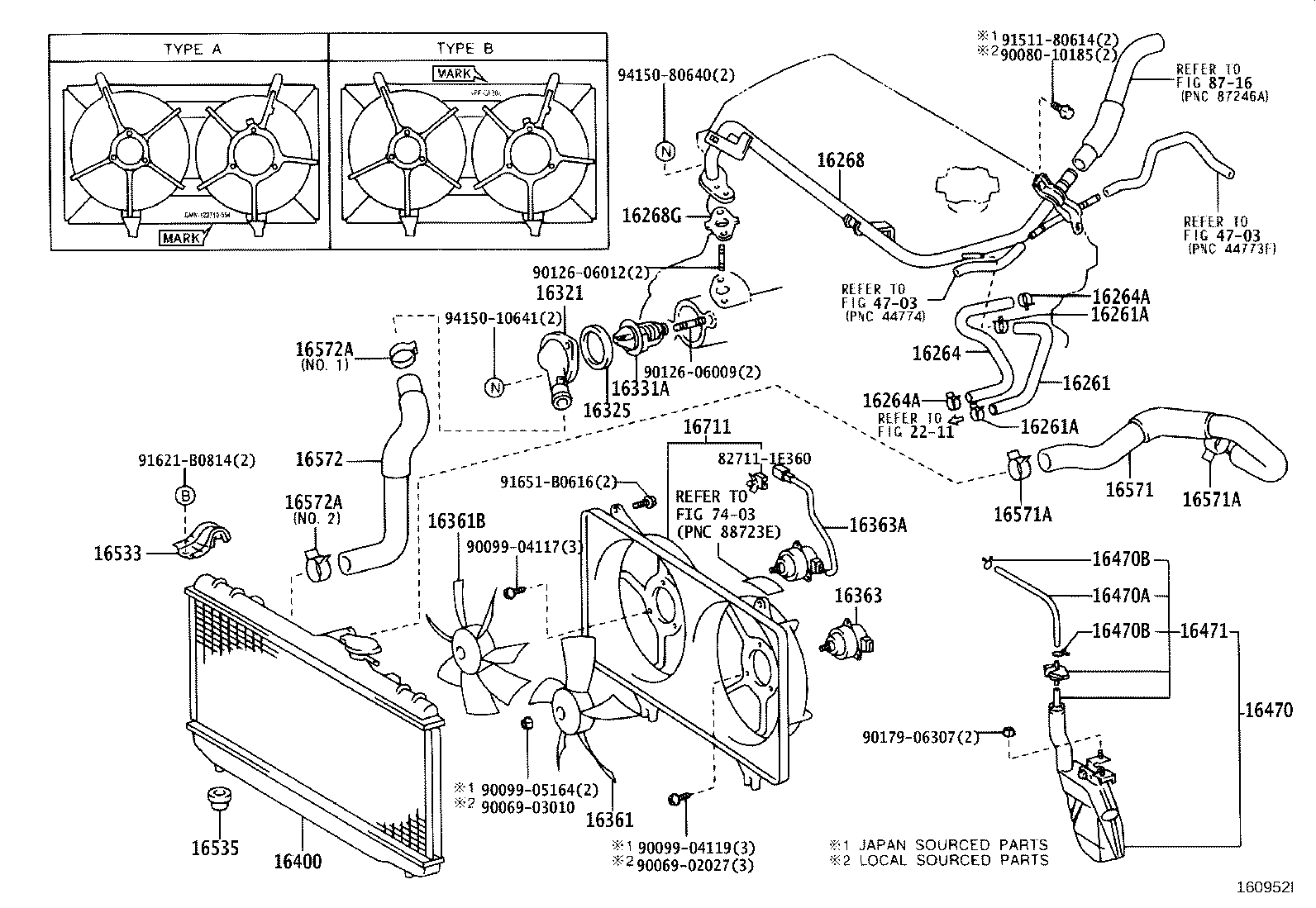

ILLUST NO. 1 OF 2(9910- )3ZZFE,4ZZFE

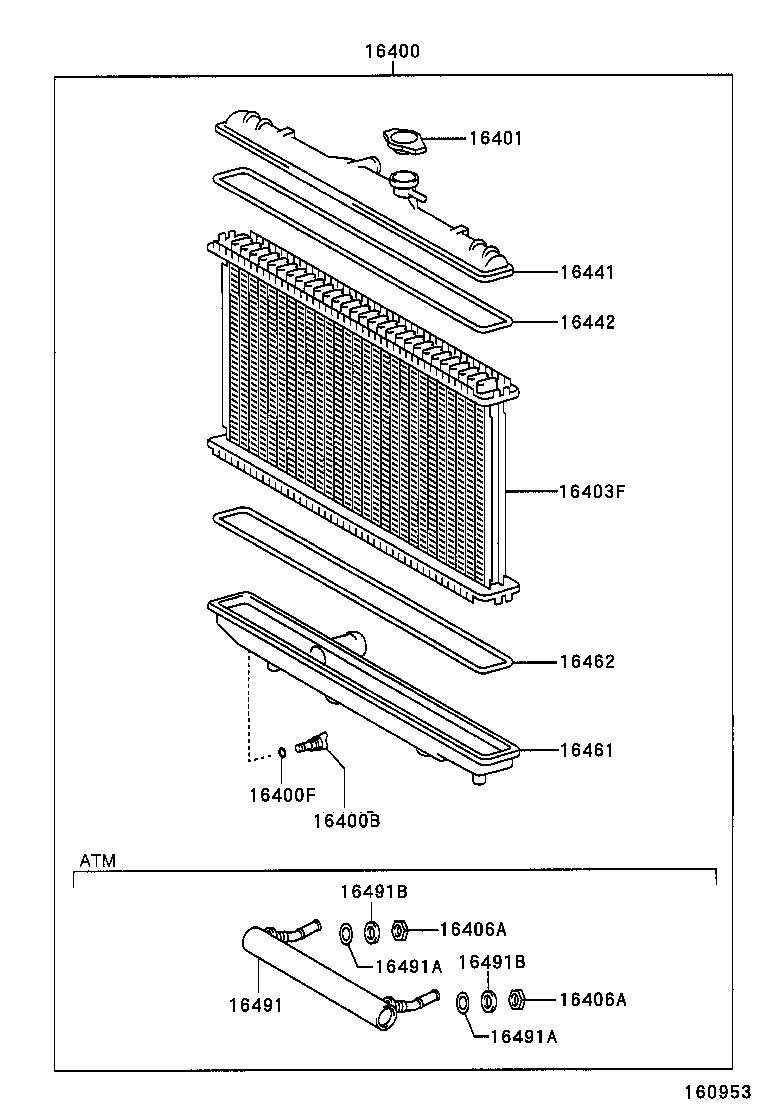

ILLUST NO. 2 OF 2(9910- )3ZZFE,4ZZFE
