WZE110L-AWMNSW (2000)

Toyota Corolla Sed/Wg

Production Jan 2000 - Jul 2001
Engine 1WZ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0001- )WZE110..LHD

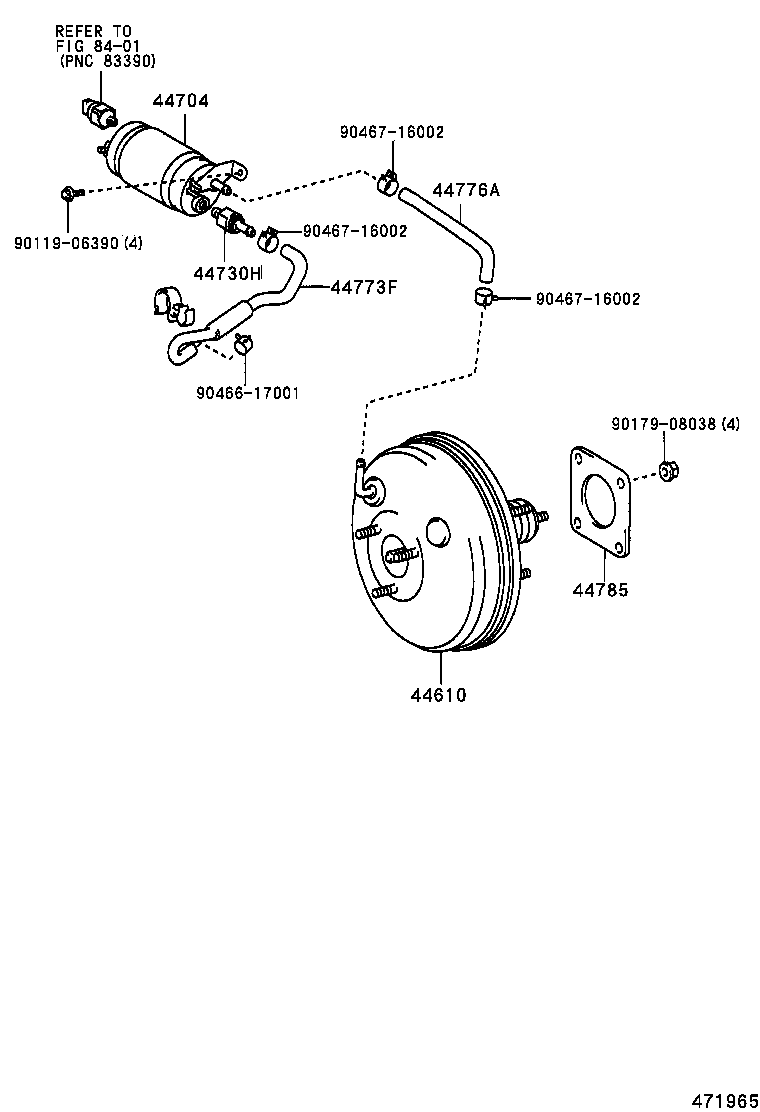

Click highlighted areas on diagram

diagram 44610 44704 44730H 44773F 44776A 44785 8401 9011906390 9017908038 9046617001 9046716002 9046716002 9046716002
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-1E410

WZE110..LHD

 1
44610-1E440

WZE110..LHD

W(ABS)

 1
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-12100

WZE110..LHD

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-12670

WZE110

 1
Common parts
90119-06390
90179-08038
90466-17001
90467-16002
Linked diagrams
8401
