WZE110L-AEMDSW (2000)
Toyota Corolla Sed/Wg

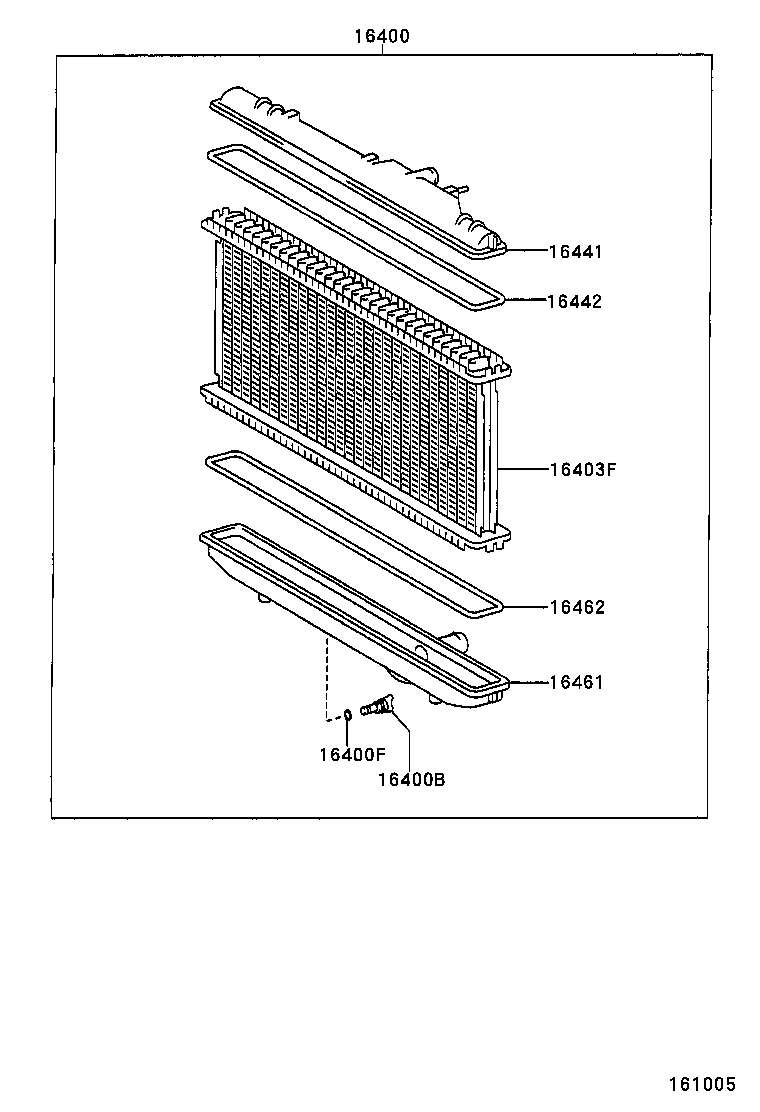

ILLUST NO. 2 OF 2(0001- )1WZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-53010 |
1WZ..WZE110 MARK 5301 |
1 | ||
| 16400-53020 |
1WZ..WZE110 MARK 5302 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
1WZ..WZE110 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
1WZ..WZE110 |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-27020 |
1WZ..WZE110 |
1 | ||
| 16403-16730 |
1WZ..WZE110 |
1 | ||
| 16403-16740 |
1WZ..WZE110 W(AIR CONDITIONER) |
1 | ||
| 16441 - TANK, RADIATOR, UPPER | ||||
| 16441-53010 |
1WZ..WZE110 |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16462-62050 |
1WZ..WZE110 |
1 | ||
| 16461 - TANK, RADIATOR, LOWER | ||||
| 16461-53010 |
1WZ..WZE110 |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-62050 |
1WZ..WZE110 |
1 | ||

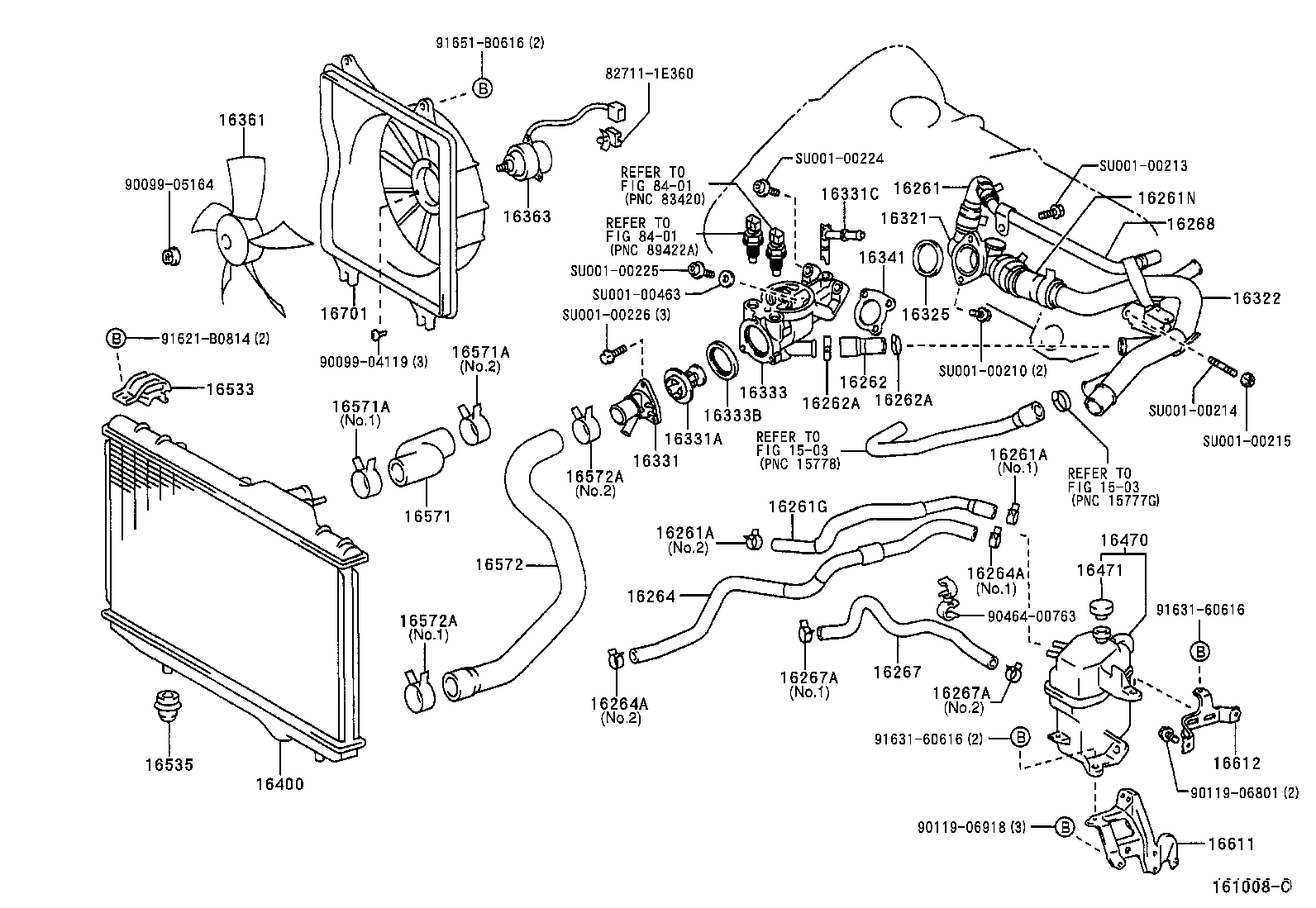

ILLUST NO. 1 OF 2(0001- )1WZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-0X010 |
1WZ..WZE110 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-17011 |
1WZ..WZE110 NO.1 |
1 | ||
| 90467-15025 |
1WZ..WZE110 NO.2 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-17011 |
1WZ..WZE110 NO.1 |
1 | ||
| 90467-15025 |
1WZ..WZE110 NO.2 |
1 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-53010 |
1WZ..WZE110 |
1 | ||
| 16261N - HOSE, WATER BY-PASS, NO.2 | ||||
| SU001-00211 |
1WZ..WZE110 |
1 | ||
| 16262 - HOSE, WATER INLET | ||||
| SU001-00212 |
1WZ..WZE110 |
1 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| SU001-00216 |
1WZ..WZE110 |
2 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| SU001-00216 |
1WZ..WZE110 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-53010 |
1WZ..WZE110 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-17011 |
1WZ..WZE110 NO.1 |
1 | ||
| 90467-15025 |
1WZ..WZE110 NO.2 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-17011 |
1WZ..WZE110 NO.1 |
1 | ||
| 90467-15025 |
1WZ..WZE110 NO.2 |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-53010 |
1WZ..WZE110 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96134-52100 |
1WZ..WZE110 NO.1 |
1 | ||
| 90466-23001 |
1WZ..WZE110 NO.2 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96134-52100 |
1WZ..WZE110 NO.1 |
1 | ||
| 90466-23001 |
1WZ..WZE110 NO.2 |
1 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-0X010 |
1WZ..WZE110 |
1 | ||
| 16321 - INLET, WATER | ||||
| SU001-00206 |
1WZ..WZE110 |
1 | ||
| 16322 - PIPE, WATER INLET | ||||
| 16322-0X010 |
1WZ..WZE110 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| SU001-00207 |
1WZ..WZE110 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| SU001-00221 |
1WZ..WZE110 |
1 | ||
| 16331A - THERMOSTAT | ||||
| SU001-00223 |
1WZ..WZE110 |
1 | ||
| 16331C - ELBOW(FOR WATER OUTLET) | ||||
| SU001-00218 |
1WZ..WZE110 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| SU001-00217 |
1WZ..WZE110 |
1 | ||
| 16333B - RING, O(FOR WATER OUTLET HOUSING) | ||||
| SU001-00222 |
1WZ..WZE110 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| SU001-00219 |
1WZ..WZE110 |
1 | ||
| 16361 - FAN | ||||
| 16361-53010 |
1WZ..WZE110 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-53010 |
1WZ..WZE110 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-53010 |
1WZ..WZE110 MARK 5301 |
1 | ||
| 16400-53020 |
1WZ..WZE110 MARK 5302 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-53010 |
1WZ..WZE110 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16401-53010 |
1WZ..WZE110 |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-64120 |
1WZ..WZE110 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90916-04009 |
1WZ..WZE110 |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-53010 |
1WZ..WZE110 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-38002 |
1WZ..WZE110 NO.2 |
1 | ||
| 90467-37005 |
1WZ..WZE110 NO.1 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-38002 |
1WZ..WZE110 NO.2 |
1 | ||
| 90467-37005 |
1WZ..WZE110 NO.1 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-53010 |
1WZ..WZE110 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37005 |
1WZ..WZE110 NO.1 |
1 | ||
| 90467-36001 |
1WZ..WZE110 NO.2 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37005 |
1WZ..WZE110 NO.1 |
1 | ||
| 90467-36001 |
1WZ..WZE110 NO.2 |
1 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-53010 |
1WZ..WZE110 |
1 | ||
| 16612 - BRACKET, RADIATOR RESERVE TANK, NO.2 | ||||
| 16612-53010 |
1WZ..WZE110 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-53010 |
1WZ..WZE110 |
1 | ||
| 16711-27090 |
1WZ..WZE110 |
1 | ||
| Common parts | ||||
| 82711-1E360 | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90119-06801 | ||||
| 90119-06918 | ||||
| 90464-00763 | ||||
| 91621-B0814 | ||||
| 91631-60616 | ||||
| 91651-B0616 | ||||
| SU001-00210 | ||||
| SU001-00213 | ||||
| SU001-00214 | ||||
| SU001-00215 | ||||
| SU001-00224 | ||||
| SU001-00225 | ||||
| SU001-00226 | ||||
| SU001-00463 | ||||
| Linked diagrams | ||||
| 1503 | ||||
| 8401 | ||||
