EE111L-AWMDKW (1997)
Toyota Corolla Sed/Wg
(9704- )EE11#..5F ; (9910- )ZZE111

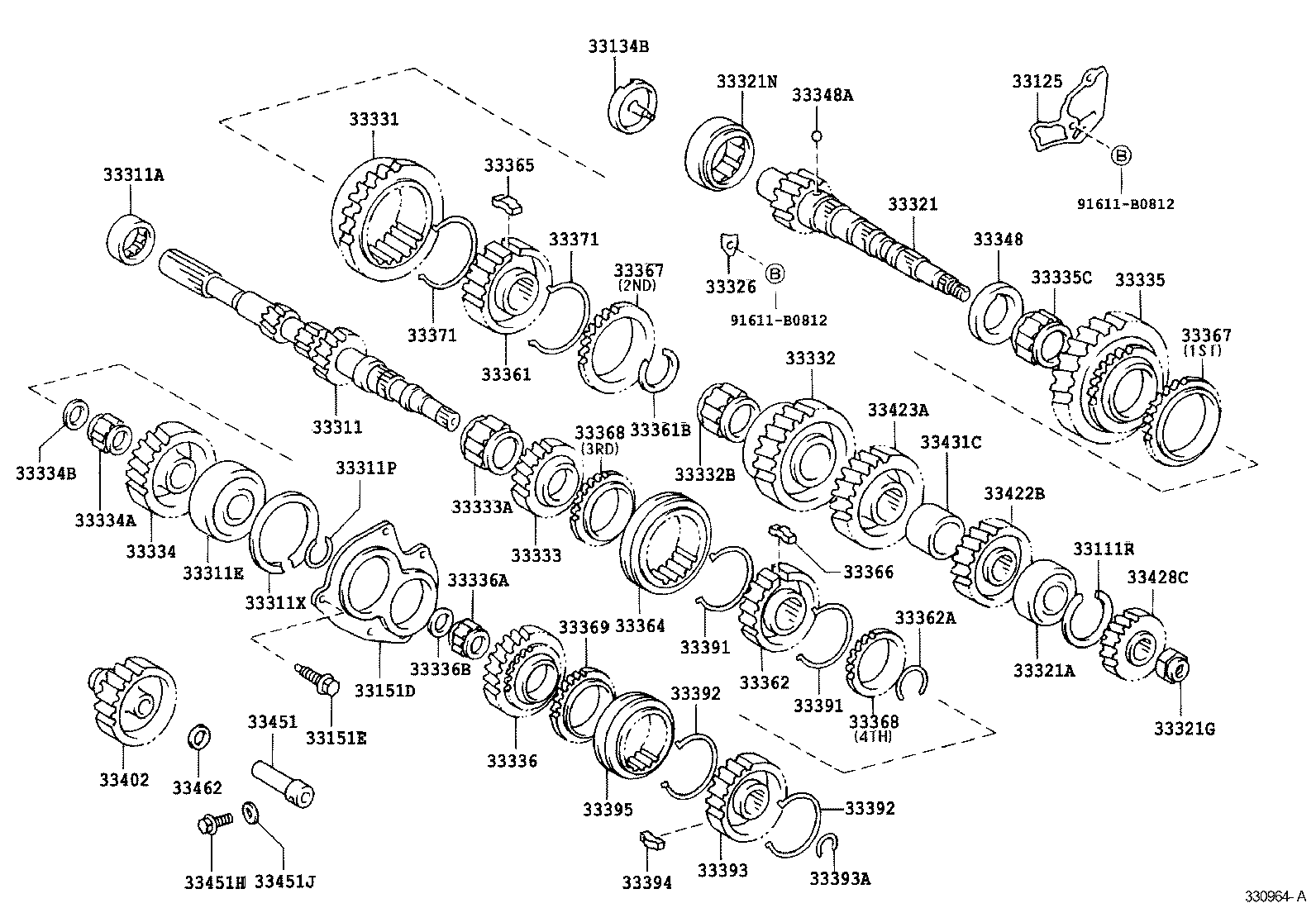

C150
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33111R - RING, HOLE SNAP(FOR OUTPUT SHAFT REAR BEARING) | ||||
| 90520-57002 |
AE111,EE11#..5F |
1 | ||
| 33125 - RECEIVER, MANUAL TRANSAXLE CASE | ||||
| 33125-12011 |
AE111,EE11#..5F |
1 | ||
| 33134B - COVER, OUTPUT SHAFT(MTM) | ||||
| 33134-12022 |
AE111,EE11#..5F |
1 | ||
| 33151D - RETAINER, BEARING, REAR(MTM) | ||||
| 33151-12021 |
AE111,EE11#..5F |
1 | ||
| 33151E - BOLT(FOR REAR BEARING RETAINER) | ||||
| 90119-08944 |
AE111,EE11#..5F |
5 | ||
| 33311 - SHAFT, INPUT | ||||
| 33311-10061 |
EE11#..5F |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90365-25021 |
AE111,EE11#..5F |
1 | ||
| 33311E - BEARING, RADIAL BALL (FOR INPUT SHAFT REAR) | ||||
| 90363-25035 |
EE11#..5F |
1 | ||
| 33311P - RING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING) | ||||
| 90520-22007 |
AE111,EE11#..5F T=2.35-2.40,MARK B |
1 | ||
| 90520-22011 |
AE111,EE11#..5F T=2.59-2.64,MARK F |
1 | ||
| 90520-22009 |
AE111,EE11#..5F T=2.47-2.52,MARK D |
1 | ||
| 90520-22010 |
AE111,EE11#..5F T=2.53-2.58,MARK E |
1 | ||
| 90520-22006 |
AE111,EE11#..5F T=2.29-2.34,MARK A |
1 | ||
| 90520-22008 |
AE111,EE11#..5F T=2.41-2.46,MARK C |
1 | ||
| 33311X - RING, HOLE SNAP (FOR INPUT SHAFT REAR BEARING) | ||||
| 90520-64002 |
AE111,EE11#..5F |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-10071 |
EE11#..5F |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90363-25034 |
EE11#..5F |
1 | ||
| 33321G - NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET) | ||||
| 90179-18005 |
AE111,EE11#..5F |
1 | ||
| 33321N - BEARING (FOR OUTPUT SHAFT FRONT) | ||||
| 90365-33005 |
AE111,EE11#..5F |
1 | ||
| 33326 - PLATE, BEARING LOCK | ||||
| 33326-12010 |
AE111,EE11#..5F |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33331-12022 |
EE11#..5F |
1 | ||
| 33331-12060 |
EE11#..5F |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33033-10030 |
EE11#..5F |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90364-32017 |
EE11#..5F |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33034-10050 |
EE11#..5F |
1 | ||
| 33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR) | ||||
| 90364-31004 |
EE11#..5F |
1 | ||
| 33334 - GEAR, 4TH | ||||
| 33035-20080 |
EE11#..5F |
1 | ||
| 33035-20080 |
AE111,EE11#..5F |
1 | ||
| 33035-12090 |
AE111,EE11#..5F |
1 | ||
| 33334A - BEARING, NEEDLE ROLLER (FOR 4TH GEAR) | ||||
| 90364-29002 |
AE111,EE11#..5F |
1 | ||
| 33334B - SPACER (FOR 4TH GEAR BEARING) | ||||
| 90560-29001 |
AE111,EE11#..5F |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33032-10040 |
EE11#..5F |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-38008 |
EE11#..5F |
1 | ||
| 33336 - GEAR, 5TH | ||||
| 33036-12071 |
EE11#..5F |
1 | ||
| 33036-12100 |
EE11#..5F |
1 | ||
| 33336A - BEARING, NEEDLE ROLLER (FOR 5TH GEAR) | ||||
| 90364-24006 |
AE111,EE11#..5F |
1 | ||
| 33336B - SPACER (FOR 5TH GEAR BEARING) | ||||
| 90560-25006 |
AE111,EE11#..5F |
1 | ||
| 33348 - WASHER, 1ST GEAR THRUST | ||||
| 33348-12010 |
AE111,EE11#..5F |
1 | ||
| 33348A - PIN OR BALL (FOR 1ST GEAR THRUST WASHER) | ||||
| 90360-05012 |
AE111,EE11#..5F |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-12030 |
EE11#..5F |
1 | ||
| 33361B - RING, SHAFT SNAP (FOR CLUTCH HUB NO.1) | ||||
| 90520-29018 |
AE111,EE11#..5F T=2.50-2.55,MARK A |
1 | ||
| 90520-29021 |
AE111,EE11#..5F T=2.68-2.73,MARK D |
1 | ||
| 90520-29020 |
AE111,EE11#..5F T=2.62-2.67,MARK C |
1 | ||
| 90520-29023 |
AE111,EE11#..5F T=2.80-2.85,MARK F |
1 | ||
| 90520-29019 |
AE111,EE11#..5F T=2.56-2.61,MARK B |
1 | ||
| 90520-29022 |
AE111,EE11#..5F T=2.74-2.79,MARK E |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-12020 |
EE11#..5F |
1 | ||
| 33362A - RING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING) | ||||
| 90520-27048 |
AE111,EE11#..5F T=2.42-2.47,MARK 2 |
1 | ||
| 90520-27047 |
AE111,EE11#..5F T=2.36-2.41,MARK 1 |
1 | ||
| 90520-27046 |
AE111,EE11#..5F T=2.30-2.35,MARK 0 |
1 | ||
| 90520-27051 |
AE111,EE11#..5F T=2.60-2.65,MARK 5 |
1 | ||
| 90520-27050 |
AE111,EE11#..5F T=2.54-2.59,MARK 4 |
1 | ||
| 90520-27049 |
AE111,EE11#..5F T=2.48-2.53,MARK 3 |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-12012 |
AE111,EE11#..5F |
1 | ||
| 33364-20030 |
EE11#..5F |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-12021 |
EE11#..5F |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-12020 |
EE11#..5F |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-12070 |
EE11#..5F 1ST GEAR SIDE |
1 | ||
| 33367-12081 |
EE11#..5F 2ND GEAR SIDE |
1 | ||
| 33367-12140 |
EE11#..5F 1ST GEAR SIDE |
1 | ||
| 33367-12150 |
EE11#..5F 2ND GEAR SIDE |
1 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-12070 |
EE11#..5F 1ST GEAR SIDE |
1 | ||
| 33367-12081 |
EE11#..5F 2ND GEAR SIDE |
1 | ||
| 33367-12140 |
EE11#..5F 1ST GEAR SIDE |
1 | ||
| 33367-12150 |
EE11#..5F 2ND GEAR SIDE |
1 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-12100 |
EE11#..5F 3RD GEAR SIDE |
1 | ||
| 33368-12060 |
EE11#..5F 4TH GEAR SIDE |
1 | ||
| 33368-12130 |
EE11#..5F 3RD GEAR SIDE |
1 | ||
| 33368-12140 |
EE11#..5F 4TH GEAR SIDE |
1 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-12100 |
EE11#..5F 3RD GEAR SIDE |
1 | ||
| 33368-12060 |
EE11#..5F 4TH GEAR SIDE |
1 | ||
| 33368-12130 |
EE11#..5F 3RD GEAR SIDE |
1 | ||
| 33368-12140 |
EE11#..5F 4TH GEAR SIDE |
1 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| 33369-20040 |
AE111,EE11#..5F |
1 | ||
| 33369-12030 |
AE111,EE11#..5F |
1 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-12020 |
EE11#..5F |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-12020 |
EE11#..5F |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-12020 |
EE11#..5F |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-12020 |
EE11#..5F |
2 | ||
| 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 | ||||
| 33391-12030 |
AE111,EE11#..5F |
2 | ||
| 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 | ||||
| 33391-12030 |
AE111,EE11#..5F |
2 | ||
| 33393 - HUB, TRANSMISSION CLUTCH, NO.3 | ||||
| 33393-12040 |
EE11#..5F |
1 | ||
| 33393A - RING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3) | ||||
| 90520-18006 |
AE111,EE11#..5F T=2.43-2.48,MARK D |
1 | ||
| 90520-18004 |
AE111,EE11#..5F T=2.37-2.42,MARK C |
1 | ||
| 90520-18002 |
AE111,EE11#..5F T=2.25-2.30,MARK A |
1 | ||
| 90520-18008 |
AE111,EE11#..5F T=2.55-2.60,MARK F |
1 | ||
| 90520-18003 |
AE111,EE11#..5F T=2.31-2.36,MARK B |
1 | ||
| 90520-18009 |
AE111,EE11#..5F T=2.61-2.66,MARK G |
1 | ||
| 90520-18007 |
AE111,EE11#..5F T=2.49-2.54,MARK E |
1 | ||
| 33394 - KEY, SYNCHROMESH SHIFTING, NO.3 | ||||
| 33394-12011 |
AE111,EE11#..5F |
3 | ||
| 33395 - SLEEVE, TRANSMISSION HUB, NO.3 | ||||
| 33395-12011 |
AE111,EE11#..5F |
1 | ||
| 33395-20040 |
AE111,EE11#..5F |
1 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-10030 |
EE11#..5F |
1 | ||
| 33422B - GEAR, 4TH DRIVEN | ||||
| 33422-12050 |
AE111,EE11#..5F |
1 | ||
| 33423A - GEAR, 3RD DRIVEN | ||||
| 33423-10011 |
EE11#..5F |
1 | ||
| 33428C - GEAR, 5TH DRIVEN | ||||
| 33428-12070 |
EE11#..5F |
1 | ||
| 33431C - SPACER, OUTPUT GEAR | ||||
| 33431-12010 |
AE111,EE11#..5F |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-10021 |
EE11#..5F |
1 | ||
| 33451H - BOLT (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90109-08097 |
AE111,EE11#..5F |
1 | ||
| 33451J - GASKET (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90430-08010 |
AE11#,CE110,EE11#..5F |
1 | ||
| 33462 - WASHER, REVERSE IDLER THRUST | ||||
| 33462-12010 |
AE111,CE110,EE11#..5F |
1 | ||
| Common parts | ||||
| 91611-B0812 | ||||
