EE111L-AWMDKW (1997)

Toyota Corolla Sed/Wg

Production Apr 1997 - Oct 1999
Engine 4EFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )2E,4EFE

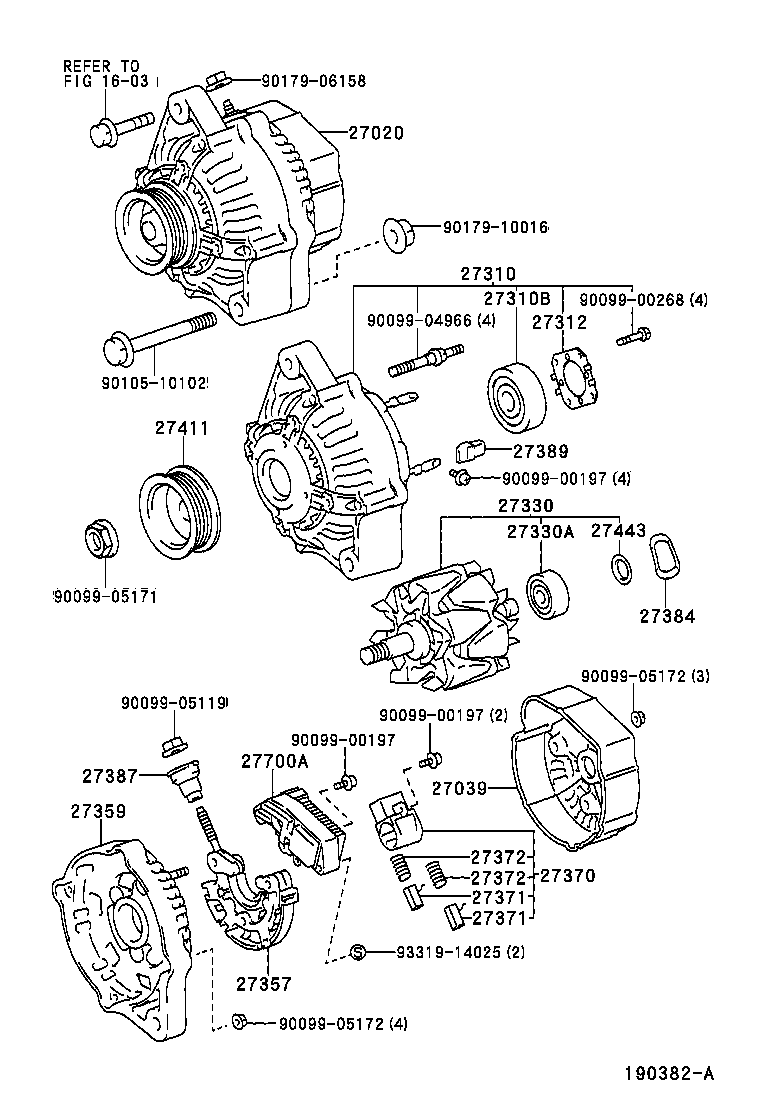

Click highlighted areas on diagram

12V 70A

diagram 1603 27020 27039 27310 27310B 27312 27330 27330A 27357 27359 27370 27371 27371 27372 27372 27384 27387 27389 27411 27443 27700A 9009900197 9009900197 9009900197 9009900268 9009904966 9009905119 9009905171 9009905172 9009905172 9010510102 9017906158 9017910016 9331914025
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-11270

2E,4EFE..EE11#

12V 70A

 1
27039 - COVER, ALTERNATOR REAR END
27039-16380

4AFE,7AFE,2E,4EFE..AE11#,EE11#..3FC,5F

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-16103

2E,4EFE..EE11#

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10178

4AFE,7AFE,2E,4EFE..AE11#,EE11#..3FC,5F

 1
27312 - PLATE, RETAINER
27312-70200

4AFE,7AFE,2E,4EFE..AE11#,EE11#..3FC,5F

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-64570

4AFE,7AFE,2E,4EFE..AE11#,EE11#..3FC,5F

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140

4AFE,7AFE,2CE,2E,4EFE..AE11#,CE110,EE11#

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-16380

4AFE,7AFE,2E,4EFE..AE11#,EE11#..3FC,5F

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-16182

2E,4EFE..EE11#

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-58320

2E,4EFE..EE11#

 1
27371 - BRUSH, ALTERNATOR
27371-70300

4AFE,7AFE,2E,4EFE..AE11#,EE11#..3FC,5F

 2
27371 - BRUSH, ALTERNATOR
27371-70300

4AFE,7AFE,2E,4EFE..AE11#,EE11#..3FC,5F

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-63020

4AFE,7AFE,2E,4EFE..AE11#,EE11#..3FC,5F

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-63020

4AFE,7AFE,2E,4EFE..AE11#,EE11#..3FC,5F

 2
27384 - WASHER
27384-16380

4AFE,7AFE,2E,4EFE..AE11#,EE11#..3FC,5F

 1
27387 - INSULATOR, TERMINAL
27387-70171

4AFE,7AFE,2E,4EFE..AE11#,EE11#..3FC,5F

 1
27387-70170

4AFE,7AFE,2E,4EFE..AE11#,EE11#..3FC,5F

 1
27389 - INSULATOR, TERMINAL
27389-63020

4AFE,7AFE,2E,4EFE..AE11#,EE11#..3FC,5F

 4
27411 - PULLEY, ALTERNATOR
27411-65010

2E,4EFE..EE11#

 1
27443 - COVER, ALTERNATOR BEARING
27443-63020

4AFE,7AFE,2CE,2E,4EFE..AE11#,CE110,EE11#

 1
27700A - REGULATOR ASSY, GENERATOR
27700-11070

2E,4EFE..EE11#

 1
Common parts
90099-00197
90099-00268
90099-04966
90099-05119
90099-05171
90099-05172
90105-10102
90179-06158
90179-10016
93319-14025
