EE111L-AWHDKW (1997)
Toyota Corolla Sed/Wg
Production
Apr 1997
-
Oct 1999
Engine
4EFE
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

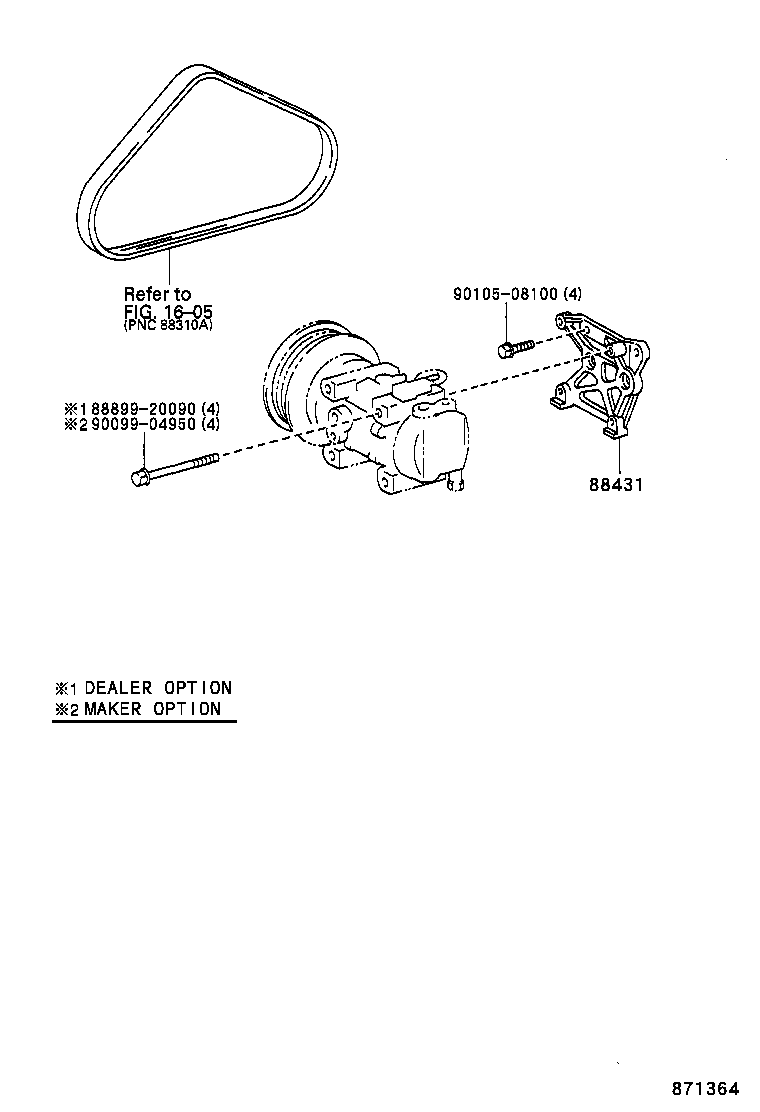

ILLUST NO. 1 OF 3(9704- )EE11#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-12540 |
EE11# |
1 | ||
| Common parts | ||||
| 88899-20090 | ||||
| 90099-04950 | ||||
| 90105-08100 | ||||
ILLUST NO. 3 OF 3(9704- )CE110,EE11#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88307A - REED SUB-ASSY, VALVE | ||||
| 88307-12050 |
AE11#,EE11# |
1 | ||
| 88309A - PUMP SUB-ASSY, COMPRESSOR | ||||
| 88309-12140 |
EE11# |
1 | ||
| 88309-12200 |
AE11#,EE11# |
1 | ||
| 88320A - BOLT, THROUGH | ||||
| 88329-16010 |
AE11#,EE11# |
5 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-12130 |
EE11# |
1 | ||
| 88322B - CASE, OIL SEPARATOR | ||||
| 88322-12100 |
AE11#,EE11# |
1 | ||
| 88329E - BOLT, COMPRESSOR, NO.1 | ||||
| 88329-16020 |
AE11#,EE11# |
2 | ||
| 88329F - BOLT, COMPRESSOR, NO.2 | ||||
| 88329-16030 |
CE110,EE11# |
1 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 88335-12110 |
AE11#,EE11# |
1 | ||
| 88336 - SENSOR, COMPRESSOR | ||||
| 88336-12090 |
CE110,EE11# LOCK SENSOR |
1 | ||
| 88336-16070 |
EE11# |
1 | ||
| 88336-12090 |
EE11# LOCK SENSOR |
1 | ||
| 88336-16070 |
EE11# TEMPERATURE SENSOR |
1 | ||
| 88336 - SENSOR, COMPRESSOR | ||||
| 88336-12090 |
CE110,EE11# LOCK SENSOR |
1 | ||
| 88336-16070 |
EE11# |
1 | ||
| 88336-12090 |
EE11# LOCK SENSOR |
1 | ||
| 88336-16070 |
EE11# TEMPERATURE SENSOR |
1 | ||
| 88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT | ||||
| 88360-12100 |
AE11#,EE11# |
1 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90022 |
AE11#,CE110,EE11# |
1 | ||
| 88362C - PLATE, PULSE | ||||
| 88362-12020 |
EE11# |
1 | ||
| 88371A - VALVE, SUCTION | ||||
| 88376-12010 |
AE11#,CE110,EE11# |
1 | ||
| 88372 - VALVE, DISCHARGE | ||||
| 88376-12020 |
AE11#,CE110,EE11# |
1 | ||
| 88379B - VALVE, PRESSURE RELIEF | ||||
| 88379-12050 |
AE11#,EE11# |
1 | ||
| 88397A - CLIP, COMPRESSOR | ||||
| 88397-16030 |
AE11#,EE11# |
1 | ||
| Common parts | ||||
| 91511-60630 | ||||
| 93381-15008 | ||||
ILLUST NO. 2 OF 3(9704- )AE11#,CE110,EE11#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-1A090 |
EE11# |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-1A040 |
AE11#,CE110,EE11# |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-1A370 |
EE11# |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
CE110,EE11# 3 PIECE SET |
1 | ||
| 90099-01555 |
CE110,EE11# T=0.5 |
1 | ||
| 90099-01554 |
CE110,EE11# T=0.3 |
1 | ||
| 90099-01553 |
CE110,EE11# T=0.1 |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-1A010 |
AE11#,CE110,EE11# |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-1A150 |
EE11# |
1 | ||
| Common parts | ||||
| 90099-04349 | ||||
| 90099-07065 | ||||
| 90099-07114 | ||||
| 93319-15008 | ||||
