Toyota Corolla sed/wg EE111 FUEL INJECTION SYSTEM

Part #	Description	Period	Qty
22210 - BODY ASSY, THROTTLE
22210-11620	4EFE..EE111..3FC	04/1997 - 10/1999	1
22215 - GASKET, THROTTLE BODY COVER
22215-74400	4EFE..EE111	04/1997 - 10/1999	1
22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22270-11020	4EFE..EE111	04/1997 - 10/1999	1
22271 - GASKET, THROTTLE BODY
22271-11030	4EFE..EE111	04/1997 - 10/1999	1
23250 - INJECTOR ASSY, FUEL
23209-11130	4EFE..EE111	04/1997 - 10/1999	4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07024	4EFE..EE111	12/1998 - 10/1999	4
90301-07001	4EFE..EE111	04/1997 - 12/1998	4
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-11070	4EFE..EE111	04/1997 - 10/1999	1
23280E - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-07024	4EFE..EE111	12/1998 - 10/1999	1
90301-07001	4EFE..EE111	04/1997 - 12/1998	1
23291 - INSULATOR, INJECTOR VIBRATION
23291-41010	4EFE..EE111	04/1997 - 10/1999	4
23300P - FILTER, FUEL(FOR EFI)
23300-19295	4EFE..EE111 TYPE B:REFER TO ILLUSTRATION	04/1997 - 10/1997	1
23300-19285	4EFE..EE111..LHD TYPE A:REFER TO ILLUSTRATION	04/1997 - 10/1999	1
23300-19555	4EFE..EE111..LHD TYPE D:REFER TO ILLUSTRATION	10/1997 - 10/1999	1
23300-19515	4EFE..EE111 TYPE C:REFER TO ILLUSTRATION	04/1997 - 10/1997	1
23300T - GASKET(FOR FUEL FILTER)
90430-12026	4EFE..EE111	04/1997 - 10/1999	2
23300T - GASKET(FOR FUEL FILTER)
90430-12026	4EFE..EE111	04/1997 - 10/1999	2
23300U - BOLT, UNION(FOR FUEL FILTER)
90401-12097	4EFE..EE111	04/1997 - 10/1999	1
23801F - HOSE, FUEL, NO.1
23271-11130	4EFE..EE111	04/1997 - 10/1999	1
23801G - BOLT, UNION(FOR FUEL PIPE)
90401-12033	4EFE..EE111	04/1997 - 10/1999	1
23801H - GASKET(FOR FUEL PIPE)
23279-74010	4EFE..EE111	04/1997 - 10/1999	2
23801H - GASKET(FOR FUEL PIPE)
23279-74010	4EFE..EE111	04/1997 - 10/1999	2
23801P - PIPE SUB-ASSY, FUEL, NO.1
23801-11110	4EFE..EE111	04/1997 - 10/1999	1
23802C - BOLT, UNION(FOR FUEL PIPE NO.2)
90401-08004	4EFE..EE111	04/1997 - 10/1999	1
23802D - GASKET(FOR FUEL PIPE NO.2)
90430-08014	4EFE..EE111	04/1997 - 10/1999	2
23802D - GASKET(FOR FUEL PIPE NO.2)
90430-08014	4EFE..EE111	04/1997 - 10/1999	2
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23814-11060	4EFE..EE111	04/1997 - 10/1999	1
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
23891-11020	4EFE..EE111	04/1997 - 10/1999	2
Common parts
21821-25180
90079-11003
90119-06781
90119-08145
90126-08015
90179-08054
91511-60840
91621-60612
91651-60625
Linked diagrams
7701
8404

Part #	Description	Period	Qty
23217A - FILTER, FUEL PUMP
23217-03030	4EFE..EE111 MARK OF FUEL PUMP=DENSO	04/1997 - 10/1999	1
23217-74021	4EFE..EE111 MARK OF FUEL PUMP=AISAN	04/1997 - 10/1999	1
23220P - PUMP ASSY, FUEL
23221-16520	4EFE..EE111..LHD TYPE B:REFER TO ILLUSTRATION	04/1997 - 08/1998	1
23221-0W010	4EFE..EE111 TYPE D:REFER TO ILLUSTRATION	04/1997 - 10/1999	1
23221-11060	4EFE..EE111 TYPE A:REFER TO ILLUSTRATION	04/1997 - 10/1999	1
23221-16530	4EFE..EE111..LHD TYPE C:REFER TO ILLUSTRATION	08/1998 - 10/1999	1
23229 - CLIP(FOR FUEL PUMP FILTER)
23219-03010	4EFE..EE111 (L)	04/1997 - 10/1999	1
23229-16010	4EFE..EE111 (J)	04/1997 - 10/1999	1
23239 - HOSE
23239-11010	4EFE..EE111	04/1997 - 10/1999	1
23249 - RUBBER, CUSHION(FOR FUEL PUMP)
23249-74610	4EFE..EE111	04/1997 - 10/1999	1
Common parts
90467-12067

EE111L-AWHDKW (1997)

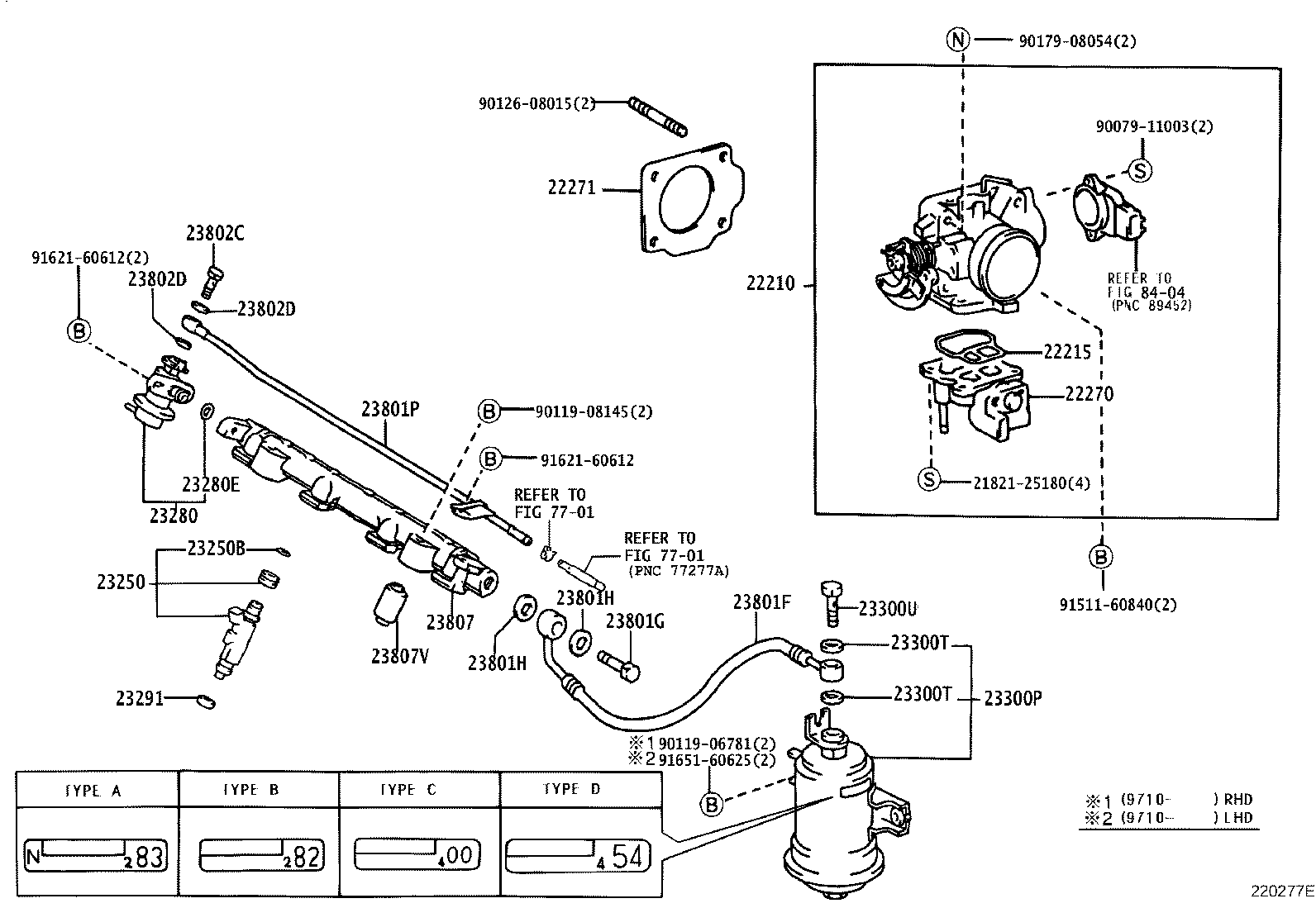

ILLUST NO. 1 OF 2(9704-9910)4EFE

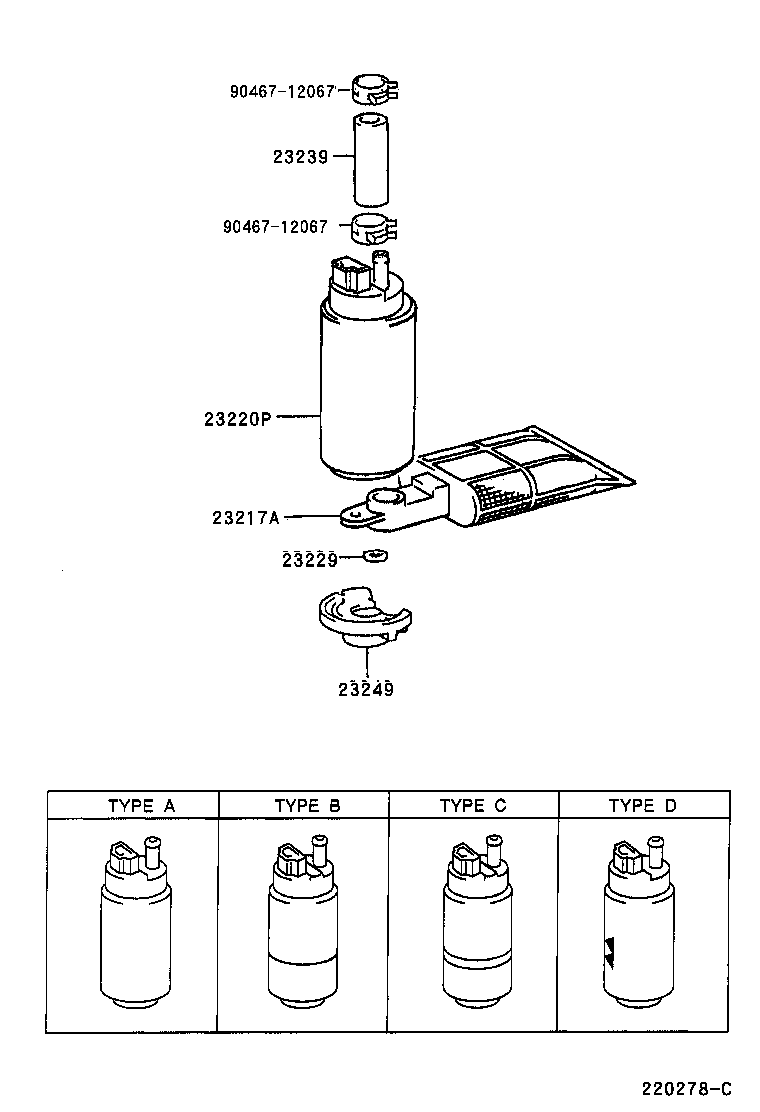

ILLUST NO. 2 OF 2(9704-9910)4EFE
