EE111L-AWHDKW (1997)

Toyota Corolla Sed/Wg

Production Apr 1997 - Oct 1999
Engine 4EFE
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704-9910)4EFE

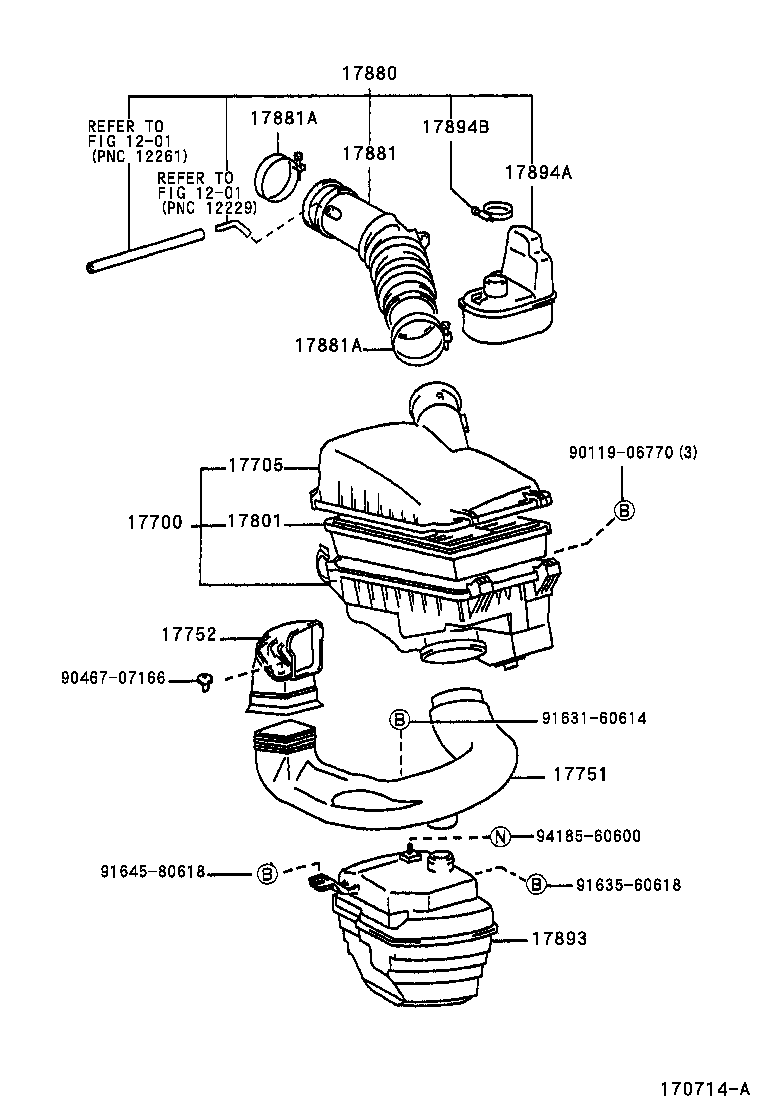

Click highlighted areas on diagram

diagram 1201 1201 17700 17705 17751 17752 17801 17880 17881 17881A 17881A 17893 17894A 17894B 9011906770 9046707166 9163160614 9163560618 9164580618 9418560600
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-1B040

4EFE..EE111

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-11600

4EFE..EE111

 1
17751 - INLET, AIR CLEANER, NO.1
17751-15070

4EFE..EE111

 1
17752 - INLET, AIR CLEANER, NO.2
17752-15030

4EFE..EE111

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-11090

4EFE..EE111

 1
17880 - HOSE ASSY, AIR CLEANER
17880-11350

4EFE..EE111

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-11560

4EFE..EE111

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10690

4EFE..EE111

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10690

4EFE..EE111

 2
17893 - RESONATOR, INTAKE AIR
17893-15050

4EFE..EE111

 1
17894A - RESONATOR, INTAKE AIR, NO.2
17894-11130

4EFE..EE111

 1
17894B - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)
96111-10480

4EFE..EE111

 1
Common parts
90119-06770
90467-07166
91631-60614
91635-60618
91645-80618
94185-60600
Linked diagrams
1201
