EE111L-AWHDKW (1997)

Toyota Corolla Sed/Wg

Production Apr 1997 - Oct 1999
Engine 4EFE
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704-9910)4EFE

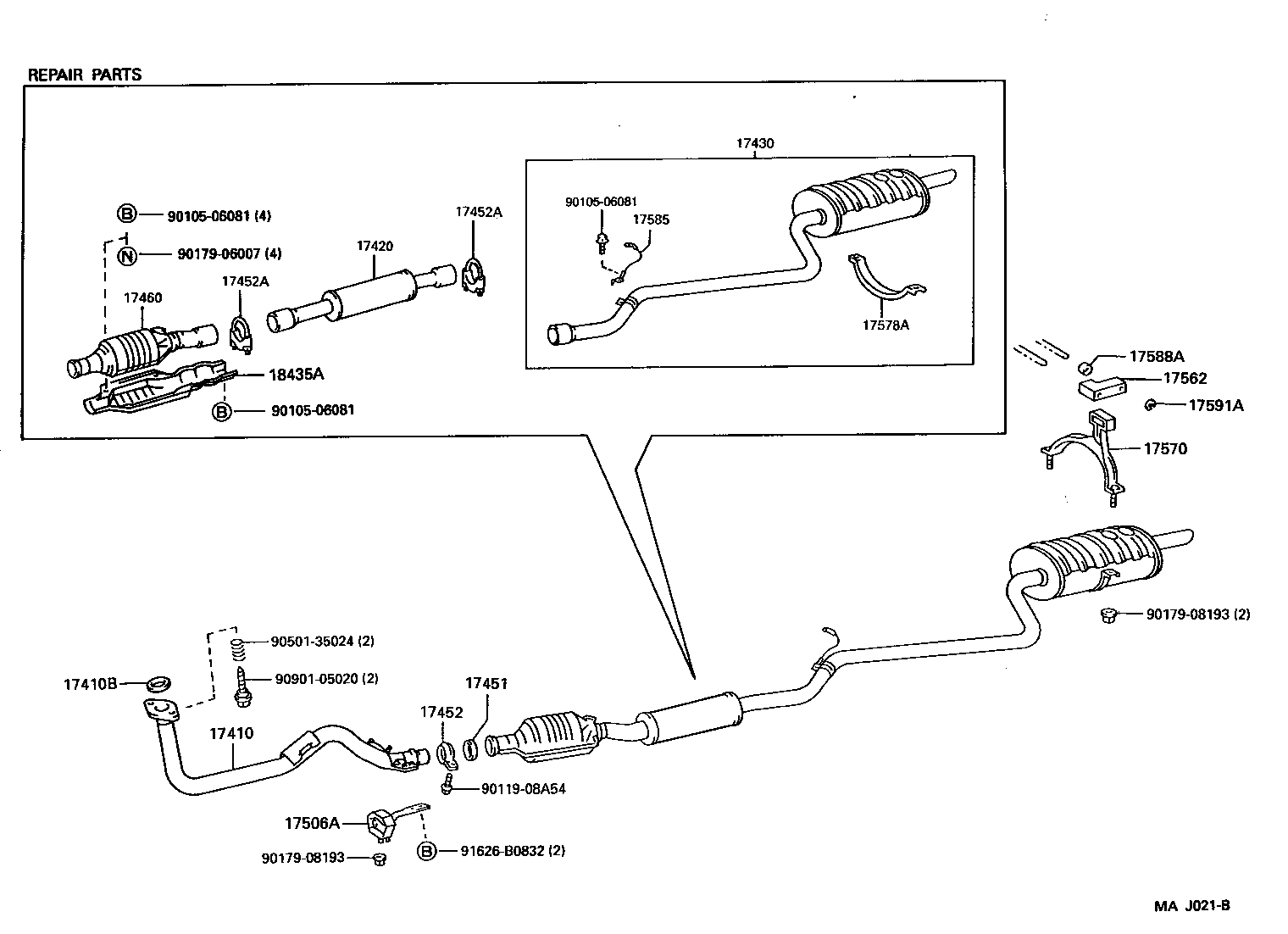

Click highlighted areas on diagram

diagram 17410 17410B 17420 17430 17451 17452 17452A 17452A 17460 17506A 17562 17570 17578A 17585 17588A 17591A 18435A 9010506081 9010506081 9010506081 9011908A54 9017906007 9017908193 9017908193 9050135024 9090105020 91626B0832
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-1B090

4EFE..EE111

 1
17410B - GASKET, EXHAUST PIPE
90917-06080

4EFE..EE111

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-11370

4EFE..EE111

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-1B070

4EFE..EE111

 1
17451 - GASKET, EXHAUST PIPE
90917-06082

2E,4EFE..EE11#

 1
17452 - CLAMP, EXHAUST PIPE
90461-15013

2E,4EFE..EE11#

 1
17452A - CLAMP, EXHAUST PIPE
17452-16120

4EFE..EE111

FRONT

 1
17452-15020

4EFE..EE111

REAR

 1
17452A - CLAMP, EXHAUST PIPE
17452-16120

4EFE..EE111

FRONT

 1
17452-15020

4EFE..EE111

REAR

 1
17460 - CONVERTER ASSY, CATALYTIC W/PIPE
17460-11030

4EFE..EE111

 1
17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17506-11100

4AFE,2E,4EFE..AE111,EE11#

 1
17562 - SUPPORT, EXHAUST PIPE, NO.2
17562-16240

4AFE,7AFE,2CE,2E,4EFE..AE11#,CE110,EE11#

 1
17570 - BRACKET ASSY, EXHAUST PIPE SUPPORT
17570-11010

2CE,4EFE..CE110,EE111

 1
17578A - CLAMP, MUFFLER
17578-11020

2CE,4EFE..CE110,EE111

 1
17585 - HANGER, EXHAUST PIPE
17585-16060

4AFE,2E,4EFE..AE111,EE11#

 1
17588A - SPACER, EXHAUST PIPE HANGER
17588-16020

4AFE,7AFE,2CE,2E,4EFE..AE11#,CE110,EE11#

 1
17591A - STOPPER, EXHAUST PIPE SUPPORT
17591-16020

4AFE,7AFE,2CE,2E,4EFE..AE11#,CE110,EE11#

 2
18435A - PROTECTOR, MONOLITHIC CONVERTER
18435-11030

4EFE..EE111

 1
18435-11020

4EFE..EE111

 1
Common parts
90105-06081
90119-08A54
90179-06007
90179-08193
90501-35024
90901-05020
91626-B0832
