EE111L-AWHDKW (1997)
Toyota Corolla Sed/Wg

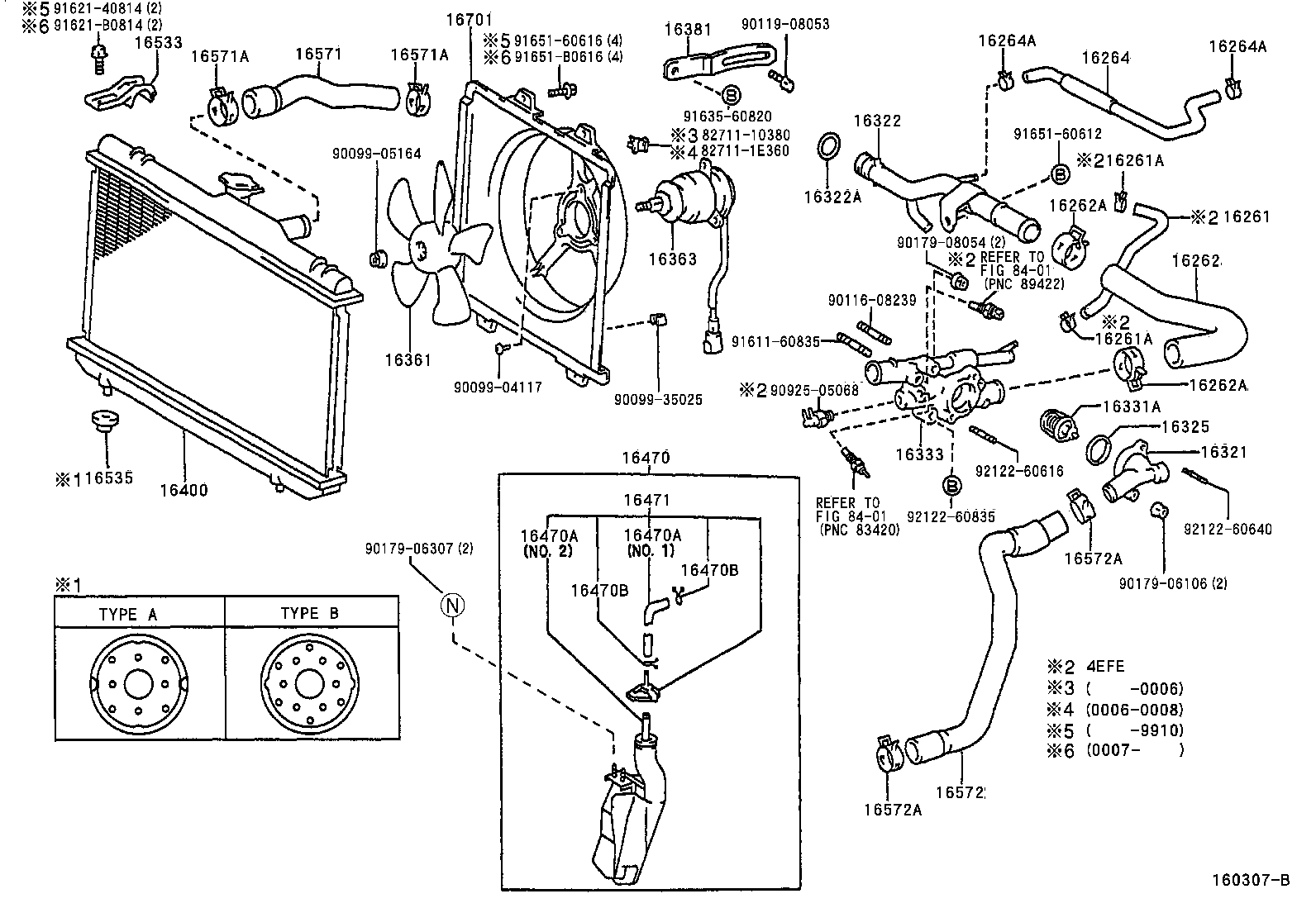

ILLUST NO. 1 OF 2(9704- )2E,4EFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 99555-00200 |
4EFE..EE111 *H,L=190 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-11009 |
4EFE..EE111 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-11009 |
4EFE..EE111 |
2 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16262-10022 |
4EFE..EE111..3FC |
1 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 90467-34003 |
2E,4EFE..EE11# |
2 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 90467-34003 |
2E,4EFE..EE11# |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-11090 |
4EFE..EE111 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-11009 |
4EFE..EE111 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-11009 |
4EFE..EE111 |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-11011 |
2E,4EFE..EE11# |
1 | ||
| 16322 - PIPE, WATER INLET | ||||
| 16322-11162 |
4EFE..EE111 |
1 | ||
| 16322A - RING, O(FOR WATER INLET) | ||||
| 96761-35028 |
2E,4EFE..EE11# |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-63011 |
2E,4EFE..EE11# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03046 |
2E,4EFE..EE11# *WAX 82-95 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-11260 |
4EFE..EE111 |
1 | ||
| 16333-11211 |
4EFE..EE111 |
1 | ||
| 16361 - FAN | ||||
| 16361-11020 |
4EFE..EE111..3FC;4EFE..EE111..LUNA W(FOG LAMP) |
1 | ||
| 16361-02110 |
4EFE..EE111..3FC;4EFE..EE111..LUNA |
1 | ||
| 16361-11020 |
4EFE..EE111..3FC;4EFE..EE111..LUNA W(FOG LAMP),(J) |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-74020 |
4EFE..EE111..3FC;4EFE..EE111..LUNA W(FOG LAMP) |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-11030 |
2E,4EFE..EE11# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-16690 |
4EFE..EE111..3FC |
1 | ||
| 16400-02380 |
4EFE..EE111..3FC MARK 0238 |
1 | ||
| 16400-16690 |
4EFE..EE111..3FC MARK 1669 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-15100 |
2E,4EFE..EE11# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
2E,4EFE..EE11# NO.2 |
1 | ||
| 16478-15090 |
2E,4EFE..EE11# NO.1 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
2E,4EFE..EE11# NO.2 |
1 | ||
| 16478-15090 |
2E,4EFE..EE11# NO.1 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2E,4EFE..EE11# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2E,4EFE..EE11# |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-15100 |
2E,4EFE..EE11# |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-15120 |
2E,4EFE..EE11# (J) |
2 | ||
| 16533-02020 |
2E,4EFE..EE11# (L) |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90916-04006 |
4EFE..EE111 |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-11130 |
2E,4EFE..EE11# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-31003 |
2E,4EFE..EE11# ENGINE SIDE |
1 | ||
| 90467-34003 |
2E,4EFE..EE11# RADIATOR SIDE |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-31003 |
2E,4EFE..EE11# ENGINE SIDE |
1 | ||
| 90467-34003 |
2E,4EFE..EE11# RADIATOR SIDE |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-11231 |
4EFE..EE111..3FC |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-31003 |
2E,4EFE..EE11# ENGINE SIDE |
1 | ||
| 90467-34003 |
2E,4EFE..EE11# RADIATOR SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-31003 |
2E,4EFE..EE11# ENGINE SIDE |
1 | ||
| 90467-34003 |
2E,4EFE..EE11# RADIATOR SIDE |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-16231 |
4EFE..EE111..3FC;4EFE..EE111..LUNA W(FOG LAMP) |
1 | ||
| 16711-02130 |
4EFE..EE111..3FC;4EFE..EE111..LUNA |
1 | ||
| 16711-02130 |
4EFE..EE111..3FC;4EFE..EE111..LUNA (L) |
1 | ||
| 16711-16231 |
4EFE..EE111..3FC;4EFE..EE111..LUNA W(FOG LAMP),(J) |
1 | ||
| Common parts | ||||
| 82711-10380 | ||||
| 82711-1E360 | ||||
| 90099-04117 | ||||
| 90099-05164 | ||||
| 90099-35025 | ||||
| 90116-08239 | ||||
| 90119-08053 | ||||
| 90179-06106 | ||||
| 90179-06307 | ||||
| 90179-08054 | ||||
| 90925-05068 | ||||
| 91611-60835 | ||||
| 91621-40814 | ||||
| 91621-B0814 | ||||
| 91635-60820 | ||||
| 91651-60612 | ||||
| 91651-60616 | ||||
| 91651-B0616 | ||||
| 92122-60616 | ||||
| 92122-60640 | ||||
| 92122-60835 | ||||
| Linked diagrams | ||||
| 8401 | ||||

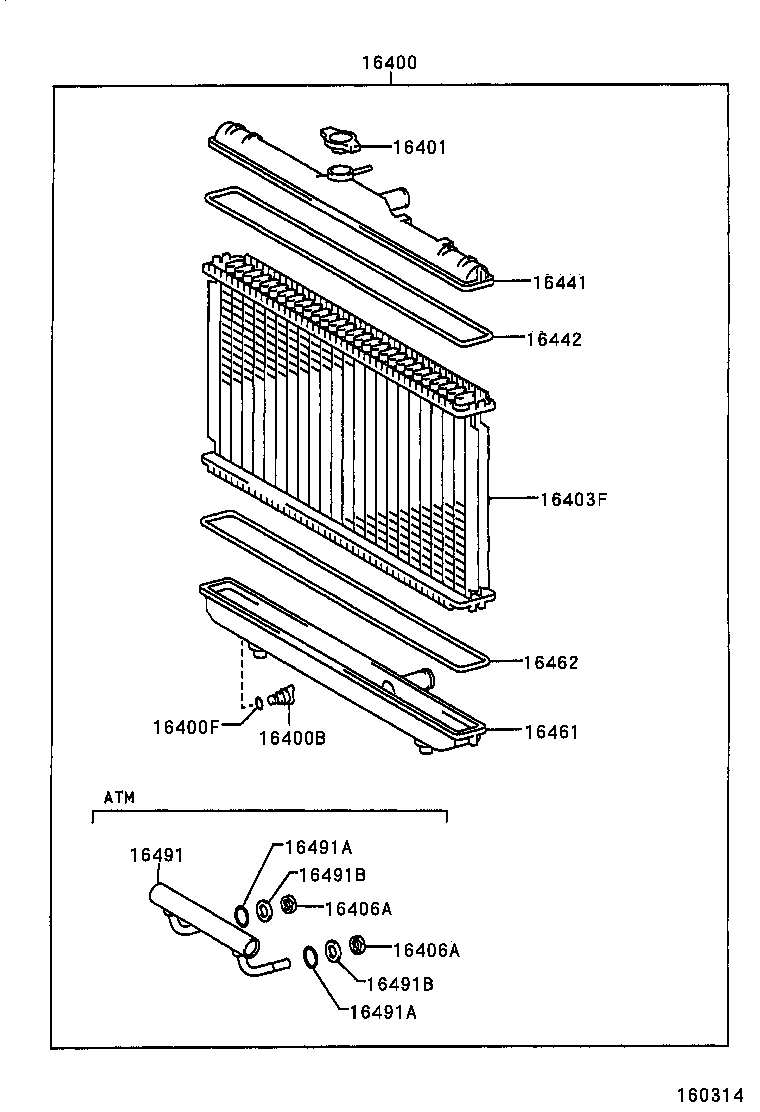

ILLUST NO. 2 OF 2(9704- )2E,4EFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-16690 |
4EFE..EE111..3FC |
1 | ||
| 16400-02380 |
4EFE..EE111..3FC MARK 0238 |
1 | ||
| 16400-16690 |
4EFE..EE111..3FC MARK 1669 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
2E,4EFE..EE11# |
1 | ||
| 90080-34010 |
2E,4EFE..EE11# (L) |
1 | ||
| 23322-54010 |
2E,4EFE..EE11# (J) |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
2E,4EFE..EE11# |
1 | ||
| 96711-19007 |
2E,4EFE..EE11# (J) |
1 | ||
| 90080-30024 |
2E,4EFE..EE11# (L) |
1 | ||
| 16492-21050 |
4EFE..EE111..3FC (J) |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-72090 |
2E,4EFE..EE11# |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-16690 |
4EFE..EE111..3FC |
1 | ||
| 16403-02380 |
4EFE..EE111..3FC (L) |
1 | ||
| 16403-16690 |
4EFE..EE111..3FC (J) |
1 | ||
| 16406A - SUPPORT(FOR OIL COOLER) | ||||
| 16406-74520 |
4EFE..EE111..3FC |
2 | ||
| 16406A - SUPPORT(FOR OIL COOLER) | ||||
| 16406-74520 |
4EFE..EE111..3FC |
2 | ||
| 16441 - TANK, RADIATOR, UPPER | ||||
| 16441-15500 |
2E,4EFE..EE11# W(AIR CONDITIONER) |
1 | ||
| 16441-02370 |
2E,4EFE..EE11# (L) |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-02370 |
2E,4EFE..EE11# (L) |
1 | ||
| 16442-11380 |
2E,4EFE..EE11# W(AIR CONDITIONER) |
1 | ||
| 16461 - TANK, RADIATOR, LOWER | ||||
| 16461-15500 |
4EFE..EE111..3FC |
1 | ||
| 16461-15500 |
4EFE..EE111..3FC (J) |
1 | ||
| 16461-02380 |
4EFE..EE111..3FC (L) |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-11420 |
2E,4EFE..EE11# W(AIR CONDITIONER) |
1 | ||
| 16462-02370 |
2E,4EFE..EE11# (L) |
1 | ||
| 16491 - COOLER, OIL(FOR ATM) | ||||
| 16491-11310 |
4EFE..EE111..3FC |
1 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-62060 |
4EFE..EE111..3FC (J) |
2 | ||
| 16492-02030 |
4EFE..EE111..3FC (L) |
2 | ||
| 16492-62060 |
4EFE..EE111..3FC |
2 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-62060 |
4EFE..EE111..3FC (J) |
2 | ||
| 16492-02030 |
4EFE..EE111..3FC (L) |
2 | ||
| 16492-62060 |
4EFE..EE111..3FC |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-74520 |
4EFE..EE111..3FC |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-74520 |
4EFE..EE111..3FC |
2 | ||
