EE111L-AWHDKW (1997)

Toyota Corolla Sed/Wg

Production Apr 1997 - Oct 1999
Engine 4EFE
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )2E,4EFE

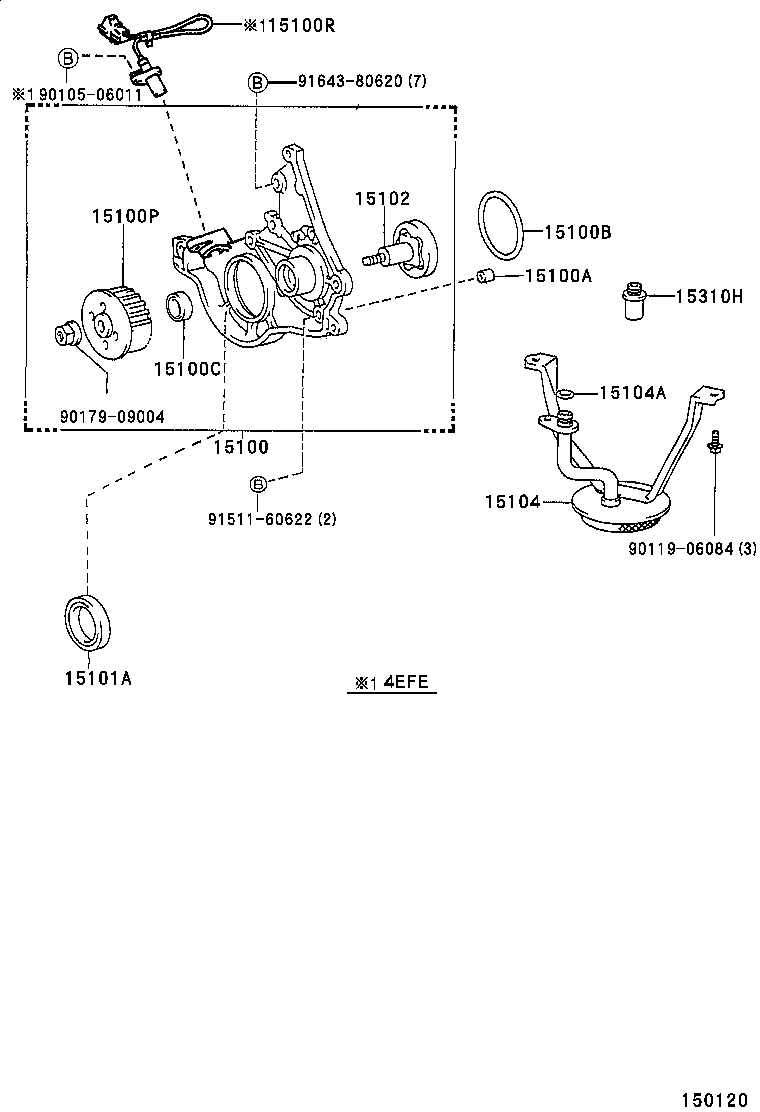

Click highlighted areas on diagram

diagram 15100 15100A 15100B 15100C 15100P 15100R 15101A 15102 15104 15104A 15310H 9010506011 9011906084 9017909004 9151160622 9164380620
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-11110

4EFE..EE111

 1
15100A - PIN, RING(FOR OIL PUMP SET)
90253-09001

2E,4EFE..EE11#

 2
15100B - RING, O(FOR OIL PUMP)
90301-62006

4EFE..EE111

 1
15100C - SEAL(FOR OIL PUMP)
90029-21020

2E,4EFE..EE11#

 1
15100P - PULLEY, OIL PUMP DRIVE SHAFT
13524-11020

4EFE..EE111

 1
15100R - SENSOR, CRANK POSITION
90919-05018

4EFE..EE111

 1
15101A - SEAL(FOR CRANKSHAFT)
90311-35040

2E,4EFE..EE11#

 1
15102 - ROTOR SET, OIL PUMP
15102-11080

4EFE..EE111

 1
15104 - STRAINER SUB-ASSY, OIL
15104-11180

2E,4EFE..EE11#

 1
15104A - RING, O(FOR OIL STRAINER)
96721-24015

2E,4EFE..EE11#

 1
15310H - REGULATOR ASSY, OIL
15310-10010

2E,4EFE..EE11#

 1
Common parts
90105-06011
90119-06084
90179-09004
91511-60622
91643-80620
