EE111L-AWHDKW (1997)

Toyota Corolla Sed/Wg

Production Apr 1997 - Oct 1999
Engine 4EFE
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704-9910)4EFE

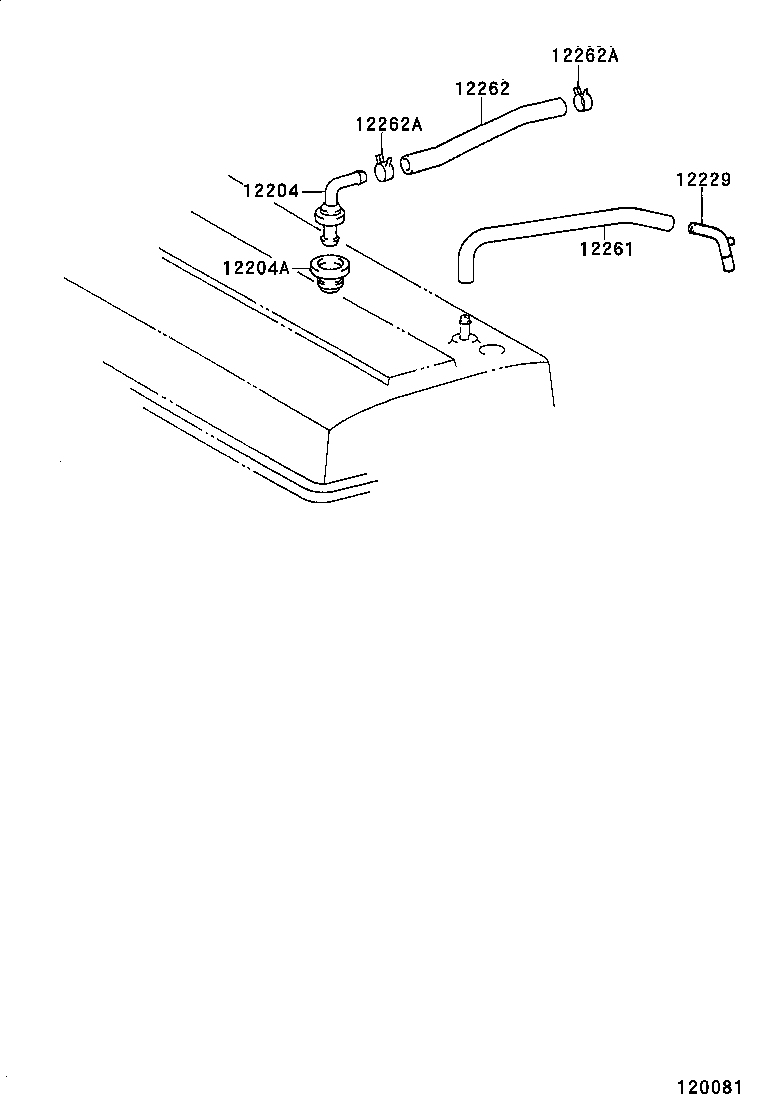

Click highlighted areas on diagram

diagram 12204 12204A 12229 12261 12262 12262A 12262A
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-11050

4EFE..EE111

TAIHEIYO

 1
12204-11040

4EFE..EE111

AISIN

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18006

2E,4EFE..EE11#

 1
12229 - PIPE, VENTILATION
12229-11020

4EFE..EE111

 1
12261 - HOSE, VENTILATION
12261-11180

4EFE..EE111

 1
12262 - HOSE, VENTILATION, NO.2
12262-11050

4EFE..EE111

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-14001

4EFE..EE111

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-14001

4EFE..EE111

 2
