EE111L-AWHDKW (1997)

Toyota Corolla Sed/Wg

Production Apr 1997 - Oct 1999
Engine 4EFE
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )2E,4EFE

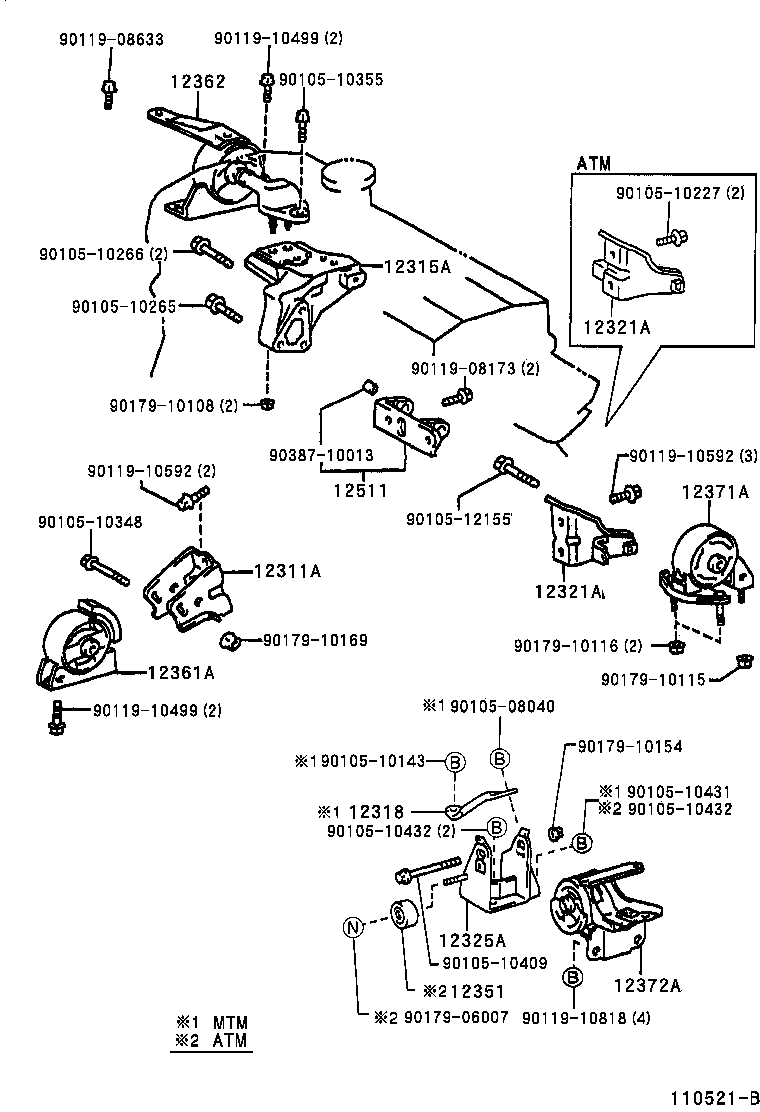

Click highlighted areas on diagram

diagram 12311A 12315A 12318 12321A 12321A 12325A 12351 12361A 12362 12371A 12372A 12511 9010508040 9010510143 9010510227 9010510265 9010510266 9010510348 9010510355 9010510409 9010510431 9010510432 9010510432 9010512155 9011908173 9011908633 9011910499 9011910499 9011910592 9011910592 9011910818 9017906007 9017910108 9017910115 9017910116 9017910154 9017910169 9038710013
Part # Description Qty Price
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-11090

2E,4EFE..EE11#

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-11051

2E,4EFE..EE11#

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-11200

4EFE..EE111..3FC

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-11200

4EFE..EE111..3FC

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-11180

4EFE..EE111..3FC

 1
12351 - DAMPER, ENGINE MOUNTING
12351-15070

4EFE..EE111..3FC

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-15180

4EFE..EE111..3FC

 1
12361-15181

4EFE..EE111..3FC

 1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12305-11060

2E,4EFE..EE11#..STD,TERRA

MARK NF

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-64210

4EFE..EE111..3FC

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-16390

4EFE..EE111..3FC

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-11020

2E,4EFE..EE11#

 1
Common parts
90105-08040
90105-10143
90105-10227
90105-10265
90105-10266
90105-10348
90105-10355
90105-10409
90105-10431
90105-10432
90105-12155
90119-08173
90119-08633
90119-10499
90119-10592
90119-10818
90179-06007
90179-10108
90179-10115
90179-10116
90179-10154
90179-10169
90387-10013
