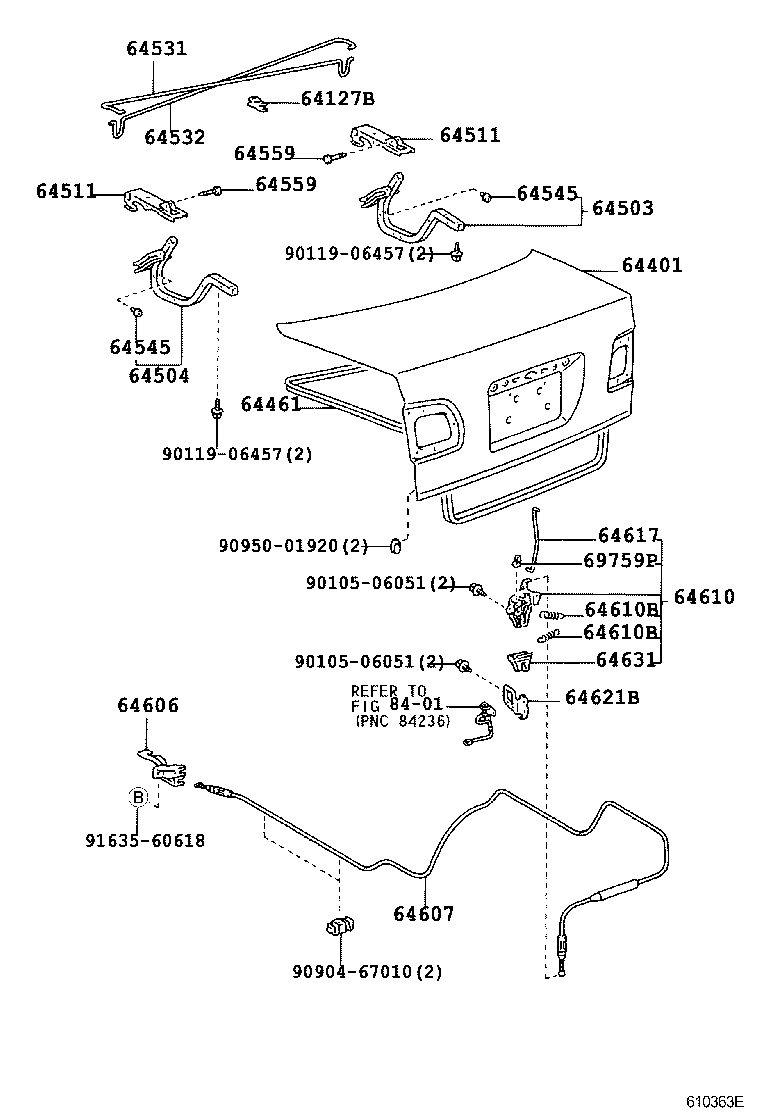

Toyota Corolla sed/wg EE111 LUGGAGE COMPARTMENT DOOR & LOCK

Part #	Description	Period	Qty
64127B - SUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR
64127-12100	AE111,CE110,EE11#..SED	04/1997 - 10/1999	1
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-1A700	AE111,CE110,EE11#..SED	04/1997 - 10/1999	1
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-12530	AE111,CE110,EE11#..SED	04/1997 - 10/1999	1
64503 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH
64503-12130	AE111,CE110,EE11#..SED	04/1997 - 10/1999	1
64504 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH
64503-12130	AE111,CE110,EE11#..SED	04/1997 - 10/1999	1
64511 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH
64511-12240	AE111,CE110,EE11#..SED	04/1997 - 10/1999	2
64511 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH
64511-12240	AE111,CE110,EE11#..SED	04/1997 - 10/1999	2
64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH
64531-12640	AE111,CE110,EE11#..SED	04/1997 - 10/1999	1
64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH
64532-12630	AE111,CE110,EE11#..SED	04/1997 - 10/1999	1
64545 - CUSHION, LUGGAGE DOOR HINGE
90541-07040	AE111,CE110,EE11#..SED	04/1997 - 10/1999	2
64545 - CUSHION, LUGGAGE DOOR HINGE
90541-07040	AE111,CE110,EE11#..SED	04/1997 - 10/1999	2
64559 - PIN, LUGGAGE DOOR HINGE
64559-12040	AE111,CE110,EE11#..SED	04/1997 - 10/1999	2
64559 - PIN, LUGGAGE DOOR HINGE
64559-12040	AE111,CE110,EE11#..SED	04/1997 - 10/1999	2
64606 - LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN
64606-20091	AE111,CE110,EE11#..LHD..SED	04/1997 - 10/1999	1
64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64607-12760	AE111,CE110,EE11#..LHD..SED	04/1997 - 10/1999	1
64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64610-12310	AE111,CE110,EE11#..SED	04/1997 - 10/1999	1
64610B - SPRING, TENSION(FOR LOCK)
90506-05002	AE111,CE110,EE11#..SED WD=0.55,CW=17.25	04/1997 - 10/1999	1
90905-06021	AE111,CE110,EE11#..SED WD=0.55,CW=17.5	04/1997 - 10/1999	1
64610B - SPRING, TENSION(FOR LOCK)
90506-05002	AE111,CE110,EE11#..SED WD=0.55,CW=17.25	04/1997 - 10/1999	1
90905-06021	AE111,CE110,EE11#..SED WD=0.55,CW=17.5	04/1997 - 10/1999	1
64617 - LINK, LUGGAGE COMPARTMENT DOOR LOCK
64617-12150	AE111,CE110,EE11#..SED	04/1997 - 10/1999	1
64621B - STRIKER, LUGGAGE COMPARTMENT DOOR LOCK
64621-12070	AE111,CE110,EE11#..SED	04/1997 - 10/1999	1
64631 - PROTECTOR, LUGGAGE DOOR LOCK
64631-12040	AE111,CE110,EE11#..SED	04/1997 - 10/1999	1
69759P - SNAP, DOOR LOCK CONTROL LINK
69759-24050	AE111,CE110,EE11#..SED	04/1997 - 10/1999	1
Common parts
90105-06051
90119-06457
90904-67010
90950-01920
91635-60618
Linked diagrams
8401

EE111L-AEMDKW (1997)

(9704- )SED
