EE111L-AEHDKW (1997)

Toyota Corolla Sed/Wg

Production Apr 1997 - Oct 1999
Engine 4EFE
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704-9910)4EFE

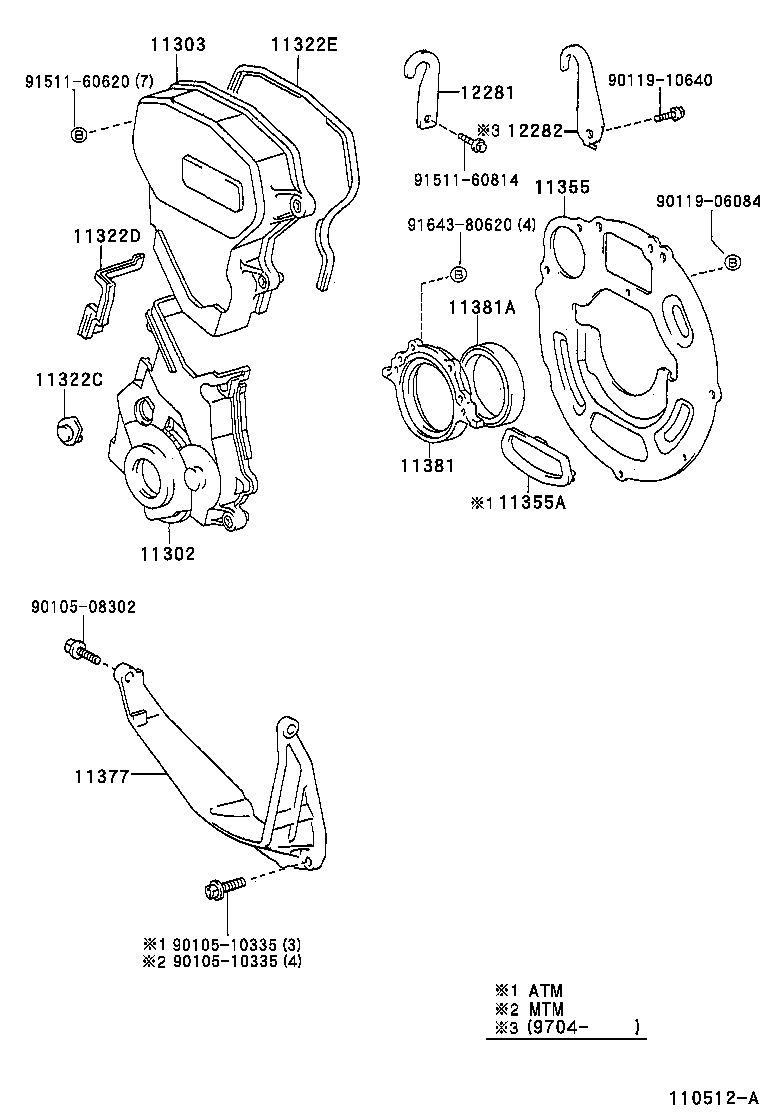

Click highlighted areas on diagram

diagram 11302 11303 11322C 11322D 11322E 11355 11355A 11377 11381 11381A 12281 12282 9010508302 9010510335 9010510335 9011906084 9011910640 9151160620 9151160814 9164380620
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-11110

4EFE..EE111

 1
11303 - COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY
11303-11031

4EFE..EE111

 1
11322C - COVER, TIMING BELT, NO.3
11323-10011

2E,4EFE..EE11#

 1
11322D - GASKET, TIMING BELT COVER, NO.1
11328-11041

2E,4EFE..EE11#

 1
11322E - GASKET, TIMING BELT COVER, NO.2
11329-11010

4EFE..EE111

 1
11355 - PLATE, REAR END
11355-11012

4EFE..EE111..3FC

 1
11355A - PLUG, HOLE(FOR REAR END PLATE)
90950-01548

4EFE..EE111..3FC

 1
11377 - STIFFENER, REAR END PLATE
11377-11020

4EFE..EE111

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-10021

2E,4EFE..EE11#

 1
11381A - SEAL, ENGINE REAR OIL
90311-75009

2E,4EFE..EE11#

 1
12281 - HANGER, ENGINE, NO.1
12281-11031

4EFE..EE111

 1
12282 - HANGER, ENGINE, NO.2
12282-11022

4EFE..EE111

 1
Common parts
90105-08302
90105-10335
90119-06084
90119-10640
91511-60620
91511-60814
91643-80620
