EE101R-AWMNKW (1992)
Toyota Corolla Sed/Wg

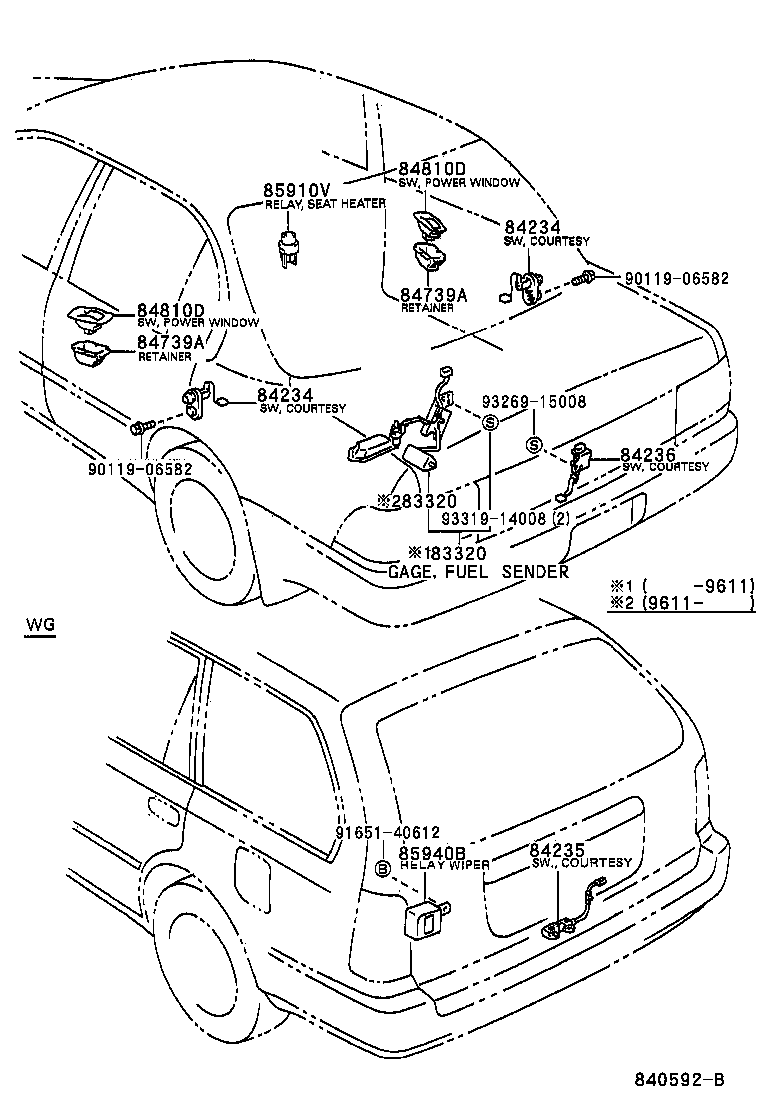

ILLUST NO. 8 OF 8(9205- )
FLOOR,REAR DOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80195 |
AE101,EE10# |
1 | ||
| 83320-80269 |
AE101,EE10# |
1 | ||
| 83320-12511 |
AE101,EE10# |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80195 |
AE101,EE10# |
1 | ||
| 83320-80269 |
AE101,EE10# |
1 | ||
| 83320-12511 |
AE101,EE10# |
1 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-12120 |
AE10#,CE100,EE10# PLANT NO.A31,32 |
2 | ||
| 84231-12080 |
AE10#,CE100,EE10# PLANT NO.M12,B11,K21 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-12120 |
AE10#,CE100,EE10# PLANT NO.A31,32 |
2 | ||
| 84231-12080 |
AE10#,CE100,EE10# PLANT NO.M12,B11,K21 |
2 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-13020 |
AE101,CE100,EE10#..WG |
1 | ||
| 84231-13040 |
AE10#,CE100,EE10#..WG |
1 | ||
| 84739A - RETAINER, SWITCH | ||||
| 84739-12010 |
AE101..SED;EE101..GLI;EE101..LHD..SED..XLI |
2 | ||
| 84739-12010 |
AE101;EE101..GLI;EE101..LHD..SED..XLI |
2 | ||
| 84739-12010 |
AE101;EE101..GLI;CE100,EE101..LHD..(XL,XLI) |
2 | ||
| 84739A - RETAINER, SWITCH | ||||
| 84739-12010 |
AE101..SED;EE101..GLI;EE101..LHD..SED..XLI |
2 | ||
| 84739-12010 |
AE101;EE101..GLI;EE101..LHD..SED..XLI |
2 | ||
| 84739-12010 |
AE101;EE101..GLI;CE100,EE101..LHD..(XL,XLI) |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-20220J0 |
AE101;EE101..GLI;EE101..LHD..SED..XLI DARK BLUE,TRIM8# |
2 | ||
| 84810-12090P0 |
AE101..SED;EE101..GLI;EE101..LHD..SED..XLI SHADOW GRAY,TRIM1# |
2 | ||
| 84810-12090W3 |
AE101..SED;EE101..GLI;EE101..LHD..SED..XLI DARK BLUE,TRIM8# |
2 | ||
| 84810-20220B0 |
AE101;EE101..GLI;EE101..LHD..SED..XLI SHADOW GRAY,TRIM1# |
2 | ||
| 84810-20220J0 |
AE101..SED;EE101..GLI;EE101..LHD..SED..XLI DARK BLUE,TRIM8# |
2 | ||
| 84810-20220B0 |
AE101..SED;EE101..GLI;EE101..LHD..SED..XLI SHADOW GRAY,TRIM1# |
2 | ||
| 84810-20220J0 |
AE101;EE101..GLI;CE100,EE101..LHD..(XL,XLI) DARK BLUE,TRIM8# |
2 | ||
| 84810-20220B0 |
AE101;EE101..GLI;CE100,EE101..LHD..(XL,XLI) SHADOW GRAY,TRIM1# |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-20220J0 |
AE101;EE101..GLI;EE101..LHD..SED..XLI DARK BLUE,TRIM8# |
2 | ||
| 84810-12090P0 |
AE101..SED;EE101..GLI;EE101..LHD..SED..XLI SHADOW GRAY,TRIM1# |
2 | ||
| 84810-12090W3 |
AE101..SED;EE101..GLI;EE101..LHD..SED..XLI DARK BLUE,TRIM8# |
2 | ||
| 84810-20220B0 |
AE101;EE101..GLI;EE101..LHD..SED..XLI SHADOW GRAY,TRIM1# |
2 | ||
| 84810-20220J0 |
AE101..SED;EE101..GLI;EE101..LHD..SED..XLI DARK BLUE,TRIM8# |
2 | ||
| 84810-20220B0 |
AE101..SED;EE101..GLI;EE101..LHD..SED..XLI SHADOW GRAY,TRIM1# |
2 | ||
| 84810-20220J0 |
AE101;EE101..GLI;CE100,EE101..LHD..(XL,XLI) DARK BLUE,TRIM8# |
2 | ||
| 84810-20220B0 |
AE101;EE101..GLI;CE100,EE101..LHD..(XL,XLI) SHADOW GRAY,TRIM1# |
2 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 85940-12070 |
AE101,CE100,EE10#..WG |
1 | ||
| 85940-12072 |
AE10#,CE100,EE10#..WG |
1 | ||
| Common parts | ||||
| 90119-06582 | ||||
| 91651-40612 | ||||
| 93269-15008 | ||||
| 93319-14008 | ||||

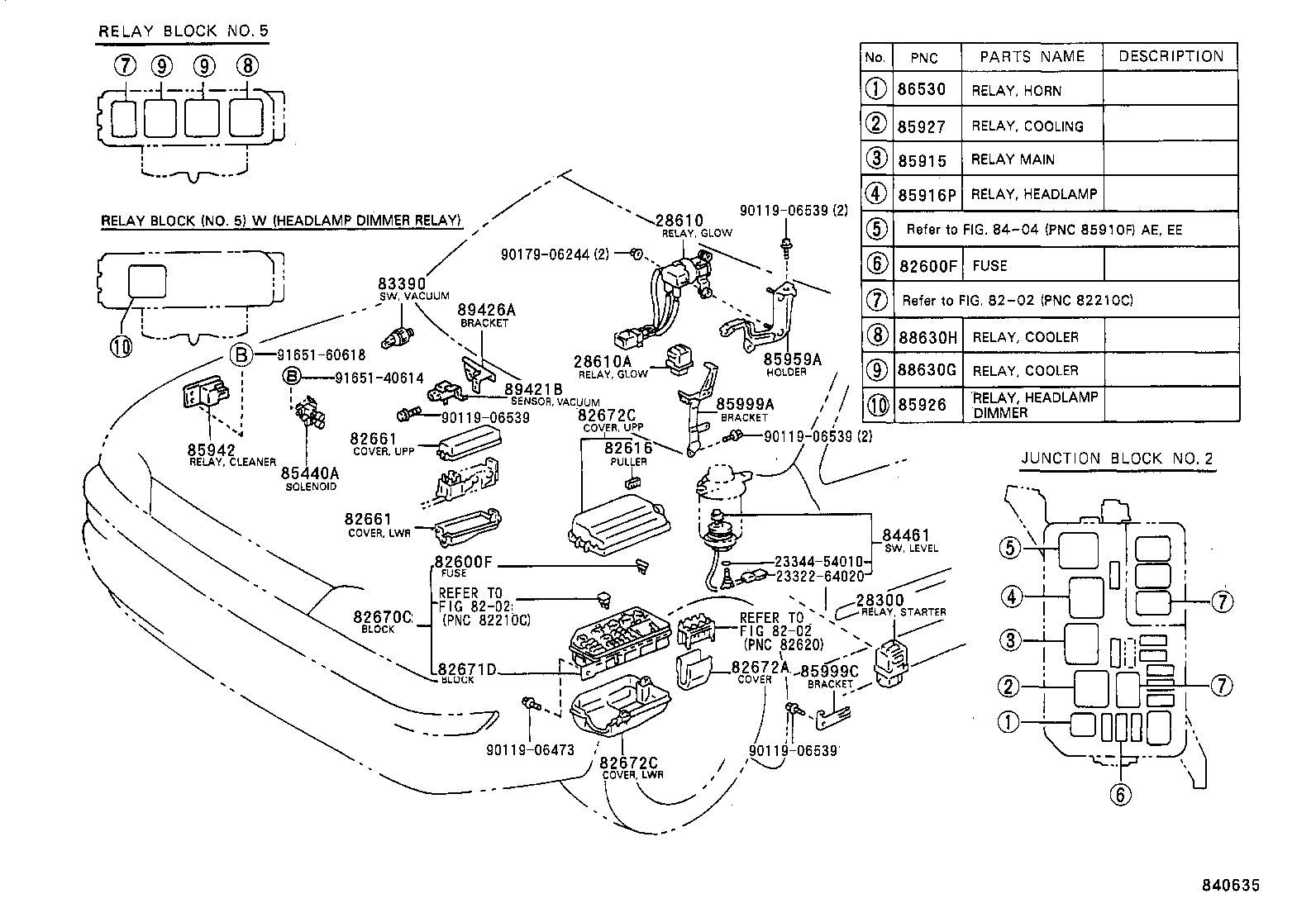

ILLUST NO. 2 OF 8(9205- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-16020 |
4AFE,4EFE..AE101,EE101..RHD |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
AE10#,CE100,EE10# 7.5A |
2 | ||
| 90982-09003 |
AE10#,CE100,EE10# 15A |
4 | ||
| 90982-07011 |
AE101,CE100,EE101..RHD 30A,GREEN |
1 | ||
| 90982-09002 |
AE10#,CE100,EE10# 10A |
4 | ||
| 90982-09004 |
AE10#,CE100,EE10# 20A,YELLOW |
3 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
AE10#,CE100,EE10# 15A |
4 | ||
| 90982-07011 |
AE101,CE100,EE101..RHD 30A,GREEN |
1 | ||
| 90982-09002 |
AE10#,CE100,EE10# 10A |
4 | ||
| 90982-09005 |
AE10#,CE100,EE10# 7.5A |
2 | ||
| 90982-09004 |
AE10#,CE100,EE10# 20A,YELLOW |
3 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12020 |
AE10#,CE100,EE10# |
1 | ||
| 82670C - BLOCK ASSY, JUNCTION, NO.3 | ||||
| 82670-12270 |
AE10#,CE100,EE101 |
1 | ||
| 82671D - BLOCK, JUNCTION | ||||
| 82671-12170 |
AE10#,CE100,EE101 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-12220 |
AE10#,CE100,EE10# |
1 | ||
| 82672C - COVER, JUNCTION BLOCK | ||||
| 82672-12230 |
AE10#,CE100,EE10# LOWER |
1 | ||
| 82672-12250 |
AE10#,CE100,EE101 UPPER |
1 | ||
| 82672-12251 |
AE10#,CE100,EE101 UPPER |
1 | ||
| 82672C - COVER, JUNCTION BLOCK | ||||
| 82672-12230 |
AE10#,CE100,EE10# LOWER |
1 | ||
| 82672-12250 |
AE10#,CE100,EE101 UPPER |
1 | ||
| 82672-12251 |
AE10#,CE100,EE101 UPPER |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-04002 |
AE10#,CE100,EE10# |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
AE10#,CE100,EE10# |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03003 |
AE10#,CE100,EE10# |
1 | ||
| 90084-98011 |
AE10#,CE100,EE10# BOSCH |
1 | ||
| 90987-03003 |
AE10#,CE100,EE10# NIPPONDENSO |
1 | ||
| 85999C - BRACKET, RELAY, NO.3 | ||||
| 85999-12180 |
AE101,EE101..RHD |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 86530-20070 |
AE10#,CE100,EE10# |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-02009 |
AE10#,CE100,EE10# |
2 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-04003 |
AE10#,CE100,EE101 |
1 | ||
| 90987-04003 |
AE10#..LHD;CE100,EE101 |
1 | ||
| 90987-04003 |
AE10#,CE100,EE10# |
1 | ||
| Common parts | ||||
| 23322-64020 | ||||
| 23344-54010 | ||||
| 90119-06473 | ||||
| 90119-06539 | ||||
| 90179-06244 | ||||
| 91651-40614 | ||||
| 91651-60618 | ||||
| Linked diagrams | ||||
| 8202 | ||||

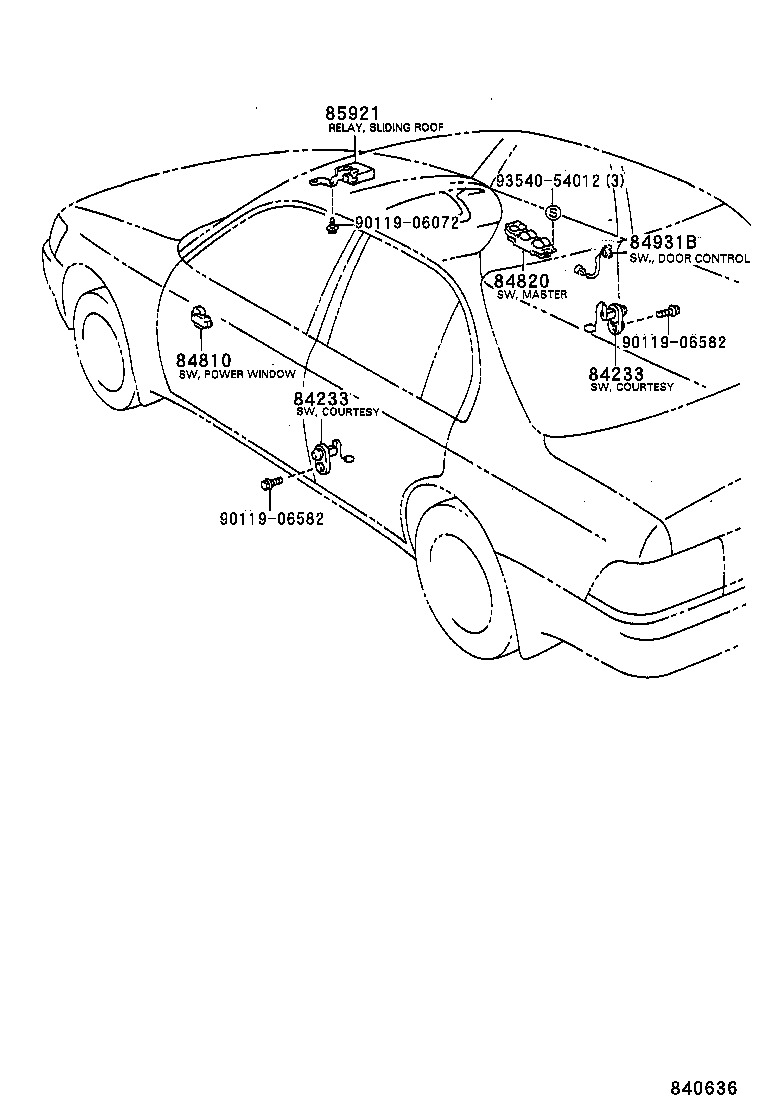

ILLUST NO. 7 OF 8(9205- )
ROOF & FRONT DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-12120 |
AE10#,CE100,EE10# PLANT NO.A31,32 |
2 | ||
| 84231-12080 |
AE10#,CE100,EE10# PLANT NO.M12,B11,K21 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-12120 |
AE10#,CE100,EE10# PLANT NO.A31,32 |
2 | ||
| 84231-12080 |
AE10#,CE100,EE10# PLANT NO.M12,B11,K21 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12080 |
AE101..SED;EE101..GLI;EE101..LHD..SED..XLI |
1 | ||
| 84810-12080 |
AE101;EE101..GLI;EE101..LHD..SED..XLI |
1 | ||
| 84810-12080 |
AE10#..LHD;EE101..WG..GLI;EE101..LHD..GLI;CE100,EE101..XL,XLI |
1 | ||
| 84810-12080 |
AE101;EE101..GLI;CE100,EE101..LHD..(XL,XLI) |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-12230 |
AE101,EE101..RHD..GLI |
1 | ||
| 84820-12231 |
AE101,EE101..RHD..GLI |
1 | ||
| 84820-10060 |
AE101,CE100,EE101..RHD W(*PW-FR ONLY) |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-12060 |
AE101,CE100,EE101..RHD |
1 | ||
| 84931-12062 |
AE101,CE100,EE101..RHD |
1 | ||
| 84931-12061 |
AE101,CE100,EE101..RHD |
1 | ||
| Common parts | ||||
| 90119-06072 | ||||
| 90119-06582 | ||||
| 93540-54012 | ||||

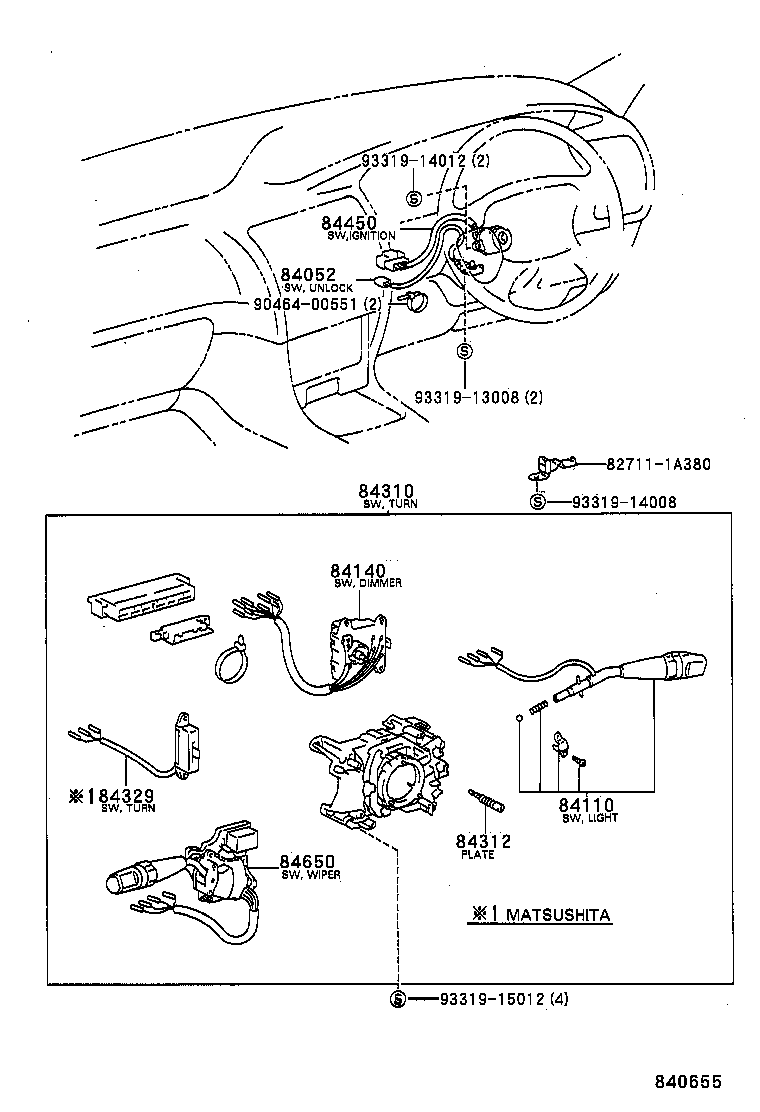

ILLUST NO. 6 OF 8(9205- )RHD
COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-20030 |
AE101,CE100,EE10# |
1 | ||
| 84052-12060 |
AE10#,CE100,EE10# |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80079 |
EE101..RHD..WG |
1 | ||
| 84112-80141 |
CE100,EE101..RHD..WG |
1 | ||
| 84112-80078 |
CE100,EE101..RHD..WG W(WASHER INTERLINKED *IW) |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-12290 |
CE100,EE101..RHD..WG W(WASHER INTERLINKED *IW) |
1 | ||
| 84140-12300 |
CE100,EE101..RHD..WG |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-1A700 |
CE100,EE101..RHD..WG W(WASHER INTERLINKED *IW) |
1 | ||
| 84310-1A620 |
CE100,EE101..RHD..WG |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12040 |
EE100;CE100,EE101..RHD..WG;AE101,CE100,EE101..LHD..SED..(GLI,XL,XLI) |
1 | ||
| 84312-12050 |
EE100;CE100,EE101..RHD..WG;AE101,CE100,EE101..LHD..SED..(GLI,XL,XLI) W(WASHER INTERLINKED *IW) |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-12040 |
AE101,CE100,EE101..RHD |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-20260 |
AE10#,CE100,EE10# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-1A270 |
CE100,EE101..RHD..WG W(WASHER INTERLINKED *IW) |
1 | ||
| 84652-1A060 |
CE100,EE101..RHD..WG |
1 | ||
| Common parts | ||||
| 82711-1A380 | ||||
| 90464-00551 | ||||
| 93319-13008 | ||||
| 93319-14008 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||

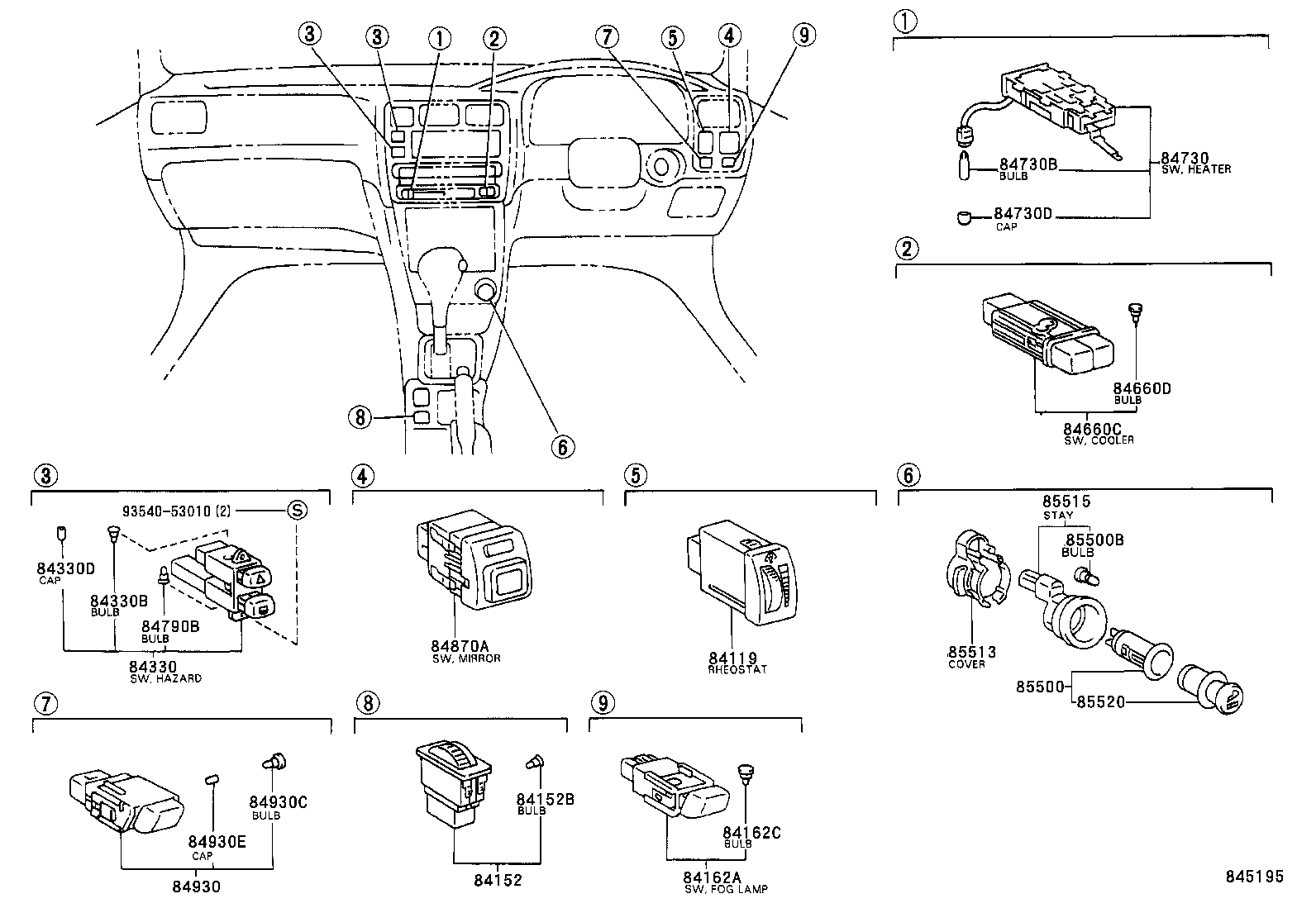

ILLUST NO. 3 OF 8(9205- )RHD
INSTRUMENT PANEL SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-12150 |
AE10#,CE100,EE10#..GLI,XL,XLI |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-12020 |
AE10#,CE100,EE101 |
1 | ||
| 84152B - BULB (FOR HEADLAMP LEVELING SWITCH) | ||||
| 84999-10680 |
AE10#,CE100,EE101 |
1 | ||
| 84162A - SWITCH, REAR FOG LAMP | ||||
| 84165-12020 |
AE10#,CE100,EE10# |
1 | ||
| 84165-12010 |
AE101,CE100,EE10# |
1 | ||
| 84162C - BULB (FOR REAR FOG LAMP SWITCH) | ||||
| 84999-20140 |
AE10#,CE100,EE10# 14V 0.7W |
1 | ||
| 84999-10470 |
AE101,CE100,EE10# 14V 1.12W |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-12331 |
AE10#,CE100,EE10# |
1 | ||
| 84332-12332 |
AE10#,CE100,EE10# |
1 | ||
| 84332-12330 |
AE10#,CE100,EE10# |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10320 |
AE10#,CE100,EE10# 14V 0.84W |
1 | ||
| 84330D - CAP, HAZARD WARNING SWITCH BULB | ||||
| 84998-10610 |
AE10#,CE100,EE10# |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-12170 |
AE101,CE100,EE101..RHD |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-20060 |
AE101,CE100,EE10# 14V 0.08A |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12200 |
AE10#,CE100,EE10# |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11040 |
AE10#,CE100,EE10# 12V 2W |
1 | ||
| 84730D - CAP, HEATER BLOWER SWITCH BULB | ||||
| 84998-10100 |
AE10#,CE100,EE10# |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10470 |
AE10#,CE100,EE10# 14V 1.12W |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-12100 |
AE101,EE101..GLI |
1 | ||
| 84870-12100 |
AE101..GLI;EE101..LHD..GLI;CE100,EE101..RHD |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-12100 |
AE101,CE100,EE10#..GLI,XL,XLI |
1 | ||
| 84930C - BULB(FOR DOOR CONTROL SWITCH) | ||||
| 84999-10870 |
AE101,CE100,EE10#..GLI,XL,XLI 14V 0.84W |
1 | ||
| 84930E - CAP(FOR DOOR CONTROL SWITCH BULB) | ||||
| 84998-10780 |
AE101,CE100,EE10#..GLI,XL,XLI |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-89106 |
AE101,CE100,EE10# |
1 | ||
| 85500-12240 |
AE10#,CE100,EE10# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-10230 |
AE10#,CE100,EE10# 14V 1.4W |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
AE10#,CE100,EE10# |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-12070 |
AE101,CE100,EE101..RHD |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
AE10#,CE100,EE10# |
1 | ||
| 85520-89101 |
AE101,CE100,EE10# |
1 | ||
| Common parts | ||||
| 93540-53010 | ||||

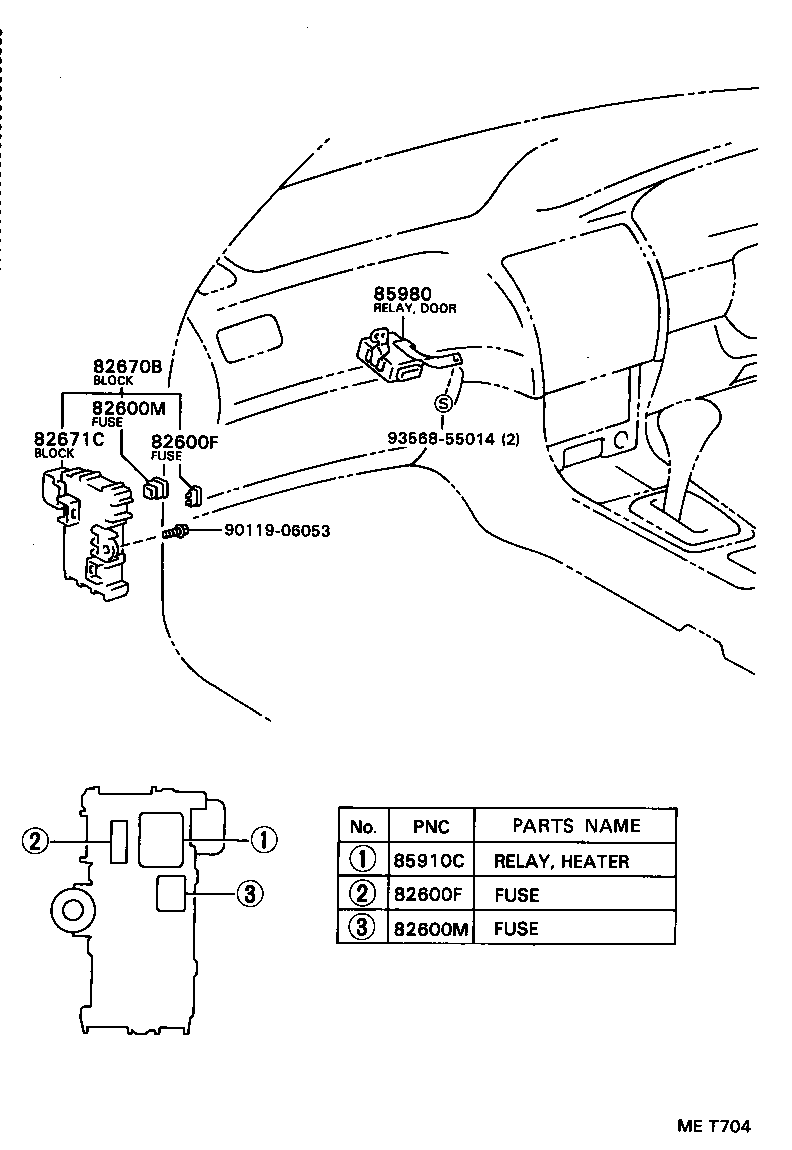

ILLUST NO. 5 OF 8(9205- )RHD
COWL LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
AE10#,CE100,EE10# 15A |
4 | ||
| 90982-07011 |
AE101,CE100,EE101..RHD 30A,GREEN |
1 | ||
| 90982-09002 |
AE10#,CE100,EE10# 10A |
4 | ||
| 90982-09005 |
AE10#,CE100,EE10# 7.5A |
2 | ||
| 90982-09004 |
AE10#,CE100,EE10# 20A,YELLOW |
3 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
AE10#,CE100,EE10# 15A |
4 | ||
| 90982-07011 |
AE101,CE100,EE101..RHD 30A,GREEN |
1 | ||
| 90982-09002 |
AE10#,CE100,EE10# 10A |
4 | ||
| 90982-09005 |
AE10#,CE100,EE10# 7.5A |
2 | ||
| 90982-09004 |
AE10#,CE100,EE10# 20A,YELLOW |
3 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10002 |
AE10#,CE100,EE10# 40A,GREEN |
1 | ||
| 90982-10001 |
AE101,CE100,EE101..RHD 30A,PINK |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10002 |
AE10#,CE100,EE10# 40A,GREEN |
1 | ||
| 90982-10001 |
AE101,CE100,EE101..RHD 30A,PINK |
1 | ||
| 82670B - BLOCK ASSY, JUNCTION, NO.2 | ||||
| 82670-12250 |
AE101,CE100,EE101..RHD |
1 | ||
| 82671C - BLOCK, JUNCTION | ||||
| 82671-12140 |
AE101,CE100,EE101..RHD |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
AE10#,CE100,EE10# |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-12230 |
AE101,CE100,EE101..RHD |
1 | ||
| 85980-12200 |
AE101,CE100,EE101..RHD |
1 | ||
| Common parts | ||||
| 90119-06053 | ||||
| 93568-55014 | ||||

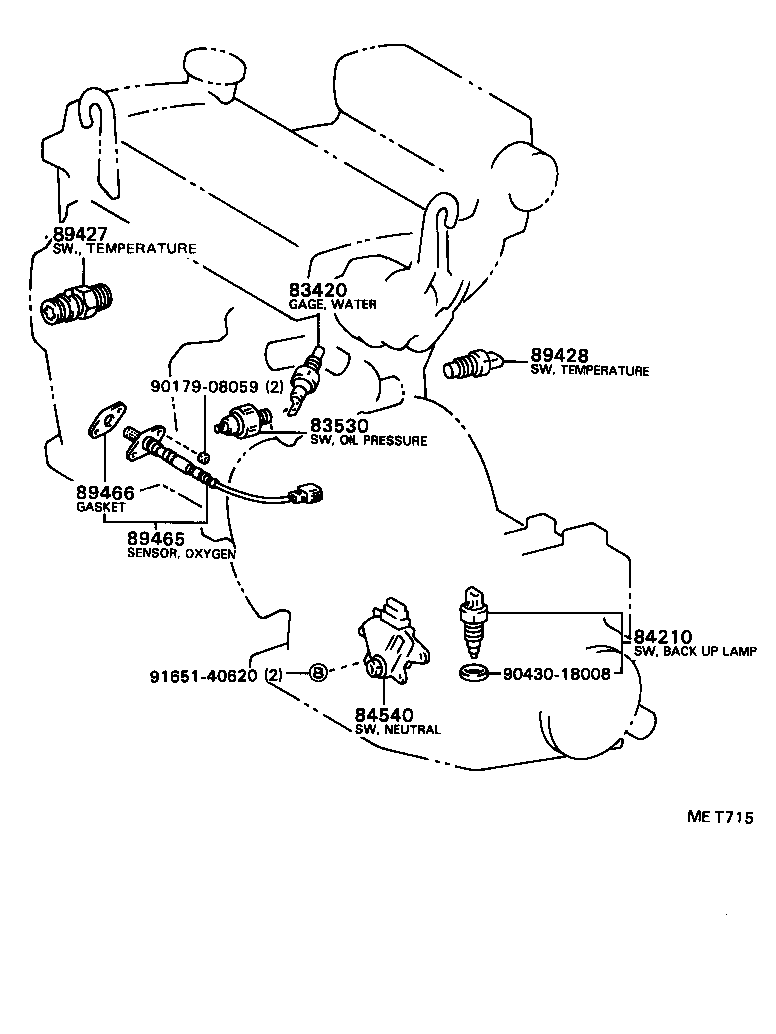

ILLUST NO. 1 OF 8(9205- )EE10#
ENGINE & TRANSAXLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16020 |
EE10# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-14060 |
EE10# NIPPONDENSO |
1 | ||
| 83530-30090 |
EE10# YAZAKI |
1 | ||
| 83530-30090 |
AE10#,EE10# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
AE10#,CE100,EE10#..5F |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-12160 |
AE10#,EE10# |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-19575 |
AE101,EE101 |
1 | ||
| 89465-19675 |
EE101 |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-12020 |
AE101,EE101..3FC,5F |
1 | ||
| 89466-12020 |
AE101,EE101 |
1 | ||
| Common parts | ||||
| 90179-08059 | ||||
| 90430-18008 | ||||
| 91651-40620 | ||||

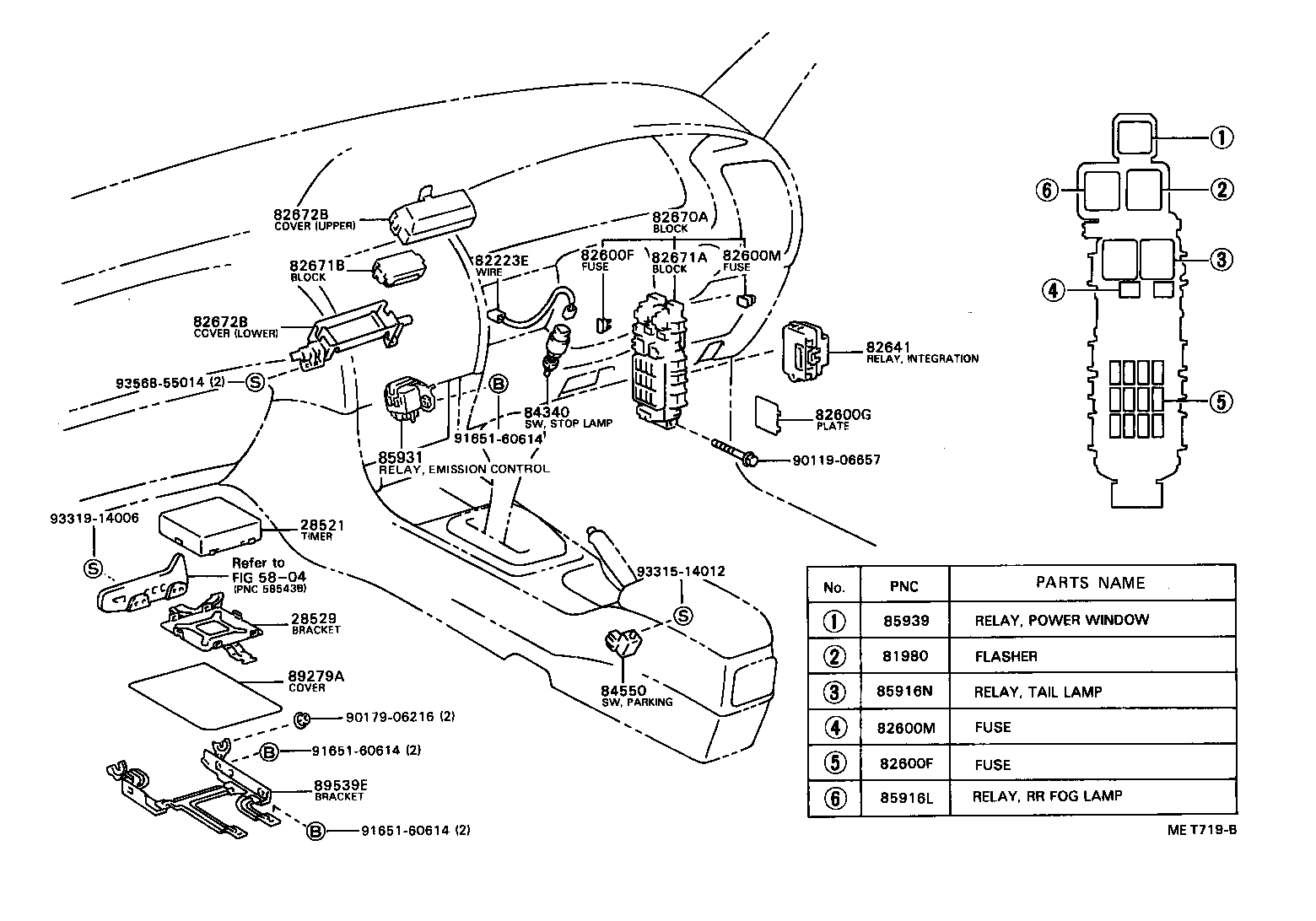

ILLUST NO. 4 OF 8(9205- )RHD
COWL RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
AE10#,CE100,EE10# NIPPONDENSO |
1 | ||
| 82223E - WIRE, CLUTCH START SWITCH | ||||
| 82223-12530 |
AE10#,CE100,EE10# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
AE10#,CE100,EE10# 15A |
4 | ||
| 90982-07011 |
AE101,CE100,EE101..RHD 30A,GREEN |
1 | ||
| 90982-09002 |
AE10#,CE100,EE10# 10A |
4 | ||
| 90982-09005 |
AE10#,CE100,EE10# 7.5A |
2 | ||
| 90982-09004 |
AE10#,CE100,EE10# 20A,YELLOW |
3 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
AE10#,CE100,EE10# 15A |
4 | ||
| 90982-07011 |
AE101,CE100,EE101..RHD 30A,GREEN |
1 | ||
| 90982-09002 |
AE10#,CE100,EE10# 10A |
4 | ||
| 90982-09005 |
AE10#,CE100,EE10# 7.5A |
2 | ||
| 90982-09004 |
AE10#,CE100,EE10# 20A,YELLOW |
3 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-12161 |
AE101,CE100,EE101..RHD |
1 | ||
| 82683-12160 |
AE101,CE100,EE101..RHD |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10002 |
AE10#,CE100,EE10# 40A,GREEN |
1 | ||
| 90982-10001 |
AE101,CE100,EE101..RHD 30A,PINK |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10002 |
AE10#,CE100,EE10# 40A,GREEN |
1 | ||
| 90982-10001 |
AE101,CE100,EE101..RHD 30A,PINK |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-12010 |
AE10#,CE100,EE10# |
1 | ||
| 82670A - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-12290 |
AE101,CE100,EE101..RHD |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-12130 |
AE101,CE100,EE101..RHD |
1 | ||
| 82671B - BLOCK, JUNCTION | ||||
| 82671-12150 |
AE10#,CE100,EE10# |
1 | ||
| 82672B - COVER, JUNCTION BLOCK | ||||
| 82672-12200 |
AE101,CE100,EE101..RHD UPR |
1 | ||
| 82672-12210 |
AE101,CE100,EE101..RHD LWR |
1 | ||
| 82672B - COVER, JUNCTION BLOCK | ||||
| 82672-12200 |
AE101,CE100,EE101..RHD UPR |
1 | ||
| 82672-12210 |
AE101,CE100,EE101..RHD LWR |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32050 |
AE10#,CE100,EE10# |
1 | ||
| 84340-32090 |
AE101,CE100,EE10# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
AE10#,CE100,EE10# |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90987-02009 |
AE101,CE100,EE10# |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02009 |
AE10#,CE100,EE10# |
1 | ||
| 85939 - RELAY, POWER WINDOW | ||||
| 90987-02009 |
AE101;EE101..WG..GLI;CE100,EE10#..SED..(GLI,XL,XLI) |
1 | ||
| 90987-02009 |
EE101..WG..GLI;AE101,CE100,EE10#..SED..(GLI,XL,XLI) |
1 | ||
| 90987-02009 |
EE101..WG..GLI;EE101..LHD..WG..XLI;AE101,CE100..GLI,XL,XLI;EE10#..SED..(GLI,XL,XLI) |
1 | ||
| 90987-02009 |
AE10#,CE100,EE10#..GLI,XL,XLI |
1 | ||
| Common parts | ||||
| 90119-06657 | ||||
| 90179-06216 | ||||
| 91651-60614 | ||||
| 93315-14012 | ||||
| 93319-14006 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 5804 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
