EE101R-AWMNKW (1992)
Toyota Corolla Sed/Wg

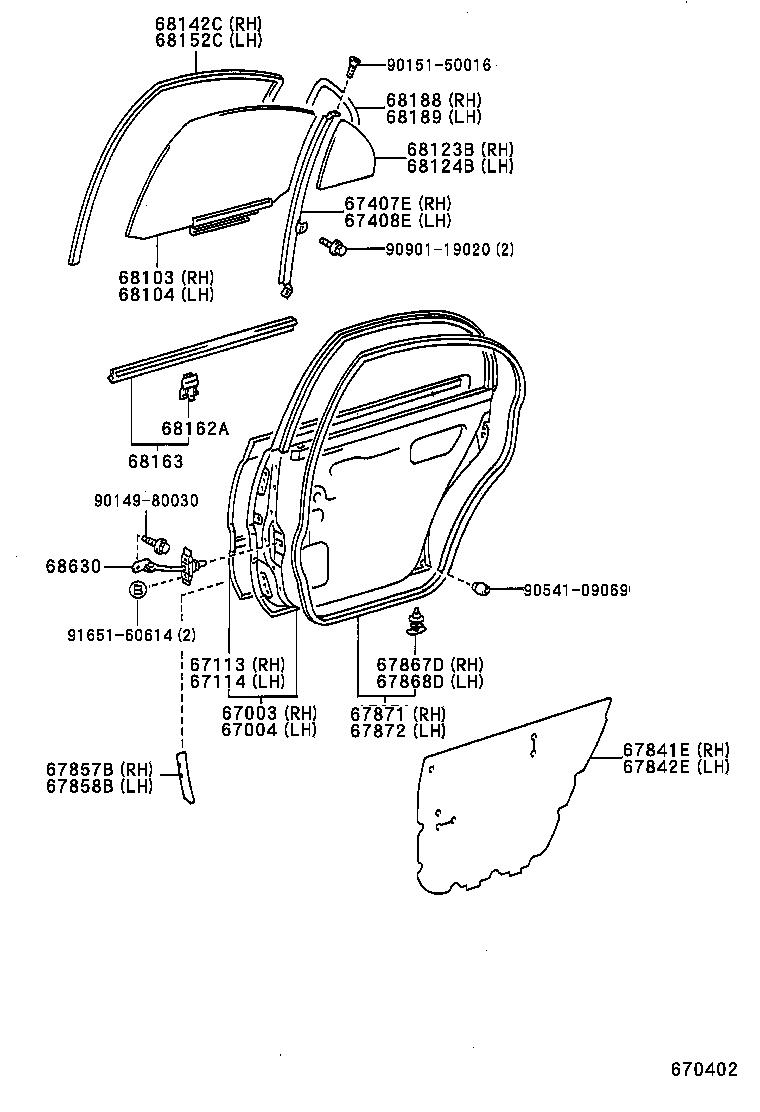

ILLUST NO. 2 OF 2(9205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-13240 |
CE100,EE101..WG..(GLI,STD) |
1 | ||
| 67003-13240 |
AE101,CE100,EE10#..WG..(GLI,XL,XLI) W(*EL) |
1 | ||
| 67003-13240 |
AE10#,CE100,EE101..WG |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-13240 |
AE101,CE100,EE10#..WG..(GLI,XL,XLI) W(*EL) |
1 | ||
| 67004-13240 |
CE100,EE101..WG..(GLI,STD) |
1 | ||
| 67004-13240 |
AE10#,CE100,EE101..WG |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-12230 |
AE10#,CE100,EE10#..GLI,XL,XLI |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-12230 |
AE10#,CE100,EE10#..GLI,XL,XLI |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-13040 |
AE10#,CE100,EE10#..WG |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-13040 |
AE10#,CE100,EE10#..WG |
1 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-12250 |
AE10#,CE100,EE10# |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67841-12250 |
AE10#,CE100,EE10# |
1 | ||
| 67842-12080 |
AE101,CE100,EE10# |
1 | ||
| 67857B - PROTECTOR, REAR DOOR PANEL, RH | ||||
| 67857-12040 |
AE10#,CE100,EE10# |
1 | ||
| 67858B - PROTECTOR, REAR DOOR PANEL, LH | ||||
| 67858-12030 |
AE10#,CE100,EE10# |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67868-20140 |
AE101,CE100,EE10#..WG |
18 | ||
| 67867-12150 |
AE101,CE100,EE10#..WG |
18 | ||
| 67867-12150 |
AE10#,CE100,EE10# |
18 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67868-20140 |
AE101,CE100,EE10#..WG |
18 | ||
| 67867-12150 |
AE101,CE100,EE10#..WG |
18 | ||
| 67867-12150 |
AE10#,CE100,EE10# |
18 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-13100 |
AE10#,CE100,EE10#..WG |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-13090 |
AE10#,CE100,EE10#..WG |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-13160 |
AE10#,CE100,EE10#..WG..(GLI,XL,XLI) *TT,T=3.5 |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-13150 |
AE10#,CE100,EE10#..WG..(GLI,XL,XLI) *TT,T=3.5 |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-13160 |
AE10#,CE100,EE10#..WG..(GLI,XL,XLI) *TT,T=3.5 |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-13150 |
AE10#,CE100,EE10#..WG..(GLI,XL,XLI) *TT,T=3.5 |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-13090 |
AE10#,CE100,EE10#..WG |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-13050 |
AE10#,CE100,EE10#..WG |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-13070 |
AE10#,CE100,EE10#..WG |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-13070 |
AE10#,CE100,EE10#..WG |
1 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-12050 |
AE101,CE100,EE10# RH |
1 | ||
| 68640-12010 |
AE101,CE100,EE10# LH |
1 | ||
| 68630-12051 |
AE10#,CE100,EE10# RH |
1 | ||
| 68640-12011 |
AE10#,CE100,EE10# LH |
1 | ||
| Common parts | ||||
| 90149-80030 | ||||
| 90151-50016 | ||||
| 90541-09069 | ||||
| 90901-19020 | ||||
| 91651-60614 | ||||

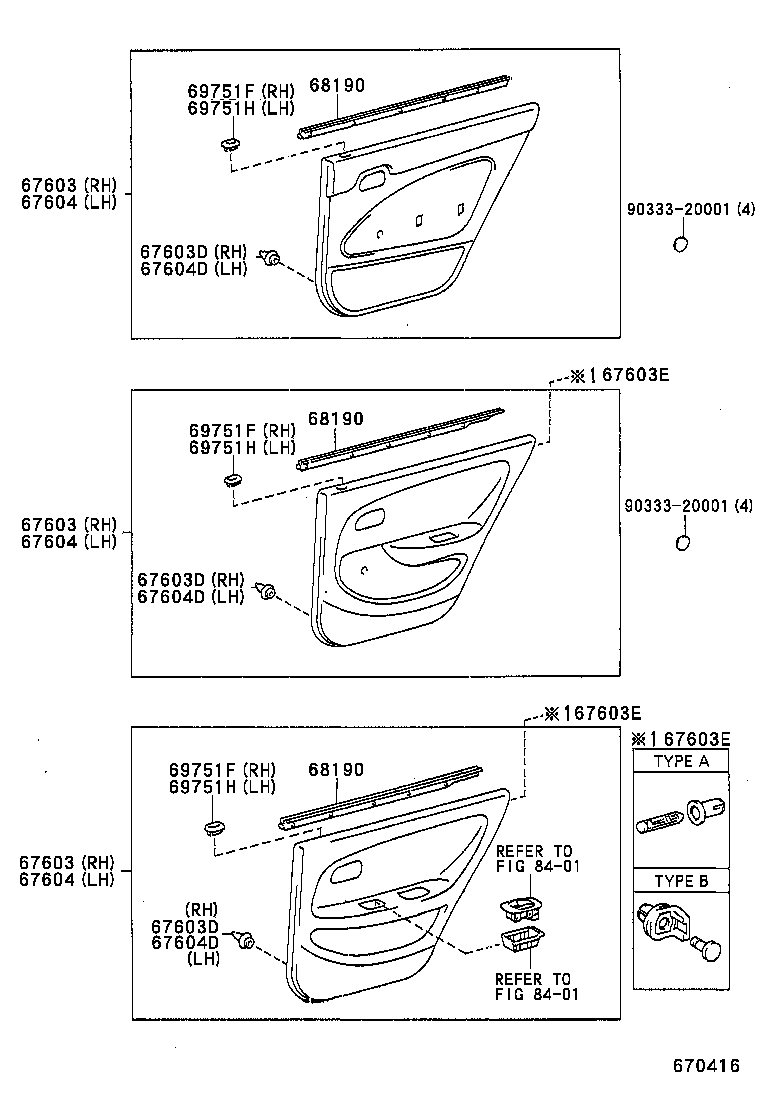

ILLUST NO. 1 OF 2(9205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-13320B0 |
EE101..WG..GLI SHADOW GRAY,TRIM1# |
1 | ||
| 67630-13230B0 |
EE101..WG..GLI W(*PW),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-13230J1 |
EE101..WG..GLI W(*PW),DARK BLUE,TRIM8# |
1 | ||
| 67630-13320J1 |
EE101..WG..GLI DARK BLUE,TRIM8# |
1 | ||
| 67630-13321B1 |
EE101..WG..GLI SHADOW GRAY,TRIM1# |
1 | ||
| 67630-13321J2 |
EE101..WG..GLI BLUE/GRAY,TRIM8# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-13320B0 |
EE101..WG..GLI SHADOW GRAY,TRIM1# |
1 | ||
| 67630-13230B0 |
EE101..WG..GLI W(*PW),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-13230J1 |
EE101..WG..GLI W(*PW),DARK BLUE,TRIM8# |
1 | ||
| 67630-13320J1 |
EE101..WG..GLI DARK BLUE,TRIM8# |
1 | ||
| 67630-13321B1 |
EE101..WG..GLI SHADOW GRAY,TRIM1# |
1 | ||
| 67630-13321J2 |
EE101..WG..GLI BLUE/GRAY,TRIM8# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-13320B0 |
EE101..WG..GLI SHADOW GRAY,TRIM1# |
1 | ||
| 67630-13230B0 |
EE101..WG..GLI W(*PW),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-13230J1 |
EE101..WG..GLI W(*PW),DARK BLUE,TRIM8# |
1 | ||
| 67630-13320J1 |
EE101..WG..GLI DARK BLUE,TRIM8# |
1 | ||
| 67630-13321B1 |
EE101..WG..GLI SHADOW GRAY,TRIM1# |
1 | ||
| 67630-13321J2 |
EE101..WG..GLI BLUE/GRAY,TRIM8# |
1 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-12050 |
AE10#,CE100,EE10#..GLI,XL,XLI |
6 | ||
| 67771-28020 |
AE101,CE100,EE10#..GLI,XL,XLI |
6 | ||
| 67771-16080 |
EE101..WG..GLI NATURAL |
6 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-12050 |
AE10#,CE100,EE10#..GLI,XL,XLI |
6 | ||
| 67771-28020 |
AE101,CE100,EE10#..GLI,XL,XLI |
6 | ||
| 67771-16080 |
EE101..WG..GLI NATURAL |
6 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-12050 |
AE10#,CE100,EE10#..GLI,XL,XLI |
6 | ||
| 67771-28020 |
AE101,CE100,EE10#..GLI,XL,XLI |
6 | ||
| 67771-16080 |
EE101..WG..GLI NATURAL |
6 | ||
| 67603E - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-0706603 |
AE101,CE100,EE10#..GLI,XL,XLI SHADOW GRAY,TRIM1# |
4 | ||
| 90467-09141 |
AE10#,CE100,EE10#..GLI,XL,XLI TYPE B |
4 | ||
| 90467-07066P0 |
AE10#,CE100,EE10#..GLI,XL,XLI SHADOW GRAY,TRIM1# |
4 | ||
| 90467-07066J0 |
AE10#,CE100,EE10#..GLI,XL,XLI DARK BLUE,TRIM8# |
4 | ||
| 67603E - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-0706603 |
AE101,CE100,EE10#..GLI,XL,XLI SHADOW GRAY,TRIM1# |
4 | ||
| 90467-09141 |
AE10#,CE100,EE10#..GLI,XL,XLI TYPE B |
4 | ||
| 90467-07066P0 |
AE10#,CE100,EE10#..GLI,XL,XLI SHADOW GRAY,TRIM1# |
4 | ||
| 90467-07066J0 |
AE10#,CE100,EE10#..GLI,XL,XLI DARK BLUE,TRIM8# |
4 | ||
| 67603E - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-0706603 |
AE101,CE100,EE10#..GLI,XL,XLI SHADOW GRAY,TRIM1# |
4 | ||
| 90467-09141 |
AE10#,CE100,EE10#..GLI,XL,XLI TYPE B |
4 | ||
| 90467-07066P0 |
AE10#,CE100,EE10#..GLI,XL,XLI SHADOW GRAY,TRIM1# |
4 | ||
| 90467-07066J0 |
AE10#,CE100,EE10#..GLI,XL,XLI DARK BLUE,TRIM8# |
4 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-13230B0 |
EE101..WG..GLI W(*PW),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-13230J1 |
EE101..WG..GLI W(*PW),DARK BLUE,TRIM8# |
1 | ||
| 67640-13320J1 |
EE101..WG..GLI DARK BLUE,TRIM8# |
1 | ||
| 67640-13320B0 |
EE101..WG..GLI SHADOW GRAY,TRIM1# |
1 | ||
| 67640-13321J2 |
EE101..WG..GLI BLUE/GRAY,TRIM8# |
1 | ||
| 67640-13321B1 |
EE101..WG..GLI SHADOW GRAY,TRIM1# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-13230B0 |
EE101..WG..GLI W(*PW),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-13230J1 |
EE101..WG..GLI W(*PW),DARK BLUE,TRIM8# |
1 | ||
| 67640-13320J1 |
EE101..WG..GLI DARK BLUE,TRIM8# |
1 | ||
| 67640-13320B0 |
EE101..WG..GLI SHADOW GRAY,TRIM1# |
1 | ||
| 67640-13321J2 |
EE101..WG..GLI BLUE/GRAY,TRIM8# |
1 | ||
| 67640-13321B1 |
EE101..WG..GLI SHADOW GRAY,TRIM1# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-13230B0 |
EE101..WG..GLI W(*PW),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-13230J1 |
EE101..WG..GLI W(*PW),DARK BLUE,TRIM8# |
1 | ||
| 67640-13320J1 |
EE101..WG..GLI DARK BLUE,TRIM8# |
1 | ||
| 67640-13320B0 |
EE101..WG..GLI SHADOW GRAY,TRIM1# |
1 | ||
| 67640-13321J2 |
EE101..WG..GLI BLUE/GRAY,TRIM8# |
1 | ||
| 67640-13321B1 |
EE101..WG..GLI SHADOW GRAY,TRIM1# |
1 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-16080 |
EE101..WG..GLI NATURAL |
6 | ||
| 67771-12050 |
AE10#,CE100,EE10#..GLI,XL,XLI |
6 | ||
| 67771-28020 |
AE101,CE100,EE10#..GLI,XL,XLI |
6 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-16080 |
EE101..WG..GLI NATURAL |
6 | ||
| 67771-12050 |
AE10#,CE100,EE10#..GLI,XL,XLI |
6 | ||
| 67771-28020 |
AE101,CE100,EE10#..GLI,XL,XLI |
6 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-16080 |
EE101..WG..GLI NATURAL |
6 | ||
| 67771-12050 |
AE10#,CE100,EE10#..GLI,XL,XLI |
6 | ||
| 67771-28020 |
AE101,CE100,EE10#..GLI,XL,XLI |
6 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68173-12050 |
AE10#,CE100,EE10# |
2 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68173-12050 |
AE10#,CE100,EE10# |
2 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68173-12050 |
AE10#,CE100,EE10# |
2 | ||
| 69751F - HOLDER, REAR DOOR LOCK CONTROL KNOB | ||||
| 69751-12050B0 |
AE10#,CE100,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 69751-12050J0 |
AE10#,CE100,EE10# DARK BLUE,TRIM8# |
1 | ||
| 69751F - HOLDER, REAR DOOR LOCK CONTROL KNOB | ||||
| 69751-12050B0 |
AE10#,CE100,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 69751-12050J0 |
AE10#,CE100,EE10# DARK BLUE,TRIM8# |
1 | ||
| 69751F - HOLDER, REAR DOOR LOCK CONTROL KNOB | ||||
| 69751-12050B0 |
AE10#,CE100,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 69751-12050J0 |
AE10#,CE100,EE10# DARK BLUE,TRIM8# |
1 | ||
| 69751H - HOLDER, REAR DOOR LOCK CONTRAL KNOB | ||||
| 69751-12050B0 |
AE10#,CE100,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 69751-12050J0 |
AE10#,CE100,EE10# DARK BLUE,TRIM8# |
1 | ||
| 69751H - HOLDER, REAR DOOR LOCK CONTRAL KNOB | ||||
| 69751-12050B0 |
AE10#,CE100,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 69751-12050J0 |
AE10#,CE100,EE10# DARK BLUE,TRIM8# |
1 | ||
| 69751H - HOLDER, REAR DOOR LOCK CONTRAL KNOB | ||||
| 69751-12050B0 |
AE10#,CE100,EE10# SHADOW GRAY,TRIM1# |
1 | ||
| 69751-12050J0 |
AE10#,CE100,EE10# DARK BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90333-20001 | ||||
| Linked diagrams | ||||
| 8401 | ||||
