Toyota Corolla sed/wg EE101 BRAKE MASTER CYLINDER

EE101R-AWMNKW (1992)

Toyota Corolla Sed/Wg

Production May 1992 - Apr 1997

Engine 4EFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9305- )RHD

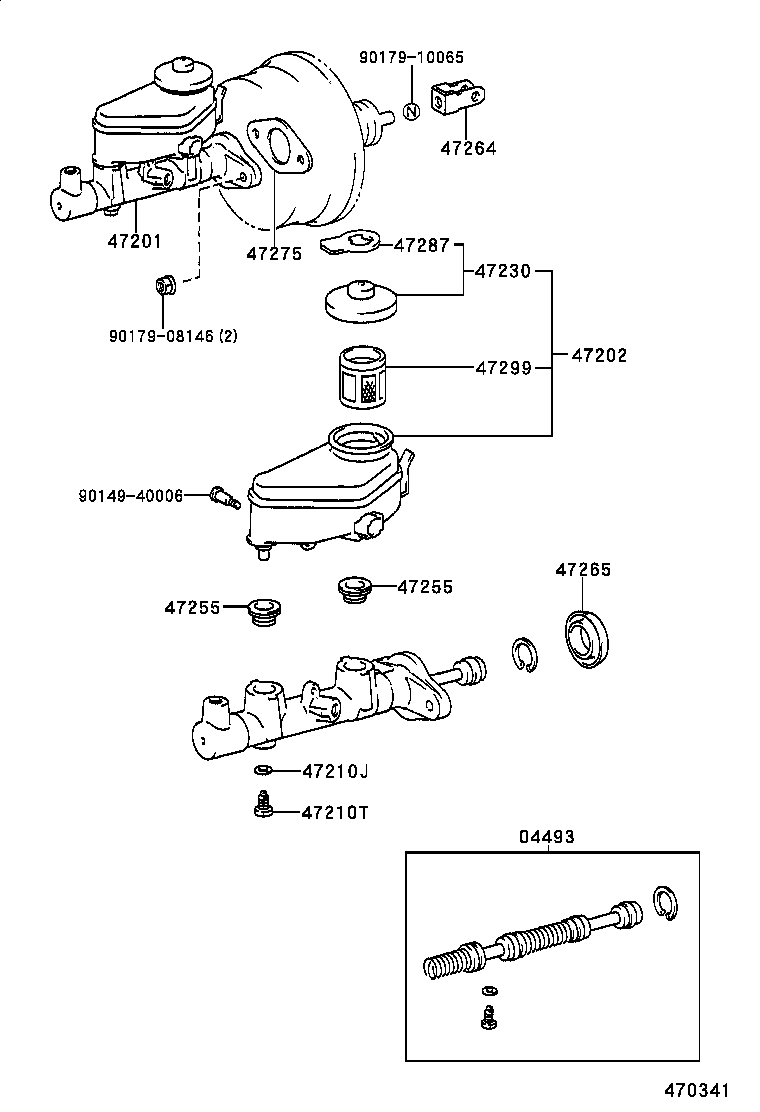

Click highlighted areas on diagram

Part #	Description	Period	Qty
04493 - CYLINDER KIT, BRAKE MASTER
04493-16080	AE10#,CE100,EE10#	05/1995 - 04/1997	1
04493-12180	AE101,CE100,EE10#	05/1992 - 05/1995	1
04493-10130	AE101,CE100,EE101 W(ABS)	05/1992 - 05/1995	1
04493-12200	AE10#,CE100,EE101 W(ABS)	05/1995 - 04/1997	1
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-12790	AE101,CE100,EE101..RHD	05/1992 - 05/1993	1
47201-12810	AE101,CE100,EE101..RHD W(ABS)	05/1992 - 05/1993	1
47201-1A010	AE101,CE100,EE101..RHD W(ABS)	05/1993 - 05/1995	1
47201-1A100	AE101,CE100,EE101..RHD W(ABS)	05/1995 - 04/1997	1
47201-1A090	AE101,CE100,EE101..RHD	05/1995 - 04/1997	1
47201-12890	AE101,CE100,EE101..RHD	05/1993 - 05/1995	1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-17020	AE101,CE100,EE101	05/1992 - 11/1993	1
47220-17050	AE10#,CE100,EE101	11/1993 - 04/1997	1
47210J - GASKET(FOR MASTER CYLINDER)
90430-06104	AE10#,CE100,EE10#	05/1992 - 04/1997	1
47210T - BOLT(FOR BRAKE MASTER CYLINDER)
90109-06077	AE10#,CE100,EE10#	05/1992 - 04/1997	1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-20100	AE101,CE100,EE101	05/1992 - 11/1993	1
47230-20140	AE10#,CE100,EE101	11/1993 - 04/1997	1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010	EE100;CE100..SED;AE101,EE101..RHD	04/1993 - 07/1994	2
47255-16010	AE101,CE100,EE10#	05/1992 - 04/1993	2
47255-16010	AE10#,CE100,EE10#	05/1995 - 04/1997	2
47255-16010	AE101,CE100,EE101..RHD	07/1994 - 05/1995	2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010	EE100;CE100..SED;AE101,EE101..RHD	04/1993 - 07/1994	2
47255-16010	AE101,CE100,EE10#	05/1992 - 04/1993	2
47255-16010	AE10#,CE100,EE10#	05/1995 - 04/1997	2
47255-16010	AE101,CE100,EE101..RHD	07/1994 - 05/1995	2
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
47264-16020	EE100;AE101,CE100,EE101..RHD	07/1994 - 05/1995	1
47264-16020	AE101,CE100,EE10#	05/1992 - 07/1994	1
47264-33010	CE100..LHD;AE10#,EE10#	05/1995 - 04/1997	1
47265 - BOOT, MASTER CYLINDER
47265-20050	AE101,CE100,EE101..RHD	07/1994 - 05/1995	1
47265-20050	AE101,CE100,EE10#	05/1992 - 04/1993	1
47265-20050	EE100;CE100..SED;AE101,EE101..RHD	04/1993 - 07/1994	1
47275 - GASKET, BRAKE MASTER CYLINDER
47275-32010	AE101,CE100,EE10#	05/1992 - 05/1993	1
47275-12020	AE101,CE100,EE101..RHD	05/1993 - 04/1997	1
47287 - LABEL, BRAKE FLUID INFORMATION
47287-20010	AE10#,CE100,EE101	11/1993 - 04/1997	1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-24010	AE10#,CE100,EE10#	05/1992 - 04/1997	1
Common parts
90149-40006
90179-08146
90179-10065

(9205-9305) ; (9305- )LHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
04493 - CYLINDER KIT, BRAKE MASTER
04493-16080	AE10#,CE100,EE10#	05/1995 - 04/1997	1
04493-12180	AE101,CE100,EE10#	05/1992 - 05/1995	1
04493-10130	AE101,CE100,EE101 W(ABS)	05/1992 - 05/1995	1
04493-12200	AE10#,CE100,EE101 W(ABS)	05/1995 - 04/1997	1
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-12790	AE101,CE100,EE101..RHD	05/1992 - 05/1993	1
47201-12810	AE101,CE100,EE101..RHD W(ABS)	05/1992 - 05/1993	1
47201-1A010	AE101,CE100,EE101..RHD W(ABS)	05/1993 - 05/1995	1
47201-1A100	AE101,CE100,EE101..RHD W(ABS)	05/1995 - 04/1997	1
47201-1A090	AE101,CE100,EE101..RHD	05/1995 - 04/1997	1
47201-12890	AE101,CE100,EE101..RHD	05/1993 - 05/1995	1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-17020	AE101,CE100,EE101	05/1992 - 11/1993	1
47220-17050	AE10#,CE100,EE101	11/1993 - 04/1997	1
47210J - GASKET(FOR MASTER CYLINDER)
90430-06104	AE10#,CE100,EE10#	05/1992 - 04/1997	1
47210T - BOLT(FOR BRAKE MASTER CYLINDER)
90109-06077	AE10#,CE100,EE10#	05/1992 - 04/1997	1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-20100	AE101,CE100,EE101	05/1992 - 11/1993	1
47230-20140	AE10#,CE100,EE101	11/1993 - 04/1997	1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010	EE100;CE100..SED;AE101,EE101..RHD	04/1993 - 07/1994	2
47255-16010	AE101,CE100,EE10#	05/1992 - 04/1993	2
47255-16010	AE10#,CE100,EE10#	05/1995 - 04/1997	2
47255-16010	AE101,CE100,EE101..RHD	07/1994 - 05/1995	2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010	EE100;CE100..SED;AE101,EE101..RHD	04/1993 - 07/1994	2
47255-16010	AE101,CE100,EE10#	05/1992 - 04/1993	2
47255-16010	AE10#,CE100,EE10#	05/1995 - 04/1997	2
47255-16010	AE101,CE100,EE101..RHD	07/1994 - 05/1995	2
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
47264-16020	EE100;AE101,CE100,EE101..RHD	07/1994 - 05/1995	1
47264-16020	AE101,CE100,EE10#	05/1992 - 07/1994	1
47264-33010	CE100..LHD;AE10#,EE10#	05/1995 - 04/1997	1
47265 - BOOT, MASTER CYLINDER
47265-20050	AE101,CE100,EE101..RHD	07/1994 - 05/1995	1
47265-20050	AE101,CE100,EE10#	05/1992 - 04/1993	1
47265-20050	EE100;CE100..SED;AE101,EE101..RHD	04/1993 - 07/1994	1
47275 - GASKET, BRAKE MASTER CYLINDER
47275-32010	AE101,CE100,EE10#	05/1992 - 05/1993	1
47275-12020	AE101,CE100,EE101..RHD	05/1993 - 04/1997	1
47287 - LABEL, BRAKE FLUID INFORMATION
47287-20010	AE10#,CE100,EE101	11/1993 - 04/1997	1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-24010	AE10#,CE100,EE10#	05/1992 - 04/1997	1
Common parts
90149-40006
90179-08146
90179-10065

EE101R-AWMNKW (1992)

(9305- )RHD

(9205-9305) ; (9305- )LHD
