EE101R-AWMDKW (1992)

Toyota Corolla Sed/Wg

Production May 1992 - Apr 1997
Engine 4EFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9205- )

Click highlighted areas on diagram

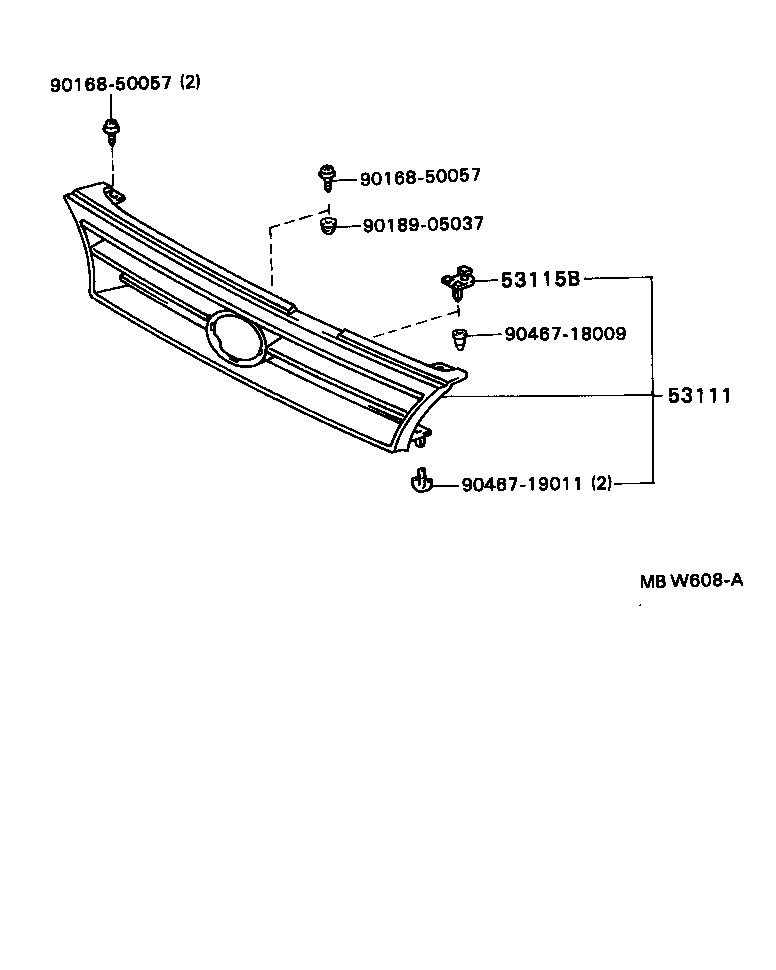

diagram 53111 53115B 9016850057 9016850057 9018905037 9046718009 9046719011
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53101-1A020

AE10#,CE100,EE10#

 1
53115B - BRACKET, RADIATOR GRILLE
53115-16010

AE10#,CE100,EE10#

 1
Common parts
90168-50057
90189-05037
90467-18009
90467-19011
