Toyota Corolla sed/wg EE101 HEATING & AIR CONDITIONING - COMPRESSOR

Manufacturers Home
Toyota
EU
COROLLA SED/WG
EE101R-AEMNKW (1992)
8719 - HEATING & AIR CONDITIONING - COMPRESSOR

EE101R-AEMNKW (1992)

Toyota Corolla Sed/Wg

Production May 1992 - Apr 1997

Engine 4EFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

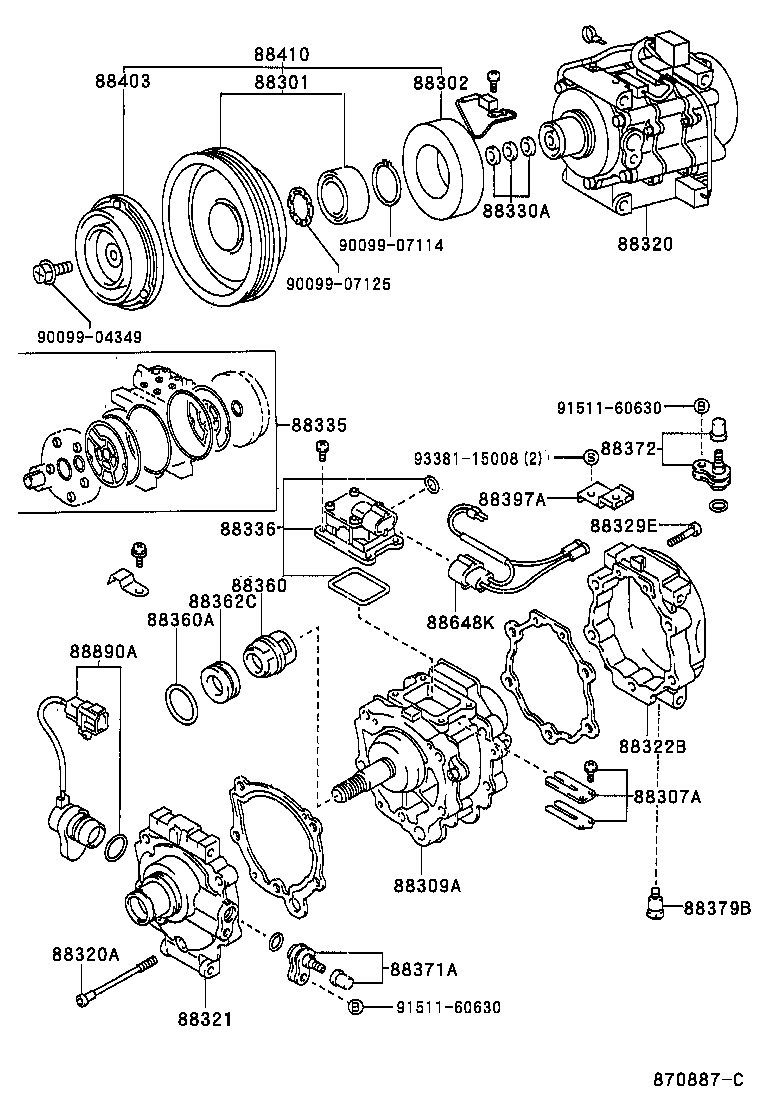

ILLUST NO. 2 OF 2(9205- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-1A090	EE10#	05/1993 - 04/1997	1
88412-1A010	EE10#	05/1992 - 05/1993	1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-1A010	AE101,CE100,EE101	07/1992 - 05/1993	1
88411-1A010	AE101,CE100,EE10#	05/1992 - 07/1992	1
88411-1A040	CE100,EE101;AE10#,EE100..LHD	05/1996 - 04/1997	1
88411-1A040	AE10#,CE100,EE10#	05/1993 - 05/1996	1
88307A - REED SUB-ASSY, VALVE
88307-12050	AE10#,EE10#	05/1992 - 05/1996	1
88307-12050	EE101;AE10#,EE100..LHD	05/1996 - 04/1997	1
88309A - PUMP SUB-ASSY, COMPRESSOR
88309-12140	EE101..RHD	05/1996 - 12/2999	1
88309-12030	AE101,EE10#	05/1992 - 05/1993	1
88309-12110	AE10#,EE10#	05/1993 - 05/1996	1
88320 - COMPRESSOR ASSY, COOLER
88320-1A260	EE101..RHD DEALER OPTION	05/1992 - 05/1993	1
88320-1A280	EE101..RHD W(POWER STEERING),DEALER OPTION	05/1992 - 05/1993	1
88320-1A360	EE101..RHD DEALER OPTION	05/1993 - 05/1995	1
88320-1A370	EE101..RHD W(POWER STEERING),DEALER OPTION	05/1993 - 05/1995	1
88320-1A370	EE101..RHD	05/1995 - 04/1997	1
88320A - BOLT, THROUGH
88329-16010	EE101;AE10#,EE100..LHD	05/1996 - 04/1997	5
88329-16010	AE10#,EE10#	05/1992 - 05/1996	5
88321 - HEAD, COOLER COMPRESSOR CYLINDER
88321-12130	EE10# W(POWER STEERING)	05/1993 - 05/1995	1
88321-16040	EE10# W(POWER STEERING)	05/1992 - 05/1993	1
88321-12140	AE101,EE10#	05/1993 - 05/1995	1
88321-16030	AE101,EE10#	05/1992 - 05/1993	1
88321-12130	EE101..RHD	05/1995 - 04/1997	1
88322B - CASE, OIL SEPARATOR
88322-12100	AE10#,EE10#	05/1993 - 05/1996	1
88322-12100	EE101;AE10#,EE100..LHD	05/1996 - 04/1997	1
88322-12060	AE101,EE10#	05/1992 - 05/1993	1
88329E - BOLT, COMPRESSOR, NO.1
88329-16020	AE10#,EE10#	05/1992 - 05/1996	2
88329-16020	EE101;AE10#,EE100..LHD	05/1996 - 04/1997	2
88330A - WASHER (FOR MAGNET CLUTCH)
90099-01553	CE100,EE10# T=0.1	05/1992 - 05/1993	1
90099-01554	CE100,EE10# T=0.3	05/1992 - 05/1993	1
90099-01555	CE100,EE10# T=0.5	05/1992 - 05/1993	1
88335-14020	AE10#,CE100,EE101 3 PIECE SET	05/1993 - 05/1996	1
88335-14020	AE101,CE100,EE10# 3 PIECE SET	05/1992 - 05/1993	1
88335-14020	AE10#..LHD;CE100,EE101 3 PIECE SET	05/1996 - 04/1997	1
90099-01553	AE10#..LHD;CE100,EE101 T=0.1	05/1996 - 04/1997	1
90099-01555	AE10#..LHD;CE100,EE101 T=0.5	05/1996 - 04/1997	1
90099-01554	AE10#..LHD;CE100,EE101 T=0.3	05/1996 - 04/1997	1
90099-01555	AE10#,CE100,EE101 T=0.5	05/1993 - 05/1996	1
90099-01554	AE10#,CE100,EE101 T=0.3	05/1993 - 05/1996	1
90099-01553	AE10#,CE100,EE101 T=0.1	05/1993 - 05/1996	1
88335 - GASKET KIT, OVERHAUL
88335-12110	AE10#,EE10#	05/1993 - 04/1997	1
88335-16050	AE101,EE10#	05/1992 - 05/1993	1
88336 - SENSOR, COMPRESSOR
88336-12090	EE10# W(POWER STEERING),LOCK SENSOR	05/1993 - 05/1995	1
88336-16010	EE101..RHD TEMPERATURE SENSOR	05/1995 - 05/1996	1
88336-12070	EE10# W(POWER STEERING),LOCK SENSOR	05/1992 - 05/1993	1
88336-12090	CE100;EE101..RHD LOCK SENSOR	05/1995 - 05/1996	1
88336-12090	CE100,EE101..RHD LOCK SENSOR	05/1996 - 12/2999	1
88336-16070	EE101..RHD TEMPERATURE SENSOR	05/1996 - 12/2999	1
88336-16010	AE101,EE10#	05/1992 - 05/1995	1
88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT
88360-16010	AE101,EE10#	05/1992 - 05/1993	1
88360-12100	AE10#,EE10#	05/1993 - 05/1996	1
88360-12100	EE101;AE10#,EE100..LHD	05/1996 - 04/1997	1
88360A - RING, COMPRESSOR SEAL PLATE SNAP
90096-90022	AE10#,CE100,EE10#	05/1993 - 05/1996	1
90096-90022	CE100,EE101;AE10#,EE100..LHD	05/1996 - 12/2999	1
88362C - PLATE, PULSE
88362-12020	EE10#	05/1993 - 12/2999	1
88371A - VALVE, SUCTION
88376-16020	AE101,EE10#	05/1992 - 05/1993	1
88376-12010	AE10#,CE100,EE10#	05/1993 - 05/1996	1
88376-12010	CE100,EE101;AE10#,EE100..LHD	05/1996 - 04/1997	1
88372 - VALVE, DISCHARGE
88376-12020	CE100,EE101;AE10#,EE100..LHD	05/1996 - 04/1997	1
88376-16040	AE101,EE10#	05/1992 - 05/1993	1
88376-12020	AE10#,CE100,EE10#	05/1993 - 05/1996	1
88397A - CLIP, COMPRESSOR
88397-16030	EE101;AE10#,EE100..LHD	05/1996 - 04/1997	1
88397-16030	AE10#,EE10#	05/1992 - 05/1996	1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-1A010	AE10#,CE100,EE10#	05/1992 - 05/1996	1
88403-1A010	CE100,EE101;AE10#,EE100..LHD	05/1996 - 04/1997	1
88410 - CLUTCH ASSY, MAGNET
88410-1A010	EE10#	05/1992 - 05/1993	1
88410-1A150	EE10#	05/1993 - 04/1997	1
88648K - WIRE SUB-ASSY, SENSOR
88648-12530	EE10#	05/1992 - 05/1993	1
88648-12600	CE100,EE10#	05/1993 - 05/1995	1
Common parts
90099-04349
90099-07114
90099-07125
91511-60630
93381-15008

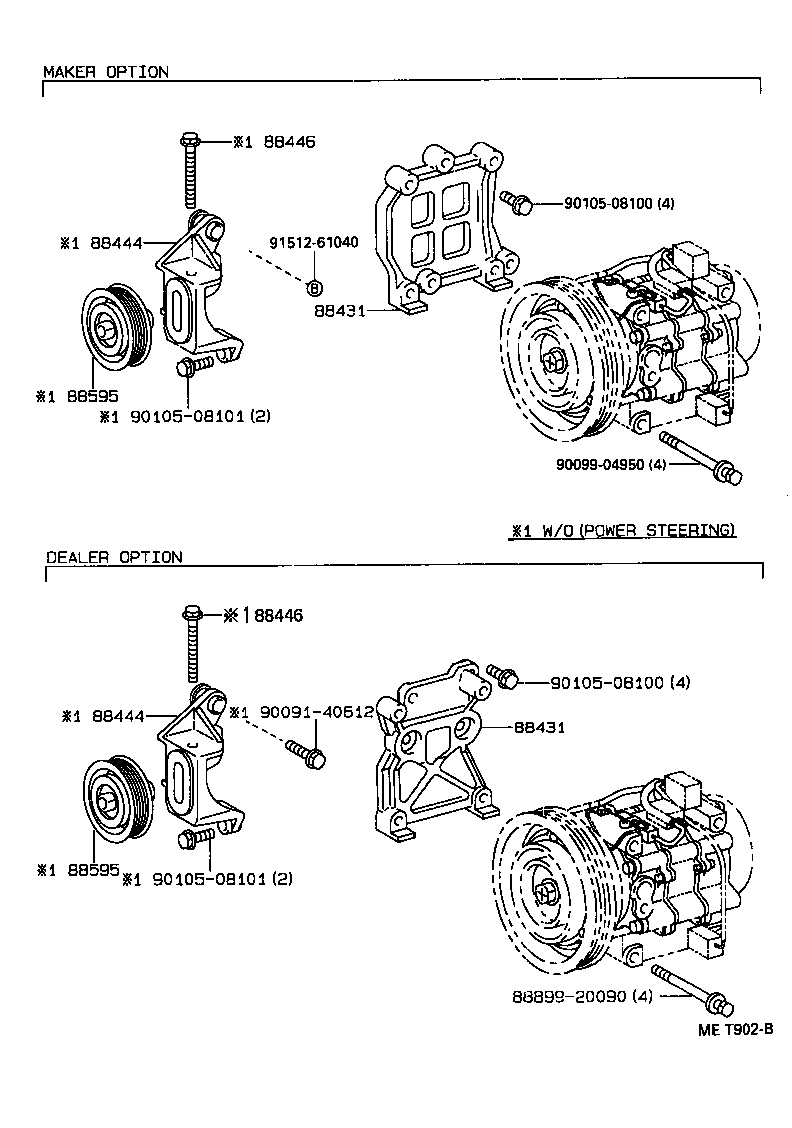

ILLUST NO. 1 OF 2(9205- )EE10#

Click highlighted areas on diagram

Part #	Description	Period	Qty
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-12370	EE10#	05/1992 - 05/1993	1
88431-12540	EE10#	05/1993 - 04/1997	1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-12370	EE10#	05/1992 - 05/1993	1
88431-12540	EE10#	05/1993 - 04/1997	1
88444 - BRACKET, IDLE PULLEY
88444-10031	EE10#	05/1992 - 05/1995	1
88444 - BRACKET, IDLE PULLEY
88444-10031	EE10#	05/1992 - 05/1995	1
88446 - BOLT, IDLE PULLEY
88446-12030	AE101,EE10#	05/1992 - 05/1995	1
88446 - BOLT, IDLE PULLEY
88446-12030	AE101,EE10#	05/1992 - 05/1995	1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-12170	EE10#	05/1992 - 05/1993	1
88440-12210	EE10#	02/1994 - 05/1995	1
88440-12170	CE100,EE10#	05/1993 - 02/1994	1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-12170	EE10#	05/1992 - 05/1993	1
88440-12210	EE10#	02/1994 - 05/1995	1
88440-12170	CE100,EE10#	05/1993 - 02/1994	1
Common parts
88899-20090
90091-40612
90099-04950
90105-08100
90105-08101
91512-61040
