EE101R-AEMNKW (1992)

Toyota Corolla Sed/Wg

Production May 1992 - Apr 1997
Engine 4EFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9205- )

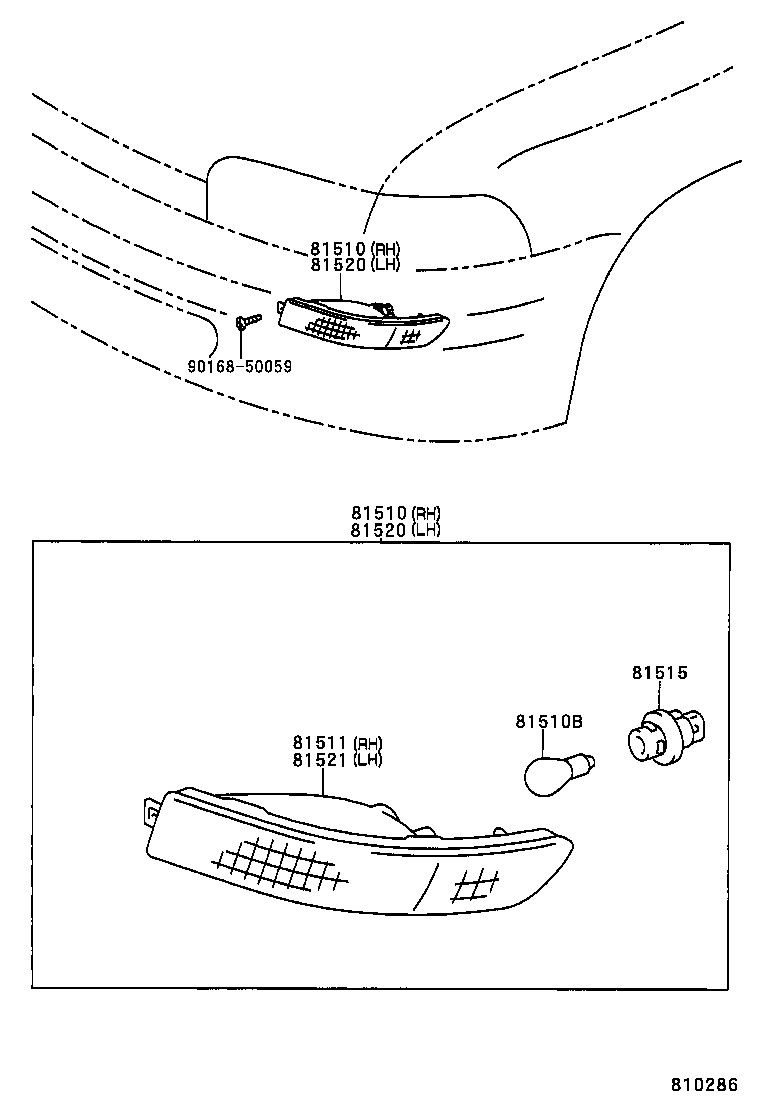

Click highlighted areas on diagram

diagram 81510 81510 81510B 81511 81515 81520 81520 81521 9016850059
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-12730

AE10#,CE100,EE10#

 1
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-12730

AE10#,CE100,EE10#

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

AE10#,CE100,EE10#

12V 21W

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-12730

AE10#,CE100,EE10#

 1
81515 - WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY
90075-99092

AE101,CE100,EE10#

 2
90075-99078

AE101,CE100,EE10#

 2
90075-99092

AE10#,CE100,EE10#

 2
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-12710

AE10#,CE100,EE10#

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-12710

AE10#,CE100,EE10#

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-12710

AE10#,CE100,EE10#

 1
Common parts
90168-50059
