EE101R-AEMNKW (1992)

Toyota Corolla Sed/Wg

Production May 1992 - Apr 1997
Engine 4EFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9205- )

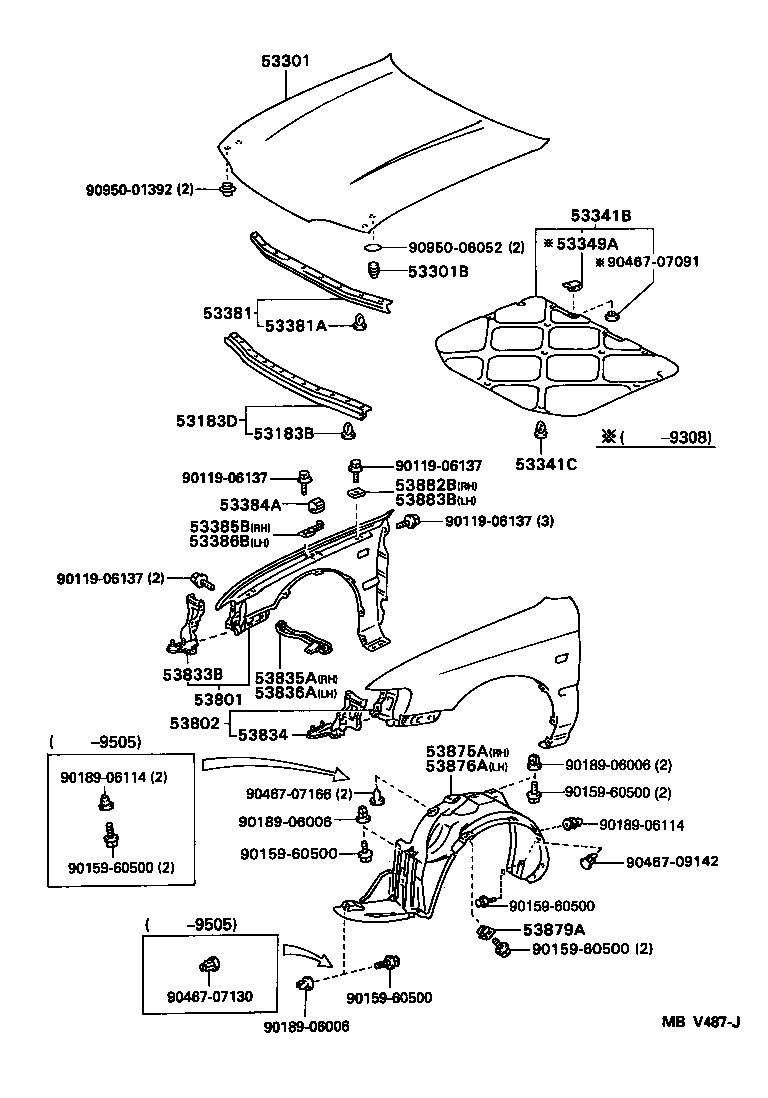

Click highlighted areas on diagram

diagram 53183B 53183D 53301 53301B 53341B 53341C 53349A 53381 53381A 53384A 53385B 53386B 53801 53802 53833B 53834 53835A 53836A 53875A 53876A 53879A 53882B 53883B 9011906137 9011906137 9011906137 9011906137 9015960500 9015960500 9015960500 9015960500 9015960500 9015960500 9018906006 9018906006 9018906006 9018906114 9018906114 9046707091 9046707130 9046707166 9046709142 9095001392 9095006052
Part # Description Qty Price
53183B - CLIP(FOR HEADLAMP COVER SEAL)
90467-08011

AE10#,CE100,EE10#

 12
53183D - SEAL, HEADLAMP COVER TO HOOD
53183-12180

AE10#,CE100,EE10#

 1
53301 - HOOD SUB-ASSY
53301-12700

AE10#,CE100,EE10#

 1
53301B - CUSHION, HOOD BUMPER
90541-15019

AE10#,CE100,EE10#

 2
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-12160

AE10#,CE100,EE10#

 1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011

AE10#,CE100,EE10#

 9
53384A - BUMPER, FENDER TO HOOD
53384-12080

AE10#,CE100,EE10#

 2
53385B - BRACKET, FENDER TO HOOD BUMPER, RH
53386-20020

AE10#,CE100,EE10#

 1
53386B - BRACKET, FENDER TO HOOD BUMPER, LH
53385-20020

AE10#,CE100,EE10#

 1
53801 - FENDER SUB-ASSY, FRONT RH
53801-1E800

AE10#,CE100,EE10#

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-1E680

AE10#,CE100,EE10#

 1
53833B - PANEL, FRONT FENDER SIDE, RH
53083-12050

AE10#,CE100,EE10#

 1
53834 - PANEL, FRONT FENDER SIDE, LOWER LH
53084-12050

AE10#,CE100,EE10#

 1
53835A - BRACE, FRONT FENDER TO APRON, RH
53803-12020

AE10#,CE100,EE10#

 1
53836A - BRACE, FRONT FENDER TO APRON, LH
53804-12020

AE10#,CE100,EE10#

 1
53875A - LINER, FRONT FENDER, RH
53875-12210

AE10#,CE100,EE10#

 1
53876A - LINER, FRONT FENDER, LH
53876-12200

AE10#,CE100,EE10#

 1
53879A - RETAINER, FRONT FENDER LINER
53879-14010

AE10#,CE100,EE10#

 4
53882B - SEAL, FRONT FENDER, RH
53882-16030

AE10#,CE100,EE10#

 4
53883B - SEAL, FRONT FENDER, LH
53882-16030

AE10#,CE100,EE10#

 4
Common parts
90119-06137
90159-60500
90189-06006
90189-06114
90467-07091
90467-07130
90467-07166
90467-09142
90950-01392
90950-06052
