EE101R-AEMNKW (1992)
Toyota Corolla Sed/Wg
Production
May 1992
-
Apr 1997
Engine
4EFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9205- )4EFE

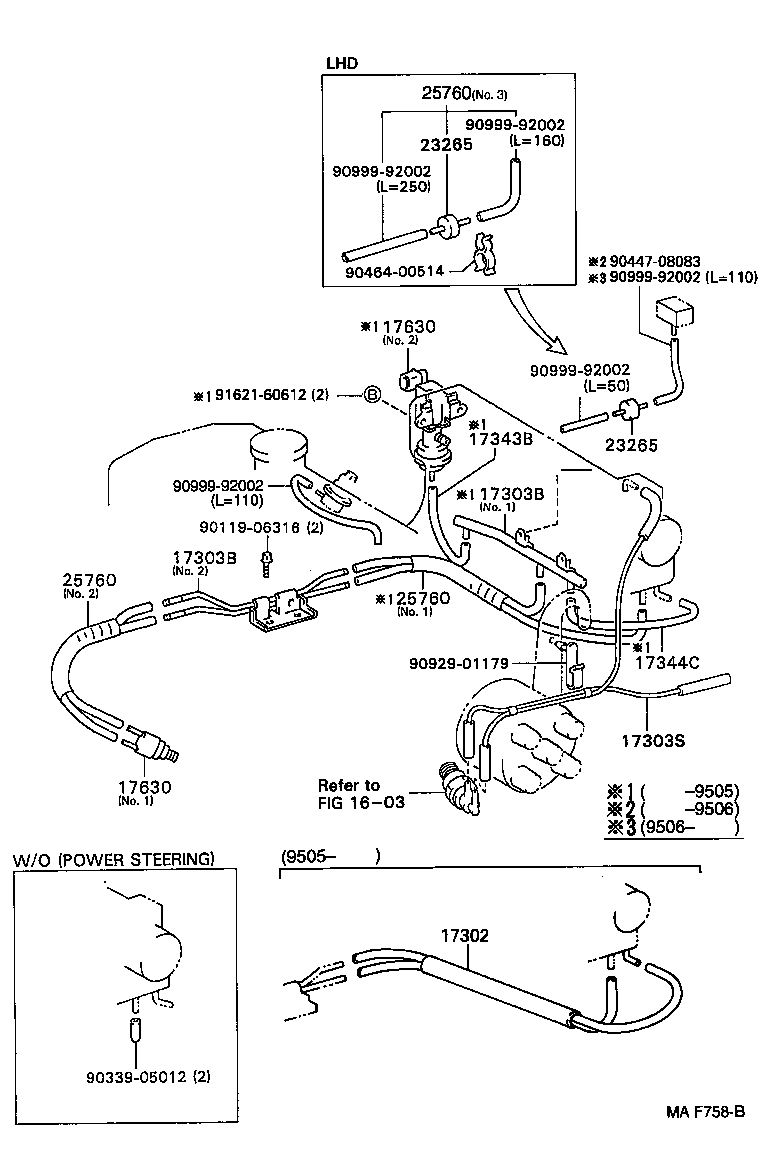

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17302 - HOSE SUB-ASSY, AIR | ||||
| 17302-11050 |
4EFE..EE101 |
1 | ||
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11700 |
4EFE..EE101 W(POWER STEERING),NO.2 |
1 | ||
| 17303-11401 |
4EFE..EE101 NO.1 |
1 | ||
| 17303-11700 |
4EFE..EE101 NO.2 |
1 | ||
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-11700 |
4EFE..EE101 W(POWER STEERING),NO.2 |
1 | ||
| 17303-11401 |
4EFE..EE101 NO.1 |
1 | ||
| 17303-11700 |
4EFE..EE101 NO.2 |
1 | ||
| 17303S - PIPE SUB-ASSY, AIR, NO.3 | ||||
| 17303-11800 |
4EFE..EE101 |
1 | ||
| 17343B - HOSE, NO.3(FOR IDLE-UP) | ||||
| 17343-11080 |
4EFE..EE101 |
1 | ||
| 17344C - HOSE, NO.4(FOR IDLE-UP) | ||||
| 17344-11030 |
4EFE..EE101 |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-11060 |
4EFE..EE101 NO.1 |
1 | ||
| 17630-11050 |
4EFE..EE101 NO.2 |
1 | ||
| 17630-11060 |
4EFE..EE101 W(POWER STEEIRNG),NO.1 |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-11060 |
4EFE..EE101 NO.1 |
1 | ||
| 17630-11050 |
4EFE..EE101 NO.2 |
1 | ||
| 17630-11060 |
4EFE..EE101 W(POWER STEEIRNG),NO.1 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11030 |
4EFE..EE101 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11030 |
4EFE..EE101 |
1 | ||
| 25760 - HOSE ASSY, VACUUM TRANSMITTING | ||||
| 25760-11250 |
4EFE..EE101..RHD NO.1 |
1 | ||
| 25760-11260 |
4EFE..EE101..RHD NO.2 |
1 | ||
| 25760 - HOSE ASSY, VACUUM TRANSMITTING | ||||
| 25760-11250 |
4EFE..EE101..RHD NO.1 |
1 | ||
| 25760-11260 |
4EFE..EE101..RHD NO.2 |
1 | ||
| 25760 - HOSE ASSY, VACUUM TRANSMITTING | ||||
| 25760-11250 |
4EFE..EE101..RHD NO.1 |
1 | ||
| 25760-11260 |
4EFE..EE101..RHD NO.2 |
1 | ||
| Common parts | ||||
| 90119-06316 | ||||
| 90339-05012 | ||||
| 90447-08083 | ||||
| 90464-00514 | ||||
| 90929-01179 | ||||
| 90999-92002 | ||||
| 91621-60612 | ||||
| Linked diagrams | ||||
| 1603 | ||||
