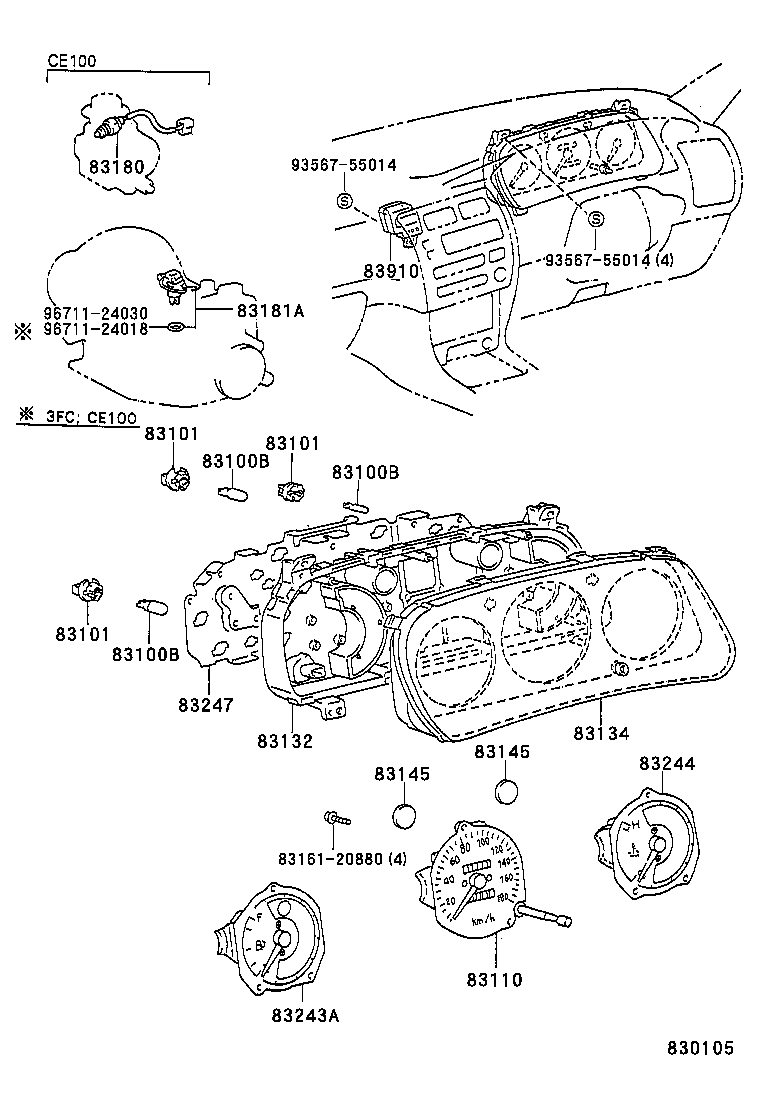

EE101R-AEMDKW (1992)
Toyota Corolla Sed/Wg
(9205- )RHD..XL,XLI
W/O(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-2A100 |
CE100,EE101..RHD..(XL,XLI) 14V 3.8W,W(BLUE CAP) |
4 | ||
| 83109-95J00 |
CE100,EE101..RHD..(XL,XLI) 14V 3.78W |
4 | ||
| 99132-12034 |
AE10#,CE100,EE10# 12V 3.4W |
1 | ||
| 83109-12030 |
AE10#,CE100,EE10# 12V 3.4W,BLUE CAP |
1 | ||
| 90981-11018 |
AE10#,CE100,EE10# 12V 1.2W W/O SOCKET |
10 | ||
| 83120-60010 |
CE100,EE101..RHD..(XL,XLI) 14V 2.0W |
2 | ||
| 83119-24430 |
AE101,EE101..RHD 12V 1.4W BLUE CAP |
1 | ||
| 83119-24730 |
AE101..XLI;EE101..RHD..XLI 14V 1.4W,ORANGE CAP |
1 | ||
| 83120-60010 |
CE100,EE101..RHD..(XL,XLI) 14V 2.0W |
3 | ||
| 83119-24710 |
AE101..XLI;EE101..RHD..XLI 14V 3.4W,ORANGE CAP |
4 | ||
| 83119-1A020 |
CE100,EE101..RHD..(XL,XLI) 12V 3.4W,W(BLUE CAP) |
4 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-2A100 |
CE100,EE101..RHD..(XL,XLI) 14V 3.8W,W(BLUE CAP) |
4 | ||
| 83109-95J00 |
CE100,EE101..RHD..(XL,XLI) 14V 3.78W |
4 | ||
| 99132-12034 |
AE10#,CE100,EE10# 12V 3.4W |
1 | ||
| 83109-12030 |
AE10#,CE100,EE10# 12V 3.4W,BLUE CAP |
1 | ||
| 90981-11018 |
AE10#,CE100,EE10# 12V 1.2W W/O SOCKET |
10 | ||
| 83120-60010 |
CE100,EE101..RHD..(XL,XLI) 14V 2.0W |
2 | ||
| 83119-24430 |
AE101,EE101..RHD 12V 1.4W BLUE CAP |
1 | ||
| 83119-24730 |
AE101..XLI;EE101..RHD..XLI 14V 1.4W,ORANGE CAP |
1 | ||
| 83120-60010 |
CE100,EE101..RHD..(XL,XLI) 14V 2.0W |
3 | ||
| 83119-24710 |
AE101..XLI;EE101..RHD..XLI 14V 3.4W,ORANGE CAP |
4 | ||
| 83119-1A020 |
CE100,EE101..RHD..(XL,XLI) 12V 3.4W,W(BLUE CAP) |
4 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-2A100 |
CE100,EE101..RHD..(XL,XLI) 14V 3.8W,W(BLUE CAP) |
4 | ||
| 83109-95J00 |
CE100,EE101..RHD..(XL,XLI) 14V 3.78W |
4 | ||
| 99132-12034 |
AE10#,CE100,EE10# 12V 3.4W |
1 | ||
| 83109-12030 |
AE10#,CE100,EE10# 12V 3.4W,BLUE CAP |
1 | ||
| 90981-11018 |
AE10#,CE100,EE10# 12V 1.2W W/O SOCKET |
10 | ||
| 83120-60010 |
CE100,EE101..RHD..(XL,XLI) 14V 2.0W |
2 | ||
| 83119-24430 |
AE101,EE101..RHD 12V 1.4W BLUE CAP |
1 | ||
| 83119-24730 |
AE101..XLI;EE101..RHD..XLI 14V 1.4W,ORANGE CAP |
1 | ||
| 83120-60010 |
CE100,EE101..RHD..(XL,XLI) 14V 2.0W |
3 | ||
| 83119-24710 |
AE101..XLI;EE101..RHD..XLI 14V 3.4W,ORANGE CAP |
4 | ||
| 83119-1A020 |
CE100,EE101..RHD..(XL,XLI) 12V 3.4W,W(BLUE CAP) |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AE10#,CE100,EE10# 12V 1.4W |
1 | ||
| 83101-20040 |
CE100,EE101..RHD..(XL,XLI) 12V 3.4W |
1 | ||
| 83101-14030 |
EE101..RHD..XLI W(TACHOMETER),12V 3.4W,14V 3.4W |
1 | ||
| 83101-14040 |
EE100;EE101..RHD..XLI W(TACHOMETER),12V 1.4W |
1 | ||
| 83101-20040 |
CE100,EE101..RHD..(XL,XLI) 12V 3W,3.4W |
1 | ||
| 83101-14040 |
EE101..LHD..GLI;AE10#,EE100..LHD;CE100,EE101..STD,XL,XLI 12V 1.4W |
1 | ||
| 83101-14030 |
AE101,EE10#..STD,XL,XLI W(TACHOMETER),12V 3.4W |
1 | ||
| 83101-14040 |
EE101..RHD..XLI W(TACHOMETER),12V 1.4W,14V 2.0W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AE10#,CE100,EE10# 12V 1.4W |
1 | ||
| 83101-20040 |
CE100,EE101..RHD..(XL,XLI) 12V 3.4W |
1 | ||
| 83101-14030 |
EE101..RHD..XLI W(TACHOMETER),12V 3.4W,14V 3.4W |
1 | ||
| 83101-14040 |
EE100;EE101..RHD..XLI W(TACHOMETER),12V 1.4W |
1 | ||
| 83101-20040 |
CE100,EE101..RHD..(XL,XLI) 12V 3W,3.4W |
1 | ||
| 83101-14040 |
EE101..LHD..GLI;AE10#,EE100..LHD;CE100,EE101..STD,XL,XLI 12V 1.4W |
1 | ||
| 83101-14030 |
AE101,EE10#..STD,XL,XLI W(TACHOMETER),12V 3.4W |
1 | ||
| 83101-14040 |
EE101..RHD..XLI W(TACHOMETER),12V 1.4W,14V 2.0W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AE10#,CE100,EE10# 12V 1.4W |
1 | ||
| 83101-20040 |
CE100,EE101..RHD..(XL,XLI) 12V 3.4W |
1 | ||
| 83101-14030 |
EE101..RHD..XLI W(TACHOMETER),12V 3.4W,14V 3.4W |
1 | ||
| 83101-14040 |
EE100;EE101..RHD..XLI W(TACHOMETER),12V 1.4W |
1 | ||
| 83101-20040 |
CE100,EE101..RHD..(XL,XLI) 12V 3W,3.4W |
1 | ||
| 83101-14040 |
EE101..LHD..GLI;AE10#,EE100..LHD;CE100,EE101..STD,XL,XLI 12V 1.4W |
1 | ||
| 83101-14030 |
AE101,EE10#..STD,XL,XLI W(TACHOMETER),12V 3.4W |
1 | ||
| 83101-14040 |
EE101..RHD..XLI W(TACHOMETER),12V 1.4W,14V 2.0W |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-1E860 |
EE101..RHD..XLI W(TACHOMETER) |
1 | ||
| 83110-1E850 |
EE101..RHD..XLI |
1 | ||
| 83110-1E851 |
EE101..RHD..XLI |
1 | ||
| 83220-12030 |
EE101..RHD..XLI WHITE,W(TACHOMETER) |
1 | ||
| 83110-1E861 |
EE101..RHD..XLI W(TACHOMETER) |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-1A530 |
EE101..RHD..XLI W(TACHOMETER) |
1 | ||
| 83132-1E040 |
CE100,EE101..RHD..(XL,XLI) |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-1E040 |
CE100,EE101..RHD..(XL,XLI) |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-89320 |
CE100,EE101..RHD..(XL,XLI) |
2 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-89320 |
CE100,EE101..RHD..(XL,XLI) |
2 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-12020 |
AE101,EE10#..4FC,5F |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-1E100 |
CE100,EE101..RHD..(XL,XLI) |
1 | ||
| 83243-1H470 |
EE101..RHD..XLI W(TACHOMETER) |
1 | ||
| 83243-1E140 |
CE100,EE101..RHD..(XL,XLI) |
1 | ||
| 83243-1H471 |
EE101..RHD..XLI W(TACHOMETER) |
1 | ||
| 83882-12540 |
EE101..RHD..XLI WHITE,W(TACHOMETER) |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-1A890 |
EE101..RHD..XLI W(TACHOMETER) |
1 | ||
| 83244-1E080 |
EE101..RHD..XLI |
1 | ||
| 83883-12540 |
EE101..RHD..XLI WHITE,W(TACHOMETER) |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83149-12150 |
EE101..RHD..XLI W(TACHOMETER) |
1 | ||
| 83149-1E060 |
EE101..RHD..XLI |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-12480 |
AE101,CE100,EE101..RHD RHYTHM |
1 | ||
| 83910-12460 |
AE101,CE100,EE101..RHD JECO |
1 | ||
| Common parts | ||||
| 83161-20880 | ||||
| 93567-55014 | ||||
| 96711-24018 | ||||
| 96711-24030 | ||||

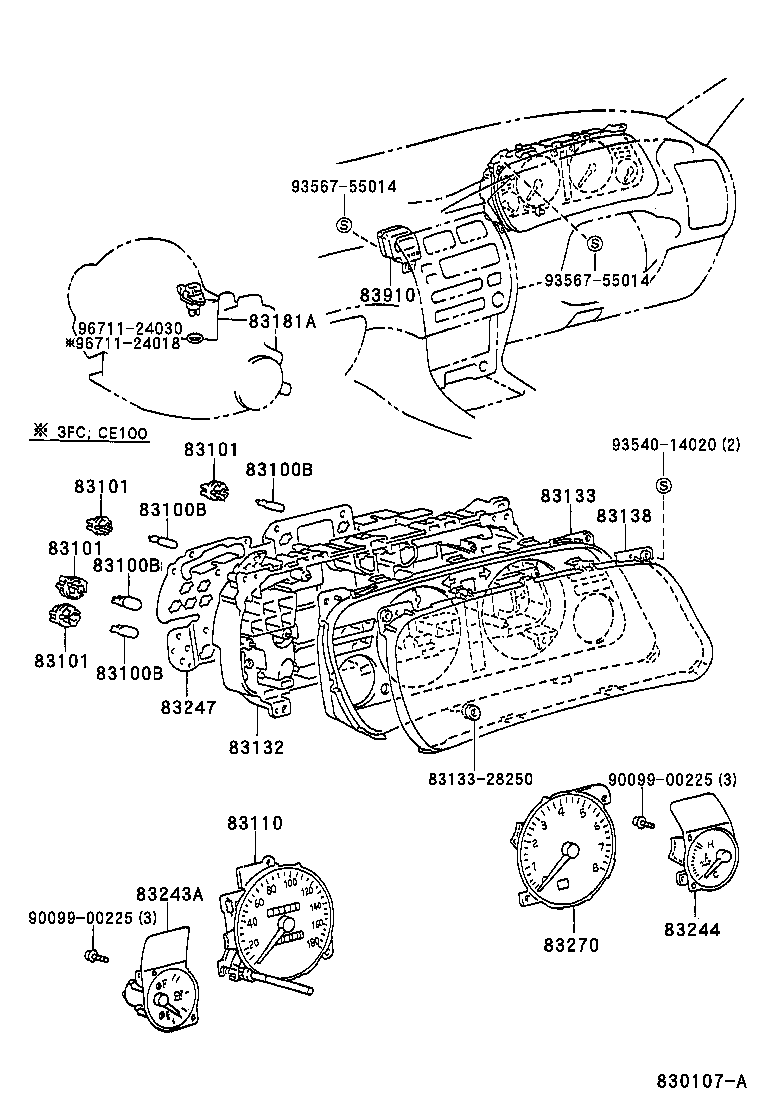

(9205- )AE101,CE100,EE10#..STD,XL,XLI
W/O(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-2A100 |
CE100,EE101..RHD..(XL,XLI) 14V 3.8W,W(BLUE CAP) |
4 | ||
| 83109-95J00 |
CE100,EE101..RHD..(XL,XLI) 14V 3.78W |
4 | ||
| 99132-12034 |
AE10#,CE100,EE10# 12V 3.4W |
1 | ||
| 83109-12030 |
AE10#,CE100,EE10# 12V 3.4W,BLUE CAP |
1 | ||
| 90981-11018 |
AE10#,CE100,EE10# 12V 1.2W W/O SOCKET |
10 | ||
| 83120-60010 |
CE100,EE101..RHD..(XL,XLI) 14V 2.0W |
2 | ||
| 83119-24430 |
AE101,EE101..RHD 12V 1.4W BLUE CAP |
1 | ||
| 83119-24730 |
AE101..XLI;EE101..RHD..XLI 14V 1.4W,ORANGE CAP |
1 | ||
| 83120-60010 |
CE100,EE101..RHD..(XL,XLI) 14V 2.0W |
3 | ||
| 83119-24710 |
AE101..XLI;EE101..RHD..XLI 14V 3.4W,ORANGE CAP |
4 | ||
| 83119-1A020 |
CE100,EE101..RHD..(XL,XLI) 12V 3.4W,W(BLUE CAP) |
4 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-2A100 |
CE100,EE101..RHD..(XL,XLI) 14V 3.8W,W(BLUE CAP) |
4 | ||
| 83109-95J00 |
CE100,EE101..RHD..(XL,XLI) 14V 3.78W |
4 | ||
| 99132-12034 |
AE10#,CE100,EE10# 12V 3.4W |
1 | ||
| 83109-12030 |
AE10#,CE100,EE10# 12V 3.4W,BLUE CAP |
1 | ||
| 90981-11018 |
AE10#,CE100,EE10# 12V 1.2W W/O SOCKET |
10 | ||
| 83120-60010 |
CE100,EE101..RHD..(XL,XLI) 14V 2.0W |
2 | ||
| 83119-24430 |
AE101,EE101..RHD 12V 1.4W BLUE CAP |
1 | ||
| 83119-24730 |
AE101..XLI;EE101..RHD..XLI 14V 1.4W,ORANGE CAP |
1 | ||
| 83120-60010 |
CE100,EE101..RHD..(XL,XLI) 14V 2.0W |
3 | ||
| 83119-24710 |
AE101..XLI;EE101..RHD..XLI 14V 3.4W,ORANGE CAP |
4 | ||
| 83119-1A020 |
CE100,EE101..RHD..(XL,XLI) 12V 3.4W,W(BLUE CAP) |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
EE101..RHD..XLI W(TACHOMETER),12V 1.4W,14V 2.0W |
1 | ||
| 83101-14040 |
AE10#,CE100,EE10# 12V 1.4W |
1 | ||
| 83101-20040 |
CE100,EE101..RHD..(XL,XLI) 12V 3.4W |
1 | ||
| 83101-14030 |
EE101..RHD..XLI W(TACHOMETER),12V 3.4W,14V 3.4W |
1 | ||
| 83101-14040 |
EE100;EE101..RHD..XLI W(TACHOMETER),12V 1.4W |
1 | ||
| 83101-20040 |
CE100,EE101..RHD..(XL,XLI) 12V 3W,3.4W |
1 | ||
| 83101-14040 |
EE101..LHD..GLI;AE10#,EE100..LHD;CE100,EE101..STD,XL,XLI 12V 1.4W |
1 | ||
| 83101-14030 |
AE101,EE10#..STD,XL,XLI W(TACHOMETER),12V 3.4W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AE10#,CE100,EE10# 12V 1.4W |
1 | ||
| 83101-20040 |
CE100,EE101..RHD..(XL,XLI) 12V 3.4W |
1 | ||
| 83101-14030 |
EE101..RHD..XLI W(TACHOMETER),12V 3.4W,14V 3.4W |
1 | ||
| 83101-14040 |
EE100;EE101..RHD..XLI W(TACHOMETER),12V 1.4W |
1 | ||
| 83101-20040 |
CE100,EE101..RHD..(XL,XLI) 12V 3W,3.4W |
1 | ||
| 83101-14040 |
EE101..LHD..GLI;AE10#,EE100..LHD;CE100,EE101..STD,XL,XLI 12V 1.4W |
1 | ||
| 83101-14030 |
AE101,EE10#..STD,XL,XLI W(TACHOMETER),12V 3.4W |
1 | ||
| 83101-14040 |
EE101..RHD..XLI W(TACHOMETER),12V 1.4W,14V 2.0W |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-1E860 |
EE101..RHD..XLI W(TACHOMETER) |
1 | ||
| 83110-1E850 |
EE101..RHD..XLI |
1 | ||
| 83110-1E851 |
EE101..RHD..XLI |
1 | ||
| 83220-12030 |
EE101..RHD..XLI WHITE,W(TACHOMETER) |
1 | ||
| 83110-1E861 |
EE101..RHD..XLI W(TACHOMETER) |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-1A530 |
EE101..RHD..XLI W(TACHOMETER) |
1 | ||
| 83132-1E040 |
CE100,EE101..RHD..(XL,XLI) |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-1H030 |
AE101,EE101..RHD |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-1A110 |
AE101,EE101..RHD |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-12020 |
AE101,EE10#..4FC,5F |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-1E100 |
CE100,EE101..RHD..(XL,XLI) |
1 | ||
| 83243-1H470 |
EE101..RHD..XLI W(TACHOMETER) |
1 | ||
| 83243-1E140 |
CE100,EE101..RHD..(XL,XLI) |
1 | ||
| 83243-1H471 |
EE101..RHD..XLI W(TACHOMETER) |
1 | ||
| 83882-12540 |
EE101..RHD..XLI WHITE,W(TACHOMETER) |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-1A890 |
EE101..RHD..XLI W(TACHOMETER) |
1 | ||
| 83244-1E080 |
EE101..RHD..XLI |
1 | ||
| 83883-12540 |
EE101..RHD..XLI WHITE,W(TACHOMETER) |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83149-12150 |
EE101..RHD..XLI W(TACHOMETER) |
1 | ||
| 83149-1E060 |
EE101..RHD..XLI |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-12480 |
AE101,CE100,EE101..RHD RHYTHM |
1 | ||
| 83910-12460 |
AE101,CE100,EE101..RHD JECO |
1 | ||
| Common parts | ||||
| 90099-00211 | ||||
| 90099-00225 | ||||
| 93540-14020 | ||||
| 93567-55016 | ||||
| 93568-55014 | ||||
| 96711-24018 | ||||
| 96711-24030 | ||||
(9205- )AE101,EE101..RHD
W(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-2A100 |
CE100,EE101..RHD..(XL,XLI) 14V 3.8W,W(BLUE CAP) |
4 | ||
| 83109-95J00 |
CE100,EE101..RHD..(XL,XLI) 14V 3.78W |
4 | ||
| 99132-12034 |
AE10#,CE100,EE10# 12V 3.4W |
1 | ||
| 83109-12030 |
AE10#,CE100,EE10# 12V 3.4W,BLUE CAP |
1 | ||
| 90981-11018 |
AE10#,CE100,EE10# 12V 1.2W W/O SOCKET |
10 | ||
| 83120-60010 |
CE100,EE101..RHD..(XL,XLI) 14V 2.0W |
2 | ||
| 83119-24430 |
AE101,EE101..RHD 12V 1.4W BLUE CAP |
1 | ||
| 83119-24730 |
AE101..XLI;EE101..RHD..XLI 14V 1.4W,ORANGE CAP |
1 | ||
| 83120-60010 |
CE100,EE101..RHD..(XL,XLI) 14V 2.0W |
3 | ||
| 83119-24710 |
AE101..XLI;EE101..RHD..XLI 14V 3.4W,ORANGE CAP |
4 | ||
| 83119-1A020 |
CE100,EE101..RHD..(XL,XLI) 12V 3.4W,W(BLUE CAP) |
4 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-2A100 |
CE100,EE101..RHD..(XL,XLI) 14V 3.8W,W(BLUE CAP) |
4 | ||
| 83109-95J00 |
CE100,EE101..RHD..(XL,XLI) 14V 3.78W |
4 | ||
| 99132-12034 |
AE10#,CE100,EE10# 12V 3.4W |
1 | ||
| 83109-12030 |
AE10#,CE100,EE10# 12V 3.4W,BLUE CAP |
1 | ||
| 90981-11018 |
AE10#,CE100,EE10# 12V 1.2W W/O SOCKET |
10 | ||
| 83120-60010 |
CE100,EE101..RHD..(XL,XLI) 14V 2.0W |
2 | ||
| 83119-24430 |
AE101,EE101..RHD 12V 1.4W BLUE CAP |
1 | ||
| 83119-24730 |
AE101..XLI;EE101..RHD..XLI 14V 1.4W,ORANGE CAP |
1 | ||
| 83120-60010 |
CE100,EE101..RHD..(XL,XLI) 14V 2.0W |
3 | ||
| 83119-24710 |
AE101..XLI;EE101..RHD..XLI 14V 3.4W,ORANGE CAP |
4 | ||
| 83119-1A020 |
CE100,EE101..RHD..(XL,XLI) 12V 3.4W,W(BLUE CAP) |
4 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-2A100 |
CE100,EE101..RHD..(XL,XLI) 14V 3.8W,W(BLUE CAP) |
4 | ||
| 83109-95J00 |
CE100,EE101..RHD..(XL,XLI) 14V 3.78W |
4 | ||
| 99132-12034 |
AE10#,CE100,EE10# 12V 3.4W |
1 | ||
| 83109-12030 |
AE10#,CE100,EE10# 12V 3.4W,BLUE CAP |
1 | ||
| 90981-11018 |
AE10#,CE100,EE10# 12V 1.2W W/O SOCKET |
10 | ||
| 83120-60010 |
CE100,EE101..RHD..(XL,XLI) 14V 2.0W |
2 | ||
| 83119-24430 |
AE101,EE101..RHD 12V 1.4W BLUE CAP |
1 | ||
| 83119-24730 |
AE101..XLI;EE101..RHD..XLI 14V 1.4W,ORANGE CAP |
1 | ||
| 83120-60010 |
CE100,EE101..RHD..(XL,XLI) 14V 2.0W |
3 | ||
| 83119-24710 |
AE101..XLI;EE101..RHD..XLI 14V 3.4W,ORANGE CAP |
4 | ||
| 83119-1A020 |
CE100,EE101..RHD..(XL,XLI) 12V 3.4W,W(BLUE CAP) |
4 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-2A100 |
CE100,EE101..RHD..(XL,XLI) 14V 3.8W,W(BLUE CAP) |
4 | ||
| 83109-95J00 |
CE100,EE101..RHD..(XL,XLI) 14V 3.78W |
4 | ||
| 99132-12034 |
AE10#,CE100,EE10# 12V 3.4W |
1 | ||
| 83109-12030 |
AE10#,CE100,EE10# 12V 3.4W,BLUE CAP |
1 | ||
| 90981-11018 |
AE10#,CE100,EE10# 12V 1.2W W/O SOCKET |
10 | ||
| 83120-60010 |
CE100,EE101..RHD..(XL,XLI) 14V 2.0W |
2 | ||
| 83119-24430 |
AE101,EE101..RHD 12V 1.4W BLUE CAP |
1 | ||
| 83119-24730 |
AE101..XLI;EE101..RHD..XLI 14V 1.4W,ORANGE CAP |
1 | ||
| 83120-60010 |
CE100,EE101..RHD..(XL,XLI) 14V 2.0W |
3 | ||
| 83119-24710 |
AE101..XLI;EE101..RHD..XLI 14V 3.4W,ORANGE CAP |
4 | ||
| 83119-1A020 |
CE100,EE101..RHD..(XL,XLI) 12V 3.4W,W(BLUE CAP) |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AE10#,CE100,EE10# 12V 1.4W |
1 | ||
| 83101-20040 |
CE100,EE101..RHD..(XL,XLI) 12V 3.4W |
1 | ||
| 83101-14030 |
EE101..RHD..XLI W(TACHOMETER),12V 3.4W,14V 3.4W |
1 | ||
| 83101-14040 |
EE100;EE101..RHD..XLI W(TACHOMETER),12V 1.4W |
1 | ||
| 83101-20040 |
CE100,EE101..RHD..(XL,XLI) 12V 3W,3.4W |
1 | ||
| 83101-14040 |
EE101..LHD..GLI;AE10#,EE100..LHD;CE100,EE101..STD,XL,XLI 12V 1.4W |
1 | ||
| 83101-14030 |
AE101,EE10#..STD,XL,XLI W(TACHOMETER),12V 3.4W |
1 | ||
| 83101-14040 |
EE101..RHD..XLI W(TACHOMETER),12V 1.4W,14V 2.0W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AE10#,CE100,EE10# 12V 1.4W |
1 | ||
| 83101-20040 |
CE100,EE101..RHD..(XL,XLI) 12V 3.4W |
1 | ||
| 83101-14030 |
EE101..RHD..XLI W(TACHOMETER),12V 3.4W,14V 3.4W |
1 | ||
| 83101-14040 |
EE100;EE101..RHD..XLI W(TACHOMETER),12V 1.4W |
1 | ||
| 83101-20040 |
CE100,EE101..RHD..(XL,XLI) 12V 3W,3.4W |
1 | ||
| 83101-14040 |
EE101..LHD..GLI;AE10#,EE100..LHD;CE100,EE101..STD,XL,XLI 12V 1.4W |
1 | ||
| 83101-14030 |
AE101,EE10#..STD,XL,XLI W(TACHOMETER),12V 3.4W |
1 | ||
| 83101-14040 |
EE101..RHD..XLI W(TACHOMETER),12V 1.4W,14V 2.0W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AE10#,CE100,EE10# 12V 1.4W |
1 | ||
| 83101-20040 |
CE100,EE101..RHD..(XL,XLI) 12V 3.4W |
1 | ||
| 83101-14030 |
EE101..RHD..XLI W(TACHOMETER),12V 3.4W,14V 3.4W |
1 | ||
| 83101-14040 |
EE100;EE101..RHD..XLI W(TACHOMETER),12V 1.4W |
1 | ||
| 83101-20040 |
CE100,EE101..RHD..(XL,XLI) 12V 3W,3.4W |
1 | ||
| 83101-14040 |
EE101..LHD..GLI;AE10#,EE100..LHD;CE100,EE101..STD,XL,XLI 12V 1.4W |
1 | ||
| 83101-14030 |
AE101,EE10#..STD,XL,XLI W(TACHOMETER),12V 3.4W |
1 | ||
| 83101-14040 |
EE101..RHD..XLI W(TACHOMETER),12V 1.4W,14V 2.0W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
AE10#,CE100,EE10# 12V 1.4W |
1 | ||
| 83101-20040 |
CE100,EE101..RHD..(XL,XLI) 12V 3.4W |
1 | ||
| 83101-14030 |
EE101..RHD..XLI W(TACHOMETER),12V 3.4W,14V 3.4W |
1 | ||
| 83101-14040 |
EE100;EE101..RHD..XLI W(TACHOMETER),12V 1.4W |
1 | ||
| 83101-20040 |
CE100,EE101..RHD..(XL,XLI) 12V 3W,3.4W |
1 | ||
| 83101-14040 |
EE101..LHD..GLI;AE10#,EE100..LHD;CE100,EE101..STD,XL,XLI 12V 1.4W |
1 | ||
| 83101-14030 |
AE101,EE10#..STD,XL,XLI W(TACHOMETER),12V 3.4W |
1 | ||
| 83101-14040 |
EE101..RHD..XLI W(TACHOMETER),12V 1.4W,14V 2.0W |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-1E860 |
EE101..RHD..XLI W(TACHOMETER) |
1 | ||
| 83110-1E850 |
EE101..RHD..XLI |
1 | ||
| 83110-1E851 |
EE101..RHD..XLI |
1 | ||
| 83220-12030 |
EE101..RHD..XLI WHITE,W(TACHOMETER) |
1 | ||
| 83110-1E861 |
EE101..RHD..XLI W(TACHOMETER) |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-1A530 |
EE101..RHD..XLI W(TACHOMETER) |
1 | ||
| 83132-1E040 |
CE100,EE101..RHD..(XL,XLI) |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-1H030 |
AE101,EE101..RHD |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-1A110 |
AE101,EE101..RHD |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-12020 |
AE101,EE10#..4FC,5F |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-1E100 |
CE100,EE101..RHD..(XL,XLI) |
1 | ||
| 83243-1H470 |
EE101..RHD..XLI W(TACHOMETER) |
1 | ||
| 83243-1E140 |
CE100,EE101..RHD..(XL,XLI) |
1 | ||
| 83243-1H471 |
EE101..RHD..XLI W(TACHOMETER) |
1 | ||
| 83882-12540 |
EE101..RHD..XLI WHITE,W(TACHOMETER) |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-1A890 |
EE101..RHD..XLI W(TACHOMETER) |
1 | ||
| 83244-1E080 |
EE101..RHD..XLI |
1 | ||
| 83883-12540 |
EE101..RHD..XLI WHITE,W(TACHOMETER) |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83149-12150 |
EE101..RHD..XLI W(TACHOMETER) |
1 | ||
| 83149-1E060 |
EE101..RHD..XLI |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-1E710 |
AE101,EE101..RHD |
1 | ||
| 83242-1E711 |
EE101..RHD |
1 | ||
| 83881-12540 |
EE101..RHD..XLI WHITE,W(TACHOMETER) |
1 | ||
| 83242-1E711 |
EE101..RHD..XLI W(TACHOMETER) |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-12480 |
AE101,CE100,EE101..RHD RHYTHM |
1 | ||
| 83910-12460 |
AE101,CE100,EE101..RHD JECO |
1 | ||
| Common parts | ||||
| 83133-28250 | ||||
| 90099-00225 | ||||
| 93540-14020 | ||||
| 93567-55014 | ||||
| 96711-24018 | ||||
| 96711-24030 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
