EE101R-AEHDKW (1992)

Toyota Corolla Sed/Wg

Production May 1992 - Apr 1997
Engine 4EFE
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9205- )EE101..RHD

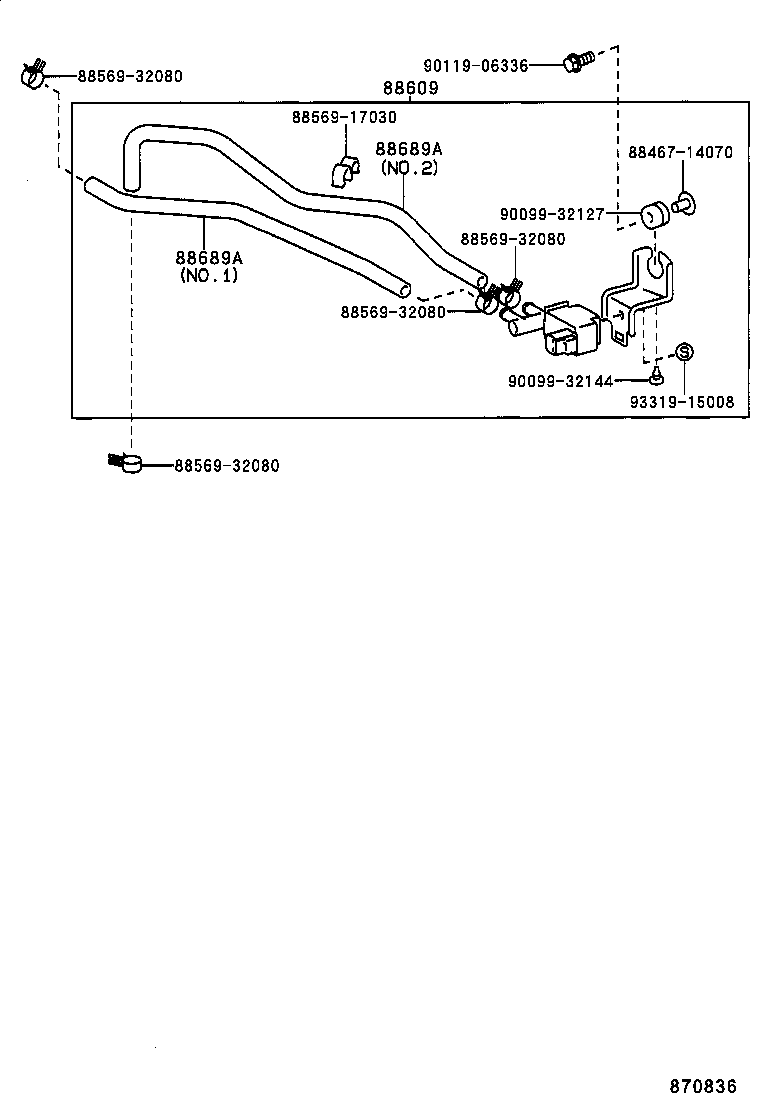

Click highlighted areas on diagram

diagram 8846714070 8856917030 8856932080 8856932080 8856932080 8856932080 88609 88689A 88689A 9009932127 9009932144 9011906336 9331915008
Part # Description Qty Price
88609 - DEVICE SUB-ASSY, IDLE UP
88690-1A050

EE101..RHD

 1
88689A - HOSE, COOLER VACUUM NO.1
88689-12580

EE101..RHD

NO.1(IN)

 1
88689-12590

EE101..RHD

NO.2(OUT)

 1
88689A - HOSE, COOLER VACUUM NO.1
88689-12580

EE101..RHD

NO.1(IN)

 1
88689-12590

EE101..RHD

NO.2(OUT)

 1
Common parts
88467-14070
88569-17030
88569-32080
90099-32127
90099-32144
90119-06336
93319-15008
