EE101L-AWMRKW (1992)

Toyota Corolla Sed/Wg

Production May 1992 - Apr 1997
Engine 4EFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9205- )

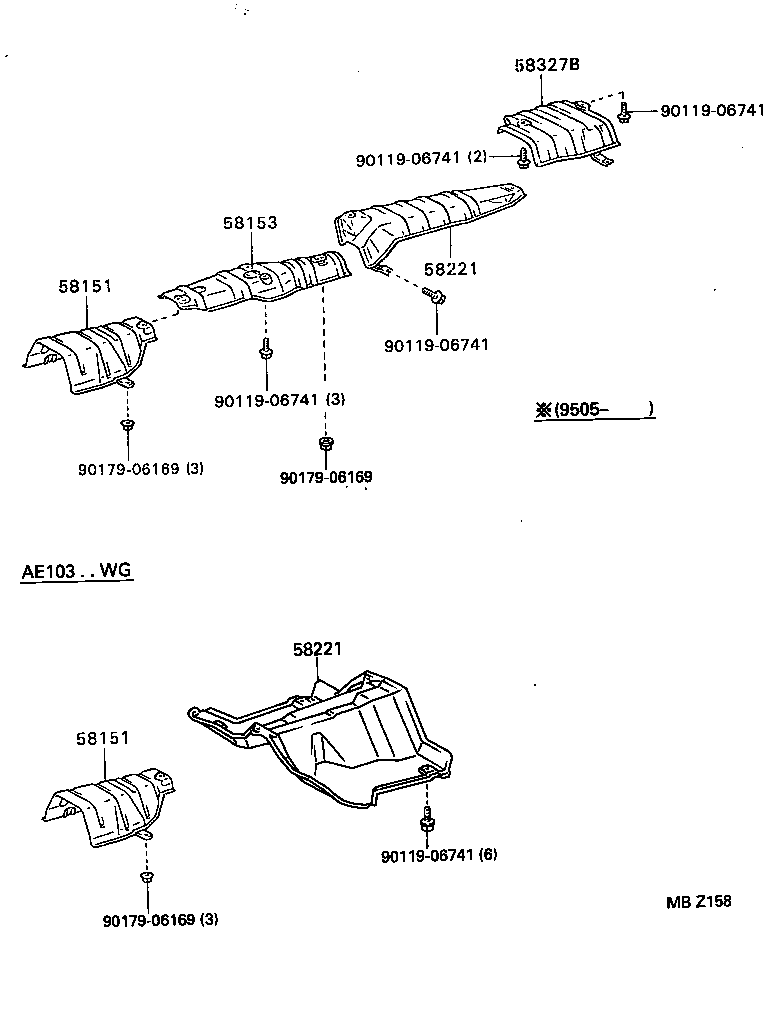

Click highlighted areas on diagram

diagram 58151 58151 58153 58221 58221 58327B 9011906741 9011906741 9011906741 9011906741 9011906741 9017906169 9017906169 9017906169
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58041-12140

AE101,EE101

 1
58151-12200

AE101,EE101

 1
58041-12150

AE101,EE101

 1
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58041-12140

AE101,EE101

 1
58151-12200

AE101,EE101

 1
58041-12150

AE101,EE101

 1
58153 - INSULATOR, FRONT FLOOR HEAT, NO.2
58153-12140

AE101,EE101

 1
58153-12110

AE101,EE101

 1
58153-12120

AE101,EE101

 1
58221 - INSULATOR, CENTER FLOOR HEAT, NO.1
58044-12040

AE101,CE100,EE10#

 1
58044-12010

AE101,EE101

 1
58044-12010

AE101,CE100,EE10#

 1
58221 - INSULATOR, CENTER FLOOR HEAT, NO.1
58044-12040

AE101,CE100,EE10#

 1
58044-12010

AE101,EE101

 1
58044-12010

AE101,CE100,EE10#

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58031-12070

AE101,EE101

 1
58031-12090

AE101,CE100,EE10#

 1
58031-12070

AE101,CE100,EE10#

 1
Common parts
90119-06741
90179-06169
