EE101L-AWMRKW (1992)

Toyota Corolla Sed/Wg

Production May 1992 - Apr 1997
Engine 4EFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9205- )WG

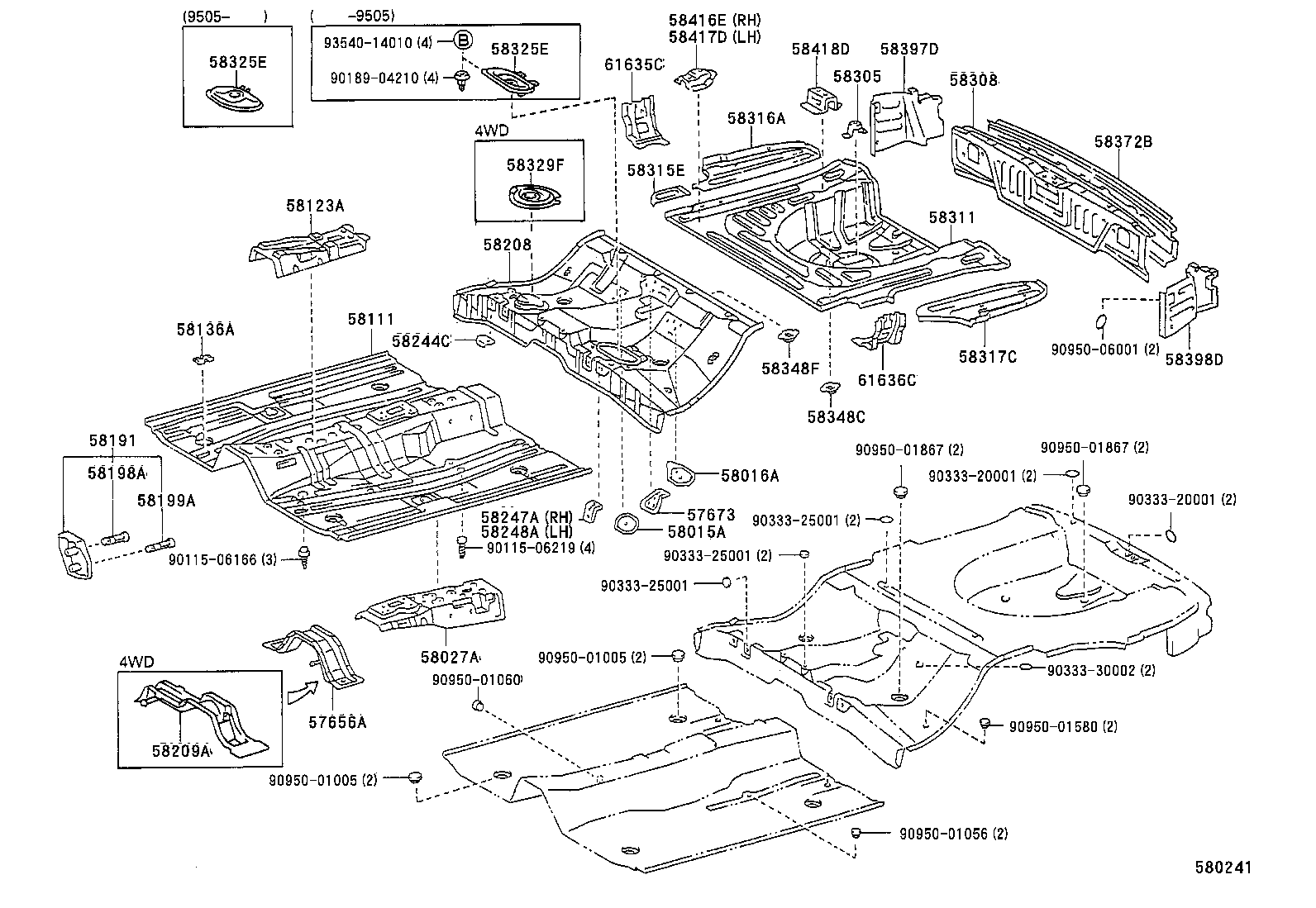

Click highlighted areas on diagram

diagram 57656A 57673 58015A 58016A 58027A 58111 58123A 58136A 58191 58198A 58199A 58208 58209A 58244C 58247A 58248A 58305 58308 58311 58315E 58316A 58317C 58325E 58325E 58329F 58348C 58348F 58372B 58397D 58398D 58416E 58417D 58418D 61635C 61636C 9011506166 9011506219 9018904210 9033320001 9033320001 9033325001 9033325001 9033325001 9033330002 9095001005 9095001005 9095001056 9095001060 9095001580 9095001867 9095001867 9095006001 9354014010
Part # Description Qty Price
57656A - BRACKET, EXHAUST PIPE MOUNTING, NO.1
57656-12060

AE101,CE100,EE10#

 1
57673 - BRACKET, REAR SEAT BACK HINGE MOUNTING
57673-13010

AE10#,CE100,EE10#..WG

 1
58015A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58015-12040

AE10#,CE100,EE10#

 1
58016A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
58016-12010

AE10#,CE100,EE10#

 1
58027A - REINFORCE SUB-ASSY, SEAT BELT ANCHOR
58027-12120

AE101,CE100,EE10#

 1
58027-12121

AE101,CE100,EE10#

 1
58111 - PAN, FRONT FLOOR
58111-12262

AE101,CE100,EE10#

 1
58111-12260

AE101,CE100,EE10#

 1
58111-12261

AE101,CE100,EE10#

 1
58123A - SUPPORT, SHIFT & SELECT LEVER
58013-12060

AE101,CE100,EE10#

 1
58013-12020

AE101,CE100,EE10#

 1
58136A - COVER, FRONT FLOOR SERVICE HOLE
58136-12020

AE101,CE100,EE10#

 2
58136-12030

AE10#,CE100,EE10#

 2
58208 - PAN, CENTER FLOOR
58211-13900

AE101,CE100,EE10#..WG

 1
58211-12901

AE101,CE100,EE10#

 1
58211-12901

AE101,CE100;EE101..GLI,XLI;EE101..WG..STD

 1
58244C - BRACKET, REAR SEAT CUSHION MOUNTING, RH
58244-13030

AE10#,CE100,EE10#..WG

 6
58247A - REINFORCEMENT, REAR SEAT CUSHION HINGE, RH
58247-13050

AE10#,CE100,EE10#..WG

 1
58248A - REINFORCEMENT, REAR SEAT CUSHION HINGE, LH
58247-13050

AE10#,CE100,EE10#..WG

 1
58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58305-10011

AE101,CE100,EE10#..WG

 1
58305-10011

AE101,CE100,EE10#

 1
58351-12040

AE10#,CE100,EE10#

 1
58308 - PANEL SUB-ASSY, BODY LOWER BACK, INNER
58308-13130

AE10#,CE100,EE10#..WG

 1
58311 - PAN, REAR FLOOR
58311-12210

AE10#,CE100,EE10#

 1
58315E - EXTENSION REAR FLOOR SIDE PANEL, FRONT RH
58315-12070

AE10#,CE100,EE10#

 1
58316A - EXTENSION, REAR FLOOR SIDE PANEL, REAR RH
58316-13020

AE10#,CE100,EE10#..WG

 1
58317C - EXTENSION, REAR FLOOR SIDE PANEL, REAR LH
58317-13010

AE10#,CE100,EE10#..WG

 1
58325E - COVER, REAR FLOOR SERVICE HOLE
58325-12080

AE101,CE100,EE10#

 1
58325-12100

AE10#,CE100,EE10#

 1
58325E - COVER, REAR FLOOR SERVICE HOLE
58325-12080

AE101,CE100,EE10#

 1
58325-12100

AE10#,CE100,EE10#

 1
58348C - BRACKET, REAR FLOOR HEAT INSULATOR, NO.3
58348-12020

AE101,CE100,EE10#

 1
58348F - BRACKET, CENTER FLOOR HEAR INSULATOR, NO.3
58348-12020

AE101,CE100,EE10#

 2
58372B - PANEL, BODY LOWER BACK, LOWER
58372-13080

AE10#,CE100,EE10#..WG

 1
58397D - PANEL, REAR FLOOR END DUST SEAL, RH
58397-13050

AE10#,CE100,EE10#..WG

 1
58398D - PANEL, REAR FLOOR END DUST SEAL, LH
58398-13040

AE10#,CE100,EE10#..WG

 1
58416E - BRACKET, DECK BOARD, NO.1 RH
58416-13040

AE10#,CE100,EE10#..WG

 1
58417D - BRACKET, DECK BOARD, NO.1 LH
58417-13040

AE10#,CE100,EE10#..WG

 1
58418D - BRACKET, DECK BOARD, NO.2
58418-13020

AE10#,CE100,EE10#..WG

 2
61635C - BRACE, QUARTER WHEEL HOUSE, RH
61635-13110

AE10#,CE100,EE10#..WG

 1
61636C - BRACE, QUARTER WHEEL HOUSE, LH
61636-13110

AE10#,CE100,EE10#..WG

 1
Common parts
90115-06166
90115-06219
90189-04210
90333-20001
90333-25001
90333-30002
90950-01005
90950-01056
90950-01060
90950-01580
90950-01867
90950-06001
93540-14010
