EE101L-AWMRKW (1992)

Toyota Corolla Sed/Wg

Production May 1992 - Apr 1997
Engine 4EFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

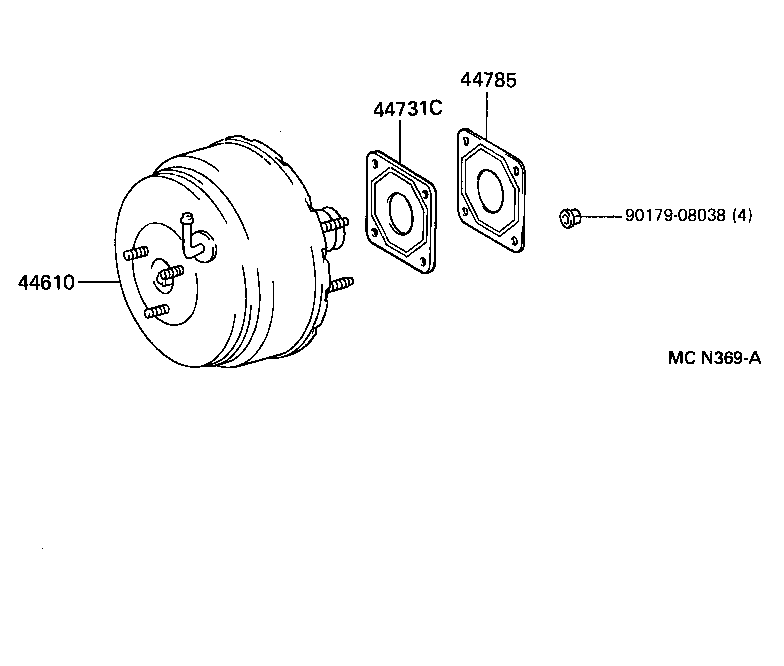

ILLUST NO. 1 OF 2(9205-9505) ; (9505- )CE100 ; (9505- )AE10#,EE10#..LHD

Click highlighted areas on diagram

diagram 44610 44731C 44785 9017908038
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-1A580

AE101,CE100,EE101..LHD

W(ABS)

 1
44610-1A530

AE101,CE100,EE101..LHD

 1
44610-1E170

AE101,CE100,EE101..LHD

 1
44610-1E320

AE101,CE100,EE101..LHD

W(ABS)

 1
44610-1E310

AE10#,CE100,EE101..LHD

 1
44785 - GASKET, BRAKE BOOSTER
44785-12010

AE101,CE100,EE10#

 1
44785-20020

AE10#,CE100,EE10#

 1
Common parts
90179-08038

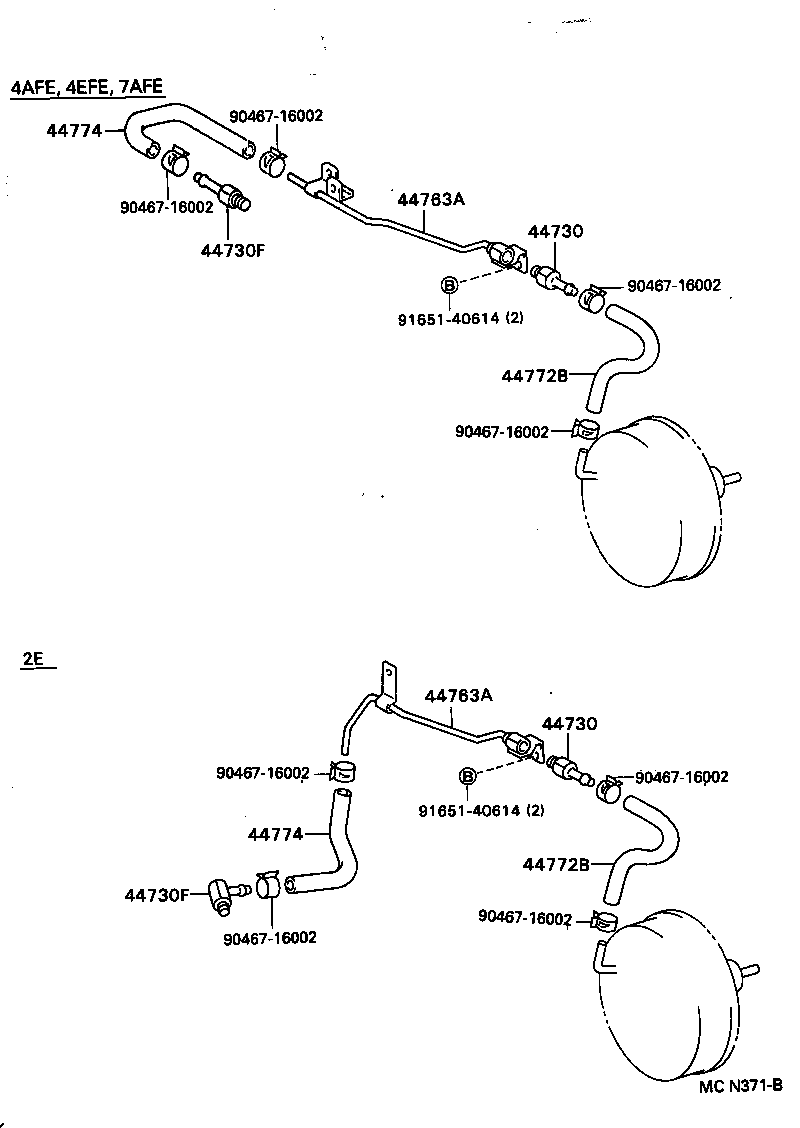

ILLUST NO. 2 OF 2(9205- )AE10#,EE10#..LHD

Click highlighted areas on diagram

diagram 44730 44730 44730F 44730F 44763A 44763A 44772B 44772B 44774 44774 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9165140614 9165140614
Part # Description Qty Price
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44580-22030

AE10#,EE10#..LHD

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44580-22030

AE10#,EE10#..LHD

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90406-09006

EE101

 1
90407-51002

EE101

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90406-09006

EE101

 1
90407-51002

EE101

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-12200

AE101,EE101..LHD

 1
44763-12300

EE101..LHD

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-12200

AE101,EE101..LHD

 1
44763-12300

EE101..LHD

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-12440

AE10#,CE100,EE10#..LHD

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-12440

AE10#,CE100,EE10#..LHD

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-12240

EE101..LHD

 1
44774-12330

EE101..LHD

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-12240

EE101..LHD

 1
44774-12330

EE101..LHD

 1
Common parts
90467-16002
91651-40614
