EE101L-AWMRKW (1992)
Toyota Corolla Sed/Wg
Production
May 1992
-
Apr 1997
Engine
4EFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

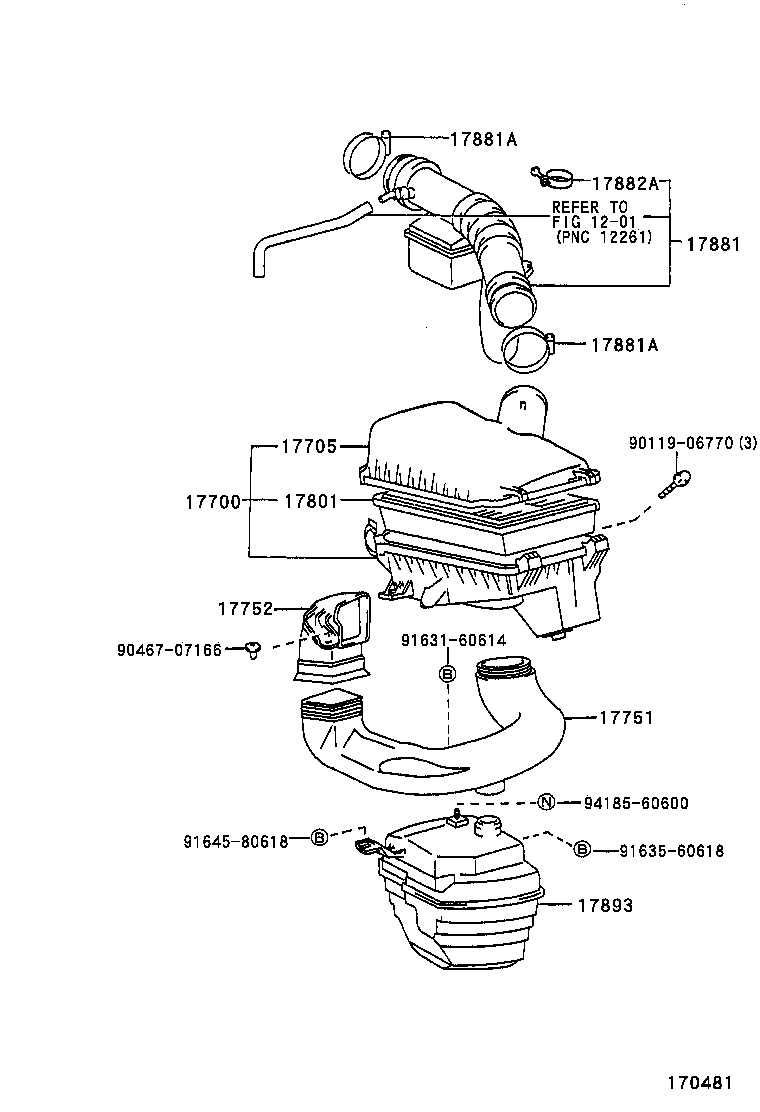

(9505- )4EFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-11750 |
4EFE..EE101 |
1 | ||
| 17700-11890 |
4EFE..EE101 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-11510 |
4EFE..EE101 |
1 | ||
| 17705-11550 |
4EFE..EE101 |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17750-02010 |
4EFE..EE101 (L) |
1 | ||
| 17750-15010 |
4EFE..EE101 (J) |
1 | ||
| 17751-15050 |
4EFE..EE101 |
1 | ||
| 17752 - INLET, AIR CLEANER, NO.2 | ||||
| 17753-02010 |
4EFE..EE101 (L) |
1 | ||
| 17753-15010 |
4EFE..EE101 (J) |
1 | ||
| 17752-15040 |
4EFE..EE101 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-11090 |
4EFE..EE101 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17880-11260 |
4EFE..EE101 |
1 | ||
| 17880-11170 |
4EFE..EE101 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-70003 |
4EFE..EE101 |
2 | ||
| 96111-10690 |
4EFE..EE101 |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-70003 |
4EFE..EE101 |
2 | ||
| 96111-10690 |
4EFE..EE101 |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10380 |
4EFE..EE101 |
1 | ||
| 17893 - RESONATOR, INTAKE AIR | ||||
| 17893-15050 |
4EFE..EE101 |
1 | ||
| 17893-15040 |
4EFE..EE101 (J) |
1 | ||
| 17893-02010 |
4EFE..EE101 (L) |
1 | ||
| Common parts | ||||
| 90119-06770 | ||||
| 90467-07166 | ||||
| 91631-60614 | ||||
| 91635-60618 | ||||
| 91645-80618 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 1201 | ||||

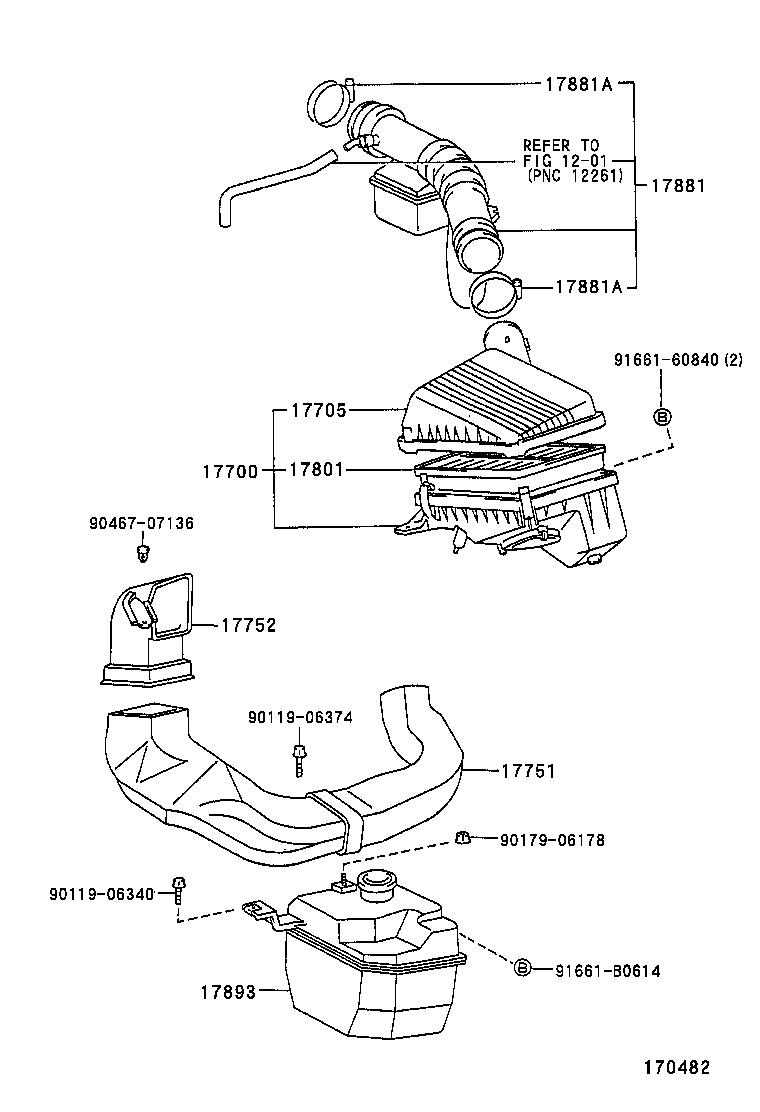

(9205-9505)4EFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-11750 |
4EFE..EE101 |
1 | ||
| 17700-11890 |
4EFE..EE101 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-11510 |
4EFE..EE101 |
1 | ||
| 17705-11550 |
4EFE..EE101 |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17750-02010 |
4EFE..EE101 (L) |
1 | ||
| 17750-15010 |
4EFE..EE101 (J) |
1 | ||
| 17751-15050 |
4EFE..EE101 |
1 | ||
| 17752 - INLET, AIR CLEANER, NO.2 | ||||
| 17753-02010 |
4EFE..EE101 (L) |
1 | ||
| 17753-15010 |
4EFE..EE101 (J) |
1 | ||
| 17752-15040 |
4EFE..EE101 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-11090 |
4EFE..EE101 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17880-11260 |
4EFE..EE101 |
1 | ||
| 17880-11170 |
4EFE..EE101 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-70003 |
4EFE..EE101 |
2 | ||
| 96111-10690 |
4EFE..EE101 |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-70003 |
4EFE..EE101 |
2 | ||
| 96111-10690 |
4EFE..EE101 |
2 | ||
| 17893 - RESONATOR, INTAKE AIR | ||||
| 17893-15050 |
4EFE..EE101 |
1 | ||
| 17893-15040 |
4EFE..EE101 (J) |
1 | ||
| 17893-02010 |
4EFE..EE101 (L) |
1 | ||
| Common parts | ||||
| 90119-06340 | ||||
| 90119-06374 | ||||
| 90179-06178 | ||||
| 90467-07136 | ||||
| 91661-60840 | ||||
| 91661-B0614 | ||||
| Linked diagrams | ||||
| 1201 | ||||
