EE101L-AWMRKW (1992)

Toyota Corolla Sed/Wg

Production May 1992 - Apr 1997
Engine 4EFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

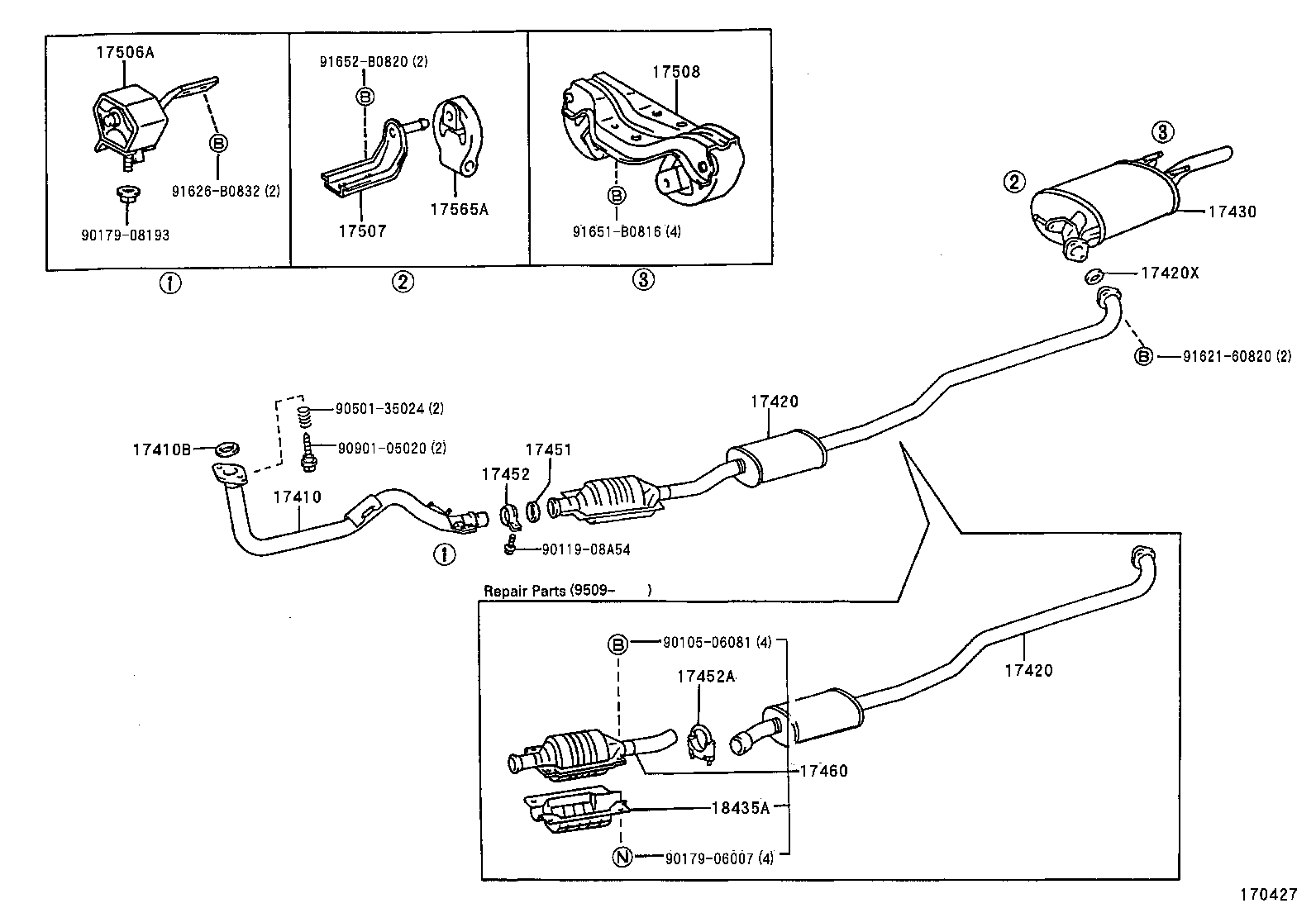

(9505- )4EFE

Click highlighted areas on diagram

diagram 17410 17410B 17420 17420 17420X 17430 17451 17452 17452A 17460 17506A 17507 17508 17565A 18435A 9010506081 9011908A54 9017906007 9017908193 9050135024 9090105020 9162160820 91626B0832 91651B0816 91652B0820
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-11810

4EFE..EE101

 1
17410-11610

4EFE..EE101

 1
17410B - GASKET, EXHAUST PIPE
90917-06069

2E,4EFE..EE10#

 2
90917-06080

4EFE..EE101

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-11350

4EFE..EE101

 1
17420-11360

4EFE..EE101

REPAIR PART

 1
17420-16580

4EFE..EE101

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-11350

4EFE..EE101

 1
17420-11360

4EFE..EE101

REPAIR PART

 1
17420-16580

4EFE..EE101

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06074

4AFE,2C,2E,4EFE..AE101,CE100,EE10#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-11640

4AFE,4EFE..AE101,EE101

 1
17451 - GASKET, EXHAUST PIPE
90917-06045

4EFE..EE101

 2
90917-06082

4EFE..EE101

 1
17452 - CLAMP, EXHAUST PIPE
90461-15013

4EFE..EE101

 1
17452A - CLAMP, EXHAUST PIPE
17452-16120

4EFE..EE101

 1
17460 - CONVERTER ASSY, CATALYTIC W/PIPE
17460-11020

4EFE..EE101

 1
17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17506-16090

4AFE,2C,4EFE..AE101,CE100,EE101

 1
17506-16140

4AFE,2C,4EFE..AE101,CE100,EE101

 1
17506-15080

4EFE..EE101

 1
17507 - BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17507-15040

4AFE,2C,2E,4EFE..AE101,CE100,EE10#

 1
17508 - SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3
17508-15050

4AFE,2C,2E,4EFE..AE101,CE100,EE10#

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-16230

4AFE,2C,2E,4EFE..AE101,CE100,EE10#

 1
18435A - PROTECTOR, MONOLITHIC CONVERTER
18435-11020

4EFE..EE101

 1
Common parts
90105-06081
90119-08A54
90179-06007
90179-08193
90501-35024
90901-05020
91621-60820
91626-B0832
91651-B0816
91652-B0820

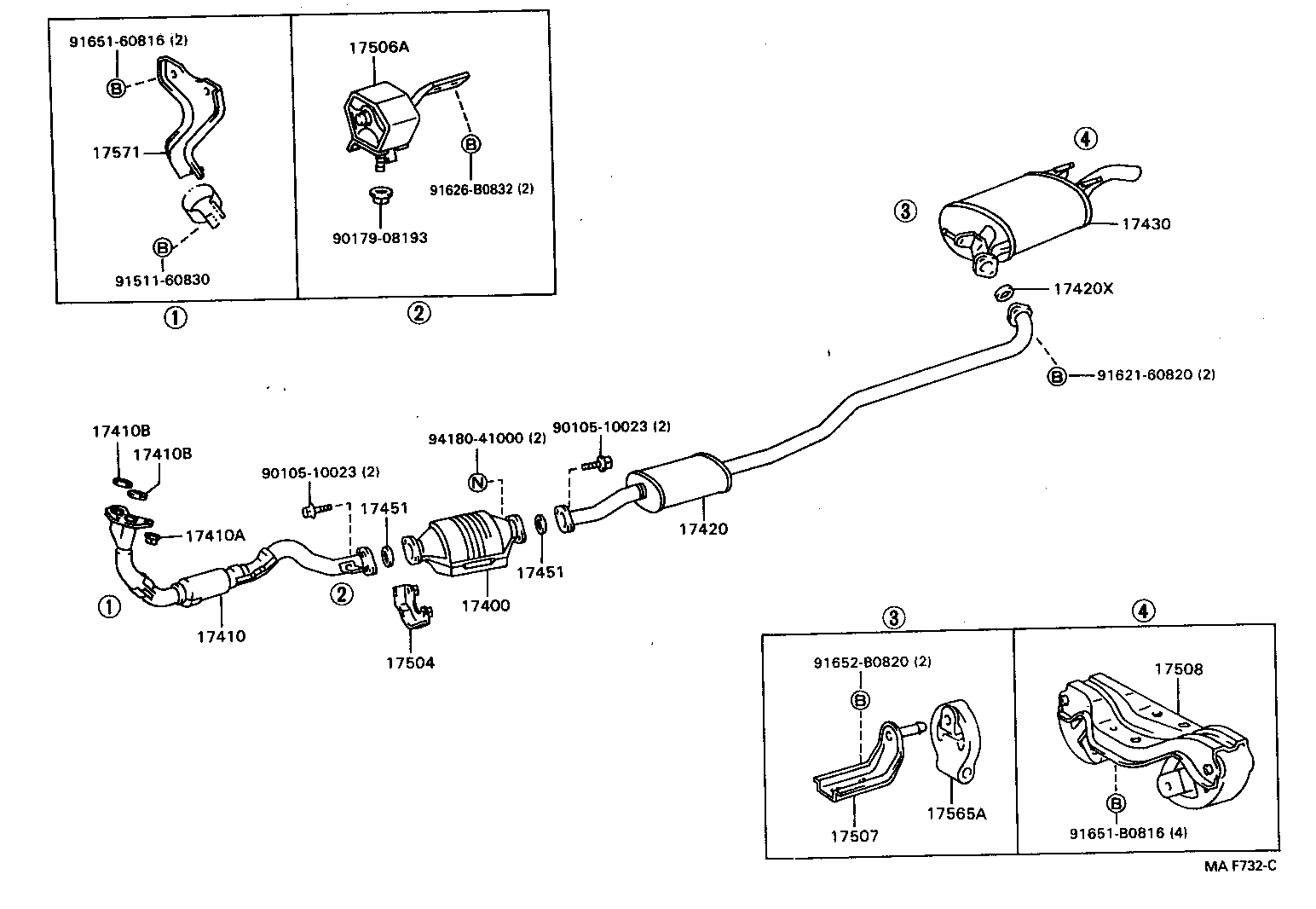

(9205-9505)4EFE

Click highlighted areas on diagram

diagram 17400 17410 17410A 17410B 17410B 17420 17420X 17430 17451 17451 17504 17506A 17507 17508 17565A 17571 9010510023 9010510023 9017908193 9151160830 9162160820 91626B0832 9165160816 91651B0816 91652B0820 9418041000
Part # Description Qty Price
17400 - CONVERTER ASSY, W/CATALYST
18450-16250

4EFE..EE101

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-11810

4EFE..EE101

 1
17410-11610

4EFE..EE101

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

4AFE,2E,4EFE..AE101,EE10#

 3
17410B - GASKET, EXHAUST PIPE
90917-06069

2E,4EFE..EE10#

 2
90917-06080

4EFE..EE101

 1
17410B - GASKET, EXHAUST PIPE
90917-06069

2E,4EFE..EE10#

 2
90917-06080

4EFE..EE101

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-11350

4EFE..EE101

 1
17420-11360

4EFE..EE101

REPAIR PART

 1
17420-16580

4EFE..EE101

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06074

4AFE,2C,2E,4EFE..AE101,CE100,EE10#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-11640

4AFE,4EFE..AE101,EE101

 1
17451 - GASKET, EXHAUST PIPE
90917-06045

4EFE..EE101

 2
90917-06082

4EFE..EE101

 1
17451 - GASKET, EXHAUST PIPE
90917-06045

4EFE..EE101

 2
90917-06082

4EFE..EE101

 1
17504 - BRACKET SUB-ASSY, CATALYTIC CONVERTER
17504-16011

4EFE..EE101

 1
17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17506-16090

4AFE,2C,4EFE..AE101,CE100,EE101

 1
17506-16140

4AFE,2C,4EFE..AE101,CE100,EE101

 1
17506-15080

4EFE..EE101

 1
17507 - BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17507-15040

4AFE,2C,2E,4EFE..AE101,CE100,EE10#

 1
17508 - SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3
17508-15050

4AFE,2C,2E,4EFE..AE101,CE100,EE10#

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-16230

4AFE,2C,2E,4EFE..AE101,CE100,EE10#

 1
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-11190

4EFE..EE101

 1
Common parts
90105-10023
90179-08193
91511-60830
91621-60820
91626-B0832
91651-60816
91651-B0816
91652-B0820
94180-41000
