Toyota Corolla sed/wg EE101 WIRING & CLAMP

EE101L-AWMDKW (1992)

Toyota Corolla Sed/Wg

Production May 1992 - Apr 1997

Engine 4EFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 8 OF 8(9205- )

Click highlighted areas on diagram

DIODE

Part #	Description	Period	Qty
82345 - DIODE
82345-32020	AE10#,CE100,EE10# TYPE B:REFER TO ILLUSTRATION	05/1992 - 12/2999	2
82345 - DIODE
82345-32020	AE10#,CE100,EE10# TYPE B:REFER TO ILLUSTRATION	05/1992 - 12/2999	2
82345 - DIODE
82345-32020	AE10#,CE100,EE10# TYPE B:REFER TO ILLUSTRATION	05/1992 - 12/2999	2

ILLUST NO. 7 OF 8(9205- )

Click highlighted areas on diagram

CABLE BOND

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-07341	EE10# FENDER-E/G	05/1992 - 01/1994	1
90980-07351	AE101,EE10# FENDER-T/M	05/1992 - 01/1994	1
90980-07351	EE10# LH FENDER-T/M	01/1994 - 12/2999	1
90980-07341	EE10# RH FENDER-E/G	01/1994 - 12/2999	1
82001 - CABLE, BOND, NO.1
90980-07341	EE10# FENDER-E/G	05/1992 - 01/1994	1
90980-07351	AE101,EE10# FENDER-T/M	05/1992 - 01/1994	1
90980-07351	EE10# LH FENDER-T/M	01/1994 - 12/2999	1
90980-07341	EE10# RH FENDER-E/G	01/1994 - 12/2999	1
82001 - CABLE, BOND, NO.1
90980-07341	EE10# FENDER-E/G	05/1992 - 01/1994	1
90980-07351	AE101,EE10# FENDER-T/M	05/1992 - 01/1994	1
90980-07351	EE10# LH FENDER-T/M	01/1994 - 12/2999	1
90980-07341	EE10# RH FENDER-E/G	01/1994 - 12/2999	1
82001 - CABLE, BOND, NO.1
90980-07341	EE10# FENDER-E/G	05/1992 - 01/1994	1
90980-07351	AE101,EE10# FENDER-T/M	05/1992 - 01/1994	1
90980-07351	EE10# LH FENDER-T/M	01/1994 - 12/2999	1
90980-07341	EE10# RH FENDER-E/G	01/1994 - 12/2999	1
Common parts
90119-06316
90119-06390
91651-40816

ILLUST NO. 8 OF 8(9205- )

Click highlighted areas on diagram

REPAIR

Part #	Description	Period	Qty
82991 - WIRE, FUSIBLE LINK REPAIR
82991-12050	AE10#,EE10#	05/1992 - 12/2999	1
82991 - WIRE, FUSIBLE LINK REPAIR
82991-12050	AE10#,EE10#	05/1992 - 12/2999	1

ILLUST NO. 3 OF 8(9205- )

Click highlighted areas on diagram

ENGINE WIRE CLAMP

Part #	Description	Period	Qty	Price
Common parts
82711-1A040
82711-1A150
82711-24420
82715-10010
82715-10090
82715-10100
82715-10130
82715-12020
82715-12120
82715-12130
82715-12150
82715-12170
82715-12171
82715-12180
82715-12190
82715-12200
82715-12230
82715-12261
82715-12340
82715-12380
82715-12390
82715-12440
82715-16350
82715-16440
82715-89113
90119-06539
90119-08921
90179-06156
90950-01813
91511-60614
91611-60812
91651-40814
91651-B0614

ILLUST NO. 4 OF 8(9205- )LHD

Click highlighted areas on diagram

INSTRUMENT PANEL

Part #	Description	Period	Qty
82028 - WIRING SUB-ASSY, COWL
82028-12050	AE101,CE100,EE10#	05/1992 - 11/1994	1
82141 - WIRE, INSTRUMENT PANEL
82141-1A220	EE101..LHD W(ABS)	05/1992 - 12/1993	1
82141-1A210	EE101..LHD	05/1992 - 12/1993	1
82141-1A320	EE101..LHD..5F NORWAY,FINLAND,ICELAND OR DENMARK SPEC	05/1992 - 12/1993	1
82141-1A260	EE101..LHD *FRG	05/1992 - 12/1993	1
82141-1A270	EE101..LHD *FRG & W(ABS)	05/1992 - 12/1993	1
82141-1A330	EE101..LHD..5F FINLAND SPEC & W(ABS),NORWAY SPEC & W(ABS),ICELAND SPEC & W(ABS) OR DENMARK SPEC & W(ABS)	05/1992 - 12/1993	1
82141-1A321	EE101..LHD..5F NORWAY,FINLAND,ICELAND OR DENMARK SPEC	12/1993 - 05/1994	1
82141-1A480	EE101..LHD EUROPEAN POSSESSION SPEC	05/1992 - 12/1993	1
82141-1A331	EE101..LHD..5F	12/1993 - 05/1994	1
82141-1A221	EE101..LHD W(ABS)	12/1993 - 11/1994	1
82141-1A261	EE101..LHD *FRG	12/1993 - 11/1994	1
82141-1A271	EE101..LHD *FRG & W(ABS)	12/1993 - 11/1994	1
82141-1A211	EE101..LHD	12/1993 - 11/1994	1
82141-1A322	EE101..LHD..5F NORWAY,FINLAND,ICELAND,DENMARK OR SWEDEN SPEC	05/1994 - 11/1994	1
82141-1A481	EE101..LHD EUROPEAN POSSESSION SPEC	12/1993 - 11/1994	1
82141-1A332	EE101..LHD..5F SWEDEN SPEC & W(ABS)	05/1994 - 11/1994	1
82141-1A212	EE101..LHD	11/1994 - 05/1995	1
82141-1A222	EE101..LHD W(ABS)	11/1994 - 05/1995	1
82141-1A323	EE101..LHD..5F NORWAY,FINLAND,ICELAND,DENMARK OR SWEDEN SPEC	11/1994 - 05/1995	1
82141-1A333	EE101..LHD..5F SWEDEN SPEC & W(ABS)	11/1994 - 05/1995	1
82141-1A262	EE101..LHD *FRG	11/1994 - 05/1995	1
82141-1A272	EE101..LHD *FRG & W(ABS)	11/1994 - 05/1995	1
82141-1A482	EE101..LHD EUROPEAN POSSESSION SPEC	11/1994 - 05/1995	1
82141-1L560	EE101..LHD..5F..XLI '97 SPRING CAMPAIGN(AUSTRIA,FRANCE)	10/1996 - 04/1997	1
82141-1L560	EE101..LHD..XLI SPECIAL EDITION(PORTUGAL)	06/1996 - 10/1996	1
82141-1K610	EE101..LHD W(ABS)	05/1995 - 12/2999	1
82141-1K620	EE101..LHD EUROPEAN POSSESSION SPEC	05/1995 - 12/2999	1
82141-1K600	EE101..LHD	05/1995 - 12/2999	1
82141-1L050	EE101..LHD ICELAND SPEC & W(80;DRIVER SIDE,PASSENGER SIDE);DENMARK SPEC & W(80;DRIVER SIDE,PASSENGER SIDE)	05/1995 - 12/2999	1
82141-1K880	EE101..LHD W(ABS & *80;DRIVER SIDE,PASSENGER SIDE)	05/1995 - 12/2999	1
82141-1L120	EE101..LHD FINLAND SPEC & W(ABS & 80;DRIVER SIDE,PASSENGER SIDE);NORWAY SPEC & W(ABS & 80;DRIVER SIDE,PASSENGER SIDE);DENMARK SPEC & W(ABS & 80;DRIVER SIDE,PASSENGER SIDE & HEADLAMP CLEANER);SWEDEN SPEC & W(ABS & 80;DRIVER SIDE,PASSENGER SIDE)	05/1995 - 12/2999	1
82141-1K870	EE101..LHD W(*80;DRIVER SIDE,PASSENGER SIDE)	05/1995 - 12/2999	1
82141-1K740	EE101..LHD SWEDEN SPEC & W(ABS)	05/1995 - 12/2999	1
82141-1K730	EE101..LHD NORWAY,FINLAND,ICELAND,DENMARK OR SWEDEN SPEC	05/1995 - 12/2999	1
82141-1L180	EE101..LHD..(GLI,XLI) DENMARK SPEC & W(ABS & *80;DRIVER SIDE,PASSENGER SIDE & SEAT HEATER)	05/1995 - 12/2999	1
82141-1L060	EE101..LHD ICELAND SPEC & W(ABS & 80;DRIVER SIDE,PASSENGER SIDE);DENMARK SPEC & W(ABS & 80;DRIVER SIDE,PASSENGER SIDE)	05/1995 - 12/2999	1
82141-1L110	EE101..LHD DENMARK SPEC & W(80;DRIVER SIDE,PASSENGER SIDE & HEADLAMP CLEANER);NORWAY SPEC &W(80;DRIVER SIDE,PASSENGER SIDE);SWEDEN SPEC & W(80;DRIVER SIDE,PASSENGER SIDE);FINLAND SPEC & W(80;DRIVER SIDE,PASSENGER SIDE)	05/1995 - 12/2999	1
82141-1L170	EE101..LHD..(GLI,XLI) DENMARK SPEC & W(*80;DRIVER SIDE,PASSENGER SIDE & SEAT HEATER)	05/1995 - 12/2999	1
82345 - DIODE
82345-32020	AE10#,CE100,EE10# TYPE B:REFER TO ILLUSTRATION	05/1992 - 12/2999	2
82345 - DIODE
82345-32020	AE10#,CE100,EE10# TYPE B:REFER TO ILLUSTRATION	05/1992 - 12/2999	2
Common parts
82715-12160
82715-12260
90119-06053
90119-06657
90159-60080
91611-60612
93568-15014
93568-55014
Linked diagrams
8121
8401

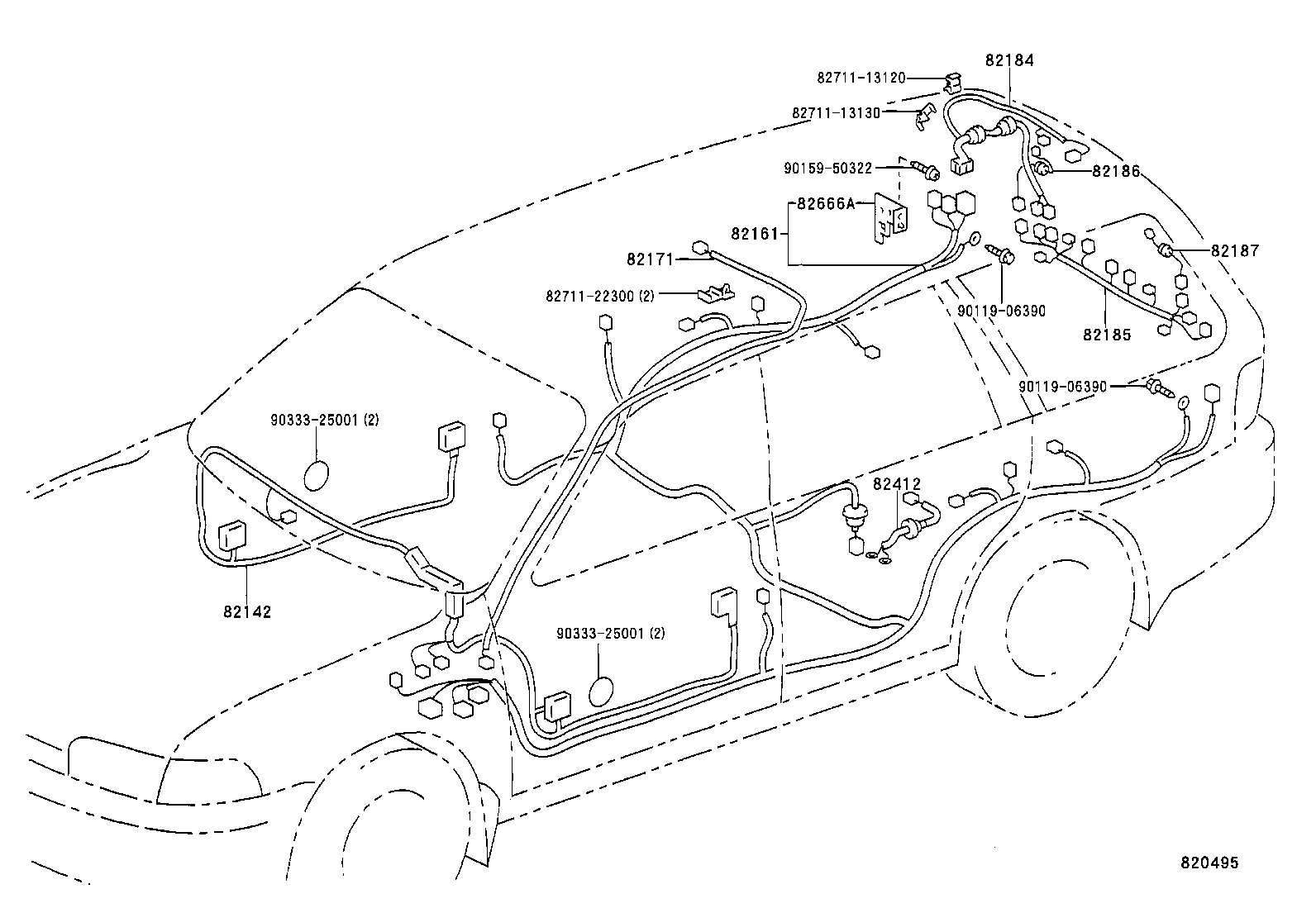

ILLUST NO. 6 OF 8(9205- )LHD..WG

Click highlighted areas on diagram

FLOOR & ROOF

Part #	Description	Period	Qty
82142 - WIRE, INSTRUMENT PANEL, NO.2
82142-12130	AE101,CE100,EE10#..LHD..WG..(XL,XLI)	05/1992 - 05/1993	1
82142-13130	AE101,CE100,EE10#..LHD..WG..(XL,XLI)	05/1993 - 12/1993	1
82142-13131	CE100,EE10#..LHD..WG..(XL,XLI)	01/1994 - 05/1994	1
82142-13131	AE101,CE100,EE10#..LHD..WG..(XL,XLI)	12/1993 - 01/1994	1
82142-13140	AE10#,CE100,EE101..LHD..WG..(XL,XLI) W(PW & EL)	05/1994 - 12/2999	1
82142-13131	AE10#,CE100,EE101..LHD..WG..(XL,XLI) W(*EL)	05/1994 - 12/2999	1
82142-13160	AE10#,CE100,EE101..LHD..WG..(XL,XLI) W(PW & EL & *80;DRIVER SIDE,PASSENGER SIDE)	05/1995 - 12/2999	1
82142-13150	AE10#,CE100,EE101..LHD..WG..(XL,XLI) W(EL & 80;DRIVER SIDE,PASSENGER SIDE)	05/1995 - 12/2999	1
82161 - WIRE, FLOOR
82161-13840	AE101,CE100,EE10#..LHD..WG	05/1992 - 05/1993	1
82161-13850	AE101,CE100,EE101..LHD..WG W(ABS)	05/1992 - 05/1993	1
82161-1F070	AE101,CE100,EE101..LHD..WG W(ABS)	05/1993 - 11/1994	1
82161-1F061	AE101,CE100,EE10#..LHD..WG	11/1994 - 05/1995	1
82161-1F060	AE101,CE100,EE10#..LHD..WG	05/1993 - 11/1994	1
82161-1F250	AE101,CE100,EE101..LHD..WG W(ABS)	05/1995 - 12/2999	1
82161-1F071	AE101,CE100,EE101..LHD..WG W(ABS)	11/1994 - 05/1995	1
82161-1F240	AE101,CE100,EE101..LHD..WG	05/1995 - 12/2999	1
82171 - WIRE, ROOF, NO.1
82171-13130	AE10#,CE100,EE10#..LHD..WG W(ROOF RAIL)	05/1992 - 12/2999	1
82171-13120	AE10#,CE100,EE10#..LHD..WG	05/1992 - 12/2999	1
82184 - WIRE, BACK DOOR, NO.1
82184-13300	AE101,CE100,EE101..WG..(GLI,XL,XLI)	05/1992 - 05/1993	1
82184-13360	AE10#,CE100,EE101..WG..(GLI,XL,XLI)	05/1993 - 12/2999	1
82185 - WIRE, BACK DOOR, NO.2
82185-13390	AE10#,CE100,EE101..WG..(GLI,XL,XLI)	05/1993 - 12/2999	1
82185-13320	AE101,CE100,EE101..WG..(GLI,XL,XLI)	05/1992 - 05/1993	1
82186 - WIRE, REAR WINDOW, NO.1
82186-13061	AE10#,CE100,EE101..WG	05/1995 - 12/2999	1
82186-13030	AE101,CE100,EE10#..WG	05/1992 - 05/1995	1
82187 - WIRE, REAR WINDOW, NO.2
82187-13020	AE101,CE100,EE10#..WG	05/1992 - 05/1993	1
82187-13030	AE10#,CE100,EE10#..WG	05/1993 - 12/2999	1
82666A - HOLDER, CONNECTOR NO.2
82666-13011	AE10#,CE100,EE10#..WG	05/1992 - 12/2999	1
Common parts
82711-13120
82711-13130
82711-22300
90119-06390
90159-50322
90333-25001

ILLUST NO. 1 OF 8(9205- )

Click highlighted areas on diagram

ENGINE ROOM

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-1E620	AE101,CE100,EE101..LHD W(ABS)	05/1992 - 05/1993	1
82111-1E660	AE101,CE100,EE101..LHD *FRG & W(ABS)	05/1992 - 05/1993	1
82111-1E670	AE101,EE101..LHD EUROPEAN POSSESSION SPEC	05/1992 - 07/1993	1
82111-1H090	AE101,EE101..LHD..(4FC,5F) FINLAND SPEC & W(ABS),NORWAY SPEC & W(ABS),ICELAND SPEC & W(ABS) OR DENMARK SPEC & W(ABS)	05/1993 - 09/1993	1
82111-1E640	AE101,EE101..LHD..(4FC,5F) FINLAND SPEC & W(ABS),NORWAY SPEC & W(ABS),ICELAND SPEC & W(ABS) OR DENMARK SPEC & W(ABS)	05/1992 - 05/1993	1
82111-1H091	AE101,EE101..LHD..(4FC,5F) FINLAND SPEC & W(ABS),NORWAY SPEC & W(ABS),ICELAND SPEC & W(ABS) OR DENMARK SPEC & W(ABS)	09/1993 - 05/1994	1
82111-1E630	AE101,EE101..LHD..(4FC,5F) NORWAY,FINLAND,ICELAND OR DENMARK SPEC	05/1992 - 05/1994	1
82111-1H100	AE101,CE100,EE101..LHD *FRG & W(ABS)	05/1993 - 09/1993	1
82111-1H080	AE101,CE100,EE101..LHD W(ABS)	05/1993 - 09/1993	1
82111-1E650	AE101,CE100,EE101..LHD *FRG	05/1992 - 11/1994	1
82111-1E670	AE101..WG;EE101..LHD;AE101..LHD..5F..GLI EUROPEAN POSSESSION SPEC	07/1993 - 11/1994	1
82111-1E610	AE101,CE100,EE10#..LHD	05/1992 - 11/1994	1
82111-1H081	AE101,CE100,EE101..LHD W(ABS)	09/1993 - 11/1994	1
82111-1H101	AE101,CE100,EE101..LHD *FRG & W(ABS)	09/1993 - 11/1994	1
82111-1E630	AE101,EE101..LHD..(4FC,5F) NORWAY,ICELAND,DENMARK OR SWEDEN SPEC	05/1994 - 11/1994	1
82111-1H150	AE101,CE100,EE101..LHD..(4FC,5F) FINLAND SPEC	05/1994 - 11/1994	1
82111-1E631	AE101,EE101..LHD..(4FC,5F) NORWAY,ICELAND,DENMARK OR SWEDEN SPEC	11/1994 - 05/1995	1
82111-1H160	AE101,CE100,EE101..LHD..(4FC,5F) FINLAND SPEC & W(ABS)	05/1994 - 11/1994	1
82111-1E611	AE101,CE100,EE10#..LHD	11/1994 - 05/1995	1
82111-1E671	AE101..WG;EE101..LHD;AE101..LHD..5F..GLI EUROPEAN POSSESSION SPEC	11/1994 - 05/1995	1
82111-1H082	AE101,CE100,EE101..LHD W(ABS)	11/1994 - 05/1995	1
82111-1H091	AE101,EE101..LHD..(4FC,5F) NORWAY SPEC & W(ABS),ICELAND SPEC & W(ABS),DENMARK SPEC & W(ABS) OR SWEDEN SPEC &W(ABS)	05/1994 - 11/1994	1
82111-1H092	AE101,EE101..LHD..(4FC,5F) NORWAY SPEC & W(ABS),ICELAND SPEC & W(ABS),DENMARK SPEC & W(ABS) OR SWEDEN SPEC &W(ABS)	11/1994 - 05/1995	1
82111-1H102	AE101,CE100,EE101..LHD *FRG & W(ABS)	11/1994 - 05/1995	1
82111-1H380	AE10#,EE101..LHD W(ABS & WVTA VIN PLATE)	05/1995 - 08/1995	1
82111-1H540	EE101..LHD;AE101..LHD..5F..GLI EUROPEAN POSSESSION SPEC	05/1995 - 12/1995	1
82111-1H151	AE101,CE100,EE101..LHD..(4FC,5F) FINLAND SPEC	11/1994 - 05/1995	1
82111-1H161	AE101,CE100,EE101..LHD..(4FC,5F) FINLAND SPEC & W(ABS)	11/1994 - 05/1995	1
82111-1H370	AE10#,EE101..LHD W(WVTA VIN PLATE)	05/1995 - 08/1995	1
82111-1H400	EE101..SED..STD;AE10#,EE101..LHD..(GLI,XLI) NORWAY SPEC & W(ABS),ICELAND SPEC & W(ABS) OR SWEDEN SPEC & W(ABS)	05/1995 - 05/1996	1
82111-1E651	AE101,CE100,EE101..LHD *FRG	11/1994 - 05/1995	1
82111-1H390	EE101..SED..STD;AE10#,EE101..LHD..(GLI,XLI) NORWAY,ICELAND OR SWEDEN SPEC	05/1995 - 05/1996	1
82111-1H420	AE10#,EE101..LHD FINLAND SPEC & W(ABS) OR DENMARK SPEC & W(ABS & WVTA VIN PLATE)	05/1995 - 05/1996	1
82111-1H410	AE10#,EE101..LHD FINLAND SPEC OR DENMARK SPEC & W(ABS & WVTA VIN PLATE)	05/1995 - 05/1996	1
82111-1H440	AE101,EE101..LHD EUROPEAN POSSESSION SPEC & W(WVTA VIN PLATE)	05/1995 - 05/1996	1
82111-1H350	AE10#,CE100,EE10#..LHD	05/1995 - 12/2999	1
82111-1H380	AE10#,EE101..LHD W(ABS & WVTA VIN PLATE) OR CZECHO., POLAND, HUNGARY SPEC & W(ABS)	08/1995 - 05/1996	1
82111-1H360	AE10#,CE100,EE101..LHD W(ABS)	05/1995 - 12/2999	1
82111-1H370	AE10#,EE101..LHD W(WVTA VIN PLATE) OR CZECHO., POLAND, HUNGARY SPEC	08/1995 - 05/1996	1
82111-1H440	EE101..LHD..XLI SPECIAL EDITION(PORTUGAL)	06/1996 - 10/1996	1
82111-1H440	EE101..LHD..5F..XLI '97 SPRING CAMPAIGN(AUSTRIA,FRANCE)	10/1996 - 04/1997	1
82111-1H400	AE10#,EE101..LHD..WG SWEDEN SPEC & W(ABS)	05/1996 - 12/2999	1
82111-1H410	EE101..SED..STD;AE10#,EE101..LHD..(GLI,XLI) DENMARK,SWEDEN,FINLAND,NORWAY OR ICELAND SPEC & W(WVTA VIN PLATE)	05/1996 - 12/2999	1
82111-1H380	EE101..SED..STD;AE10#,EE101..LHD..(GLI,XLI) CZECHO.,POLAND,HUNGARY SPEC & W(ABS & WVTA VIN PLATE)	05/1996 - 12/2999	1
82111-1H540	EE101..LHD EUROPEAN POSSESSION SPEC	12/1995 - 12/2999	1
82111-1H390	AE10#,EE101..LHD..WG NORWAY,FINLAND,ICELAND,DENMARK OR SWEDEN SPEC	05/1996 - 12/2999	1
82111-1H420	AE10#,EE101..LHD..WG..XLI DENMARK,SWEDEN,FINLAND,NORWAY OR ICELAND SPEC & W(ABS & WVTA VIN PLATE)	05/1996 - 12/2999	1
82111-1H440	EE101..SED..STD;AE101,EE101..LHD..(GLI,XLI) EUROPEAN POSSESSION SPEC & W(WVTA VIN PLATE)	05/1996 - 12/2999	1
82111-1H370	EE101..SED..STD;AE10#,EE101..LHD..(GLI,XLI) W(WVTA VIN PLATE) OR CZECHO., POLAND, HUNGARY SPEC	05/1996 - 12/2999	1
82114 - WIRE, ENGINE ROOM, NO.4
88605-1H390	EE101..LHD	05/1992 - 05/1995	1
88605-1H850	EE101..LHD	05/1995 - 04/1997	1
82123 - WIRE, ENGINE, NO.3
82123-12230	AE101,EE10#..4FC,5F	05/1992 - 05/1995	1
82123-12220	AE10#,EE10#..4FC,5F	05/1995 - 12/2999	1
82210C - FUSIBLE LINK
90982-08188	AE10#,CE100,EE10# 30A,TERM.:FEMALE,PNK	05/1992 - 12/2999	2
90982-08228	AE10#,CE100,EE101 50A,TERM.:MALE,RED	05/1992 - 12/2999	1
90982-08246	AE10#,EE10# 100A,TERM.:MALE,BLUE	05/1992 - 12/2999	1
90982-08257	AE10#,EE10# 40A,TERM.:MALE,GRN	05/1992 - 12/2999	1
82210C - FUSIBLE LINK
90982-08188	AE10#,CE100,EE10# 30A,TERM.:FEMALE,PNK	05/1992 - 12/2999	2
90982-08228	AE10#,CE100,EE101 50A,TERM.:MALE,RED	05/1992 - 12/2999	1
90982-08246	AE10#,EE10# 100A,TERM.:MALE,BLUE	05/1992 - 12/2999	1
90982-08257	AE10#,EE10# 40A,TERM.:MALE,GRN	05/1992 - 12/2999	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-1A090	AE101,CE100,EE10#	05/1992 - 11/1994	2
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-1A090	AE101,CE100,EE10#	05/1992 - 11/1994	2
Common parts
82715-12140
90099-04337
90105-08096
90105-10122
90119-06390
90119-06539
90119-08063
Linked diagrams
8401

ILLUST NO. 2 OF 8(9205- )EE101

Click highlighted areas on diagram

ENGINE

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-1K300	EE101..LHD..5F EUROPE POSSESSION SPEC	05/1992 - 11/1994	1
82121-1K120	EE101..LHD..5F	05/1992 - 05/1995	1
82121-1K301	EE101..LHD..5F EUROPE POSSESSION SPEC	11/1994 - 05/1995	1
82121-1L690	EE101..LHD..5F	05/1995 - 01/1996	1
82121-1L710	EE101..LHD..5F EUROPE POSSESSION SPEC	05/1995 - 01/1996	1
82121-1L712	EE101..LHD..5F..XLI '97 SPRING CAMPAIGN(AUSTRIA,FRANCE)	10/1996 - 04/1997	1
82121-1L711	EE101..LHD..5F EUROPE POSSESSION SPEC	01/1996 - 06/1996	1
82121-1L712	EE101..LHD..5F..XLI SPECIAL EDITION(PORTUGAL)	06/1996 - 10/1996	1
82121-1L691	EE101..LHD..5F	01/1996 - 12/2999	1
82121-1L712	EE101..LHD..5F EUROPE POSSESSION SPEC	06/1996 - 12/2999	1
82210C - FUSIBLE LINK
90982-08188	AE10#,CE100,EE10# 30A,TERM.:FEMALE,PNK	05/1992 - 12/2999	2
90982-08228	AE10#,CE100,EE101 50A,TERM.:MALE,RED	05/1992 - 12/2999	1
90982-08246	AE10#,EE10# 100A,TERM.:MALE,BLUE	05/1992 - 12/2999	1
90982-08257	AE10#,EE10# 40A,TERM.:MALE,GRN	05/1992 - 12/2999	1
82210C - FUSIBLE LINK
90982-08188	AE10#,CE100,EE10# 30A,TERM.:FEMALE,PNK	05/1992 - 12/2999	2
90982-08228	AE10#,CE100,EE101 50A,TERM.:MALE,RED	05/1992 - 12/2999	1
90982-08246	AE10#,EE10# 100A,TERM.:MALE,BLUE	05/1992 - 12/2999	1
90982-08257	AE10#,EE10# 40A,TERM.:MALE,GRN	05/1992 - 12/2999	1
82210C - FUSIBLE LINK
90982-08188	AE10#,CE100,EE10# 30A,TERM.:FEMALE,PNK	05/1992 - 12/2999	2
90982-08228	AE10#,CE100,EE101 50A,TERM.:MALE,RED	05/1992 - 12/2999	1
90982-08246	AE10#,EE10# 100A,TERM.:MALE,BLUE	05/1992 - 12/2999	1
90982-08257	AE10#,EE10# 40A,TERM.:MALE,GRN	05/1992 - 12/2999	1
82620 - BLOCK ASSY, FUSIBLE LINK
82620-12080	AE10#,EE101	05/1992 - 12/2999	1
82620-12150	AE101,EE101..LHD W/O(ABS)	05/1992 - 12/2999	1
82824 - CONNECTOR, WIRING HARNESS
82824-20050	AE101,CE100,EE10#..LHD	11/1994 - 05/1996	1
82824-20050	AE101,CE100,EE10#..LHD	06/1996 - 12/2999	1
82824-20050	AE101,CE100,EE101..LHD	05/1992 - 11/1994	1
82824-20050	CE100..LHD..SED;AE101,EE10#..LHD	05/1996 - 06/1996	1
Common parts
90119-06604
Linked diagrams
8401

ILLUST NO. 5 OF 8(9205- )

Click highlighted areas on diagram

DOOR

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-1A050	AE101,CE100,EE10#..GLI,XL,XLI W(*EL)	05/1992 - 09/1993	1
82151-1A051	AE101,CE100,EE10#..GLI,XL,XLI W(*EL)	09/1993 - 12/1993	1
82151-1A052	AE101,CE100,EE10#..GLI,XL,XLI W(*EL)	12/1993 - 05/1995	1
82151-1A161	AE10#,CE100,EE101..LHD..(GLI,XL,XLI) W(PW & EL)	05/1994 - 12/2999	1
82151-12810	AE101,CE100,EE10#..GLI,XL,XLI W(DOOR SPEAKER)	05/1992 - 05/1995	1
82151-12810	EE101..LHD..GLI;AE10#,EE100..LHD;CE100,EE101..XL,XLI W(DOOR SPEAKER)	05/1995 - 12/2999	1
82151-1A052	EE101..LHD..GLI;AE10#,EE100..LHD;CE100,EE101..XL,XLI W(*EL)	05/1995 - 12/2999	1
82152 - WIRE, FRONT DOOR, LH
82151-1A051	AE101,CE100,EE10#..GLI,XL,XLI W(*EL)	09/1993 - 12/1993	1
82151-1A050	AE101,CE100,EE10#..GLI,XL,XLI W(*EL)	05/1992 - 09/1993	1
82151-12810	AE101,CE100,EE10#..GLI,XL,XLI W(DOOR SPEAKER)	05/1992 - 05/1995	1
82152-1A012	AE10#,CE100,EE101..LHD..(GLI,XL,XLI) W(PW & EL)	05/1994 - 12/2999	1
82151-1A052	AE101,CE100,EE10#..GLI,XL,XLI W(*EL)	12/1993 - 05/1995	1
82151-1A052	EE101..LHD..GLI;AE10#,EE100..LHD;CE100,EE101..XL,XLI W(*EL)	05/1995 - 12/2999	1
82151-12810	EE101..LHD..GLI;AE10#,EE100..LHD;CE100,EE101..XL,XLI W(DOOR SPEAKER)	05/1995 - 12/2999	1
82152-1A310	AE10#,CE100,EE101..LHD..(GLI,XL,XLI) W(PW-FR ONLY & EL)	05/1995 - 12/2999	1
82153 - WIRE, REAR DOOR, NO.1
82153-12220	CE100,EE100..XL;EE101..RHD..XLI;AE101,EE101..LHD..WG..XLI	05/1992 - 01/1994	1
82153-12210	AE101;EE101..GLI;CE100,EE101..LHD..(XL,XLI) W(PW & EL)	05/1994 - 05/1995	1
82153-12220	AE10#,CE100,EE101..LHD..(GLI,XL,XLI) W(*EL)	05/1995 - 12/2999	1
82153-12220	CE100,EE100..XL;EE101..RHD..XLI;EE101..LHD..WG..XLI	01/1994 - 05/1994	1
82153-12220	AE101;EE101..GLI;CE100,EE101..LHD..(XL,XLI) W(*EL)	05/1994 - 05/1995	1
82153-12210	AE10#,CE100,EE101..LHD..(GLI,XL,XLI) W(PW & EL)	05/1995 - 12/2999	1
82154 - WIRE, REAR DOOR, NO.2
82154-12220	CE100,EE100..XL;EE101..RHD..XLI;EE101..LHD..WG..XLI	01/1994 - 05/1994	1
82154-12210	AE10#,CE100,EE101..LHD..(GLI,XL,XLI) W(PW & EL)	05/1995 - 12/2999	1
82154-12220	CE100,EE100..XL;EE101..RHD..XLI;AE101,EE101..LHD..WG..XLI	05/1992 - 01/1994	1
82154-12210	AE101;EE101..GLI;CE100,EE101..LHD..(XL,XLI) W(PW & EL)	05/1994 - 05/1995	1
82154-12220	AE101;EE101..GLI;CE100,EE101..LHD..(XL,XLI) W(*EL)	05/1994 - 05/1995	1
82154-12220	AE10#,CE100,EE101..LHD..(GLI,XL,XLI) W(*EL)	05/1995 - 12/2999	1

EE101L-AWMDKW (1992)

ILLUST NO. 8 OF 8(9205- )

ILLUST NO. 7 OF 8(9205- )

ILLUST NO. 8 OF 8(9205- )

ILLUST NO. 3 OF 8(9205- )

ILLUST NO. 4 OF 8(9205- )LHD

ILLUST NO. 6 OF 8(9205- )LHD..WG

ILLUST NO. 1 OF 8(9205- )

ILLUST NO. 2 OF 8(9205- )EE101

ILLUST NO. 5 OF 8(9205- )

Part Price Details
