Toyota Corolla sed/wg EE101 MANIFOLD

EE101L-AWMDKW (1992)

Toyota Corolla Sed/Wg

Production May 1992 - Apr 1997

Engine 4EFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

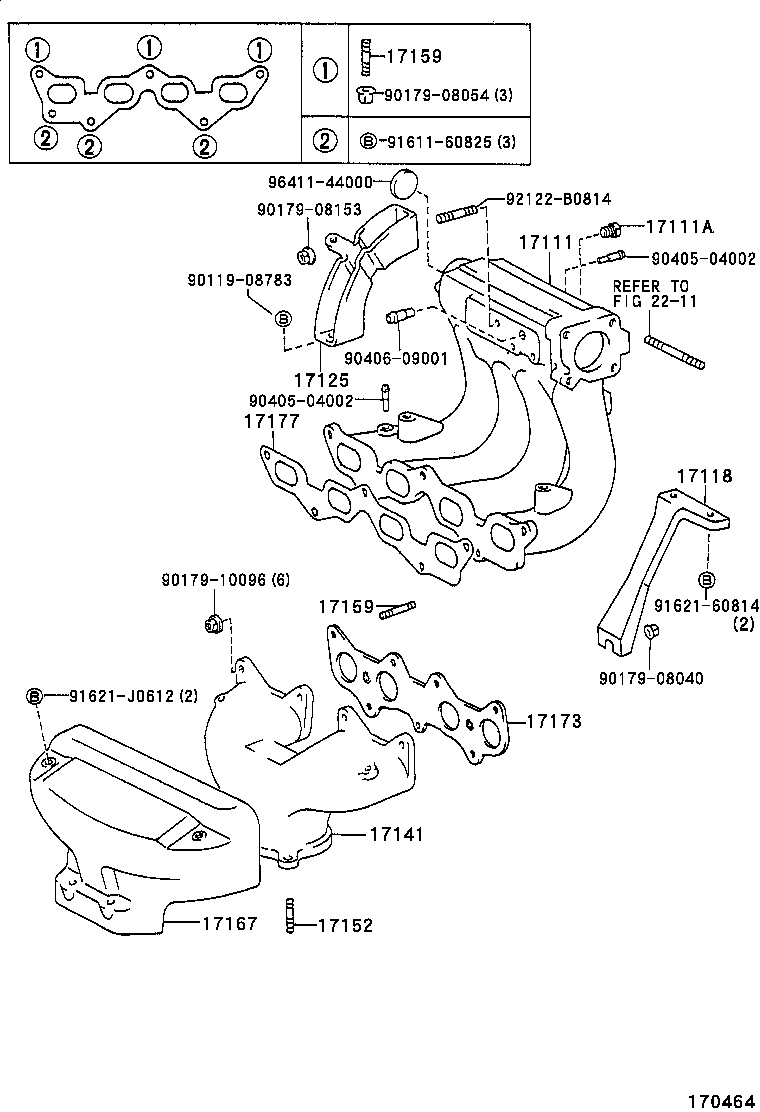

(9205-9505)4EFE

Click highlighted areas on diagram

Part #	Description	Period	Qty
17111 - MANIFOLD, INTAKE
17101-11231	4EFE..EE101	05/1992 - 05/1995	1
17101-11330	4EFE..EE101	05/1995 - 12/2999	1
17111A - PLUG, NO.1
90345-51008	4EFE..EE101	05/1992 - 12/1992	1
90345-51006	4EFE..EE101	12/1992 - 05/1995	1
17118 - STAY, MANIFOLD
17118-11110	4EFE..EE101	05/1992 - 05/1995	1
17118-11280	4EFE..EE101	05/1995 - 12/2999	1
17125 - STAY, SURGE TANK, NO.1
17125-11050	4EFE..EE101	05/1995 - 12/2999	1
17125-11030	4EFE..EE101	05/1992 - 05/1995	1
17141 - MANIFOLD, EXHAUST
17141-11210	4EFE..EE101	05/1992 - 05/1995	1
17141-11320	4EFE..EE101	05/1995 - 12/2999	1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10017	2E,4EFE..EE10#	05/1992 - 05/1995	3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-61025	4EFE..EE101 EXHAUST MANIFOLD	01/1994 - 02/1995	6
92122-61025	4EFE..EE101 EXHAUST SIDE	05/1992 - 01/1994	6
92132-60825	4EFE..EE101 INTAKE SIDE	05/1992 - 01/1994	3
92132-60825	4EFE..EE101 INTAKE MANIFOLD	01/1994 - 12/2999	3
90116-10196	4EFE..EE101 EXHAUST MANIFOLD	02/1995 - 12/2999	6
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-61025	4EFE..EE101 EXHAUST MANIFOLD	01/1994 - 02/1995	6
92122-61025	4EFE..EE101 EXHAUST SIDE	05/1992 - 01/1994	6
92132-60825	4EFE..EE101 INTAKE SIDE	05/1992 - 01/1994	3
92132-60825	4EFE..EE101 INTAKE MANIFOLD	01/1994 - 12/2999	3
90116-10196	4EFE..EE101 EXHAUST MANIFOLD	02/1995 - 12/2999	6
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-11260	4EFE..EE101	05/1992 - 05/1995	1
17167-11310	4EFE..EE101	05/1995 - 12/2999	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-11040	4EFE..EE101	05/1992 - 12/2999	1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-11020	4EFE..EE101	05/1992 - 09/1994	1
17177-11021	4EFE..EE101	09/1994 - 04/1995	1
17177-11070	4EFE..EE101	04/1995 - 12/2999	1
Common parts
90119-08783
90179-08040
90179-08054
90179-08153
90179-10096
90405-04002
90406-09001
91611-60825
91621-60814
91621-J0612
92122-B0814
96411-44000
Linked diagrams
2211

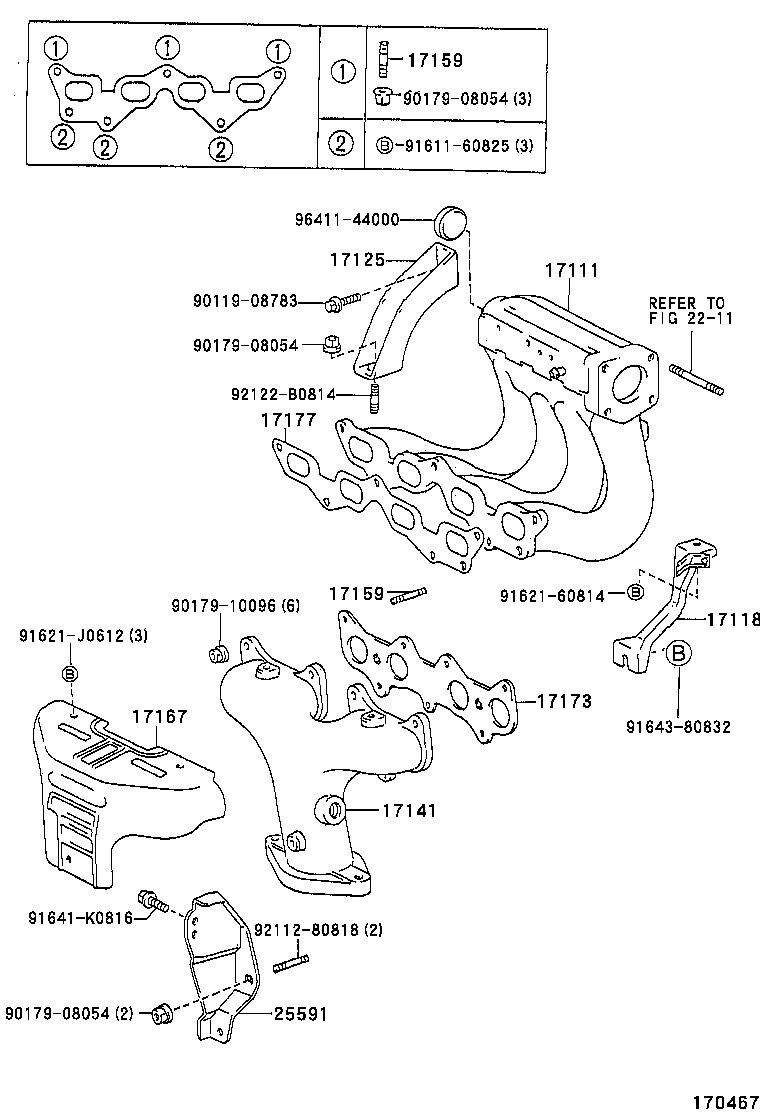

(9505- )4EFE

Click highlighted areas on diagram

Part #	Description	Period	Qty
17111 - MANIFOLD, INTAKE
17101-11231	4EFE..EE101	05/1992 - 05/1995	1
17101-11330	4EFE..EE101	05/1995 - 12/2999	1
17118 - STAY, MANIFOLD
17118-11110	4EFE..EE101	05/1992 - 05/1995	1
17118-11280	4EFE..EE101	05/1995 - 12/2999	1
17125 - STAY, SURGE TANK, NO.1
17125-11050	4EFE..EE101	05/1995 - 12/2999	1
17125-11030	4EFE..EE101	05/1992 - 05/1995	1
17141 - MANIFOLD, EXHAUST
17141-11210	4EFE..EE101	05/1992 - 05/1995	1
17141-11320	4EFE..EE101	05/1995 - 12/2999	1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-61025	4EFE..EE101 EXHAUST MANIFOLD	01/1994 - 02/1995	6
92122-61025	4EFE..EE101 EXHAUST SIDE	05/1992 - 01/1994	6
92132-60825	4EFE..EE101 INTAKE SIDE	05/1992 - 01/1994	3
92132-60825	4EFE..EE101 INTAKE MANIFOLD	01/1994 - 12/2999	3
90116-10196	4EFE..EE101 EXHAUST MANIFOLD	02/1995 - 12/2999	6
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-61025	4EFE..EE101 EXHAUST MANIFOLD	01/1994 - 02/1995	6
92122-61025	4EFE..EE101 EXHAUST SIDE	05/1992 - 01/1994	6
92132-60825	4EFE..EE101 INTAKE SIDE	05/1992 - 01/1994	3
92132-60825	4EFE..EE101 INTAKE MANIFOLD	01/1994 - 12/2999	3
90116-10196	4EFE..EE101 EXHAUST MANIFOLD	02/1995 - 12/2999	6
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-11260	4EFE..EE101	05/1992 - 05/1995	1
17167-11310	4EFE..EE101	05/1995 - 12/2999	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-11040	4EFE..EE101	05/1992 - 12/2999	1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-11020	4EFE..EE101	05/1992 - 09/1994	1
17177-11021	4EFE..EE101	09/1994 - 04/1995	1
17177-11070	4EFE..EE101	04/1995 - 12/2999	1
25591 - BRACKET, MANIFOLD SUPPORT
25591-11080	4EFE..EE101	05/1995 - 12/2999	1
Common parts
90119-08783
90179-08054
90179-10096
91611-60825
91621-60814
91621-J0612
91641-K0816
91643-80832
92112-80818
92122-B0814
96411-44000
Linked diagrams
2211

EE101L-AWMDKW (1992)

(9205-9505)4EFE

(9505- )4EFE
