EE101L-AEMNKW (1992)

Toyota Corolla Sed/Wg

Production May 1992 - Apr 1997
Engine 4EFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9205- )SED

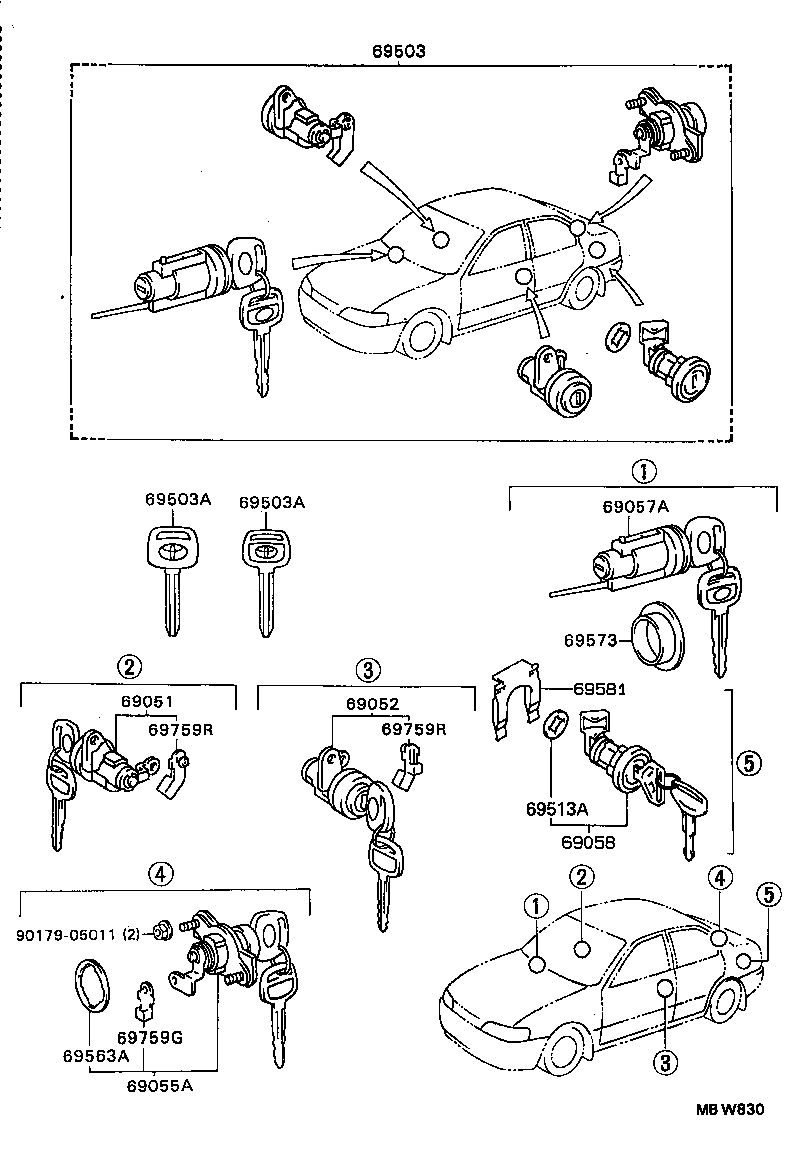

Click highlighted areas on diagram

diagram 69051 69052 69055A 69057A 69058 69503 69503A 69503A 69513A 69563A 69573 69581 69759G 69759R 69759R 9017905011
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-12360

AE101,CE100,EE10#..SED

 1
69051-12450

AE101,EE101..SED

W(ANTI-THEFT DEVICE)

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-12450

AE101,EE101..SED

W(ANTI-THEFT DEVICE)

 1
69052-12360

AE101,CE100,EE10#..SED

 1
69055A - CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK
69055-1A150

AE101,EE101..SED..(GLI,XLI)

W(ANTI-THEFT DEVICE)

 1
69055-12800

AE101,CE100,EE10#..SED..(GLI,XL,XLI)

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-12220

AE101,CE100,EE10#..SED

 1
69503 - CYLINDER SET, LOCK
69005-1A400

AE101,CE100,EE10#..SED..(GLI,XL,XLI)

 1
69503A - KEY, BLANK
90999-00187

AE101,CE100,EE10#..SED

SUB KEY,W(*68)

 1
90999-00185

AE101,CE100,EE10#..SED

MASTER KEY,W(*68)

 2
69503A - KEY, BLANK
90999-00187

AE101,CE100,EE10#..SED

SUB KEY,W(*68)

 1
90999-00185

AE101,CE100,EE10#..SED

MASTER KEY,W(*68)

 2
69563A - PAD, LUGGAGE COMPARTMENT DOOR LOCK CYLINDER
69563-12070

AE101,CE100,EE10#..SED

 1
69573 - PAD, IGNITION SWITCH LOCK CYLINDER
69573-12010

AE10#,CE100,EE10#

 1
69759G - SNAP, LUGGAGE DOOR LOCK CYLINDER
69759-24090

AE101,CE100,EE10#..SED

 1
69759R - SNAP, FRONT DOOR LOCK CYLINDER
69759-12090

AE10#,CE100,EE10#

LH

 1
69759-12080

AE10#,CE100,EE10#

RH

 1
69759R - SNAP, FRONT DOOR LOCK CYLINDER
69759-12090

AE10#,CE100,EE10#

LH

 1
69759-12080

AE10#,CE100,EE10#

RH

 1
Common parts
90179-05011

(9505- )

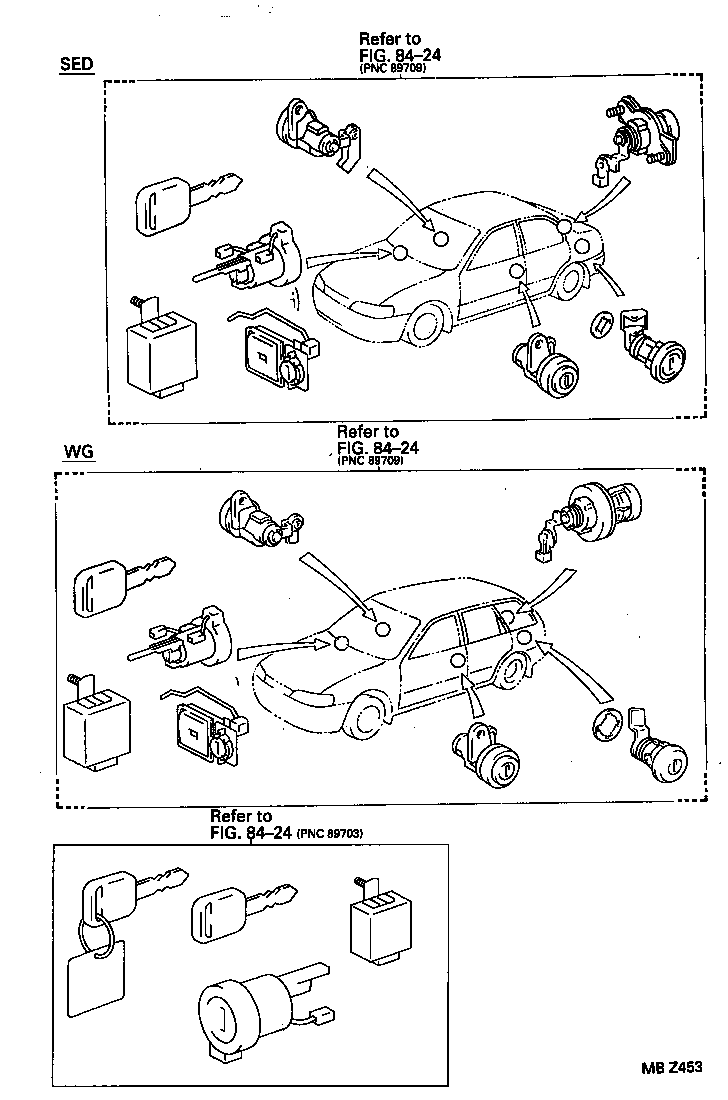

Click highlighted areas on diagram

W(IMMOBI)

diagram 8424 8424 8424
Part # Description Qty Price
Linked diagrams
8424
