EE101L-AEMNKW (1992)
Toyota Corolla Sed/Wg

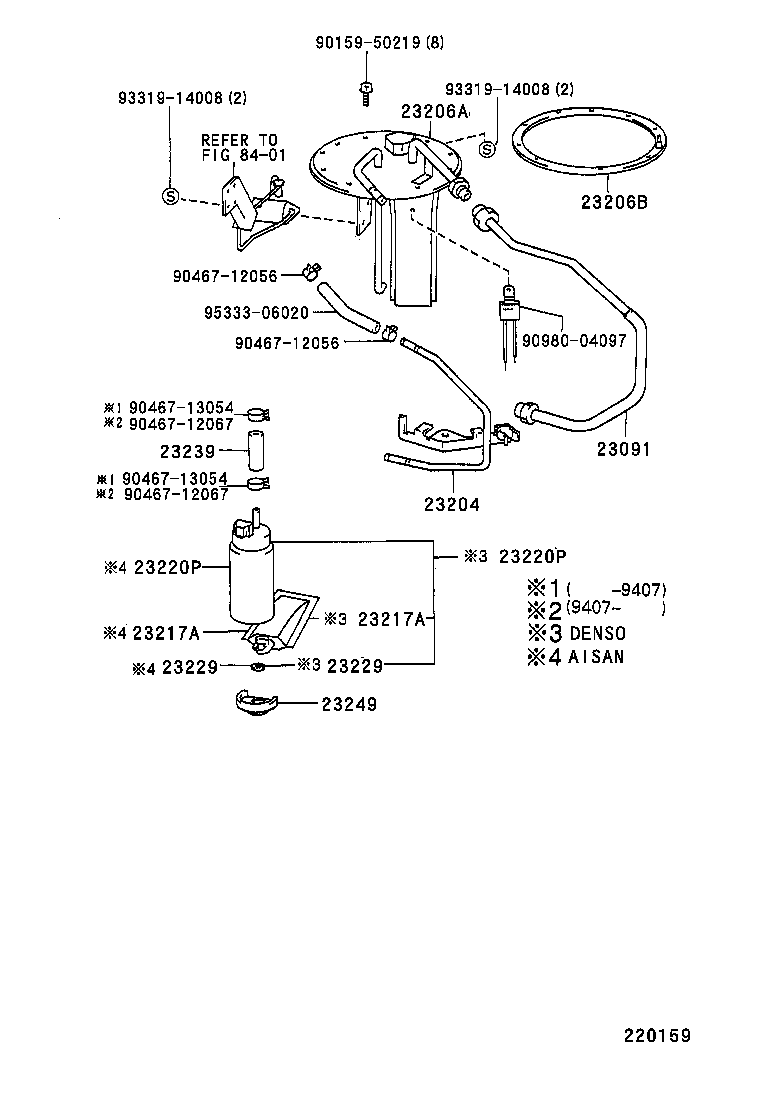

ILLUST NO. 2 OF 2(9205- )4EFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23091 - TUBE SUB-ASSY, FUEL PUMP | ||||
| 23091-16090 |
4EFE..EE101 |
1 | ||
| 23091-16060 |
4EFE..EE101..LHD EUROPE POSSESSION |
1 | ||
| 77209-12080 |
4EFE..EE101..LHD EUROPE POSSESSION |
1 | ||
| 77209-12090 |
4EFE..EE101 |
1 | ||
| 23204 - TUBE SUB-ASSY, FUEL PUMP RETURN | ||||
| 23204-16510 |
4EFE..EE101 |
1 | ||
| 77204-12020 |
4EFE..EE101 |
1 | ||
| 23206A - BRACKET, FUEL PUMP | ||||
| 77203-12240 |
4EFE..EE101 |
1 | ||
| 23206-16560 |
4EFE..EE101 |
1 | ||
| 23206B - GASKET, FUEL PUMP BRACKET | ||||
| 77169-12030 |
4EFE..EE101 |
1 | ||
| 23217A - FILTER, FUEL PUMP | ||||
| 23217-03010 |
4EFE..EE101 (L) |
1 | ||
| 23217-74020 |
4EFE..EE101..LHD (J) |
1 | ||
| 23217-74021 |
4EFE..EE101..LHD EUROPE POSSESSION |
1 | ||
| 23217-74020 |
4EFE..EE101 |
1 | ||
| 23217-74020 |
4EFE..EE101 (J) |
1 | ||
| 23217A - FILTER, FUEL PUMP | ||||
| 23217-03010 |
4EFE..EE101 (L) |
1 | ||
| 23217-74020 |
4EFE..EE101..LHD (J) |
1 | ||
| 23217-74021 |
4EFE..EE101..LHD EUROPE POSSESSION |
1 | ||
| 23217-74020 |
4EFE..EE101 |
1 | ||
| 23217-74020 |
4EFE..EE101 (J) |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23221-16490 |
4EFE..EE101..LHD EUROPE POSSESSION |
1 | ||
| 23221-03010 |
4EFE..EE101 (L) |
1 | ||
| 23220-74020 |
4EFE..EE101 AISAN |
1 | ||
| 23220-74020 |
4EFE..EE101 (J) |
1 | ||
| 23220-74021 |
4EFE..EE101 |
1 | ||
| 23221-03010 |
4EFE..EE101..STD,XLI;4EFE..EE101..5F..GLI DENSO |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23221-16490 |
4EFE..EE101..LHD EUROPE POSSESSION |
1 | ||
| 23221-03010 |
4EFE..EE101 (L) |
1 | ||
| 23220-74020 |
4EFE..EE101 AISAN |
1 | ||
| 23220-74020 |
4EFE..EE101 (J) |
1 | ||
| 23220-74021 |
4EFE..EE101 |
1 | ||
| 23221-03010 |
4EFE..EE101..STD,XLI;4EFE..EE101..5F..GLI DENSO |
1 | ||
| 23229 - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
4EFE..EE101..LHD (J) |
1 | ||
| 23229-16010 |
4EFE..EE101 (J) |
1 | ||
| 23229-16010 |
4EFE..EE101 |
1 | ||
| 23219-03010 |
4EFE..EE101 (L) |
1 | ||
| 23229 - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
4EFE..EE101..LHD (J) |
1 | ||
| 23229-16010 |
4EFE..EE101 (J) |
1 | ||
| 23229-16010 |
4EFE..EE101 |
1 | ||
| 23219-03010 |
4EFE..EE101 (L) |
1 | ||
| 23239 - HOSE | ||||
| 23239-11010 |
4EFE..EE101 |
1 | ||
| 23239-63010 |
4EFE..EE101 |
1 | ||
| 23239-11010 |
4EFE..EE101..LHD EUROPE POSS PACKAGE |
1 | ||
| 23239-11010 |
4EFE..EE101 |
1 | ||
| 23249 - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-74610 |
4EFE..EE101 |
1 | ||
| 23249-74610 |
4EFE..EE101 |
1 | ||
| 23249-74610 |
4EFE..EE101..LHD EUROPE POSS PACKAGE |
1 | ||
| Common parts | ||||
| 90159-50219 | ||||
| 90467-12056 | ||||
| 90467-12067 | ||||
| 90467-13054 | ||||
| 90980-04097 | ||||
| 93319-14008 | ||||
| 95333-06020 | ||||
| Linked diagrams | ||||
| 8401 | ||||

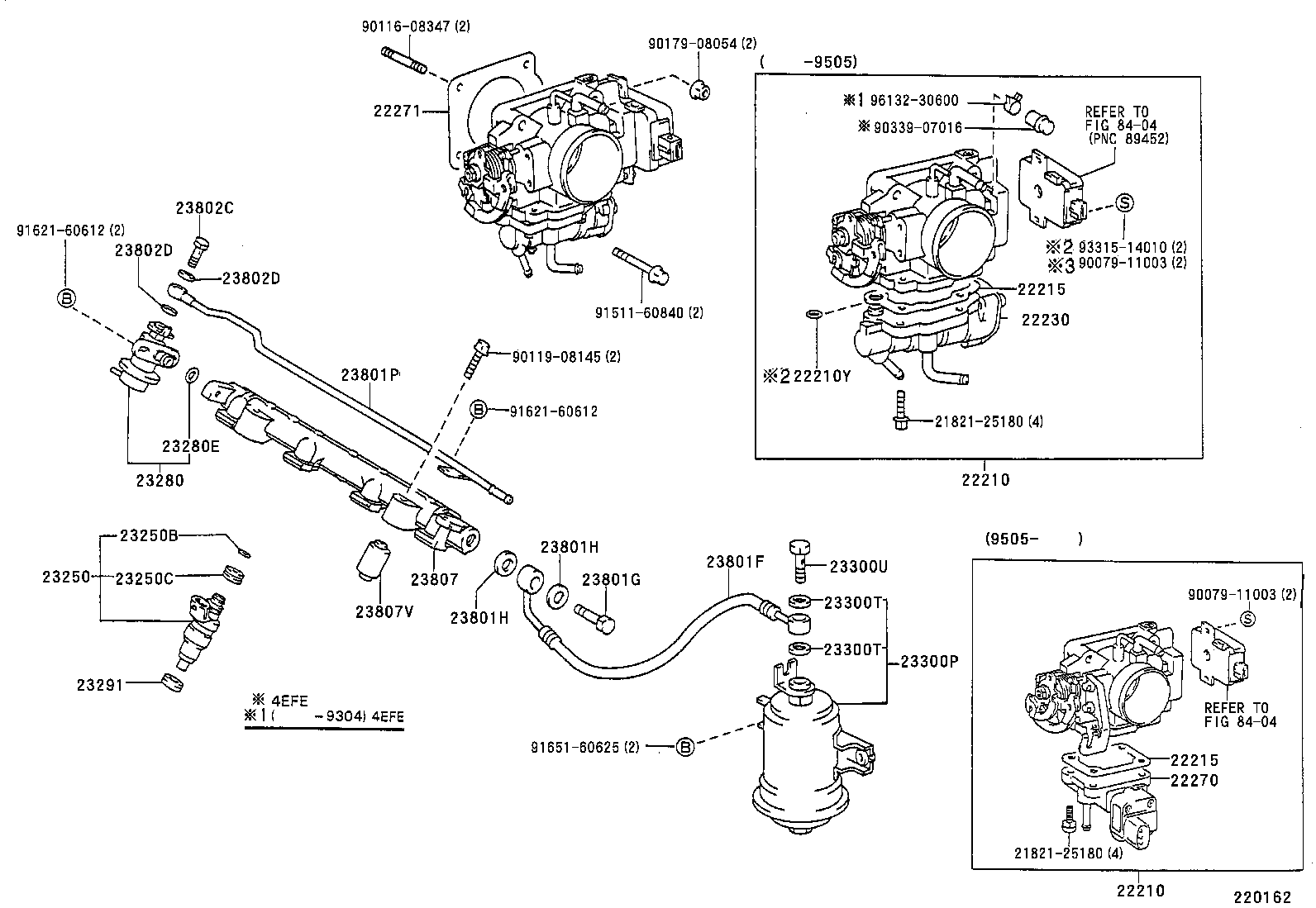

ILLUST NO. 1 OF 2(9205- )4EFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-11340 |
4EFE..EE101..5F |
1 | ||
| 22210-11440 |
4EFE..EE101..5F |
1 | ||
| 22210-11480 |
4EFE..EE101..5F |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-11480 |
4EFE..EE101..5F |
1 | ||
| 22210-11340 |
4EFE..EE101..5F |
1 | ||
| 22210-11440 |
4EFE..EE101..5F |
1 | ||
| 22210Y - RING, O(FOR AIR TUBE) | ||||
| 96711-19009 |
4EFE..EE101 |
1 | ||
| 22215 - GASKET, THROTTLE BODY COVER | ||||
| 22215-74400 |
4EFE..EE101 |
1 | ||
| 22215-11110 |
4EFE..EE101 |
1 | ||
| 22215 - GASKET, THROTTLE BODY COVER | ||||
| 22215-74400 |
4EFE..EE101 |
1 | ||
| 22215-11110 |
4EFE..EE101 |
1 | ||
| 22230 - VALVE ASSY, AUXILIARY AIR | ||||
| 22230-11100 |
4EFE..EE101..5F |
1 | ||
| 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) | ||||
| 22270-11010 |
4EFE..EE101 |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-11020 |
4EFE..EE101 |
1 | ||
| 22271-11030 |
4EFE..EE101 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-11100 |
4EFE..EE101 |
4 | ||
| 23209-11110 |
4EFE..EE101 |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07001 |
4EFE..EE101 |
4 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90480-13005 |
4EFE..EE101 |
4 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-11070 |
4EFE..EE101 |
1 | ||
| 23280E - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-07001 |
4EFE..EE101 |
1 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-41010 |
4EFE..EE101 |
4 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-19285 |
4EFE..EE101..LHD EUROPE POSSESSION |
1 | ||
| 23300-19295 |
4EFE..EE101 |
1 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12026 |
4EFE..EE101 |
2 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12026 |
4EFE..EE101 |
2 | ||
| 23300U - BOLT, UNION(FOR FUEL FILTER) | ||||
| 90401-12097 |
4EFE..EE101 |
1 | ||
| 23801F - HOSE, FUEL, NO.1 | ||||
| 23271-11130 |
4EFE..EE101 |
1 | ||
| 23801G - BOLT, UNION(FOR FUEL PIPE) | ||||
| 90401-12033 |
4EFE..EE101 |
1 | ||
| 90401-12029 |
4EFE..EE101 |
1 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-12026 |
4EFE..EE101 |
2 | ||
| 23279-74010 |
4EFE..EE101 |
2 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-12026 |
4EFE..EE101 |
2 | ||
| 23279-74010 |
4EFE..EE101 |
2 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23801-11100 |
4EFE..EE101 |
1 | ||
| 23801-11050 |
4EFE..EE101 |
1 | ||
| 23801-11110 |
4EFE..EE101 |
1 | ||
| 23802C - BOLT, UNION(FOR FUEL PIPE NO.2) | ||||
| 90401-08004 |
4EFE..EE101 |
1 | ||
| 90401-08010 |
4EFE..EE101 |
1 | ||
| 23802D - GASKET(FOR FUEL PIPE NO.2) | ||||
| 90430-08014 |
4EFE..EE101 |
2 | ||
| 90430-08012 |
4EFE..EE101 |
2 | ||
| 23802D - GASKET(FOR FUEL PIPE NO.2) | ||||
| 90430-08014 |
4EFE..EE101 |
2 | ||
| 90430-08012 |
4EFE..EE101 |
2 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23814-11060 |
4EFE..EE101 |
1 | ||
| 23807V - SPACER, NO.1(FOR DELIVERY PIPE) | ||||
| 23891-11020 |
4EFE..EE101 |
2 | ||
| 23890-11010 |
4EFE..EE101 |
2 | ||
| Common parts | ||||
| 21821-25180 | ||||
| 90079-11003 | ||||
| 90116-08347 | ||||
| 90119-08145 | ||||
| 90179-08054 | ||||
| 90339-07016 | ||||
| 91511-60840 | ||||
| 91621-60612 | ||||
| 91651-60625 | ||||
| 93315-14010 | ||||
| 96132-30600 | ||||
| Linked diagrams | ||||
| 8404 | ||||
