Toyota Corolla sed/wg EE101 WIRING & CLAMP

EE101L-AEHNKW (1992)

Toyota Corolla Sed/Wg

Production May 1992 - May 1995

Engine 4EFE

Transmission 3FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 8 OF 8(9205- )

Click highlighted areas on diagram

DIODE

Part #	Description	Period	Qty
82345 - DIODE
82345-32020	AE10#,CE100,EE10# TYPE B:REFER TO ILLUSTRATION	05/1992 - 12/2999	2
82345 - DIODE
82345-32020	AE10#,CE100,EE10# TYPE B:REFER TO ILLUSTRATION	05/1992 - 12/2999	2
82345 - DIODE
82345-32020	AE10#,CE100,EE10# TYPE B:REFER TO ILLUSTRATION	05/1992 - 12/2999	2

ILLUST NO. 7 OF 8(9205- )

Click highlighted areas on diagram

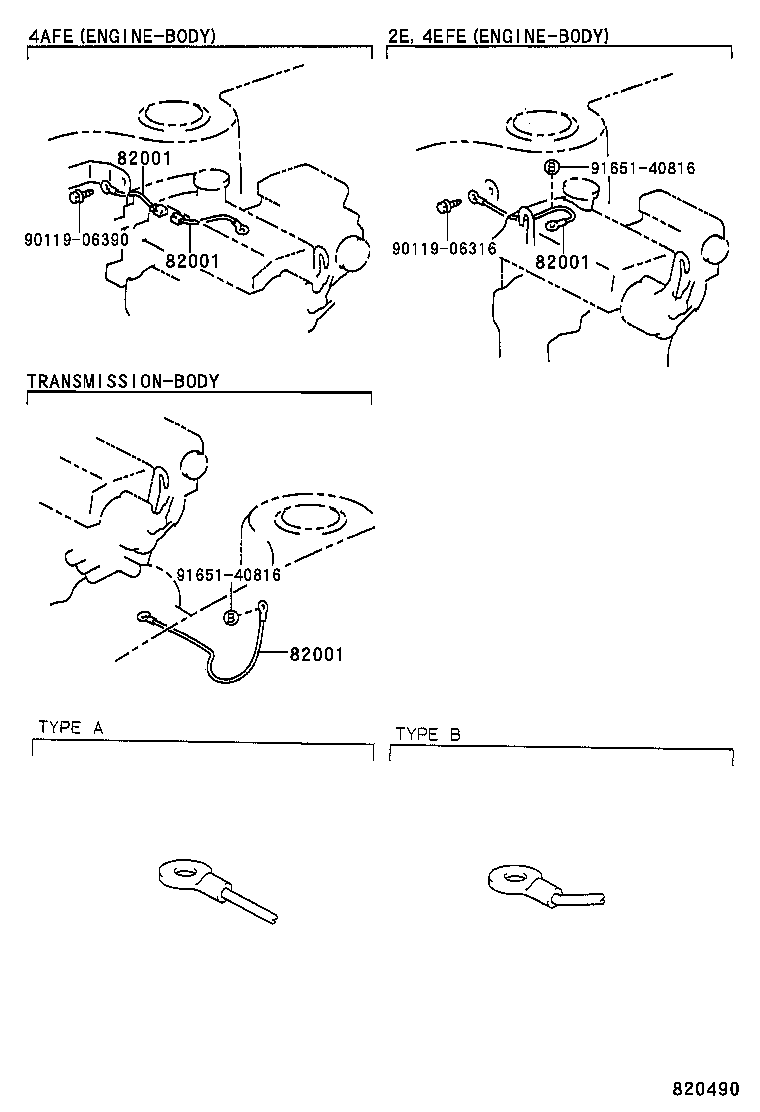

CABLE BOND

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-07341	EE10# FENDER-E/G	05/1992 - 01/1994	1
90980-07351	AE101,EE10# FENDER-T/M	05/1992 - 01/1994	1
90980-07351	EE10# LH FENDER-T/M	01/1994 - 12/2999	1
90980-07341	EE10# RH FENDER-E/G	01/1994 - 12/2999	1
82001 - CABLE, BOND, NO.1
90980-07341	EE10# FENDER-E/G	05/1992 - 01/1994	1
90980-07351	AE101,EE10# FENDER-T/M	05/1992 - 01/1994	1
90980-07351	EE10# LH FENDER-T/M	01/1994 - 12/2999	1
90980-07341	EE10# RH FENDER-E/G	01/1994 - 12/2999	1
82001 - CABLE, BOND, NO.1
90980-07341	EE10# FENDER-E/G	05/1992 - 01/1994	1
90980-07351	AE101,EE10# FENDER-T/M	05/1992 - 01/1994	1
90980-07351	EE10# LH FENDER-T/M	01/1994 - 12/2999	1
90980-07341	EE10# RH FENDER-E/G	01/1994 - 12/2999	1
82001 - CABLE, BOND, NO.1
90980-07341	EE10# FENDER-E/G	05/1992 - 01/1994	1
90980-07351	AE101,EE10# FENDER-T/M	05/1992 - 01/1994	1
90980-07351	EE10# LH FENDER-T/M	01/1994 - 12/2999	1
90980-07341	EE10# RH FENDER-E/G	01/1994 - 12/2999	1
Common parts
90119-06316
90119-06390
91651-40816

ILLUST NO. 8 OF 8(9205- )

Click highlighted areas on diagram

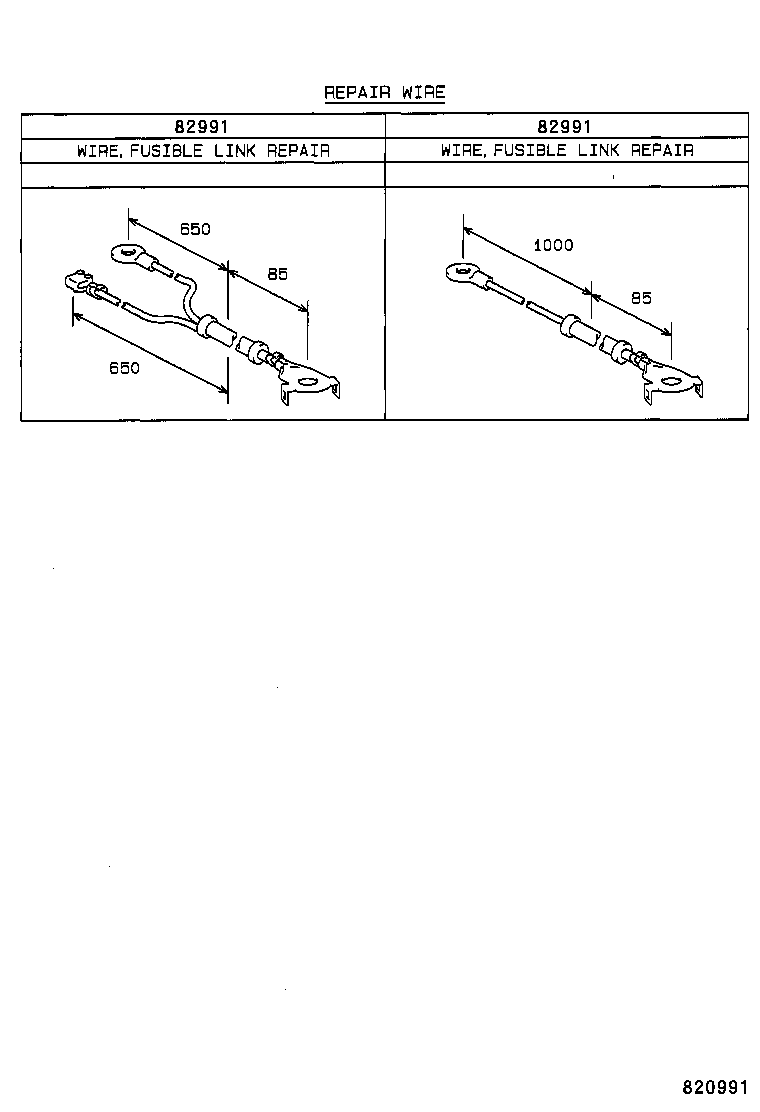

REPAIR

Part #	Description	Period	Qty
82991 - WIRE, FUSIBLE LINK REPAIR
82991-12050	AE10#,EE10#	05/1992 - 12/2999	1
82991 - WIRE, FUSIBLE LINK REPAIR
82991-12050	AE10#,EE10#	05/1992 - 12/2999	1

ILLUST NO. 3 OF 8(9205- )

Click highlighted areas on diagram

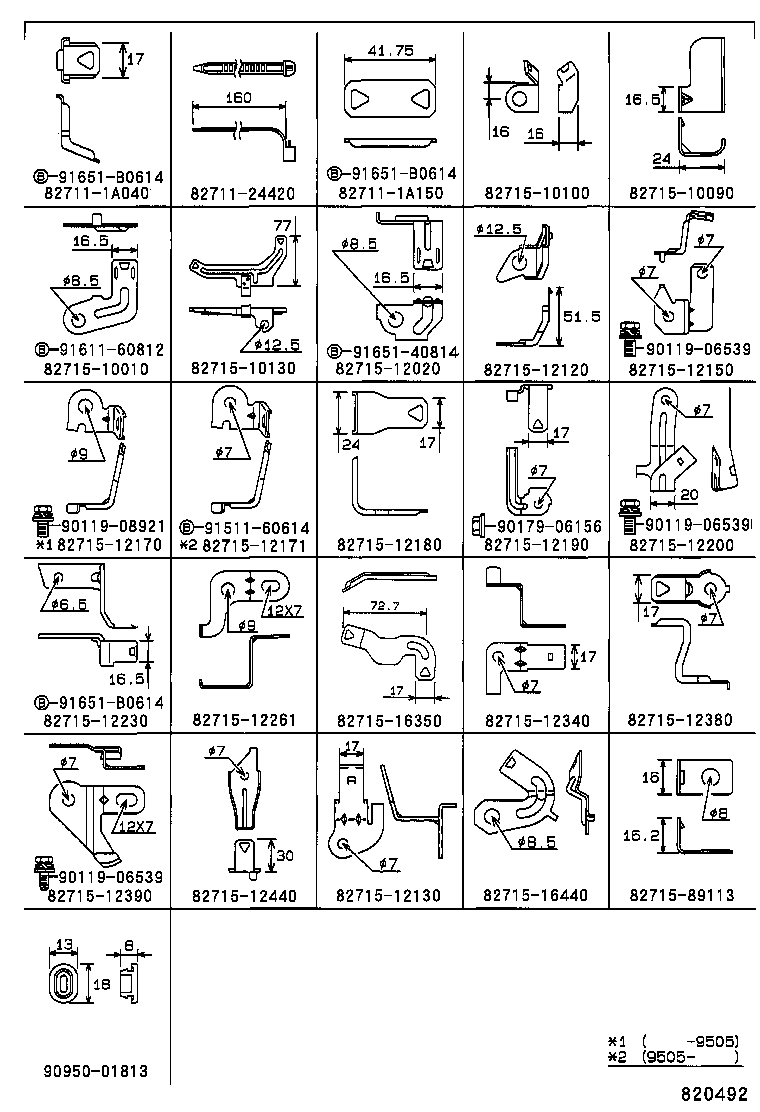

ENGINE WIRE CLAMP

Part #	Description	Period	Qty	Price
Common parts
82711-1A040
82711-1A150
82711-24420
82715-10010
82715-10090
82715-10100
82715-10130
82715-12020
82715-12120
82715-12130
82715-12150
82715-12170
82715-12171
82715-12180
82715-12190
82715-12200
82715-12230
82715-12261
82715-12340
82715-12380
82715-12390
82715-12440
82715-16350
82715-16440
82715-89113
90119-06539
90119-08921
90179-06156
90950-01813
91511-60614
91611-60812
91651-40814
91651-B0614

ILLUST NO. 4 OF 8(9205- )LHD

Click highlighted areas on diagram

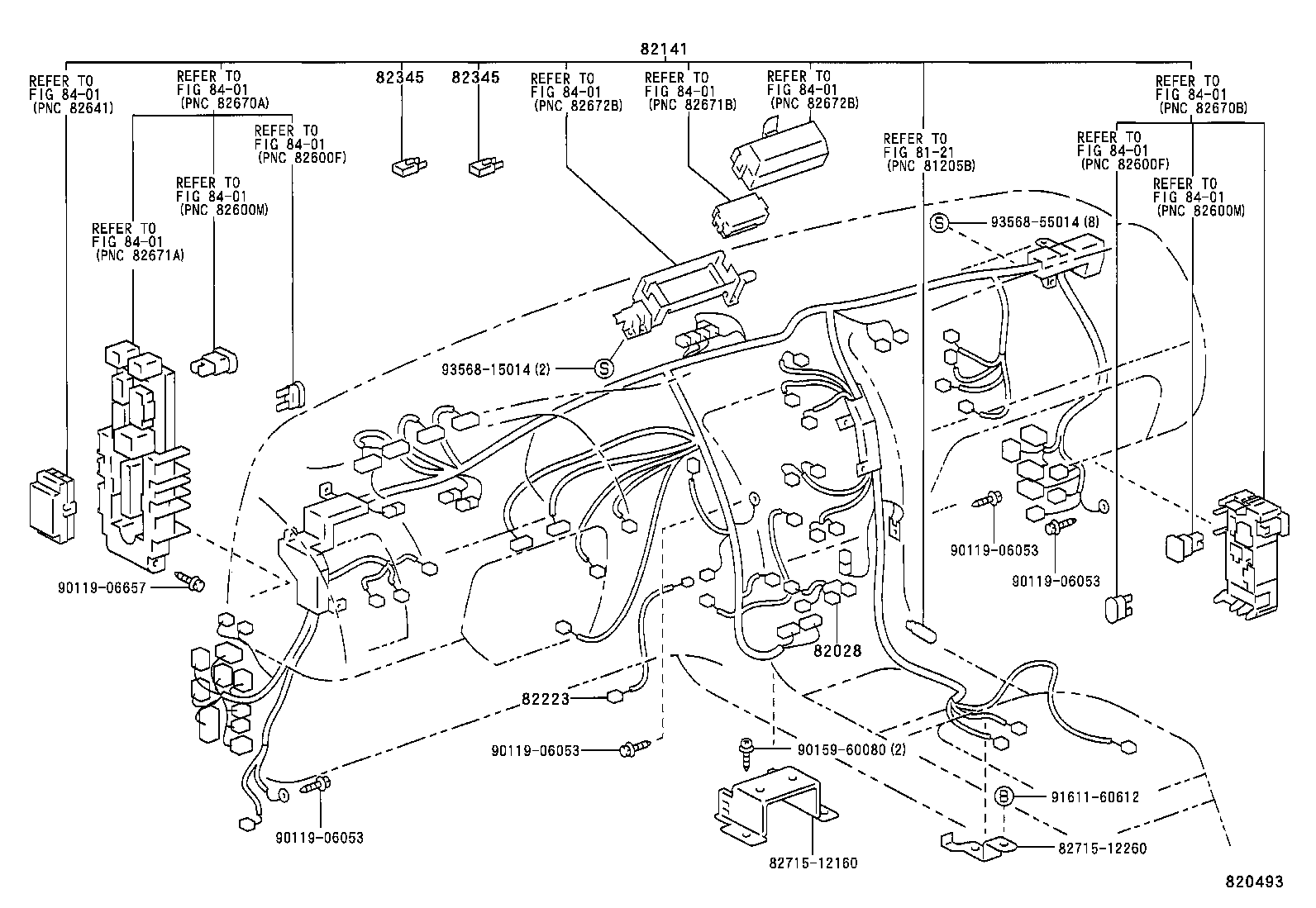

INSTRUMENT PANEL

Part #	Description	Period	Qty
82028 - WIRING SUB-ASSY, COWL
82028-12050	AE101,CE100,EE10#	05/1992 - 11/1994	1
82141 - WIRE, INSTRUMENT PANEL
82141-1A220	EE101..LHD W(ABS)	05/1992 - 12/1993	1
82141-1A320	EE101..LHD..3FC ICELAND SPEC OR DENMARK SPEC	05/1992 - 12/1993	1
82141-1A210	EE101..LHD	05/1992 - 12/1993	1
82141-1A260	EE101..LHD *FRG	05/1992 - 12/1993	1
82141-1A270	EE101..LHD *FRG & W(ABS)	05/1992 - 12/1993	1
82141-1A330	EE101..LHD..3FC ICELAND SPEC & W(ABS) OR DENMARK SPEC & W(ABS)	05/1992 - 12/1993	1
82141-1A480	EE101..LHD EUROPEAN POSSESSION SPEC	05/1992 - 12/1993	1
82141-1A331	EE101..LHD..3FC ICELAND SPEC & W(ABS) OR DENMARK SPEC & W(ABS)	12/1993 - 05/1994	1
82141-1A321	EE101..LHD..3FC ICELAND SPEC OR DENMARK SPEC	12/1993 - 05/1994	1
82141-1A221	EE101..LHD W(ABS)	12/1993 - 11/1994	1
82141-1A261	EE101..LHD *FRG	12/1993 - 11/1994	1
82141-1A271	EE101..LHD *FRG & W(ABS)	12/1993 - 11/1994	1
82141-1A211	EE101..LHD	12/1993 - 11/1994	1
82141-1A332	EE101..LHD..3FC ICELAND SPEC & W(ABS) OR DENMARK SPEC & W(ABS)	05/1994 - 11/1994	1
82141-1A322	EE101..LHD..3FC ICELAND SPEC OR DENMARK SPEC	05/1994 - 11/1994	1
82141-1A481	EE101..LHD EUROPEAN POSSESSION SPEC	12/1993 - 11/1994	1
82141-1A212	EE101..LHD	11/1994 - 05/1995	1
82141-1A222	EE101..LHD W(ABS)	11/1994 - 05/1995	1
82141-1A262	EE101..LHD *FRG	11/1994 - 05/1995	1
82141-1A323	EE101..LHD..3FC ICELAND SPEC OR DENMARK SPEC	11/1994 - 05/1995	1
82141-1A272	EE101..LHD *FRG & W(ABS)	11/1994 - 05/1995	1
82141-1A482	EE101..LHD EUROPEAN POSSESSION SPEC	11/1994 - 05/1995	1
82141-1A333	EE101..LHD..3FC ICELAND SPEC & W(ABS) OR DENMARK SPEC & W(ABS)	11/1994 - 05/1995	1
82345 - DIODE
82345-32020	AE10#,CE100,EE10# TYPE B:REFER TO ILLUSTRATION	05/1992 - 12/2999	2
82345 - DIODE
82345-32020	AE10#,CE100,EE10# TYPE B:REFER TO ILLUSTRATION	05/1992 - 12/2999	2
Common parts
82715-12160
82715-12260
90119-06053
90119-06657
90159-60080
91611-60612
93568-15014
93568-55014
Linked diagrams
8121
8401

ILLUST NO. 1 OF 8(9205- )

Click highlighted areas on diagram

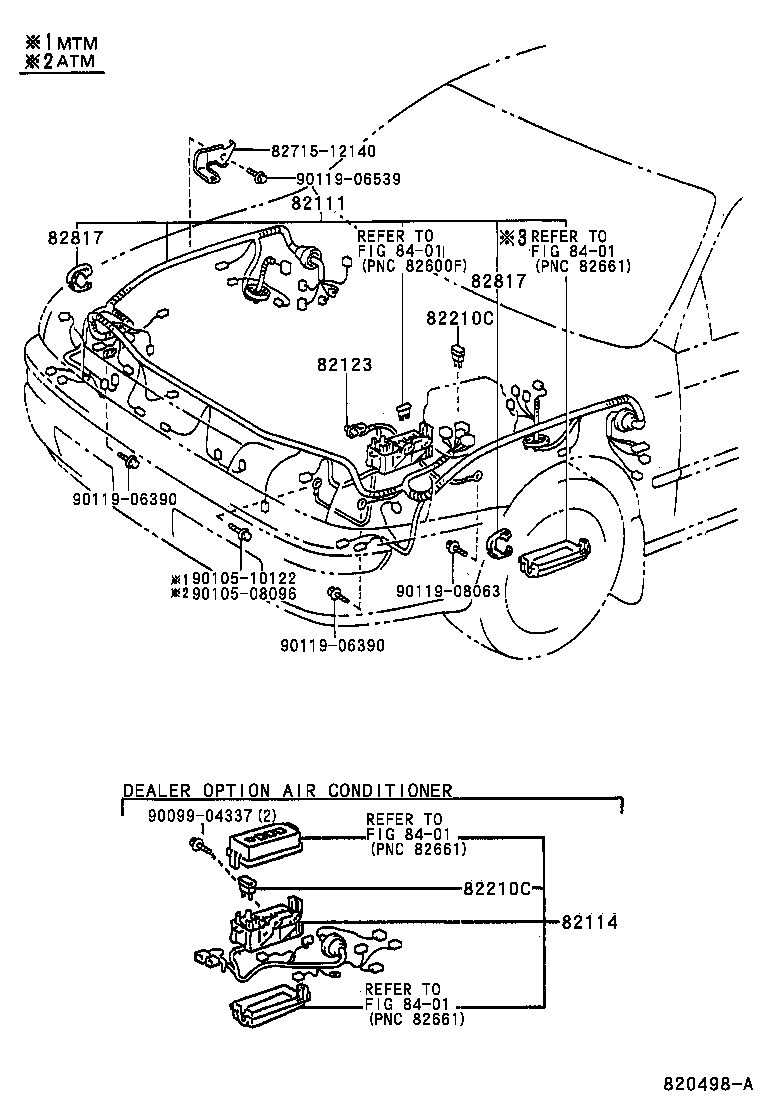

ENGINE ROOM

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-1E620	AE101,CE100,EE101..LHD W(ABS)	05/1992 - 05/1993	1
82111-1E660	AE101,CE100,EE101..LHD *FRG & W(ABS)	05/1992 - 05/1993	1
82111-1E670	AE101,EE101..LHD EUROPEAN POSSESSION SPEC	05/1992 - 07/1993	1
82111-1H090	EE101..LHD..3FC ICELAND SPEC & W(ABS) OR DENMARK SPEC & W(ABS)	05/1993 - 09/1993	1
82111-1E640	EE101..LHD..3FC ICELAND SPEC & W(ABS) OR DENMARK SPEC & W(ABS)	05/1992 - 05/1993	1
82111-1E630	EE101..LHD..3FC ICELAND SPEC OR DENMARK SPEC	05/1992 - 11/1994	1
82111-1H100	AE101,CE100,EE101..LHD *FRG & W(ABS)	05/1993 - 09/1993	1
82111-1H080	AE101,CE100,EE101..LHD W(ABS)	05/1993 - 09/1993	1
82111-1E650	AE101,CE100,EE101..LHD *FRG	05/1992 - 11/1994	1
82111-1E670	AE101..WG;EE101..LHD;AE101..LHD..5F..GLI EUROPEAN POSSESSION SPEC	07/1993 - 11/1994	1
82111-1E610	AE101,CE100,EE10#..LHD	05/1992 - 11/1994	1
82111-1H081	AE101,CE100,EE101..LHD W(ABS)	09/1993 - 11/1994	1
82111-1H101	AE101,CE100,EE101..LHD *FRG & W(ABS)	09/1993 - 11/1994	1
82111-1H091	EE101..LHD..3FC ICELAND SPEC & W(ABS) OR DENMARK SPEC & W(ABS)	09/1993 - 11/1994	1
82111-1E611	AE101,CE100,EE10#..LHD	11/1994 - 05/1995	1
82111-1E671	AE101..WG;EE101..LHD;AE101..LHD..5F..GLI EUROPEAN POSSESSION SPEC	11/1994 - 05/1995	1
82111-1H082	AE101,CE100,EE101..LHD W(ABS)	11/1994 - 05/1995	1
82111-1H092	EE101..LHD..3FC ICELAND SPEC & W(ABS) OR DENMARK SPEC & W(ABS)	11/1994 - 05/1995	1
82111-1E631	EE101..LHD..3FC ICELAND SPEC OR DENMARK SPEC	11/1994 - 05/1995	1
82111-1H102	AE101,CE100,EE101..LHD *FRG & W(ABS)	11/1994 - 05/1995	1
82111-1E651	AE101,CE100,EE101..LHD *FRG	11/1994 - 05/1995	1
82114 - WIRE, ENGINE ROOM, NO.4
88605-1H390	EE101..LHD	05/1992 - 05/1995	1
82123 - WIRE, ENGINE, NO.3
82123-12240	EE101..3FC	05/1992 - 05/1995	1
82210C - FUSIBLE LINK
90982-08188	AE10#,CE100,EE10# 30A,TERM.:FEMALE,PNK	05/1992 - 12/2999	2
90982-08228	AE10#,CE100,EE101 50A,TERM.:MALE,RED	05/1992 - 12/2999	1
90982-08246	AE10#,EE10# 100A,TERM.:MALE,BLUE	05/1992 - 12/2999	1
90982-08257	AE10#,EE10# 40A,TERM.:MALE,GRN	05/1992 - 12/2999	1
82210C - FUSIBLE LINK
90982-08188	AE10#,CE100,EE10# 30A,TERM.:FEMALE,PNK	05/1992 - 12/2999	2
90982-08228	AE10#,CE100,EE101 50A,TERM.:MALE,RED	05/1992 - 12/2999	1
90982-08246	AE10#,EE10# 100A,TERM.:MALE,BLUE	05/1992 - 12/2999	1
90982-08257	AE10#,EE10# 40A,TERM.:MALE,GRN	05/1992 - 12/2999	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-1A090	AE101,CE100,EE10#	05/1992 - 11/1994	2
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-1A090	AE101,CE100,EE10#	05/1992 - 11/1994	2
Common parts
82715-12140
90099-04337
90105-08096
90105-10122
90119-06390
90119-06539
90119-08063
Linked diagrams
8401

ILLUST NO. 2 OF 8(9205- )EE101

Click highlighted areas on diagram

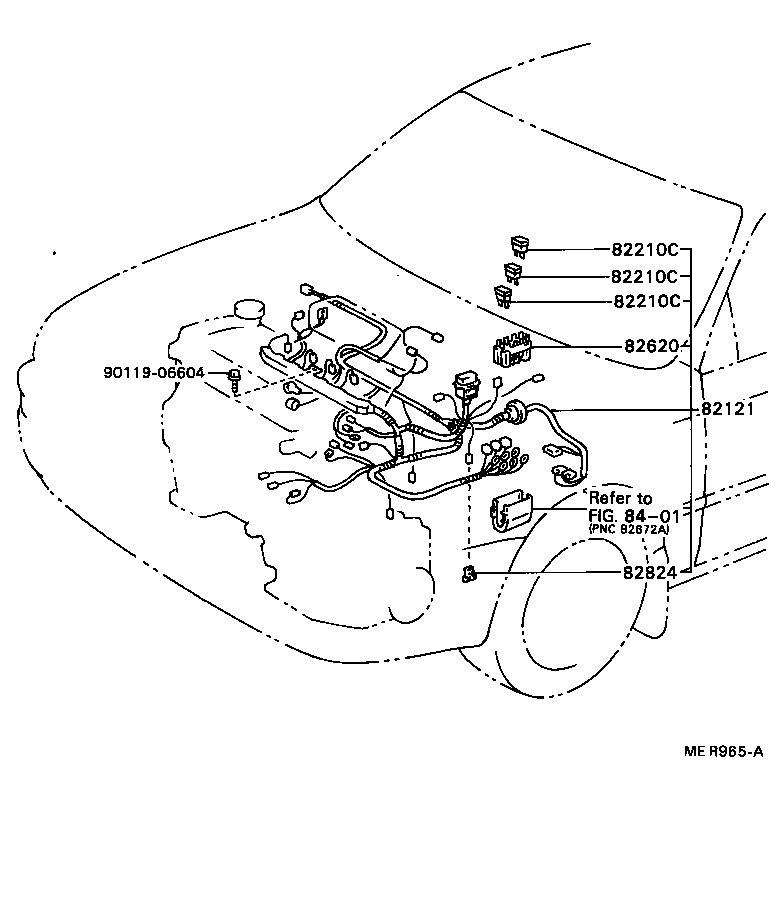

ENGINE

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-1K410	EE101..LHD..3FC EUROPE POSSESSION SPEC	05/1992 - 11/1994	1
82121-1K130	EE101..LHD..3FC	05/1992 - 05/1995	1
82121-1K411	EE101..LHD..3FC EUROPE POSSESSION SPEC	11/1994 - 05/1995	1
82210C - FUSIBLE LINK
90982-08188	AE10#,CE100,EE10# 30A,TERM.:FEMALE,PNK	05/1992 - 12/2999	2
90982-08228	AE10#,CE100,EE101 50A,TERM.:MALE,RED	05/1992 - 12/2999	1
90982-08246	AE10#,EE10# 100A,TERM.:MALE,BLUE	05/1992 - 12/2999	1
90982-08257	AE10#,EE10# 40A,TERM.:MALE,GRN	05/1992 - 12/2999	1
82210C - FUSIBLE LINK
90982-08188	AE10#,CE100,EE10# 30A,TERM.:FEMALE,PNK	05/1992 - 12/2999	2
90982-08228	AE10#,CE100,EE101 50A,TERM.:MALE,RED	05/1992 - 12/2999	1
90982-08246	AE10#,EE10# 100A,TERM.:MALE,BLUE	05/1992 - 12/2999	1
90982-08257	AE10#,EE10# 40A,TERM.:MALE,GRN	05/1992 - 12/2999	1
82210C - FUSIBLE LINK
90982-08188	AE10#,CE100,EE10# 30A,TERM.:FEMALE,PNK	05/1992 - 12/2999	2
90982-08228	AE10#,CE100,EE101 50A,TERM.:MALE,RED	05/1992 - 12/2999	1
90982-08246	AE10#,EE10# 100A,TERM.:MALE,BLUE	05/1992 - 12/2999	1
90982-08257	AE10#,EE10# 40A,TERM.:MALE,GRN	05/1992 - 12/2999	1
82620 - BLOCK ASSY, FUSIBLE LINK
82620-12080	AE10#,EE101	05/1992 - 12/2999	1
82620-12150	AE101,EE101..LHD W/O(ABS)	05/1992 - 12/2999	1
82824 - CONNECTOR, WIRING HARNESS
82824-20050	AE101,CE100,EE101..LHD	05/1992 - 11/1994	1
Common parts
90119-06604
Linked diagrams
8401

ILLUST NO. 5 OF 8(9205- )

Click highlighted areas on diagram

DOOR

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-1A050	AE101,CE100,EE10#..GLI,XL,XLI W(*EL)	05/1992 - 09/1993	1
82151-1A160	AE101,EE101..LHD..SED..(GLI,XLI) W(PW & EL)	05/1992 - 09/1993	1
82151-1A070	AE101,EE101..GLI W(*EL & ELECTRIC REMOTE CONTROL MIRROR)	05/1992 - 09/1993	1
82151-1A170	AE101,EE101..LHD..GLI W(PW & EL & ELECTRIC REMOTE CONTROL MIRROR)	05/1992 - 09/1993	1
82151-1A161	AE101,EE101..LHD..SED..(GLI,XLI) W(PW & EL)	09/1993 - 01/1994	1
82151-1A051	AE101,CE100,EE10#..GLI,XL,XLI W(*EL)	09/1993 - 12/1993	1
82151-12820	AE101,EE101..GLI W(ELECTRIC REMOTE CONTROL MIRROR)	05/1992 - 05/1995	1
82151-1A071	AE101,EE101..GLI W(*EL & ELECTRIC REMOTE CONTROL MIRROR)	09/1993 - 12/1993	1
82151-1A052	AE101,CE100,EE10#..GLI,XL,XLI W(*EL)	12/1993 - 05/1995	1
82151-1A161	AE10#,CE100,EE101..LHD..(GLI,XL,XLI) W(PW & EL)	05/1994 - 12/2999	1
82151-1A161	AE101..LHD;EE101..LHD..SED..(GLI,XLI) W(PW & EL)	01/1994 - 05/1994	1
82151-1A072	AE101,EE101..GLI W(*EL & ELECTRIC REMOTE CONTROL MIRROR)	12/1993 - 05/1995	1
82151-12810	AE101,CE100,EE10#..GLI,XL,XLI W(DOOR SPEAKER)	05/1992 - 05/1995	1
82151-1A171	AE101,EE101..LHD..GLI W(PW & EL & ELECTRIC REMOTE CONTROL MIRROR)	09/1993 - 12/2999	1
82152 - WIRE, FRONT DOOR, LH
82151-1A051	AE101,CE100,EE10#..GLI,XL,XLI W(*EL)	09/1993 - 12/1993	1
82151-1A071	AE101,EE101..GLI W(*EL & ELECTRIC REMOTE CONTROL MIRROR)	09/1993 - 12/1993	1
82151-1A050	AE101,CE100,EE10#..GLI,XL,XLI W(*EL)	05/1992 - 09/1993	1
82151-12810	AE101,CE100,EE10#..GLI,XL,XLI W(DOOR SPEAKER)	05/1992 - 05/1995	1
82152-1A010	AE101,EE101..LHD..SED..(GLI,XLI) W(PW & EL)	05/1992 - 09/1993	1
82152-1A012	AE101,EE101..LHD..SED..(GLI,XLI) W(PW & EL)	12/1993 - 01/1994	1
82152-1A020	AE101,EE101..LHD..GLI W(EL & PW & *RCM & DOOR SPEAKER)	05/1992 - 09/1993	1
82151-12820	AE101,EE101..GLI W(ELECTRIC REMOTE CONTROL MIRROR)	05/1992 - 05/1995	1
82151-1A072	AE101,EE101..GLI W(*EL & ELECTRIC REMOTE CONTROL MIRROR)	12/1993 - 05/1995	1
82151-1A070	AE101,EE101..GLI W(*EL & ELECTRIC REMOTE CONTROL MIRROR)	05/1992 - 09/1993	1
82152-1A021	AE101,EE101..LHD..GLI W(PW & EL & *RCM)	09/1993 - 12/1993	1
82152-1A022	AE101,EE101..LHD..GLI W(*PW & ELECTRIC REMOTE CONTROL MIRROR)	12/1993 - 12/2999	1
82152-1A012	AE10#,CE100,EE101..LHD..(GLI,XL,XLI) W(PW & EL)	05/1994 - 12/2999	1
82151-1A052	AE101,CE100,EE10#..GLI,XL,XLI W(*EL)	12/1993 - 05/1995	1
82152-1A011	AE101,EE101..LHD..SED..(GLI,XLI) W(PW & EL)	09/1993 - 12/1993	1
82152-1A012	AE101..LHD;EE101..LHD..SED..(GLI,XLI) W(PW & EL)	01/1994 - 05/1994	1
82153 - WIRE, REAR DOOR, NO.1
82153-12220	AE101;EE101..GLI;EE101..LHD..SED..XLI W(*EL)	01/1994 - 05/1994	1
82153-12210	AE101;EE101..GLI;EE101..LHD..SED..XLI W(PW & EL)	01/1994 - 05/1994	1
82153-12210	AE101;EE101..GLI;CE100,EE101..LHD..(XL,XLI) W(PW & EL)	05/1994 - 05/1995	1
82153-12220	AE101..SED;EE101..GLI;EE101..LHD..SED..XLI W(*EL)	05/1992 - 01/1994	1
82153-12210	AE101..SED;EE101..GLI;EE101..LHD..SED..XLI W(PW & EL)	05/1992 - 01/1994	1
82153-12220	AE101;EE101..GLI;CE100,EE101..LHD..(XL,XLI) W(*EL)	05/1994 - 05/1995	1
82154 - WIRE, REAR DOOR, NO.2
82154-12210	AE101..SED;EE101..GLI;EE101..LHD..SED..XLI W(PW & EL)	05/1992 - 01/1994	1
82154-12220	AE101;EE101..GLI;EE101..LHD..SED..XLI W(*EL)	01/1994 - 05/1994	1
82154-12210	AE101;EE101..GLI;CE100,EE101..LHD..(XL,XLI) W(PW & EL)	05/1994 - 05/1995	1
82154-12220	AE101;EE101..GLI;CE100,EE101..LHD..(XL,XLI) W(*EL)	05/1994 - 05/1995	1
82154-12220	AE101..SED;EE101..GLI;EE101..LHD..SED..XLI W(*EL)	05/1992 - 01/1994	1
82154-12210	AE101;EE101..GLI;EE101..LHD..SED..XLI W(PW & EL)	01/1994 - 05/1994	1

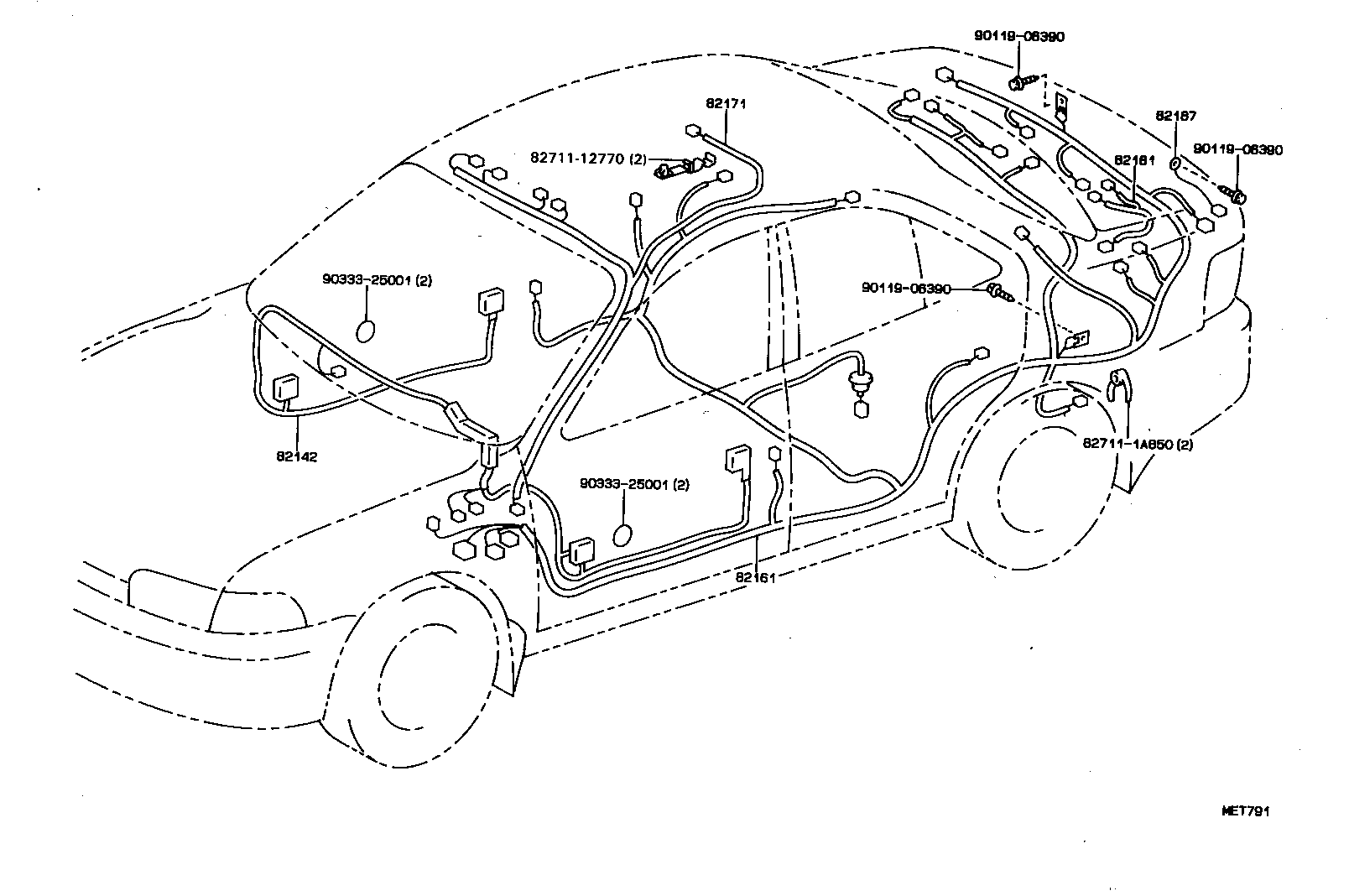

ILLUST NO. 6 OF 8(9205- )LHD..SED

Click highlighted areas on diagram

FLOOR & ROOF

Part #	Description	Period	Qty
82142 - WIRE, INSTRUMENT PANEL, NO.2
82142-12130	AE101,CE100,EE10#..LHD..SED..(GLI,XL,XLI) W(*EL)	05/1992 - 12/1993	1
82142-12090	AE101,EE101..LHD..SED..(GLI,XLI) W(PW & EL)	05/1992 - 12/1993	1
82142-12091	AE101,EE101..LHD..SED..(GLI,XLI) W(PW & EL)	12/1993 - 05/1994	1
82142-12120	AE101,CE100,EE10#..LHD..SED..(GLI,XL,XLI) W(SUN ROOF)	05/1992 - 12/2999	1
82142-12091	AE101,CE100,EE101..LHD..SED..(GLI,XL,XLI) W(PW & EL)	05/1994 - 12/2999	1
82142-12131	AE101,CE100,EE10#..LHD..SED..(GLI,XL,XLI) W(*EL)	12/1993 - 12/2999	1
82161 - WIRE, FLOOR
82161-1K550	AE101,CE100,EE101..LHD..SED W(ABS)	05/1992 - 11/1994	1
82161-1K540	AE101,CE100,EE10#..LHD..SED	05/1992 - 11/1994	1
82161-1K551	AE101,CE100,EE101..LHD..SED W(ABS)	11/1994 - 05/1995	1
82161-1K541	AE101,CE100,EE10#..LHD..SED	11/1994 - 05/1995	1
82171 - WIRE, ROOF, NO.1
82171-12580	AE101,CE100,EE10#..LHD..SED..(GLI,XL,XLI) W(MOON ROOF)	05/1992 - 12/2999	1
82171-12570	AE101,CE100,EE10#..LHD..SED	05/1992 - 12/2999	1
82181 - WIRE, LUGGAGE ROOM, NO.1
82181-12240	AE101,CE100,EE10#..LHD..SED	05/1992 - 12/2999	1
82187 - WIRE, REAR WINDOW, NO.2
82187-12170	AE101,CE100,EE10#..LHD..SED	05/1992 - 12/2999	1
Common parts
82711-12770
82711-1A850
90119-06390
90333-25001

EE101L-AEHNKW (1992)

ILLUST NO. 8 OF 8(9205- )

ILLUST NO. 7 OF 8(9205- )

ILLUST NO. 8 OF 8(9205- )

ILLUST NO. 3 OF 8(9205- )

ILLUST NO. 4 OF 8(9205- )LHD

ILLUST NO. 1 OF 8(9205- )

ILLUST NO. 2 OF 8(9205- )EE101

ILLUST NO. 5 OF 8(9205- )

ILLUST NO. 6 OF 8(9205- )LHD..SED

Part Price Details
