EE101L-AEHNKW (1992)
Toyota Corolla Sed/Wg
Production
May 1992
-
May 1995
Engine
4EFE
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9205- )4EFE

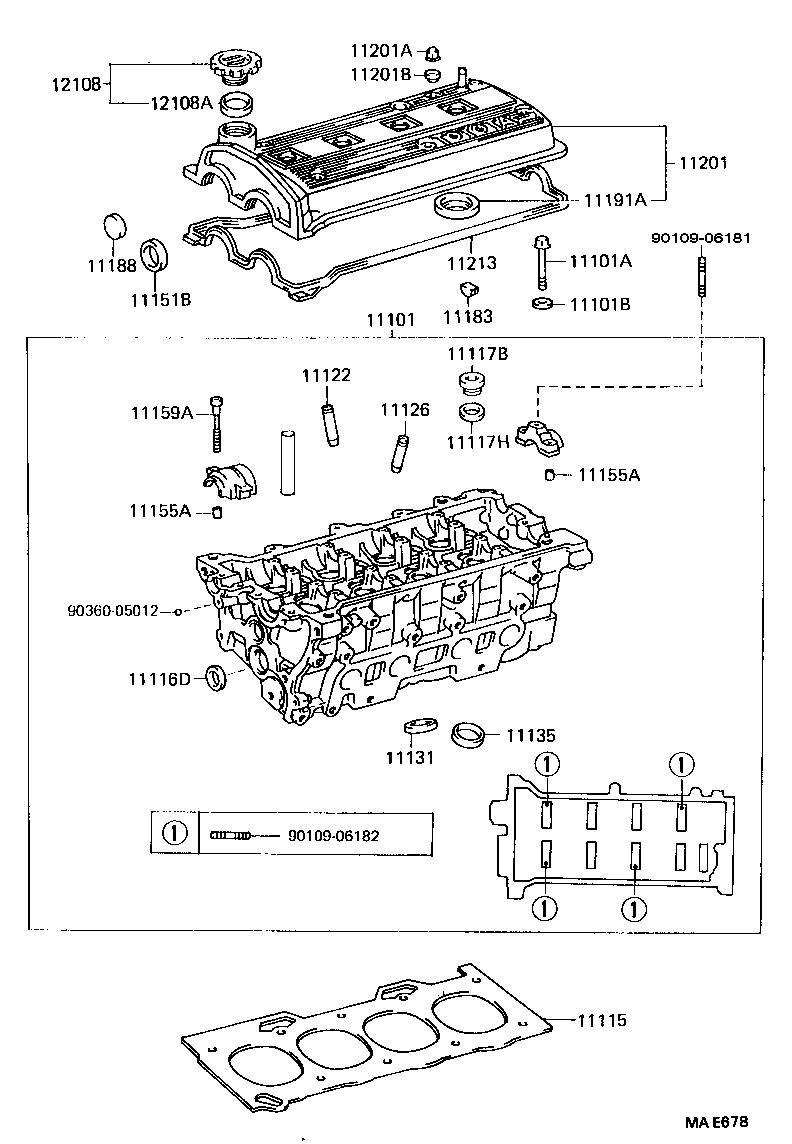

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-19335 |
4EFE..EE101 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02101 |
4EFE..EE101 *9-1.25PX98.5-50 |
5 | ||
| 90910-02100 |
4EFE..EE101 *9-1.25PX84.5-50 |
5 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-09024 |
4EFE..EE101 |
10 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-11070 |
4EFE..EE101 |
1 | ||
| 11116D - PLUG, TIGHT, NO.4 | ||||
| 96411-42800 |
4EFE..EE101 |
3 | ||
| 11117B - PLUG, W/HEAD TAPER SCREW, NO.2 | ||||
| 90341-20002 |
4EFE..EE101 |
3 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-20004 |
4EFE..EE101 |
3 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11123-15030 |
4EFE..EE101 O/S 0.05 |
8 | ||
| 11122-15030 |
4EFE..EE101 STD |
8 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11122-10040 |
4EFE..EE101 STD |
8 | ||
| 11123-10040 |
4EFE..EE101 O/S 0.05 |
8 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11131-11020 |
4EFE..EE101 STD |
8 | ||
| 11132-11020 |
4EFE..EE101 O/S 0.03 |
8 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11135-11020 |
4EFE..EE101 STD |
8 | ||
| 11136-11020 |
4EFE..EE101 O/S 0.03 |
8 | ||
| 11151B - SEAL, OIL(FOR CAMSHAFT SETTING) | ||||
| 90311-35022 |
2E,4EFE..EE10# NOK |
1 | ||
| 90311-35013 |
2E,4EFE..EE10# ARS |
1 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-08003 |
4EFE..EE101 |
6 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-08003 |
4EFE..EE101 |
6 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90109-06080 |
4EFE..EE101 |
18 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-11010 |
4EFE..EE101 |
1 | ||
| 11188 - PLUG, CAMSHAFT HOUSING | ||||
| 11188-11010 |
4EFE..EE101 |
1 | ||
| 11191A - GASKET(FOR SPARK PLUG TUBE) | ||||
| 11193-15010 |
4EFE..EE101 |
4 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-11030 |
4EFE..EE101 |
1 | ||
| 11201A - NUT, CAP(FOR CYLINDER HEAD COVER) | ||||
| 90176-06028 |
4EFE..EE101 |
5 | ||
| 90176-06012 |
4EFE..EE101 |
5 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-06008 |
4EFE..EE101 |
5 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-11040 |
4EFE..EE101 |
1 | ||
| 11213-11041 |
4EFE..EE101 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-62011 |
4EFE..EE101 |
1 | ||
| 12180-13030 |
4EFE..EE101 |
1 | ||
| 12180-55010 |
4EFE..EE101 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
4EFE..EE101 |
1 | ||
| Common parts | ||||
| 90109-06181 | ||||
| 90109-06182 | ||||
| 90360-05012 | ||||
