EE101L-AEHDKW (1992)
Toyota Corolla Sed/Wg

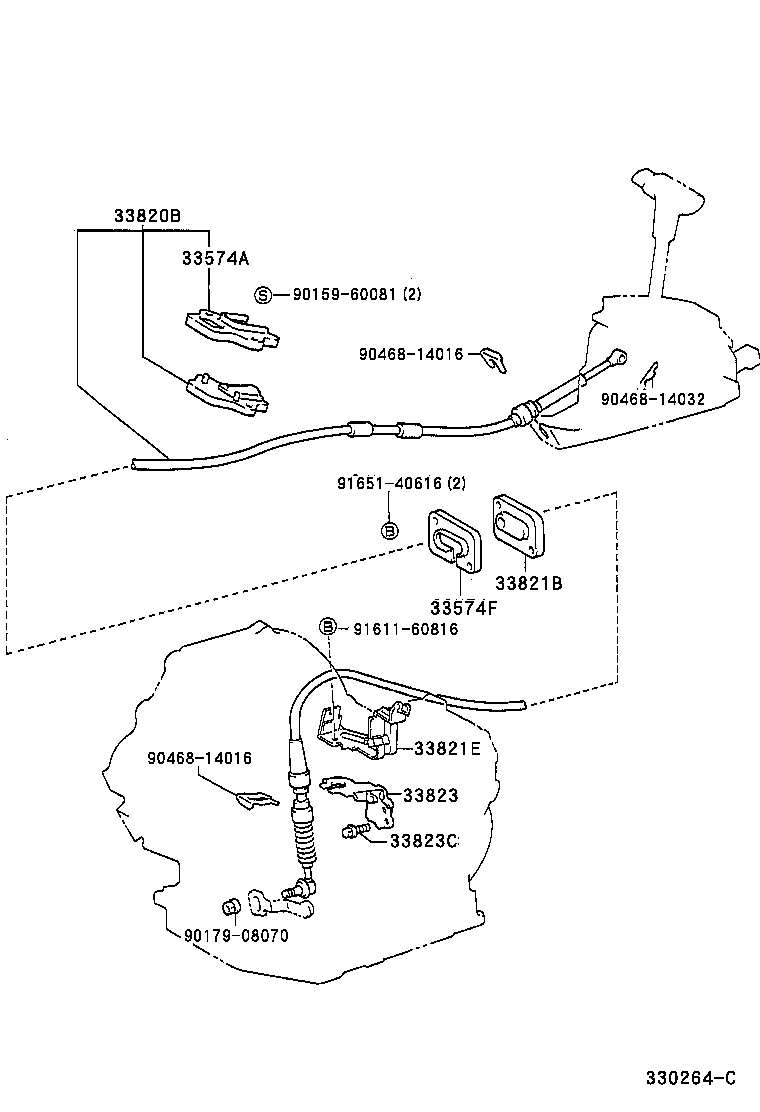

ILLUST NO. 2 OF 2(9205- )ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33574A - RETAINER, SHIFT CABLE GROMMET, NO.1 | ||||
| 33574-12040 |
AE101,EE101..ATM |
1 | ||
| 33574F - RETAINER, DUST SEAL (FOR FLOOR SHIFT) | ||||
| 33574-12080 |
AE101,EE101..ATM |
1 | ||
| 33574-12030 |
AE101,EE101..ATM |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-12370 |
EE101..3FC |
1 | ||
| 33821B - GROMMET, NO.2 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01391 |
AE101,EE101..ATM |
1 | ||
| 90480-01678 |
AE101,EE101..ATM |
1 | ||
| 33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90949-01740 |
EE101..3FC |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-12090 |
EE101..3FC |
1 | ||
| 33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET) | ||||
| 91611-60816 |
EE101..3FC |
2 | ||
| Common parts | ||||
| 90159-60081 | ||||
| 90179-08070 | ||||
| 90468-14016 | ||||
| 90468-14032 | ||||
| 91611-60816 | ||||
| 91651-40616 | ||||

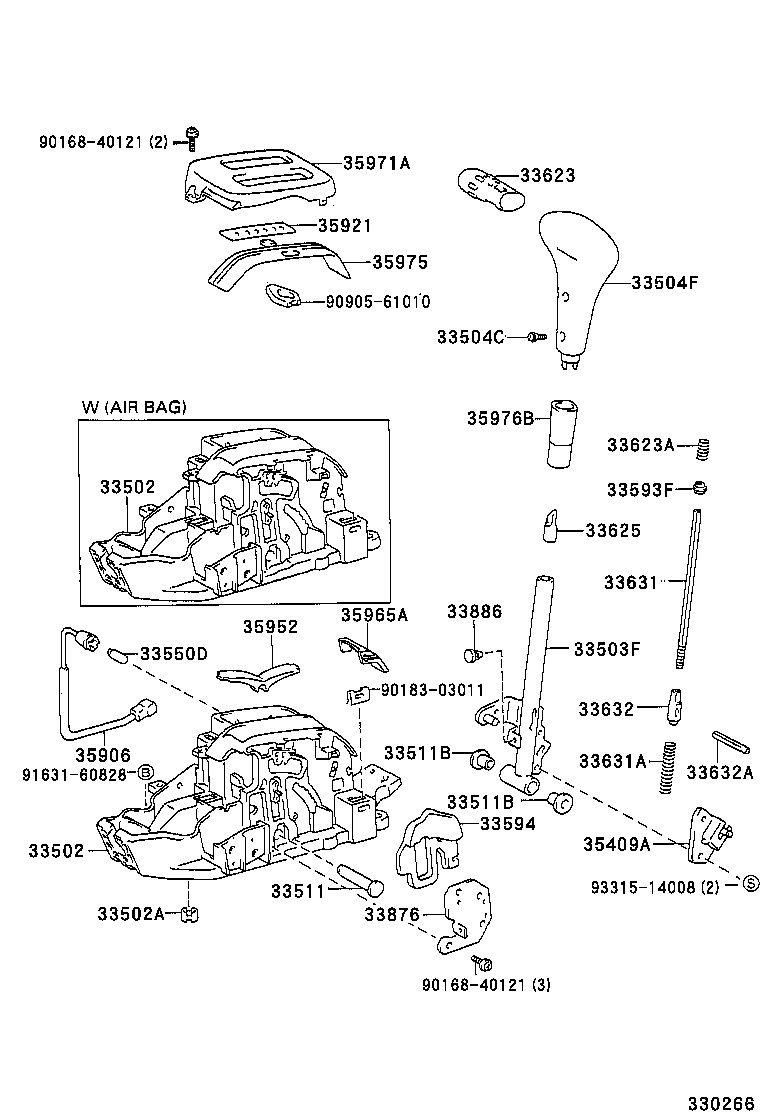

ILLUST NO. 1 OF 2(9205- )3FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33521-12230 |
EE101..LHD..3FC |
1 | ||
| 33521-12270 |
EE101..LHD..3FC W(*80) |
1 | ||
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33521-12230 |
EE101..LHD..3FC |
1 | ||
| 33521-12270 |
EE101..LHD..3FC W(*80) |
1 | ||
| 33502A - COLLAR (FOR FLOOR SHIFT SETTING) | ||||
| 90903-89002 |
EE101..3FC OD=17.2 |
4 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33055-12030 |
EE101..LHD..3FC |
1 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40134 |
EE101..3FC |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-12190K0 |
EE101..LHD..3FC TAUPE,TRIM9# |
1 | ||
| 33504-12200B1 |
CE100,EE101..LHD..(XL,XLI) 95 SPRING CAMPAIGN(FRANCE,BELGIUM),SHADOW GRAY,TRIM1# |
1 | ||
| 33542-12190J0 |
EE101..LHD..3FC DARK BLUE,TRIM8# |
1 | ||
| 33542-12190B0 |
EE101..LHD..3FC SHADOW GRAY,TRIM1# |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-12080 |
EE101..3FC |
1 | ||
| 33511B - BUSH (FOR CONTROL SHAFT) | ||||
| 90386-12037 |
EE101..3FC |
2 | ||
| 33511B - BUSH (FOR CONTROL SHAFT) | ||||
| 90386-12037 |
EE101..3FC |
2 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11018 |
EE101..3FC 12V 1.2W W/O SOCKET |
1 | ||
| 33593F - HOLDER, SPRING (FOR FLOOR SHIFT) | ||||
| 33593-12030 |
EE101..3FC |
1 | ||
| 33594 - PLATE, SHIFT LOCK (FOR FLOOR SHIFT) | ||||
| 33594-12070 |
EE101..LHD..3FC |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-12110K0 |
EE101..LHD..3FC TAUPE,TRIM9# |
1 | ||
| 33623-12110J0 |
EE101..LHD..3FC DARK BLUE,TRIM8# |
1 | ||
| 33623-12110B0 |
EE101..LHD..3FC SHADOW GRAY,TRIM1# |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-07095 |
EE101..3FC |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-12010 |
EE101..3FC |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-12110 |
EE101..3FC |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-08136 |
EE101..3FC |
1 | ||
| 33632 - ROD, DETENT, NO.2 | ||||
| 33632-12010 |
EE101..3FC |
1 | ||
| 33632A - PIN, STRAIGHT (FOR DETENT ROD NO.2) | ||||
| 90902-50001 |
EE101..3FC |
1 | ||
| 33876 - GUIDE, SHIFT LOCK PLATE | ||||
| 33876-12040 |
EE101..LHD..3FC |
1 | ||
| 35409A - SPRING SUB-ASSY, MANUAL DETENT (FOR FLOOR SHIFT) | ||||
| 35409-12040 |
EE101..LHD..3FC |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-12110 |
EE101..3FC |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-12350 |
EE101..LHD..3FC |
1 | ||
| 35952 - LENS, POSITION INDICATOR | ||||
| 35952-12010 |
EE101..3FC |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-12300K0 |
EE101..LHD..3FC TAUPE,TRIM9# |
1 | ||
| 35971-12300B0 |
EE101..LHD..3FC SHADOW GRAY,TRIM1# |
1 | ||
| 35971-12300J0 |
EE101..LHD..3FC DARK BLUE,TRIM8# |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-12190K0 |
EE101..3FC TAUPE,TRIM9# |
1 | ||
| 35975-12190B0 |
EE101..3FC SHADOW GRAY,TRIM1# |
1 | ||
| 35975-12190J0 |
EE101..3FC DARK BLUE,TRIM8# |
1 | ||
| 35976B - COVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT) | ||||
| 35976-12070K0 |
EE101..3FC TAUPE,TRIM9# |
1 | ||
| 35976-12070J0 |
EE101..3FC DARK BLUE,TRIM8# |
1 | ||
| 35976-12070B0 |
EE101..3FC SHADOW GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90168-40121 | ||||
| 90183-03011 | ||||
| 90905-61010 | ||||
| 91631-60828 | ||||
| 93315-14008 | ||||
