EE100L-AWMDSW (1992)
Toyota Corolla Sed/Wg
Production
May 1992
-
May 1995
Engine
2E
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9205- )WG

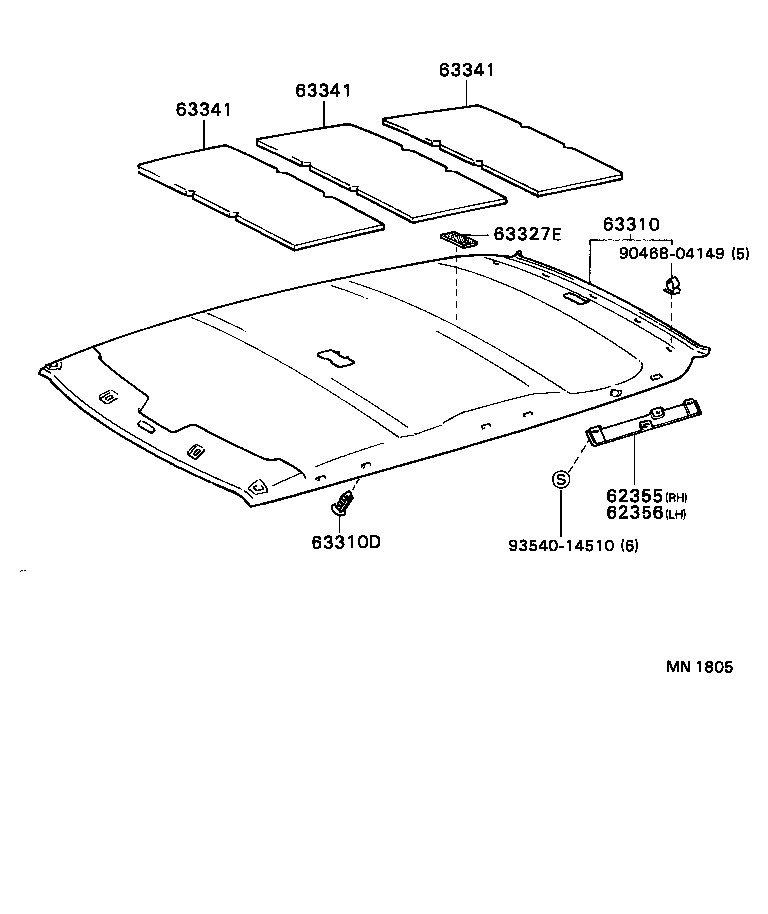

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62355 - RETAINER, QUARTER WINDOW INSIDE TRIM, RH | ||||
| 62355-13030 |
AE10#,CE100,EE10#..WG |
1 | ||
| 62356 - RETAINER, QUARTER WINDOW INSIDE TRIM, LH | ||||
| 62356-13030 |
AE10#,CE100,EE10#..WG |
1 | ||
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-13180J0 |
AE10#,CE100,EE10#..WG W(3-POINT REAR SEAT BELT),LIGHT BLUE,TRIM8# |
1 | ||
| 63310-13180B0 |
AE10#,CE100,EE10#..WG W(3-POINT REAR SEAT BELT),LIGHT GRAY,TRIM1# |
1 | ||
| 63310-13280B1 |
AE10#,CE100,EE10#..WG LIGHT GRAY,TRIM1# |
1 | ||
| 63310-13280J1 |
AE10#,CE100,EE10#..WG LIGHT TAUPE,TRIM8# |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-06048W5 |
AE10#,CE100,EE10#..WG LIGHT BLUE,TRIM8# |
2 | ||
| 90467-06048B1 |
AE10#,CE100,EE10#..WG LIGHT GRAY,TRIM1# |
2 | ||
| 63327E - FASTENER, ROOF HEADLINING, NO.1 | ||||
| 63327-13010 |
AE10#,CE100,EE10#..WG |
1 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-13100 |
AE10#,CE100,EE10#..WG |
3 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-13100 |
AE10#,CE100,EE10#..WG |
3 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-13100 |
AE10#,CE100,EE10#..WG |
3 | ||
| Common parts | ||||
| 90468-04149 | ||||
| 93540-14510 | ||||
