EE100L-AWMDSW (1992)
Toyota Corolla Sed/Wg

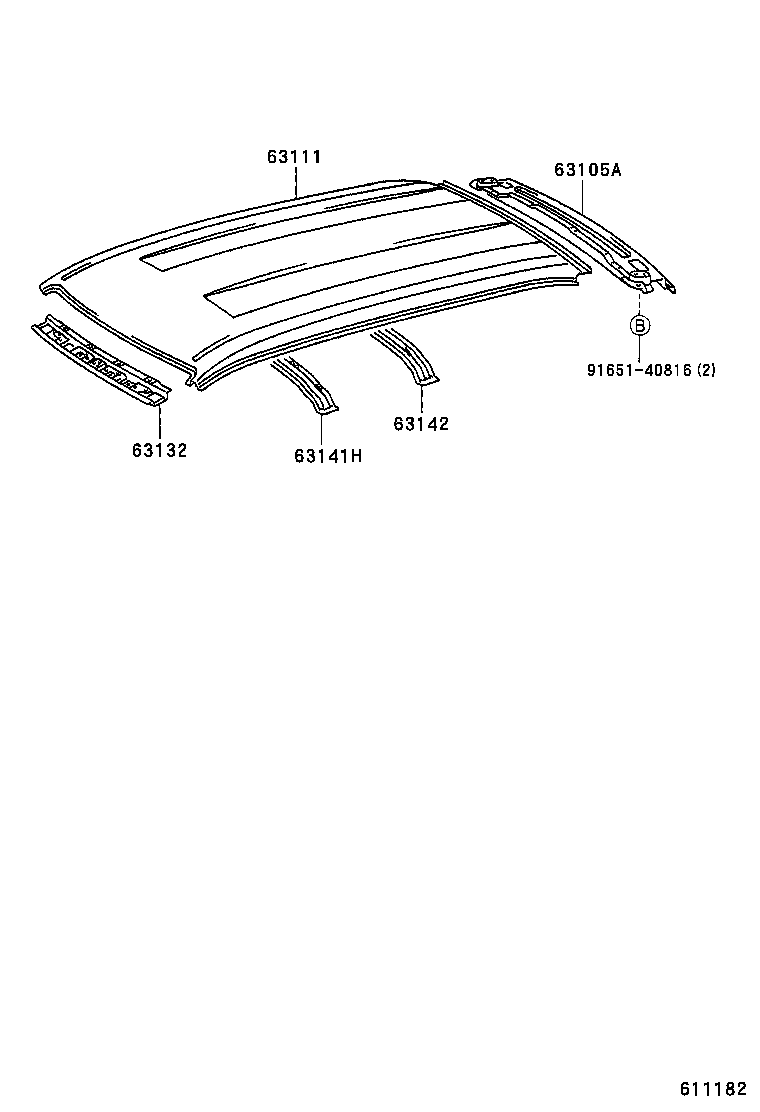

ILLUST NO. 1 OF 2(9205- )WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-13080 |
EE100..WG W(*RW) |
1 | ||
| 63105-13110 |
EE100..WG |
1 | ||
| 63105-13110 |
EE100..WG;CE100,EE101..WG..STD W(ROOF RAIL & *RW) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-13190 |
EE100..WG W(*RW) |
1 | ||
| 63111-13170 |
EE100..WG;CE100,EE101..WG..STD W(ROOF RAIL & *RW) |
1 | ||
| 63111-13170 |
EE100..WG |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63102-13020 |
AE10#,CE100,EE10#..WG |
1 | ||
| 63141H - REINFORCEMENT, ROOF PANEL, CENTER | ||||
| 63141-13060 |
AE10#,CE100,EE10#..WG |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-13050 |
AE10#,CE100,EE10#..WG |
1 | ||
| Common parts | ||||
| 91651-40816 | ||||

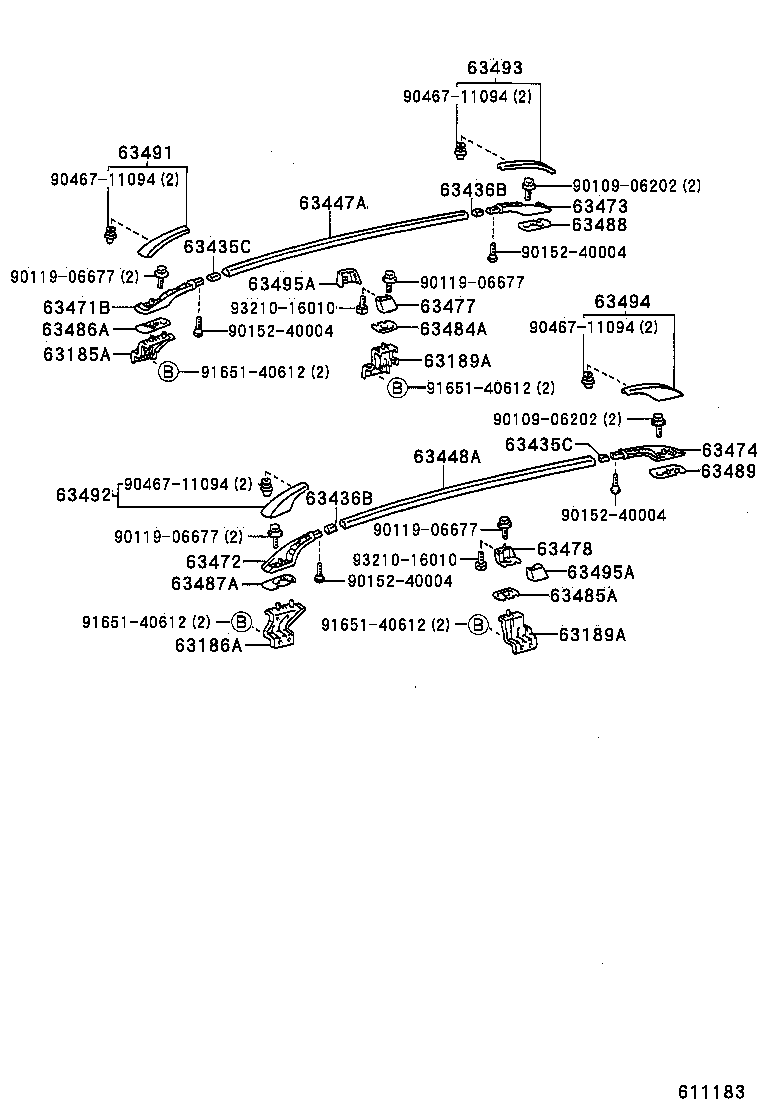

ILLUST NO. 2 OF 2(9205- )WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63185A - BRACKET, ROOF RACK, FRONT RH | ||||
| 63185-13020 |
AE10#,CE100,EE10#..WG |
1 | ||
| 63186A - BRACKET, ROOF RACK, FRONT LH | ||||
| 63186-13020 |
AE10#,CE100,EE10#..WG |
1 | ||
| 63189A - BRACKET, ROOF RACK, CENTER | ||||
| 63189-13020 |
AE10#,CE100,EE10#..WG RH |
1 | ||
| 63199-13020 |
AE10#,CE100,EE10#..WG LH |
1 | ||
| 63189A - BRACKET, ROOF RACK, CENTER | ||||
| 63189-13020 |
AE10#,CE100,EE10#..WG RH |
1 | ||
| 63199-13020 |
AE10#,CE100,EE10#..WG LH |
1 | ||
| 63435C - SEAL, ROOF CARRIER, NO.1 RH | ||||
| 63435-13020 |
AE10#,CE100,EE10#..WG |
2 | ||
| 63435C - SEAL, ROOF CARRIER, NO.1 RH | ||||
| 63435-13020 |
AE10#,CE100,EE10#..WG |
2 | ||
| 63436B - SEAL, ROOF CARRIER, NO.1 LH | ||||
| 63436-13030 |
AE10#,CE100,EE10#..WG |
2 | ||
| 63436B - SEAL, ROOF CARRIER, NO.1 LH | ||||
| 63436-13030 |
AE10#,CE100,EE10#..WG |
2 | ||
| 63447A - ROOF RAIL, RH | ||||
| 63447-13030 |
AE10#,CE100,EE10#..WG |
1 | ||
| 63448A - ROOF RAIL, LH | ||||
| 63448-13030 |
AE10#,CE100,EE10#..WG |
1 | ||
| 63471B - LEG, ROOF RACK, FRONT RH | ||||
| 63471-13020 |
AE10#,CE100,EE10#..WG |
1 | ||
| 63472 - LEG, ROOF RACK, FRONT LH | ||||
| 63472-13020 |
AE10#,CE100,EE10#..WG |
1 | ||
| 63473 - LEG, ROOF RACK, REAR RH | ||||
| 63473-13030 |
AE10#,CE100,EE10#..WG |
1 | ||
| 63474 - LEG, ROOF RACK, REAR LH | ||||
| 63474-13030 |
AE10#,CE100,EE10#..WG |
1 | ||
| 63477 - SUPPORT, ROOF RACK, CENTER RH | ||||
| 63477-13030 |
AE10#,CE100,EE10#..WG |
1 | ||
| 63478 - SUPPORT, ROOF RACK, CENTER LH | ||||
| 63478-13030 |
AE10#,CE100,EE10#..WG |
1 | ||
| 63484A - CUSHION, ROOF RACK LEG, CENTER RH | ||||
| 63484-13020 |
AE10#,CE100,EE10#..WG |
1 | ||
| 63485A - CUSHION, ROOF RACK LEG, CENTER LH | ||||
| 63485-13020 |
AE10#,CE100,EE10#..WG |
1 | ||
| 63486A - CUSHION, ROOF RACK LEG, FRONT RH | ||||
| 63486-13020 |
AE10#,CE100,EE10#..WG |
1 | ||
| 63487A - CUSHION, ROOF RACK LEG, FRONT LH | ||||
| 63487-13020 |
AE10#,CE100,EE10#..WG |
1 | ||
| 63488 - CUSHION, ROOF RACK LEG, REAR RH | ||||
| 63488-13030 |
AE10#,CE100,EE10#..WG |
1 | ||
| 63489 - CUSHION, ROOF RACK LEG, REAR LH | ||||
| 63489-13030 |
AE10#,CE100,EE10#..WG |
1 | ||
| 63491 - COVER, ROOF RACK LEG, FRONT RH | ||||
| 63491-13020 |
AE10#,CE100,EE10#..WG |
1 | ||
| 63492 - COVER, ROOF RACK LEG, FRONT LH | ||||
| 63492-13020 |
AE10#,CE100,EE10#..WG |
1 | ||
| 63493 - COVER, ROOF RACK LEG, REAR RH | ||||
| 63493-13030 |
AE10#,CE100,EE10#..WG |
1 | ||
| 63494 - COVER, ROOF RACK LEG, REAR LH | ||||
| 63494-13030 |
AE10#,CE100,EE10#..WG |
1 | ||
| 63495A - COVER, ROOF RACK LEG, CENTER | ||||
| 63495-13020 |
AE10#,CE100,EE10#..WG RH |
1 | ||
| 63496-13020 |
AE10#,CE100,EE10#..WG LH |
1 | ||
| 63495A - COVER, ROOF RACK LEG, CENTER | ||||
| 63495-13020 |
AE10#,CE100,EE10#..WG RH |
1 | ||
| 63496-13020 |
AE10#,CE100,EE10#..WG LH |
1 | ||
| Common parts | ||||
| 90109-06202 | ||||
| 90119-06677 | ||||
| 90152-40004 | ||||
| 90467-11094 | ||||
| 91651-40612 | ||||
| 93210-16010 | ||||
