EE100L-AWMDSW (1992)

Toyota Corolla Sed/Wg

Production May 1992 - May 1995
Engine 2E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9205- )

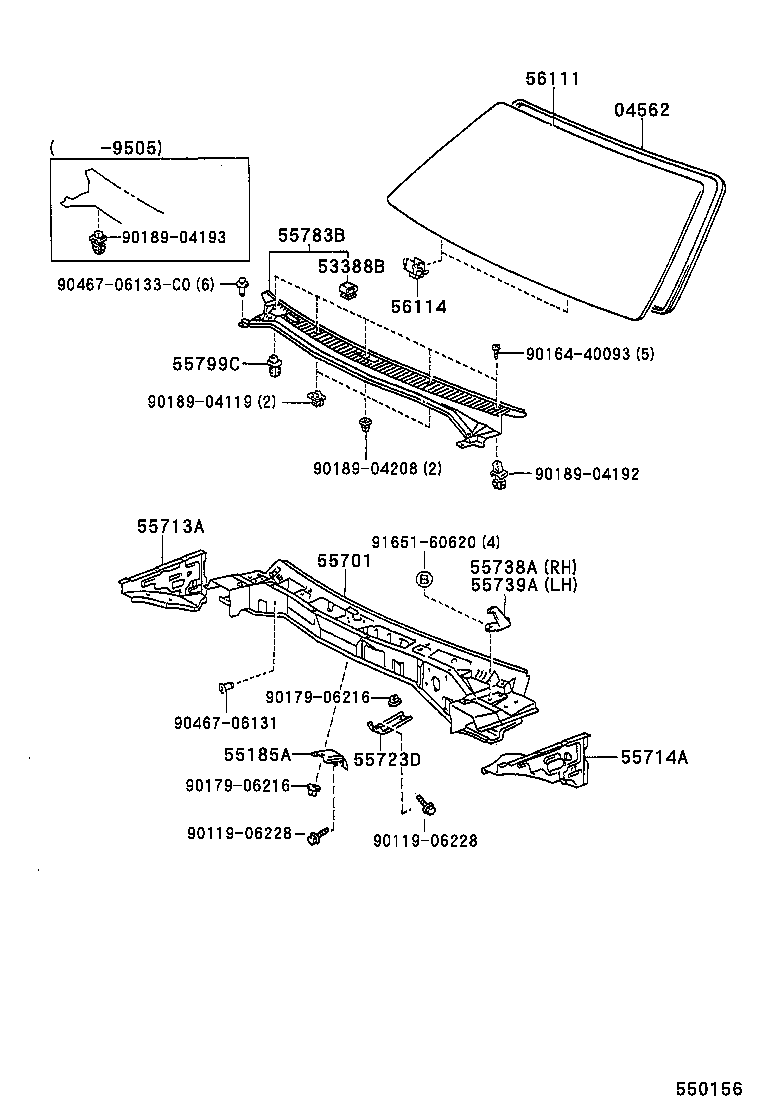

Click highlighted areas on diagram

diagram 04562 53388B 55185A 55701 55713A 55714A 55723D 55738A 55739A 55783B 55799C 56111 56114 9011906228 9011906228 9016440093 9017906216 9017906216 9018904119 9018904192 9018904193 9018904208 9046706131 9046706133C0 9165160620
Part # Description Qty Price
04562 - DAM KIT, WINDSHIELD GLASS
04562-12010

AE10#,CE100,EE10#

 1
53388B - CUSHION, HOOD, REAR
53388-12040

AE10#,CE100,EE10#

 1
55701 - PANEL SUB-ASSY, COWL
55700-12860

EE100

 1
55713A - PANEL, COWL TOP SIDE, RH
55713-12080

AE101,CE100,EE10#

 1
55714A - PANEL, COWL TOP SIDE, LH
55714-12080

AE101,CE100,EE10#

 1
55738A - STOPPER, HOOD, RH
55738-12090

AE10#,CE100,EE10#

 1
55739A - STOPPER, HOOD, LH
55739-12050

AE10#,CE100,EE10#

 1
55783B - LOUVER, COWL TOP VENTILATOR, CENTER NO.1
55708-12140

AE10#,CE100,EE10#..LHD

COLD AREA SPEC

 1
55708-12130

AE10#,CE100,EE10#..LHD

 1
56111 - GLASS, WINDSHIELD
56111-1A440

AE10#,CE100,EE10#..STD,XL,XLI

*LAM,T=4.7,CLEAR

 1
56111-1A460

AE10#,CE100,EE10#..GLI,XL,XLI

*TL,T=4.7

 1
56114 - RETAINER, WINDSHIELD GLASS
56110-12010

AE10#,CE100,EE10#

 2
Common parts
90119-06228
90164-40093
90179-06216
90189-04119
90189-04192
90189-04193
90189-04208
90467-06131
90467-06133C0
91651-60620
