EE100L-AWMDSW (1992)

Toyota Corolla Sed/Wg

Production May 1992 - May 1995
Engine 2E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9205- )

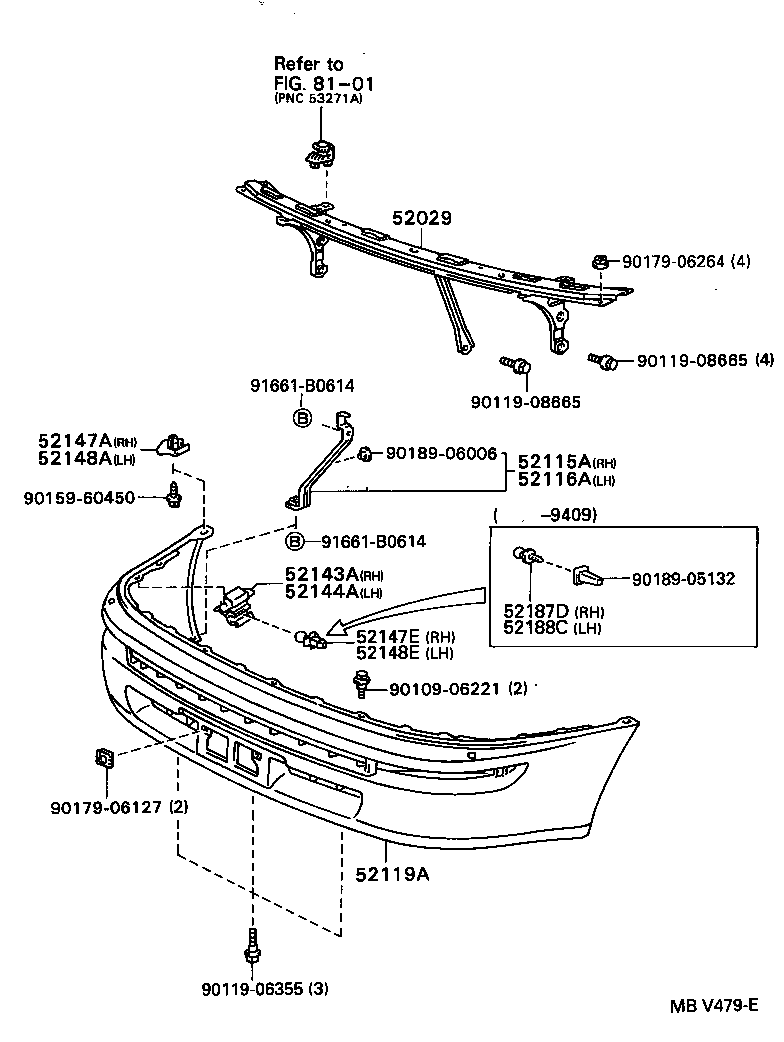

Click highlighted areas on diagram

diagram 52029 52115A 52116A 52119A 52143A 52144A 52147A 52147E 52148A 52148E 52187D 52188C 8101 9010906221 9011906355 9011908665 9011908665 9015960450 9017906127 9017906264 9018905132 9018906006 91661B0614 91661B0614
Part # Description Qty Price
52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52029-12010

AE10#,CE100,EE10#

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-12340

AE10#,CE100,EE10#

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-12270

AE10#,CE100,EE10#

 1
52119A - COVER, FRONT BUMPER
52119-1E010

AE10#,CE100,EE10#

 1
52143A - ARM, FRONT BUMPER, INNER RH
52143-12330

AE10#,CE100,EE10#

 1
52143-12300

AE101,CE100,EE10#

 1
52144A - ARM, FRONT BUMPER, INNER LH
52143-12330

AE10#,CE100,EE10#

 1
52143-12300

AE101,CE100,EE10#

 1
52147A - BRACKET, FRONT BUMPER STAY, RH
52147-12170

AE10#,CE100,EE10#

 1
52147E - BRACKET, FRONT BUMPER MOUNTING, RH
52148-12130

AE10#,CE100,EE10#

 1
52148A - BRACKET, FRONT BUMPER STAY, LH
52147-12170

AE10#,CE100,EE10#

 1
52148E - BRACKET, FRONT BUMPER MOUNTING, LH
52148-12130

AE10#,CE100,EE10#

 1
52187D - GUIDE, FRONT BUMPER LOCATION, RH
52187-12140

AE101,CE100,EE10#

 1
52188C - GUIDE, FRONT BUMPER LOCATION, LH
52187-12140

AE101,CE100,EE10#

 1
Common parts
90109-06221
90119-06355
90119-08665
90159-60450
90179-06127
90179-06264
90189-05132
90189-06006
91661-B0614
Linked diagrams
8101
