EE100L-AEMDSW (1992)

Toyota Corolla Sed/Wg

Production May 1992 - Apr 1997
Engine 2E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9205- )2E

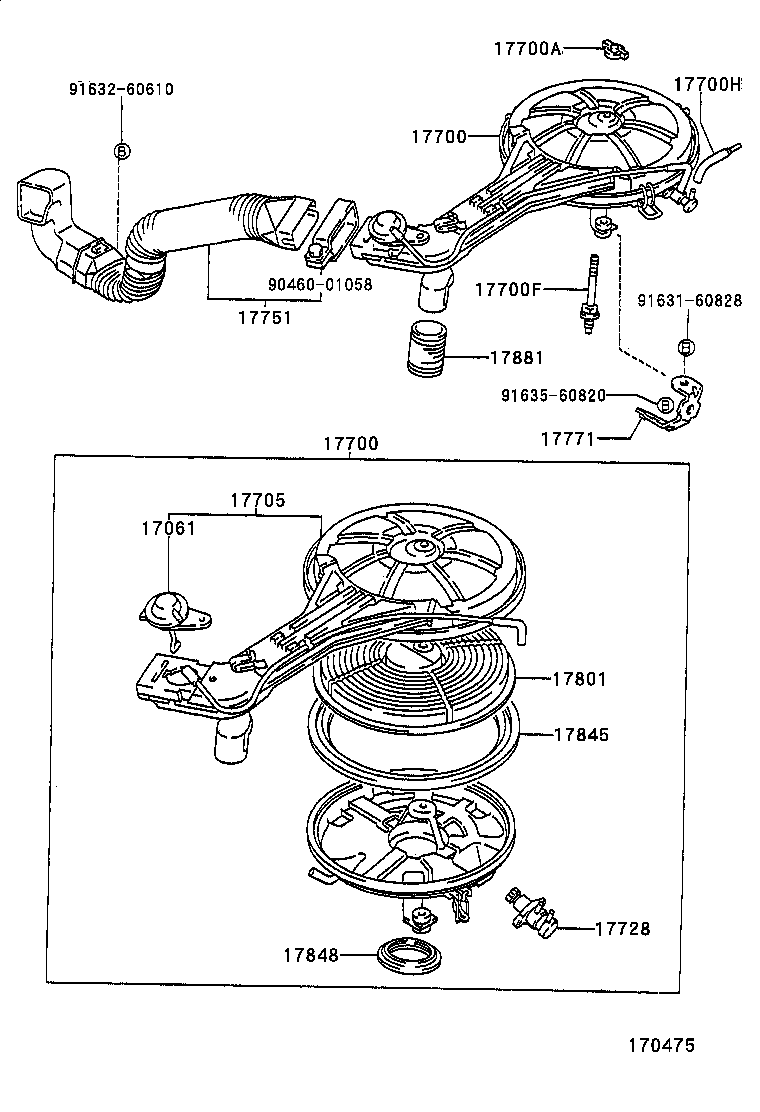

Click highlighted areas on diagram

diagram 17061 17700 17700 17700A 17700F 17700H 17705 17728 17751 17771 17801 17845 17848 17881 9046001058 9163160828 9163260610 9163560820
Part # Description Qty Price
17061 - DIAPHRAGM SUB-ASSY
17061-10010

2E..EE100

 1
17700 - CLEANER ASSY, AIR
17700-11790

2E..EE100

 1
17700 - CLEANER ASSY, AIR
17700-11790

2E..EE100

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-06010

2E..EE100

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06142

2E..EE100

 1
17700H - HOSE, AIR
17341-10010

2E..EE100

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-11360

2E..EE100

 1
17728 - VALVE, THERMOSTATIC
17728-11080

2E..EE100

 1
17751 - INLET, AIR CLEANER, NO.1
17750-11010

2E..EE100

 1
17750-11011

2E..EE100

 1
17771 - BRACKET, AIR CLEANER INLET DUCT
17771-11020

2E..EE100

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-11100

2E..EE100

 1
17845 - GASKET, AIR CLEANER CAP
17845-10020

2E..EE100

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
17848-10021

2E..EE100

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-10033

2E..EE100

 1
Common parts
90460-01058
91631-60828
91632-60610
91635-60820
