Toyota Corolla sed/wg CE110 WIRING & CLAMP

CE110R-AWMDEW (1997)

Toyota Corolla Sed/Wg

Production Apr 1997 - Oct 1999

Engine 2CE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 7 OF 7(9704- )

Click highlighted areas on diagram

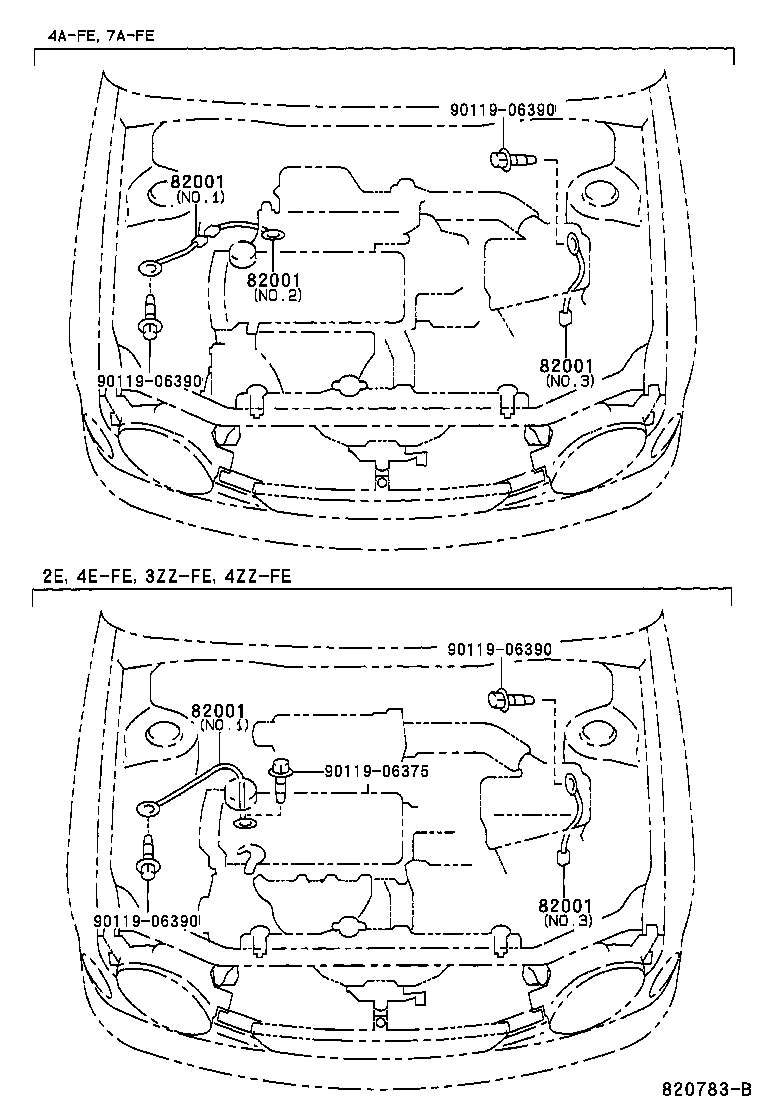

FUSIBLE LINK REPAIR

Part #	Description	Period	Qty	Price
82991 - WIRE, FUSIBLE LINK REPAIR
82991-12080	CE110	04/1997 - 10/1999	1

Part #

Description

Qty

Price

82991 - WIRE, FUSIBLE LINK REPAIR

82991-12080

CE110

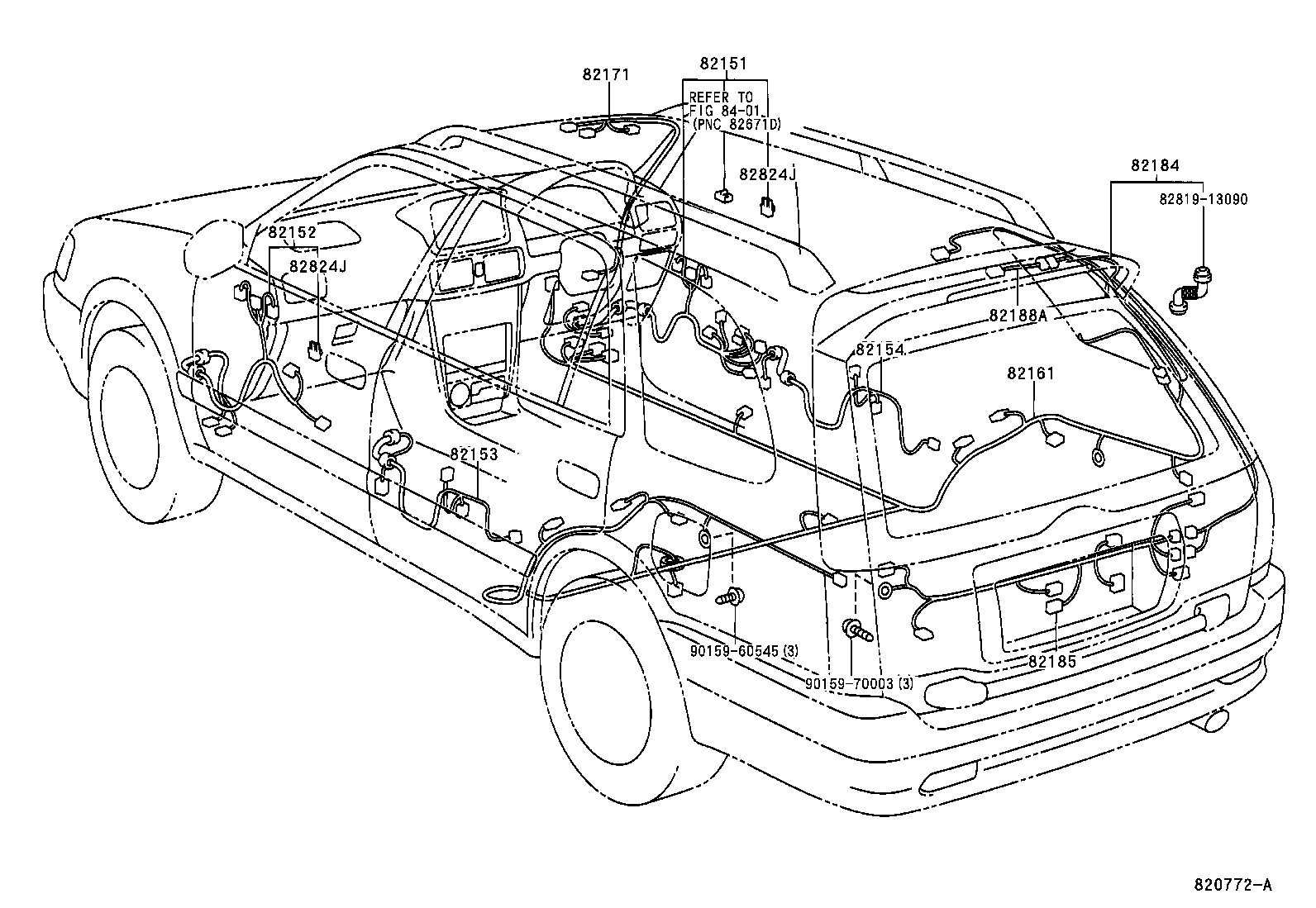

ILLUST NO. 4 OF 7(9704- )RHD..WG

Click highlighted areas on diagram

ROOF,DOOR,FLOOR

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-1A660	AE111,CE110,EE111..RHD W(POWER DOOR LOCK & POWER WINDOW---FRONT ONLY)	04/1997 - 10/1999	1
82151-1A640	AE111,CE110,EE111..RHD..TERRA W(POWER DOOR LOCK)	04/1997 - 10/1999	1
82151-1A890	AE111,CE110,EE11#..STD,TERRA	04/1997 - 10/1999	1
82152 - WIRE, FRONT DOOR, LH
82151-1A890	AE111,CE110,EE11#..STD,TERRA	04/1997 - 10/1999	1
82152-1A380	AE111,CE110,EE111..RHD W(POWER DOOR LOCK & POWER WINDOW & ELECTRIC REMOTE CONTROL MIRROR W/HEATER)	04/1997 - 10/1999	1
82152-1A370	AE111,CE110,EE111..RHD..TERRA W(POWER DOOR LOCK)	04/1997 - 10/1999	1
82153 - WIRE, REAR DOOR, NO.1
82153-12310	AE11#,CE110,EE11#..LUNA,TERRA	04/1997 - 10/1999	1
82154 - WIRE, REAR DOOR, NO.2
82153-12310	AE11#,CE110,EE11#..LUNA,TERRA	04/1997 - 10/1999	1
82161 - WIRE, FLOOR
82161-1F360	CE110,EE111..RHD..WG	04/1997 - 12/1997	1
82161-1F500	AE111,CE110,EE111..RHD..WG W(ABS)	04/1997 - 10/1999	1
82161-1F361	AE111,CE110,EE111..RHD..WG	12/1997 - 10/1999	1
82171 - WIRE, ROOF, NO.1
82171-13161	AE111,CE110,EE111..RHD..WG W(MOON ROOF) OR W(KEY LESS ENTRY & MOON ROOF)	04/1997 - 10/1999	1
82171-13141	AE111,CE110,EE111..RHD..WG	04/1997 - 10/1999	1
82184 - WIRE, BACK DOOR, NO.1
82184-13380	AE11#,CE110,EE111..WG	04/1997 - 10/1999	1
82185 - WIRE, BACK DOOR, NO.2
82185-13480	AE111,CE110,EE111..RHD..WG	04/1997 - 10/1999	1
82188A - WIRE, BACK DOOR, NO.3
82188-13010	AE11#,CE110,EE111..WG	04/1997 - 10/1999	1
82824J - CONNECTOR, WIRING HARNESS
82824-30130	CE110..RHD..WG	04/1997 - 10/1999	1
82824J - CONNECTOR, WIRING HARNESS
82824-30130	CE110..RHD..WG	04/1997 - 10/1999	1
Common parts
82819-13090
90159-60545
90159-70003
Linked diagrams
8401

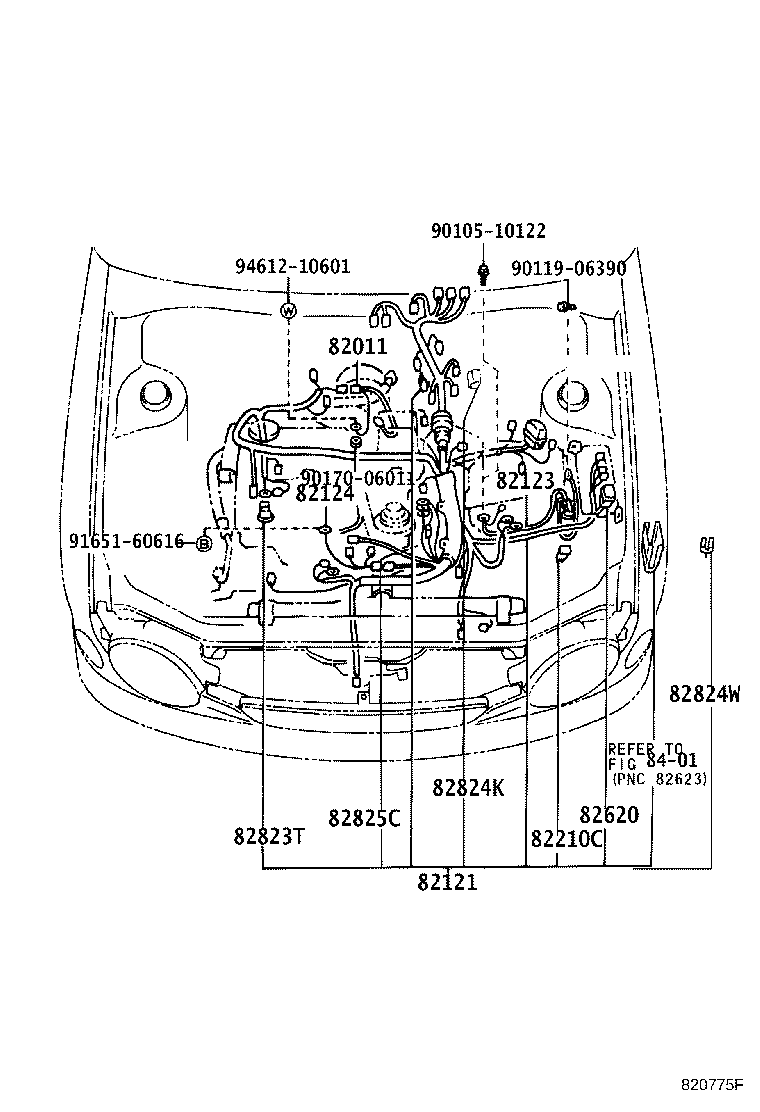

ILLUST NO. 1 OF 7(9704- )CE110

Click highlighted areas on diagram

ENGINE

Part #	Description	Period	Qty
82011 - WIRING ASSY, BRAKE WARNING SYSTEM
82011-12020	CE110	04/1997 - 10/1999	1
82121 - WIRE, ENGINE
82121-1N810	CE110..RHD	04/1997 - 10/1999	1
82123 - WIRE, ENGINE, NO.3
82123-12330	CE110	04/1997 - 10/1999	1
82124 - WIRE, ENGINE, NO.4
82124-12081	CE110	04/1997 - 10/1999	1
82210C - FUSIBLE LINK
90982-08246	AE11#,CE110,EE11# 100A,TERM.:MALE,BLUE	04/1997 - 10/1999	1
90982-08282	AE11#,CE110,EE11# 50A,TERM.:FEMALE,RED	04/1997 - 10/1999	1
90982-08280	EE110;AE111,CE110,EE111..RHD 30A,TERM.:FEMALE,PNK	04/1997 - 10/1999	1
90982-08228	AE11#,CE110,EE111 50A,TERM.:MALE,RED	04/1997 - 10/1999	1
90982-08281	AE111..LHD;AE115,CE110,EE11#;AE111..RHD..TERRA 40A,TERM.:FEMALE,GRN	04/1997 - 10/1999	1
82620 - BLOCK ASSY, FUSIBLE LINK
82620-13020	AE11#,CE110,EE11#	04/1997 - 10/1999	1
82823T - CAP, ALTERNATOR TERMINAL
82823-22060	CE110,EE111	04/1997 - 10/1999	1
82824K - CONNECTOR, WIRING HARNESS
82824-30130	AE111,CE110,EE111..RHD	04/1997 - 10/1999	1
82824-12210	AE111,CE110,EE111..RHD BLACK	04/1997 - 10/1999	1
82824W - CONNECTOR, WIRING HARNESS
82824-30130	AE111,CE110,EE111..RHD NO.1	04/1997 - 10/1999	1
82824-30130	AE111..LHD;AE111..RHD..TERRA;CE110,EE11#..LUNA,TERRA NO.2	04/1997 - 10/1999	2
Common parts
90105-10122
90119-06390
90170-06011
91651-60616
94612-10601
Linked diagrams
8401

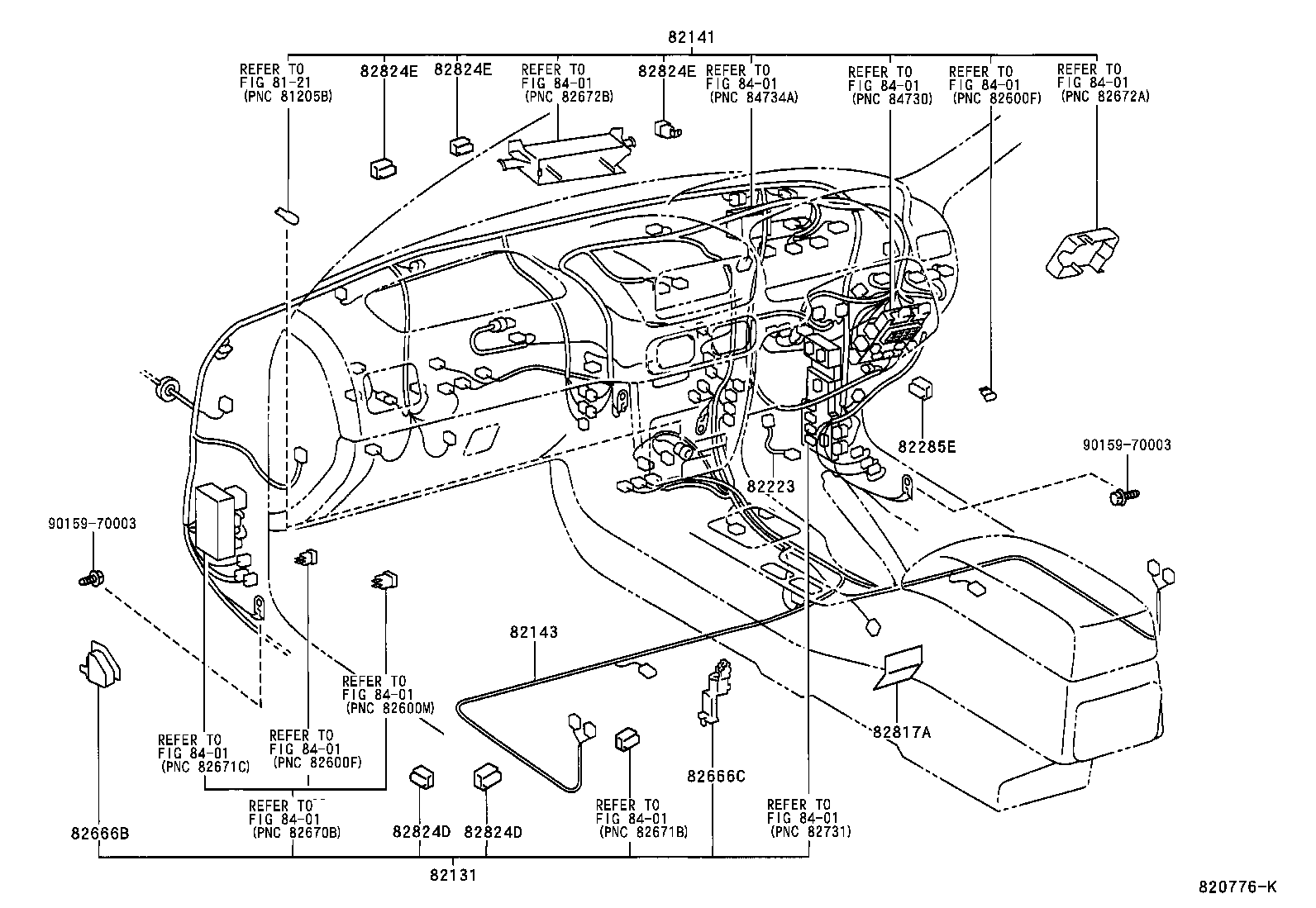

ILLUST NO. 3 OF 7(9704- )RHD

Click highlighted areas on diagram

COWL,INSTRUMENT

Part #	Description	Period	Qty
82131 - WIRE, COWL
82131-1L630	AE111,CE110,EE111..RHD W(AIR CONDITIONER)	04/1997 - 08/1998	1
82131-1L631	AE111,CE110,EE111..RHD W(AIR CONDITIONER)	08/1998 - 10/1999	1
82131-1L611	AE111,CE110,EE111..RHD	08/1998 - 10/1999	1
82131-1L610	AE111,CE110,EE111..RHD	04/1997 - 08/1998	1
82141 - WIRE, INSTRUMENT PANEL
82141-1N210	AE111,CE110,EE111..RHD W(*80, SIDE & AIR CONDITIONER) OR W(AIR CONDITIONER)	04/1997 - 08/1998	1
82141-1N190	AE111,CE110,EE111..RHD W(*80, SIDE)	04/1997 - 08/1998	1
82141-1N211	AE111,CE110,EE111..RHD W(*80, SIDE & AIR CONDITIONER) OR W(AIR CONDITIONER)	08/1998 - 10/1999	1
82141-1N191	AE111,CE110,EE111..RHD	08/1998 - 10/1999	1
82143 - WIRE, INSTRUMENT PANEL, NO.3
82143-12010	AE111,CE110,EE11#	04/1997 - 10/1999	1
82143-12021	AE111,CE110,EE111 W(*80, SIDE)	08/1997 - 10/1999	1
82285E - WIRE, ILLUMINATION
82285-12020	AE11#,CE110,EE11#	04/1997 - 10/1999	1
82666B - HOLDER, CONNECTOR NO.3
82666-12230	AE111,CE110,EE111..RHD	04/1997 - 10/1999	1
82666C - HOLDER, CONNECTOR NO.4
82666-12190	AE111,CE110,EE111..RHD	04/1997 - 10/1999	1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-1A620	AE11#,CE110,EE11#	04/1997 - 10/1999	1
82824D - CONNECTOR, WIRING HARNESS
82824-20050	AE11#,CE110,EE11# NO.2	04/1997 - 10/1999	1
82824D - CONNECTOR, WIRING HARNESS
82824-20050	AE11#,CE110,EE11# NO.2	04/1997 - 10/1999	1
82824E - CONNECTOR, WIRING HARNESS
82824-12220	AE11#,CE110,EE11#..STD,TERRA NATURAL	04/1997 - 10/1999	3
82824-12200	AE11#,CE110,EE11#	04/1997 - 10/1999	1
82824-30180	AE111,CE110,EE111..RHD NO.2	04/1997 - 10/1999	1
82824-12210	AE11#,CE110,EE11# BLACK	04/1997 - 10/1999	1
82824E - CONNECTOR, WIRING HARNESS
82824-12220	AE11#,CE110,EE11#..STD,TERRA NATURAL	04/1997 - 10/1999	3
82824-12200	AE11#,CE110,EE11#	04/1997 - 10/1999	1
82824-30180	AE111,CE110,EE111..RHD NO.2	04/1997 - 10/1999	1
82824-12210	AE11#,CE110,EE11# BLACK	04/1997 - 10/1999	1
82824E - CONNECTOR, WIRING HARNESS
82824-12220	AE11#,CE110,EE11#..STD,TERRA NATURAL	04/1997 - 10/1999	3
82824-12200	AE11#,CE110,EE11#	04/1997 - 10/1999	1
82824-30180	AE111,CE110,EE111..RHD NO.2	04/1997 - 10/1999	1
82824-12210	AE11#,CE110,EE11# BLACK	04/1997 - 10/1999	1
Common parts
90159-70003
Linked diagrams
8121
8401

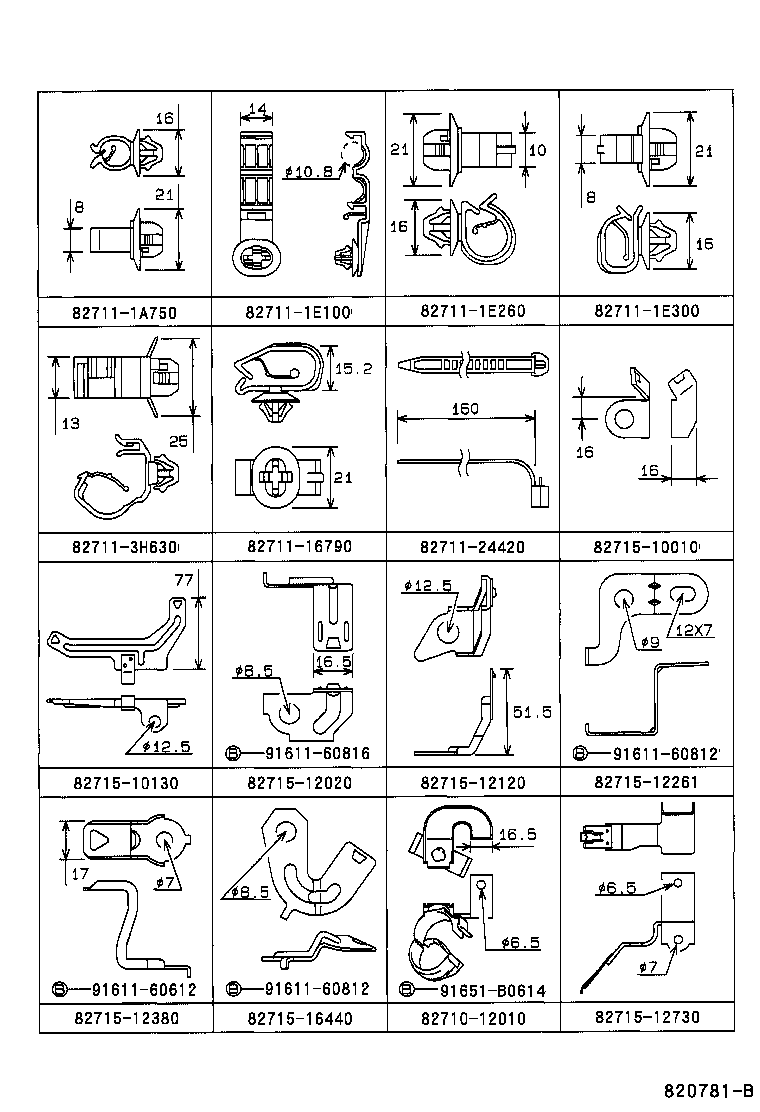

ILLUST NO. 5 OF 7(9704- )

Click highlighted areas on diagram

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82710-12010
82711-16790
82711-1A750
82711-1E100
82711-1E260
82711-1E300
82711-24420
82711-3H630
82715-10010
82715-10130
82715-12020
82715-12120
82715-12261
82715-12380
82715-12730
82715-16440
91611-60612
91611-60812
91611-60816
91651-B0614

ILLUST NO. 5 OF 7(9704- )

Click highlighted areas on diagram

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82711-10370
82711-1A760
82711-1E350
82711-1E390
82711-1E440
82711-20330
82715-02100
82715-12090
82715-12140
82715-12261
82715-12350
82715-12420
82715-12440
82715-12500
82715-12510
82715-12550
82715-20430
82715-32390
82715-33140
82715-89113
90080-11479
90119-06316
90119-06539
91621-40608
91621-60612
91651-60612
91651-B0614

ILLUST NO. 6 OF 7(9704- )

Click highlighted areas on diagram

CABLE BOND

Part #	Description	Period	Qty	Price
Common parts
90119-06375
90119-06390

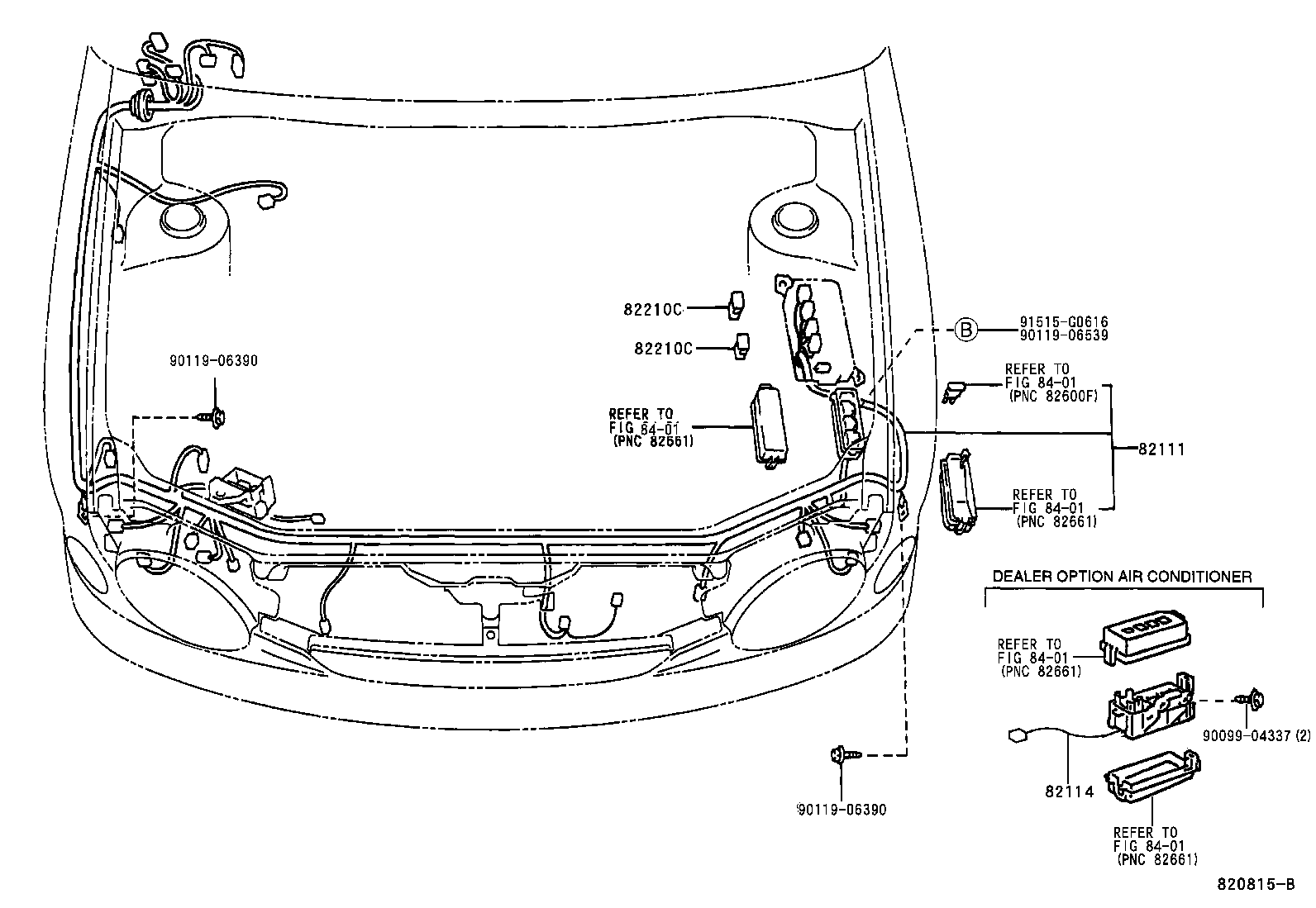

ILLUST NO. 2 OF 7(9704- )

Click highlighted areas on diagram

ENGINE ROOM

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-1H650	AE111,CE110,EE111..RHD	04/1997 - 12/1997	1
82111-1H660	AE111,CE110,EE111..RHD W(ABS)	04/1997 - 12/1997	1
82111-1H690	CE110..RHD W(AIR CONDITIONER)	04/1997 - 12/1997	1
82111-1H700	CE110..RHD W(ABS & AIR CONDITIONER)	04/1997 - 12/1997	1
82111-1H701	CE110..RHD W(ABS & AIR CONDITIONER)	12/1997 - 05/1998	1
82111-1H661	AE111,CE110,EE111..RHD W(ABS)	12/1997 - 05/1998	1
82111-1H651	AE111,CE110,EE111..RHD	12/1997 - 10/1999	1
82111-1K230	AE111,CE110,EE111..RHD W(ABS)	05/1998 - 10/1999	1
82111-1K250	CE110..RHD W(ABS & AIR CONDITIONER)	05/1998 - 10/1999	1
82111-1H691	CE110..RHD W(AIR CONDITIONER)	12/1997 - 10/1999	1
82210C - FUSIBLE LINK
90982-08246	AE11#,CE110,EE11# 100A,TERM.:MALE,BLUE	04/1997 - 10/1999	1
90982-08282	AE11#,CE110,EE11# 50A,TERM.:FEMALE,RED	04/1997 - 10/1999	1
90982-08280	EE110;AE111,CE110,EE111..RHD 30A,TERM.:FEMALE,PNK	04/1997 - 10/1999	1
90982-08228	AE11#,CE110,EE111 50A,TERM.:MALE,RED	04/1997 - 10/1999	1
90982-08281	AE111..LHD;AE115,CE110,EE11#;AE111..RHD..TERRA 40A,TERM.:FEMALE,GRN	04/1997 - 10/1999	1
82210C - FUSIBLE LINK
90982-08246	AE11#,CE110,EE11# 100A,TERM.:MALE,BLUE	04/1997 - 10/1999	1
90982-08282	AE11#,CE110,EE11# 50A,TERM.:FEMALE,RED	04/1997 - 10/1999	1
90982-08280	EE110;AE111,CE110,EE111..RHD 30A,TERM.:FEMALE,PNK	04/1997 - 10/1999	1
90982-08228	AE11#,CE110,EE111 50A,TERM.:MALE,RED	04/1997 - 10/1999	1
90982-08281	AE111..LHD;AE115,CE110,EE11#;AE111..RHD..TERRA 40A,TERM.:FEMALE,GRN	04/1997 - 10/1999	1
Common parts
90099-04337
90119-06390
90119-06539
91515-G0616
Linked diagrams
8401

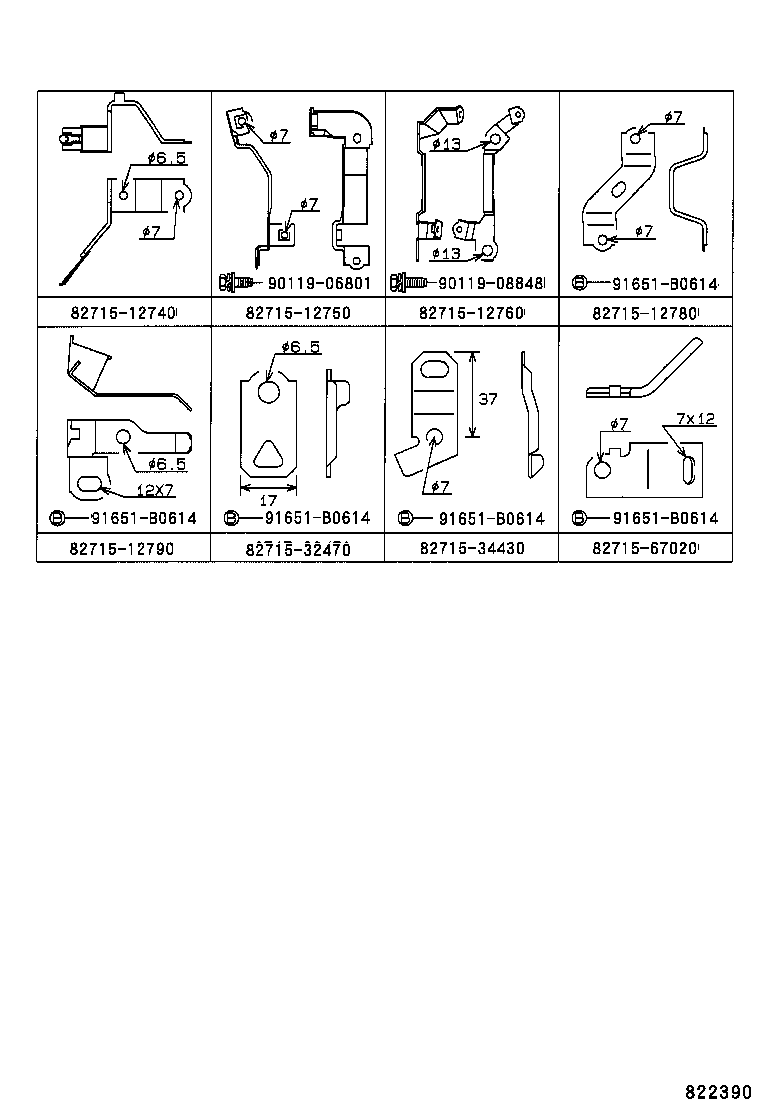

ILLUST NO. 5 OF 7(9704- )

Click highlighted areas on diagram

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82715-12740
82715-12750
82715-12760
82715-12780
82715-12790
82715-32470
82715-34430
82715-67020
90119-06801
90119-08848
91651-B0614
