CE110R-AWMDEW (1997)

Toyota Corolla Sed/Wg

Production Apr 1997 - Oct 1999
Engine 2CE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9704-9910)

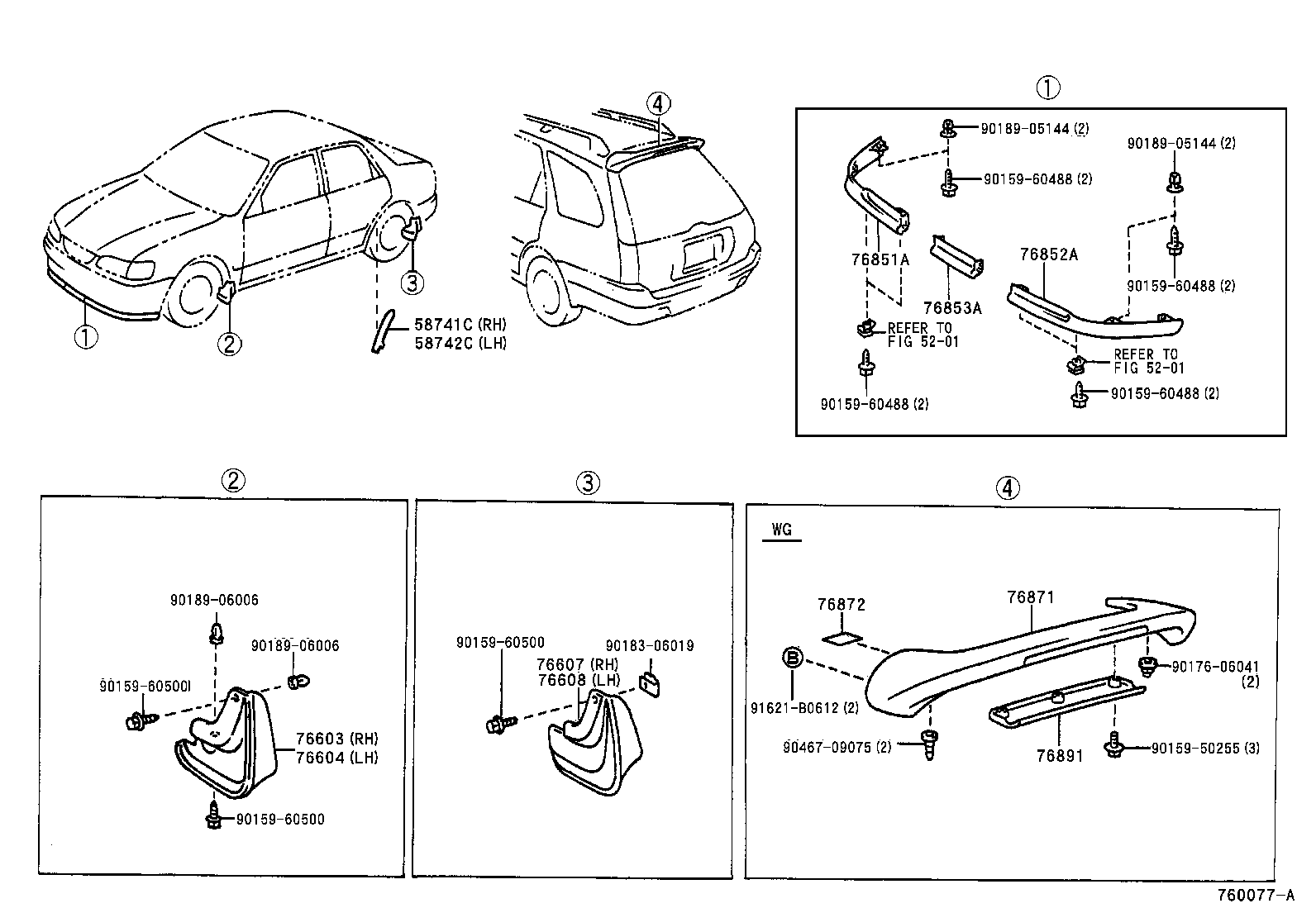

Click highlighted areas on diagram

diagram 58741C 58742C 76603 76604 76607 76608 76851A 76852A 76853A 76871 76872 76891 9015950255 9015960488 9015960488 9015960500 9015960500 9015960500 9017606041 9018306019 9018905144 9018905144 9018906006 9018906006 9046709075 91621B0612
Part # Description Qty Price
58741C - PROTECTOR, QUARTER PANEL, RH
58741-12130

AE11#,CE110,EE11#

 1
58742C - PROTECTOR, QUARTER PANEL, LH
58742-12120

AE11#,CE110,EE11#

 1
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76621-12181

AE11#,CE110,EE11#

 1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76622-12181

AE11#,CE110,EE11#

 1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76625-12440

AE11#,CE110,EE11#

 1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76626-12430

AE11#,CE110,EE11#

 1
76871 - SPOILER, REAR
76871-13901

AE11#,CE110,EE111..WG

 1
76872 - PROTECTOR, REAR SPOILER, NO.1
76872-13020

AE11#,CE110,EE111..WG

 2
76891 - SPOILER, REAR NO.1
76891-12110

AE11#,CE110,EE111..WG

 1
Common parts
90159-50255
90159-60488
90159-60500
90176-06041
90183-06019
90189-05144
90189-06006
90467-09075
91621-B0612
