CE110R-AWMDEW (1997)

Toyota Corolla Sed/Wg

Production Apr 1997 - Oct 1999
Engine 2CE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )

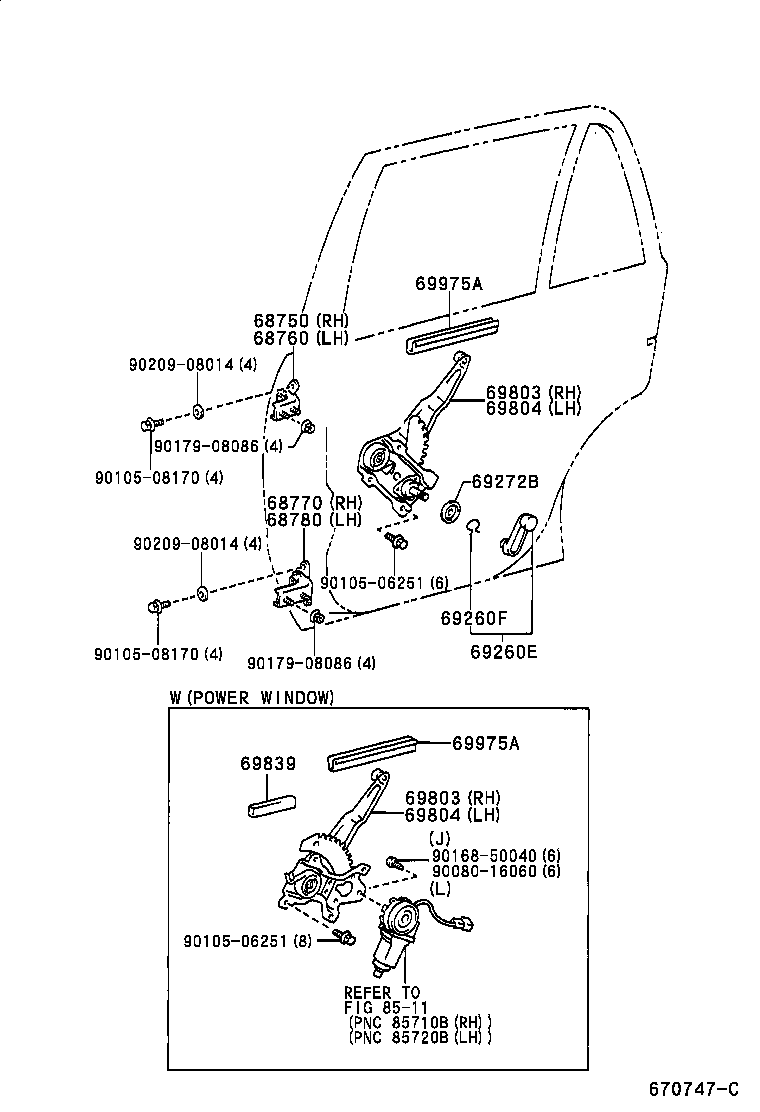

Click highlighted areas on diagram

diagram 68750 68760 68770 68780 69260E 69260F 69272B 69803 69803 69804 69804 69839 69975A 69975A 8511 9008016060 9010506251 9010506251 9010508170 9010508170 9016850040 9017908086 9017908086 9020908014 9020908014
Part # Description Qty Price
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-32060

AE11#,CE110,EE11#

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68760-32060

AE11#,CE110,EE11#

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68770-12100

AE11#,CE110,EE11#

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68780-12090

AE11#,CE110,EE11#

 1
69260E - HANDLE ASSY, REAR DOOR WINDOW REGULATOR
69260-14030B4

AE11#,CE110,EE11#

MD.CHARCOAL,TRIM1#

 2
69260-14030P0

AE11#,CE110,EE111..WG

SHADOW GRAY,TRIM12

 2
69260-14030B4

AE11#,CE110,EE111..WG

MD.CHARCOAL,TRIM10

 2
69260-14030B4

AE11#,CE110,EE11#..LUNA,TERRA

MD.CHARCOAL,TRIM10

 2
69260-14030P0

AE11#,CE110,EE11#..LUNA,TERRA

SHADOW GRAY,TRIM12

 2
69260F - RING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)
90520-01274

AE11#,CE110,EE11#

 2
69272B - PLATE, REAR DOOR REGULATOR INSIDE HANDLE
69268-20020

AE11#,CE110,EE11#

 2
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69830-12310

AE11#,CE110,EE11#

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69830-12310

AE11#,CE110,EE11#

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69840-12310

AE11#,CE110,EE11#

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69840-12310

AE11#,CE110,EE11#

 1
69975A - FILLER, REAR DOOR GLASS CHANNEL
69975-12010

AE11#,CE110,EE11#

 2
69975A - FILLER, REAR DOOR GLASS CHANNEL
69975-12010

AE11#,CE110,EE11#

 2
Common parts
90080-16060
90105-06251
90105-08170
90168-50040
90179-08086
90209-08014
Linked diagrams
8511
