Toyota Corolla sed/wg CE110 CONSOLE BOX & BRACKET

Part #	Description	Period	Qty
55539A - COVER, SPARE SWITCH HOLE
55539-20020B4	AE11#,CE110,EE11# MD.CHARCOAL,TRIM1#	04/1997 - 08/1998	1
55539-20020B4	AE111..WG;AE111..SED..LUNA;AE111..RHD..TERRA;AE111..SED..4FC..TERRA;CE110,EE11#..LUNA,TERRA MD.CHARCOAL,TRIM10	01/1999 - 10/1999	1
55539-20020P0	AE111..WG;AE111..SED..LUNA;AE111..RHD..TERRA;AE111..SED..4FC..TERRA;CE110,EE11#..LUNA,TERRA SHADOW GRAY,TRIM12	01/1999 - 10/1999	1
55539-20020B4	AE111,CE110,EE111..WG MD.CHARCOAL,TRIM10	08/1998 - 01/1999	1
55539-20020P0	AE111,CE110,EE111..WG SHADOW GRAY,TRIM12	08/1998 - 01/1999	1
55539A - COVER, SPARE SWITCH HOLE
55539-20020B4	AE11#,CE110,EE11# MD.CHARCOAL,TRIM1#	04/1997 - 08/1998	1
55539-20020B4	AE111..WG;AE111..SED..LUNA;AE111..RHD..TERRA;AE111..SED..4FC..TERRA;CE110,EE11#..LUNA,TERRA MD.CHARCOAL,TRIM10	01/1999 - 10/1999	1
55539-20020P0	AE111..WG;AE111..SED..LUNA;AE111..RHD..TERRA;AE111..SED..4FC..TERRA;CE110,EE11#..LUNA,TERRA SHADOW GRAY,TRIM12	01/1999 - 10/1999	1
55539-20020B4	AE111,CE110,EE111..WG MD.CHARCOAL,TRIM10	08/1998 - 01/1999	1
55539-20020P0	AE111,CE110,EE111..WG SHADOW GRAY,TRIM12	08/1998 - 01/1999	1
55539K - COVER, SPARE SWITCH HOLE
55539-12120B2	AE111,CE110,EE111..WG MD.CHARCOAL,TRIM10	08/1998 - 01/1999	1
55539-12120B0	AE111..WG;AE111..SED..LUNA;AE111..RHD..TERRA;AE111..SED..4FC..TERRA;CE110,EE11#..LUNA,TERRA SHADOW GRAY,TRIM12	01/1999 - 10/1999	1
55539-12120B2	AE111..WG;AE111..SED..LUNA;AE111..RHD..TERRA;AE111..SED..4FC..TERRA;CE110,EE11#..LUNA,TERRA MD.CHARCOAL,TRIM10	01/1999 - 10/1999	1
55539-12120B2	AE11#,CE110,EE11#..TERRA MD.CHARCOAL,TRIM1#	04/1997 - 08/1998	1
55539-12120B0	AE111,CE110,EE111..WG SHADOW GRAY,TRIM12	08/1998 - 01/1999	1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-12112B1	AE11#,CE110,EE11#..5F..TERRA DK.CHARCOAL,TRIM1#	04/1997 - 08/1998	1
58808-12112P0	AE11#,CE110,EE111..WG..5F SHADOW GRAY,TRIM12	08/1998 - 10/1999	1
58808-12112B1	AE11#,CE110,EE111..WG..5F DK.CHARCOAL,TRIM10	08/1998 - 10/1999	1
58901A - BOX SUB-ASSY, CONSOLE, REAR
58901-12220B1	AE111,CE110,EE11# W(CONSOLE BOX DOOR),MD.CHARCOAL,TRIM1#	04/1997 - 08/1998	1
58901-12220B1	AE111,CE110,EE111..WG W(CONSOLE BOX DOOR),MD.CHARCOAL,TRIM10	08/1998 - 10/1999	1
58901-12220B0	AE111,CE110,EE111..WG..TERRA W(CONSOLE BOX DOOR),SHADOW GRAY,TRIM12	08/1998 - 10/1999	1
58901A - BOX SUB-ASSY, CONSOLE, REAR
58901-12220B1	AE111,CE110,EE11# W(CONSOLE BOX DOOR),MD.CHARCOAL,TRIM1#	04/1997 - 08/1998	1
58901-12220B1	AE111,CE110,EE111..WG W(CONSOLE BOX DOOR),MD.CHARCOAL,TRIM10	08/1998 - 10/1999	1
58901-12220B0	AE111,CE110,EE111..WG..TERRA W(CONSOLE BOX DOOR),SHADOW GRAY,TRIM12	08/1998 - 10/1999	1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-12160B1	AE11#,CE110,EE111..WG MD.CHARCOAL,TRIM10	08/1998 - 10/1999	1
58905-12160B0	AE11#,CE110,EE111..WG SHADOW GRAY,TRIM12	08/1998 - 10/1999	1
58905-12160B1	AE11#,CE110,EE11# MD.CHARCOAL,TRIM1#	04/1997 - 08/1998	1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-32040	AE11#,CE110,EE11#	04/1997 - 10/1999	1
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-12040	AE11#,CE110,EE11#	04/1997 - 10/1999	1
58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2
58965-12040	AE11#,CE110,EE11#	04/1997 - 10/1999	1
58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-12080	AE11#,CE110,EE11#..5F	04/1997 - 10/1999	1
Common parts
90119-08413
90119-08848
90467-10130
90541-03006
93567-54512
93567-55014
93568-55016

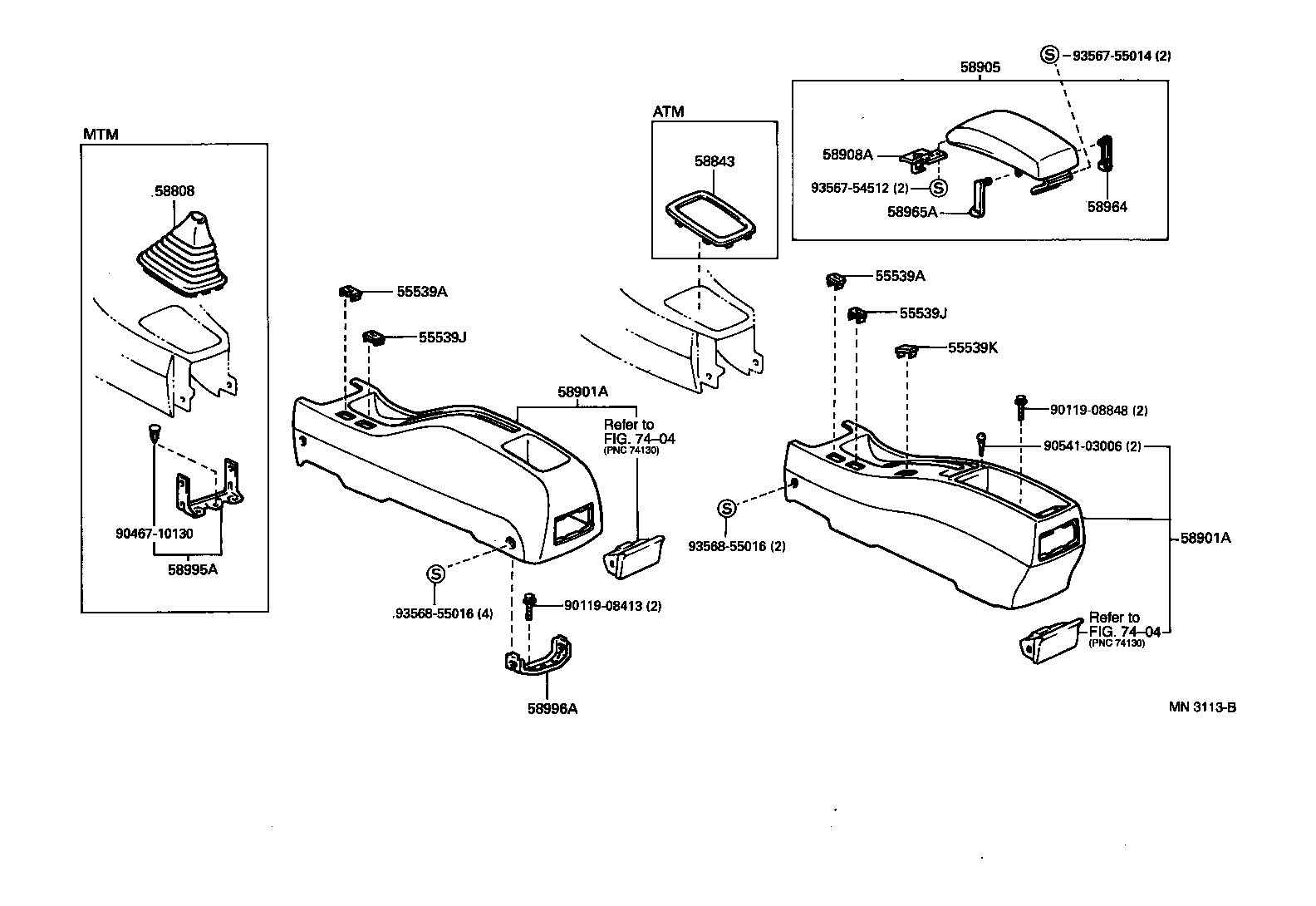

Linked diagrams
7404

CE110R-AWMDEW (1997)

(9704- )
