CE110R-AWMDEW (1997)

Toyota Corolla Sed/Wg

Production Apr 1997 - Oct 1999
Engine 2CE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )

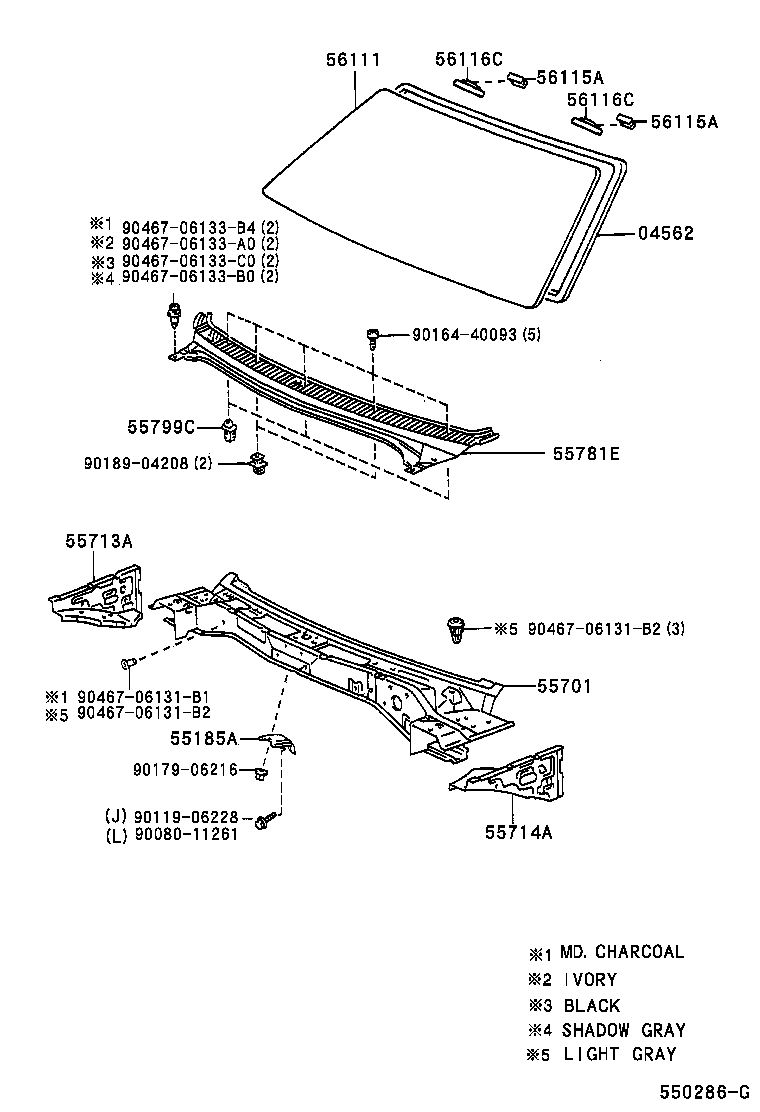

Click highlighted areas on diagram

diagram 04562 55185A 55701 55713A 55714A 55781E 55799C 56111 56115A 56115A 56116C 56116C 9008011261 9011906228 9016440093 9017906216 9018904208 9046706131B1 9046706131B2 9046706131B2 9046706133A0 9046706133B0 9046706133B4 9046706133C0
Part # Description Qty Price
04562 - DAM KIT, WINDSHIELD GLASS
04562-12010

AE11#,CE110,EE11#

 1
55701 - PANEL SUB-ASSY, COWL
55700-1A111

CE110..RHD

 1
55700-1A901

CE110..RHD

 1
55713A - PANEL, COWL TOP SIDE, RH
55713-12081

AE11#,CE110,EE11#

 1
55714A - PANEL, COWL TOP SIDE, LH
55714-12081

AE11#,CE110,EE11#

 1
55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708-12160

AE111,CE110,EE111..RHD

 1
55799C - CLIP, COWL TOP VENTILATOR LOUVER
55799-12010

AE11#,CE110,EE11#

 4
56111 - GLASS, WINDSHIELD
56111-1A690

AE11#,CE110,EE11#

*LAM,T=4.76,GREEN

 1
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-12050

AE11#,CE110,EE11#

 2
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-12050

AE11#,CE110,EE11#

 2
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-22050

AE11#,CE110,EE11#

 2
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-22050

AE11#,CE110,EE11#

 2
Common parts
90080-11261
90119-06228
90164-40093
90179-06216
90189-04208
90467-06131B1
90467-06131B2
90467-06133A0
90467-06133B0
90467-06133B4
90467-06133C0
